SINCH OWNER’S MANUAL
(THROTTLE ON DEMAND)
AVENTON SINCH OWNER’S MANUAL
Thank you for purchasing an Aventon Sinch ebike! Before riding,
please take a moment to review these instructions.
ASSEMBLY INSTRUCTIONS
To view the assembly instructions to your Aventon ebike, visit the
product page on our website, there you will find a step by step
assembly video. If you aren’t comfortable with the steps shown,
you can use a local bicycle shop or mobile repair and assembly
service, like Velofix, or Velotooler to assemble the bike for you.
We recommend Aventon Elite bike shops, you can find that list on
our website, but any qualified bike shop can help.
Need service or support? Visit our website (www.aventon.com) for
quick answers, manuals, and live chat support. Or give us a call
and we’ll find you a solution.
Aventon Bikes
1950-B S. Grove Avenue
Ontario, CA 91761 USA
Phone: (866) 300-3311
Email: [email protected]
Version 1.1.2 (August 1, 2020)
Latest version can be found: www.aventon.com
CONTENTS
Display / Control Specifications
Getting Started
What’s on the Display?
Using the Controls
Customizing the Display
• Function 01P Backlight Brightness
• Function 02P Unit of Measure
• Function 03P Battery Voltage
• Function 04P Wheel Size
• Function 05P Speed Limit
Battery and Charging
Adjusting Suspension Fork
Maintenance and Service
Safety
Safe Starting & Stopping
Error Codes and Troubleshooting
Battery Troubleshooting
Frequently Asked Questions
Notes
1
2
3
4
5
5
5
5
6
6
7
9
10
11
12
14
20
22
24
SINCH OWNER’S MANUAL
1
DISPLAY / CONTROL SPECIFICATIONS
• 48 Volt Power Supply
• Current Rated: 10mA
• Maximum Operating Current: 30mA
• Power O Leakage Current < 1uA
• Operating Current to Controller: 50mA
• Operating Temperature: -18º to 65ºC
• Storage Temperature: -30º to 80ºC

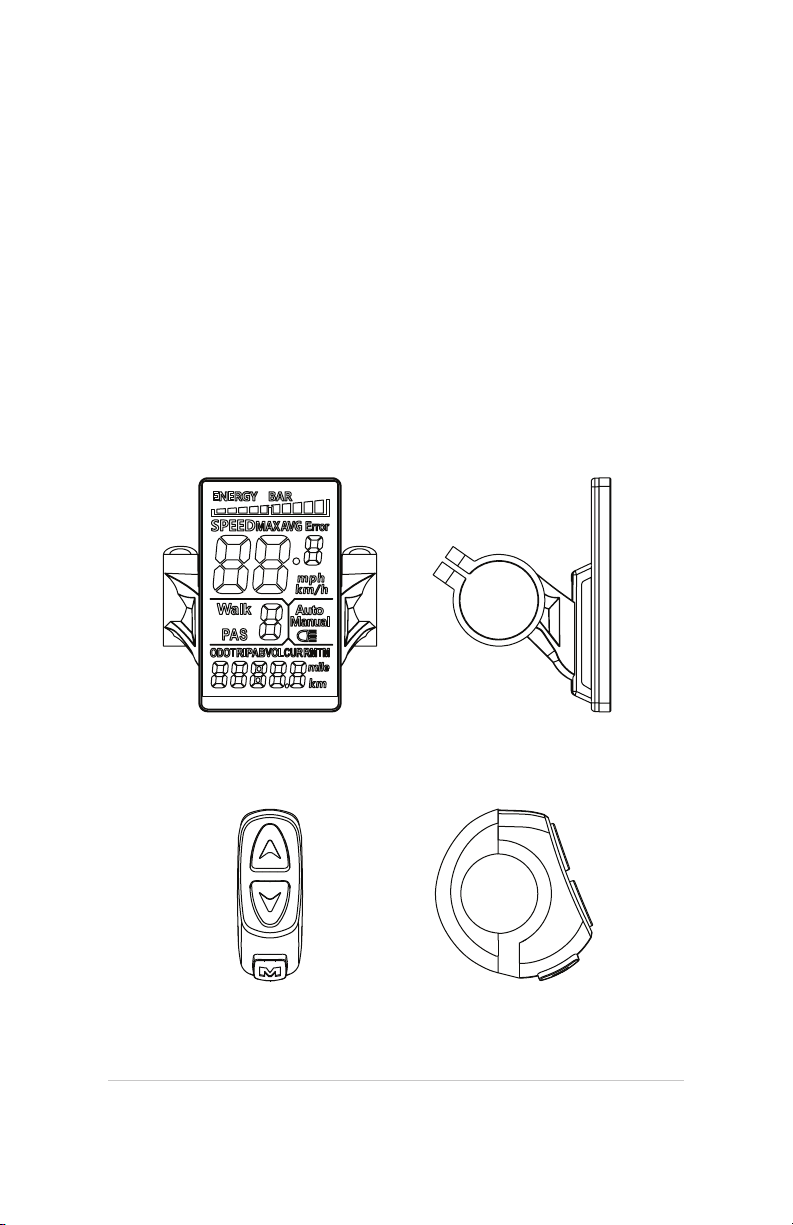

Display Panel
Control Pad
(Side View)
(Side View)
SINCH OWNER’S MANUAL 2
GETTING STARTED
The Sinch is operated using the control pad on the handlebars.
The control pad is located near the left-hand brake lever.
Press and hold the “M” button on the handlebar controls to turn
and hold “M” for 3 seconds.
pedal assist, simply start pedaling, then tap the “U” or “D” arrows
to increase or decrease the amount of pedal assist from 0-5.
Pedal assist will engage at speeds up to 20 MPH / 32 KPH.
The Sinch ebike is equipped with a throttle, which is mounted
near the rider’s left thumb, to propel the bike without pedaling.
You can engage the throttle anytime including from a complete
stop while in PAS 1 through 5. However, we strongly encourage
you to pedal first before engaging the throttle. The throttle can
propel you at speeds up to 20 MPH.
The motor stops when you: stop pedaling, squeeze the brake
levers, or release the throttle. Simply start pedaling again to re-
engage the motor.
SINCH OWNER’S MANUAL
3
WHAT’S ON THE DISPLAY
While you are riding, you can use the display to monitor your
speed, the amount of pedal assist, battery life remaining, and
other data.
As shown below, your Sinch uses a LCD display screen that looks
like this:
SPEED INDICATOR
(Current / Max / Average)
5 LEVELS OF ASSIST
(0: No Assist. 5: Max Assist)
WALK MODE
(On / O)
DISTANCE INDICATOR
(Current Trip / System Mileage)
ERROR CODE INDICATOR
(In the Event of a Problem)
BACKLIGHT INDICATOR
(On / O)
ENERGY BAR
(Displays Battery Charge Level)
VOLTAGE OUTPUT INDICATOR
(Real-Time)
SINCH OWNER’S MANUAL 4
USING THE CONTROLS
To turn on your bike, press and hold the “M” button for 3 seconds.
To turn o, press and hold the “M” button for 3 seconds. The
display and battery have an energy-saving feature, if there is no
activity for 10 minutes, they will turn o automatically to preserve
battery life.
Tap the “U” or “D” arrows to change the level of pedal assist.
Hold “U” and “M” for 3 seconds to switch between showing real-
time speed, average speed, and max speed.
Tap “M” to toggle between the display of the Odometer, Trip
Distance, Voltage, and Elapsed Time.
Press and hold “U” for 3 seconds to enable the backlight on the
display. Press and hold “U” again for 4 seconds to turn it o.
To enable walk mode, first come to a complete stop and stand
next to the bike. Press and hold “D” for 3 seconds. The bike will
slowly move forward at 3.5 MPH / 6 KPH as long as you hold the
“D” button. This feature is useful for pushing the bike up a hill or
walking through a crowd, where you cannot safely ride.
To use the walk mode, set the pedal assist to level 1-5. Walk mode
will not engage at pedal assist level 0.
SINCH OWNER’S MANUAL
5
CUSTOMIZING THE DISPLAY
You can use the settings features of the display to customize the
Sinch for your use. To enter the “Settings” mode, hold the “U” and
“D” buttons at the same time for 2 seconds.
You can customize 4 out of the 5 dierent functions on the
display. Tap the “M” button to move from function to function, and
use the “U” and “D” arrows to adjust each to your preferences.
When you are finished, press and hold the “M” button to
save your changes. Note: The system will save your changes
automatically after 8 seconds.
FUNCTION 01P - BACKLIGHT BRIGHTNESS
You can control how bright you’d like the display backlight
to be. 1 being the dimmest and 3 is the brightest.
FUNCTION 02P - UNIT OF MEASURE
You can toggle between miles or kilometers, based on your
preference.
FUNCTION 03P - BATTERY VOLTAGE
This function sets the battery voltage of the system. On the
Sinch, this function is locked at 48V to match the battery
and motor, and cannot be changed.
SINCH OWNER’S MANUAL 6
FUNCTION 04P - WHEEL SIZE
This function can be used to change the wheel size to
16, 18, 20, 22, 24, 26, 27.5, or 28” wheels. The Sinch
comes stock with 20” wheels, which is the default and
recommended setting. Note: Selecting the incorrect
wheel size will aect the accuracy of the bike’s speed, the
odometer, and the functionality of its pedal assist.
FUNCTION 05P - SPEED LIMIT
The Sinch is a Class II ebike. This designation carries a
pedal assist limit of 20 MPH (32 KPH). You can pedal faster
without assist, but the motor will stop providing assist
when the speed limit is reached. You can use the Speed
Limit function to change the speed limit based on your
preferences and the law in your area. The Speed Limit
function can be set from 20-51 KPH (for reference, that is
12.4 - 31.7 MPH) and is always set in KPH. You should only
set the Speed Limit to a value that is safe and legal in your
community. This function does not aect the max speed on
throttle, which is locked at 20 MPH (32 KPH).
SINCH OWNER’S MANUAL
7
BATTERY AND CHARGING
The Sinch uses a Lithium-Ion battery which can be charged on
or o the bike. We recommend charging the battery indoors, in
moderate temperature conditions. To charge the battery, plug the
charger into the charging port and then connect the charger to a
wall outlet. The LED indicator light will be red when charging and
will turn green when charging is complete. When finished, unplug
the the charger from the wall outlet.
Take care of the battery to ensure a long service life:
• Charge and store the battery indoors if possible. The
battery can be removed from the bicycle for this purpose.
• Avoid extreme hot and cold temperatures.
• DO NOT submerge your bike or any of the components in
water. This action will void the warranty.
To optimize the performance of the battery over time, try and use
it (discharging and charging) at least monthly. But if you won’t
be riding your Sinch for a long period of time, it’s best to store
the battery fully charged. After many charging and discharge
cycles, runtime and range will be reduced. Replacement batteries
are available from Aventon to extend the life of your ebike. The
lifespan of the battery is about 500 charge / discharge cycles.
The Sinch internal battery slides onto a track inside the frame.
When installing the battery, take care to ensure the rails on the
bottom of the battery correctly engage to the track of the frame.
