Avalue Technology BFC-1509 Manuel utilisateur

Part No. E2017BF09A0R

BFC-1509

15” Intel®Celeron SOC Processor J1900 Multifunctional Full

Flat Multi-Touch Panel Computer

Quick Reference Guide

1st Ed –27 May 2016

BFC-1509

2 BFC-1509 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

BFC-1509 Quick Reference Guide

Content

1. Getting Started............................................................................................................4

1.1 Safety Precautions ................................................................................................4

1.2 Packing List...........................................................................................................4

1.3 System Specifications ...........................................................................................5

1.4 System Overview...................................................................................................7

1.4.1 Rear View..................................................................................................................................... 7

1.5 System Dimensions...............................................................................................8

1.5.1 Front, rear and side view ............................................................................................................. 8

2. Hardware Configuration...........................................................................................10

2.1 BFC-1509 connector mapping.............................................................................11

2.1.1 External Serial Port 1 connector (COM1) .................................................................................. 11

2.2 Installing Hard Disk & Memory (BFC-1509).........................................................12

BFC-1509

4 BFC-1509 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x BFC-1509 15” Multifunctional Full Flat Multi-Touch Panel Computer

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Chipset drivers

Other major components include the followings:

—60W adapter and power cord

Quick Reference Guide

BFC-1509 Quick Reference Guide

1.3 System Specifications

Component

Mother Board

EBM-BYT

CPU

Onboard Intel® Atom Quad-Core J1900 2.0GHz with Integrated

Chipset

Memory

One 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L

1066/1333 SDRAM

Adapter

+12 Vdc / 5 A (60W)

Wireless LAN

Optional USB/MPCIe WiFi module

Storage

Hard Disk Drive

Optional 2.5" SATA HDD

Solid State Drive

Optional 2.5" SATA SSD

Other Storage Device

Optional mSATA

Panel

LCD Panel

15", 4:3, XGA

B/L Inverter/Converter

Built in LED backlight

Touch Screen

P-cap

Touch Controller

EETI

External I/O

PS/2 KB & Mouse

1 x RS-232

USB Port

1 x USB 3.0, 1 x USB 2.0

Audio Port

1 x Line-out

LAN Port

2 x RJ-45 (Dual Intel I211AT PCI-E Gigabit LAN)

Wireless LAN Antenna

Reserved 1 for WiFi or 3G antenna

Indicator Light

LED for Power, HDD

Expansion Slots

2 x Mini PCIe

Mechanical

Power Type

AT/ATX

Power Connector Type

DC in

Dimension

350mm x 273.9mm x 53.5mm

Weight

4.2 Kg

Color

Front Silver & Rear panel Black

Fanless

Yes

Reliability

EMI Test

Class B

Safety

CE FCC

Dust and Rain Test

Front Panel IP65

BFC-1509

6 BFC-1509 Quick Reference Guide

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, Random, 5~500Hz,

30min/axis

Mechanical Shock Test

With CF/SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms

Drop Test

Reference ISTA 2A, Method: IEC-60068-2-32

Operating Temperature

0 to 40°C

Operating Humidity

5%~90% relative humidity, non-condensing

Storage Temperature

-10 to 50°C

Note: Specifications are subject to change without notice.

Quick Reference Guide

BFC-1509 Quick Reference Guide

1.4 System Overview

1.4.1 Rear View

Connectors

Label

Function

Note

COM1

External Serial Port 1 connector

DB-9 male connector

HDMI

HDMI connector

LAN1/2

RJ-45 Ethernet 1/2

Power

System power switch

DC IN

DC Power-in connector

RESET

Reset button

HDD

HDD LED

PWR

Power LED

USB

USB 2.0 connector x 1

USB 3.0 connector x 1

BFC-1509

8 BFC-1509 Quick Reference Guide

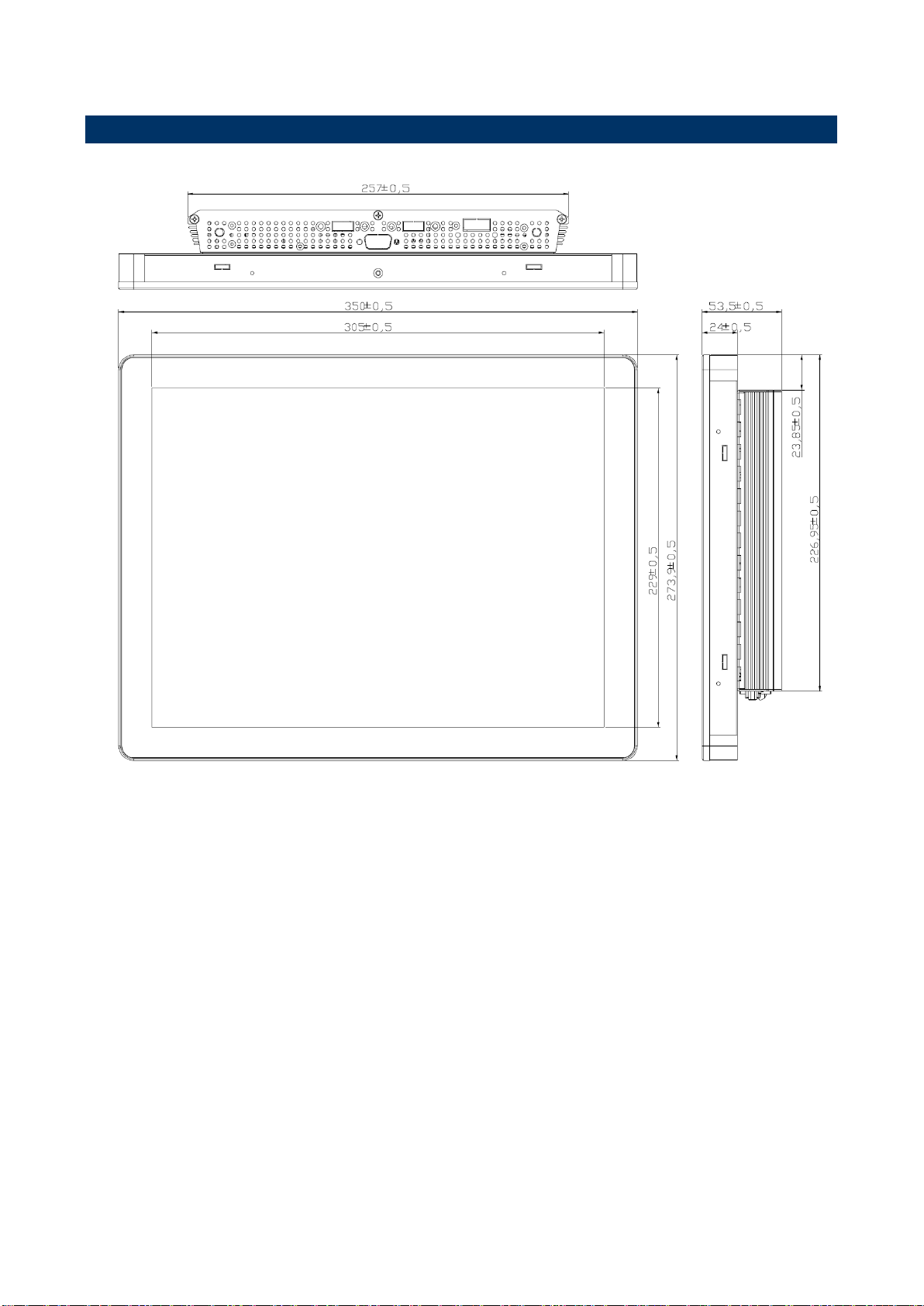

1.5 System Dimensions

1.5.1 Front, rear and side view

Quick Reference Guide

BFC-1509 Quick Reference Guide

(Unit: mm)

BFC-1509

10 BFC-1509 Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- EBM-BYT Quick Installation Guide or User’s Manual

Note: If you need more information, please visit our website:

http://www.avalue.com.tw
