Avalue Technology MPC-10W3 Manuel utilisateur

Part No. E201710W3A0R

MPC-10W3

Fanless Intel® Atom™ N270 10”W Multifunctional Touch

Panel PC with Intel® 945GSE + ICH7-M Chipset

Quick Reference Guide

1st Ed – March 2010

MPC-10W3

2 MPC-10W3 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Quick Reference Guide

MPC-10W3 Quick Reference Guide 3

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Headquarters and Branch

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei, Taiwan

Tel: +886-2-8226-2345 Fax: +886-2-8226-2777

Information: [email protected] Service:[email protected]

Avalue USA Avalue Europe

Avalue Technology Inc.

200 Tornillo Way, Suite 210, Tinton Falls,

NJ 07712

Tel: +1-732-578-0200

Fax: +1-732-578-0250

Information: [email protected]

Service: [email protected]

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: [email protected]

Service: [email protected]

BCM Advanced Research Avalue China

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.china@avalue.com.cn

Service: [email protected]

MPC-10W3

4 MPC-10W3 Quick Reference Guide

Contents

1. Getting Started ........................................................................................................5

1.1 Safety Precautions....................................................................................................5

1.2 Packing List...............................................................................................................5

1.3 System Specifications...............................................................................................6

1.4 System Overview......................................................................................................8

1.4.1 Top View.................................................................................................................................. 8

1.4.2 Bottom View............................................................................................................................. 8

1.5 System Dimensions ..................................................................................................9

2. Hardware Configuration .......................................................................................10

2.1 Installing CF card and Memory ...............................................................................11

Quick Reference Guide

MPC-10W3 Quick Reference Guide 5

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

z1 x MPC-10W3 Panel PC

z1 x Quick Reference Guide

z1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Touch Screen Driver

z1 x Packing set includes the followings:

⎯4 x screws (M4 x 4mm) for VESA-mounting

MPC-10W3

6 MPC-10W3 Quick Reference Guide

1.3 System Specifications

Panel

Model MPC-10W3

LCD Size 10”W, 17:10

Resolution 1024 x 600

Pixel Pitch 0.21525mm (H) x 0.21525mm (V)

Luminance 250cd/m²

Contrast Ratio 500

Viewing Angle 50(U), 60(D), 70(L), 70(R)

Response Time 25ms

Backlight LED Backlight

Touch Type (Optional) 5-wires Resistive

Touch Interface USB

Quick Reference Guide

MPC-10W3 Quick Reference Guide 7

System

Board EBM-945GSE

CPU Onboard Intel® Atom™ N270 1.6GHz (2.5W)

BIOS Award 8Mbit Flash BIOS

System Chipset Intel® 945GSE + ICH7-M

I/O Chipset ITE 8712F

System Memory Onboard 1GB DDR2 and one 200-pin DDR2 SODIMM

supports up to 2GB DDR2 400/533 SDRAM (1GB Per Bank)

SSD One CF socket bi IDE Secondary Slave Channel

supports Type I / II Compact Flash Card.

Watchdog Timer Reset: 1 ~ 65535 sec./min. and 1 min./step

Display Intel® 945GSE GMCH integrated GMA950 graphics

Audio Realtek ALC 655 supports 5.1-CH Audio

Ethernet Dual Realtek RTL8111C Gigabit LAN, supports wake on LAN

External I/O Ports

COM Port 1 x RS-232/422/485

Ethernet Port 2 x RJ-45

VGA / LCD Port 1 x DB-15

Audio Port Line-out

USB Port 2 x USB 2.0

Speaker 2 x 2W Speaker

Peripheral

Camera Optional 1.3M Pixels CMOS Sensor PC Camera

Bluetooth Optional USB Bluetooth Module

Power Supply Unit

Power Input 100 ~ 250Vdc/ 47 ~ 63Hz

Power Output +12Vdc/ 5A (60W)

Environment & Mechanical

Operating Temperature 0~40°C (32~104°F)

Storage Temperature -20 to +75°C (-4~167°F)

Relative Humidity 5 ~ 90% @ 40°C (104°F), relative humidity, non-condensing

Size (L x W) 252.8 x 190 x 44.4mm

Weight 1.22Kgs

Mounting VESA 75 x 75mm, Wall/ Stand

MPC-10W3

8 MPC-10W3 Quick Reference Guide

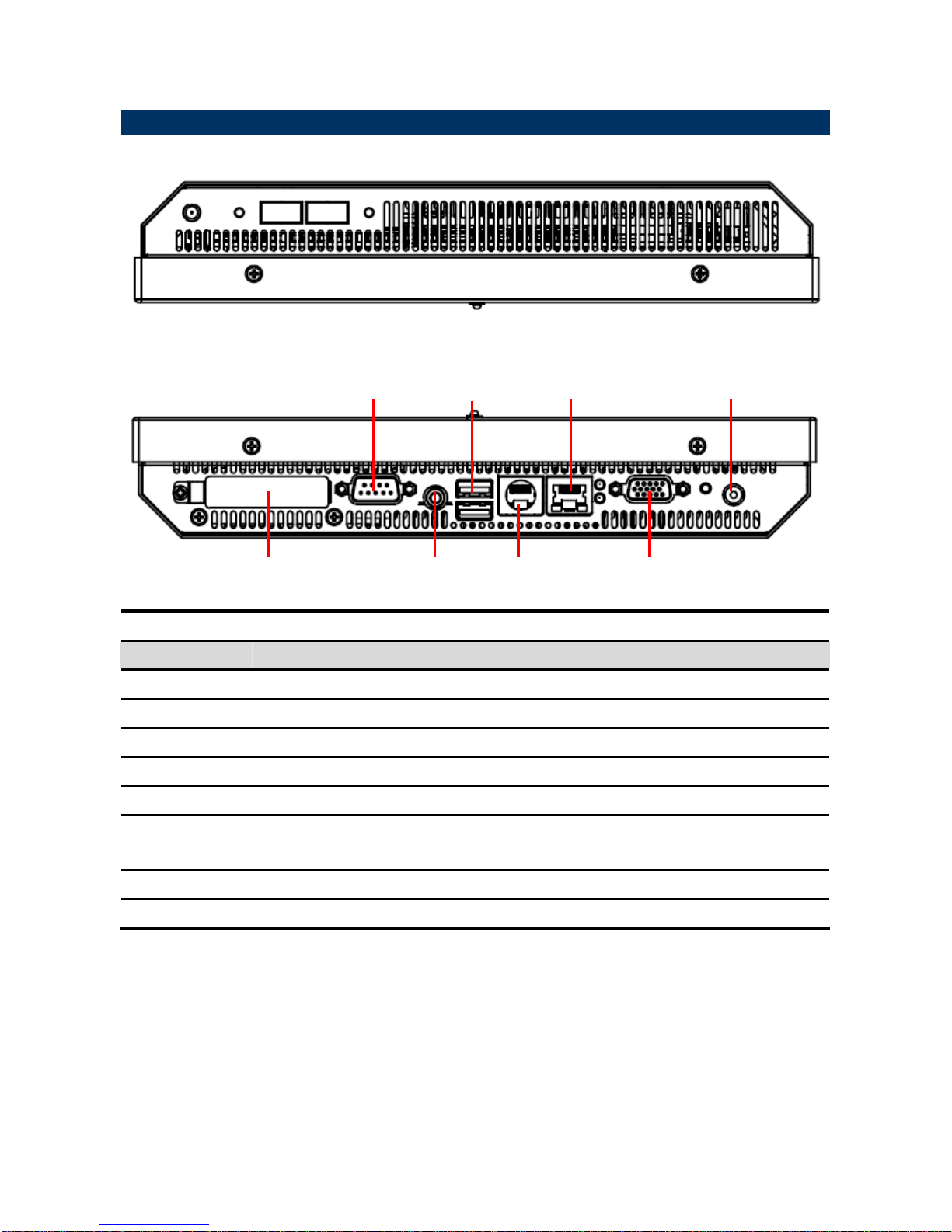

1.4 System Overview

1.4.1 Top View

1.4.2 Bottom View

Connectors

Label Function Note

CF CF Type I/II Socket with Ejector

COM Serial port DB-9 male connector

LINE OUT Line-out audio jack

USB 2 x USB 2.0 connector Dock USB

LAN1 RJ-45 Ethernet connector 1

LAN2

(KB/MS) RJ-45 Ethernet connector 2

(LAN2 is default, KB/MS is optional)

VGA CRT connector DB-15 female connector

DC IN DC Power-in connector

12V DC IN

LAN

KB/MS/LAN

USBCOM

LINE OUT

Com

act Flash

Quick Reference Guide

MPC-10W3 Quick Reference Guide 9

1.5 System Dimensions

MPC-10W3

10 MPC-10W3 Quick Reference Guide

2.Hardware

Configuration

Note: If you need more information, please visit our website:

http://www.avalue.com.tw
