Avalue Technology EMX-H61 Manuel utilisateur

Part No. E2017XH6101R

EMX-H61

Mini ITX Motherboard with Intel® H61 Express Chipset

Quick Installation Guide

2nd Ed –29 October 2012

EMX-H61 Quick Installation Guide

2 EMX-H61 Quick Installation Guide

Content

1. Getting Started............................................................................................................3

1.1 Safety Precautions..................................................................................................3

1.2 Packing List ............................................................................................................3

1.3 Specifications.................................................................................................4

2Hardware Configuration.............................................................................................6

2.1 Product Overview...........................................................................................7

2.1.1 Main board layout....................................................................................7

2.1.2 Connecting Rear Panel I/O Devices........................................................7

2.2 Setting Jumpers & Connectors.......................................................................9

2.2.1 Additional USB Port Headers (FUSB1/FUSB2).......................................9

2.2.2 JME.........................................................................................................9

2.2.3 CMOS Memory Clearing Header (JBAT) ..............................................10

2.2.4 CPU/System Fan Power Connectors Header (CFAN/SFAN1/SFAN2) .10

2.2.5 ATX Power Input Connectors (PWR12V/ATXPWR) .............................11

2.2.6 Front Panel Switches (FPANEL)...........................................................11

2.2.7 Speaker Headers (SPEAK)...................................................................12

2.2.8 Front Panel Audio Connection Header (F_AUDIO)...............................12

EMX-H61 Quick Installation Guide

EMX-H61 Quick Installation Guide 3

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling action could cause damage to the

motherboard. We suggest not removing the heatsink without correct

instructions in any circumstance. If you really have to do this, please contact

us for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

Rear I/O bracket X 1

Quick Installation Guide X 1

Driver/Utility CD X 1

Serial ATA Signal Cable X 2

EMX-H61 Quick Installation Guide

4 EMX-H61 Quick Installation Guide

1.3 Specifications

Title

EMX-H61

Intel® Core™ i7, Core™ i5, Core™ i3, Pentium® /Celeron® Mini ITX

Montherboard with Intel® H61 Express Chipset

Features

Intel® LGA1155 socket Supports Core™ i7, Core™ i5, Core™ i3,

Pentium® and Celeron® processors

Intel® H61 Express Chipset

Two 240-pin DIMM sockets up to 8GB Dual Channel unbuffered DDR3

1066/1333MHz SDRAM

VGA , DVI -D, HDMI

Realtek® ALC892 7.1-Channel High-Definition Audio codec

Dual Broadcom® 57788 PCI-Express Gigabit Ethernet

1 x PCIex16 , 1 x Mini PCIe

4 SATA II 3.0Gb/s , 2 x USB 3.0 Ports , 8 x USB 2.0 Ports

8 Channel Audio I/O jacks with S/PDIF Out connector

Specifications

System

CPU

Intel® LGA1155 socket Supports Core™ i7, Core™ i5, Core™ i3,

Pentium® and Celeron® processors

BIOS

AMI UEFI 1 x 32Mbit Flash ROM BIOS

System Chipset

Intel® H61 Express Chipset

I/O Chip

Nuvoton NCT5577D

System Memory

Two 240-pin DIMM sockets up to 8GB Dual Channel unbuffered DDR3

1066/1333MHz SDRAM

Watchdog Timer

H/W Status

Monitor

Monitoring temperature, Voltage, and Fan status.with Auto throttling

control

Expansion

1 x PCIex16 , 1 x Mini PCIe

I/O

MIO

4 SATA II 3.0Gb/s

1 x S/PDIF Out header

2 x 4-pin fan connectors, 1 x 3-pin fan connectors

1 x Front panel high definition audio header

1 x Front System Panel connector

1 x Speaker header

EMX-H61 Quick Installation Guide

EMX-H61 Quick Installation Guide 5

USB

2 x USB 3.0 Ports , rear I/O connectors

4 x USB 2.0 Ports ,rear I/O connectors

4 x USB 2.0 Ports , internal pin-header

Parallel Port

PS2 KB/MS

DIO

Display

Chipset

Intel® HD Graphics Media Accelerator 2000/3000 (Based on CPU type)

Support for DX10.1 and OpenGL3.0

Resolution

VGA 2048X1536 @ 75 Hz

HDMI 1920 x 1200 @ 60 Hz

DVI –D 1920 x 1200 @ 60 Hz

(The DVI-D port does not support D-Sub connection by adapter)

Dual Display

CRT+DVI, CRT+HDMI, DVI+HDMI

Audio

Audio Codec

Realtek® ALC892 7.1-Channel High-Definition Audio codec

Audio Interface

Mic-in , Line-in,Line out , Center/Subwoofer, Rear R/L ,S/PDIF out

Ethernet

LAN Chip

Dual Broadcom® 57788 PCI-Express Gigabit Ethernet

Ethernet

Interface

10/100/1000 Base-Tx Gigabit Ethernet

Mechanical &

Environmental

Power

Requirement

+12V/+5V/+5Vsb/+3.3V/-12V

Power Type

ATX

Operating Temp.

0 ~ 50°C (32 ~ 121°F)

Storage Temp

-40 ~ 75°C (-40 ~ 75°F)

Operating

Humidity

0 ~ 90% Relative Humidity, Non-condensing

Size (L x W)

6.69” x 6.6” (170mm x 170mm)

Weight

0.88lbs (0.4kg)

Others

Ordering Information: EMX—H61-A1R

Intel® Core™ i7, Core™ i5, Core™ i3, Pentium® /Celeron® Mini ITX

Montherboard with Intel® H61 Express Chipset and

VGA ,DVI-D ,HDMI, Audio ,2GbE , 1 PCIex16 , 1 Mini PCIe,4 SATA II, 2

x USB 3.0 , 8 x USB 2.0 , W/SATA Cable , Bracket / CD driver

EMX-H61 Quick Installation Guide

6 EMX-H61 Quick Installation Guide

2Hardware

Configuration

EMX-H61 Quick Installation Guide

EMX-H61 Quick Installation Guide 7

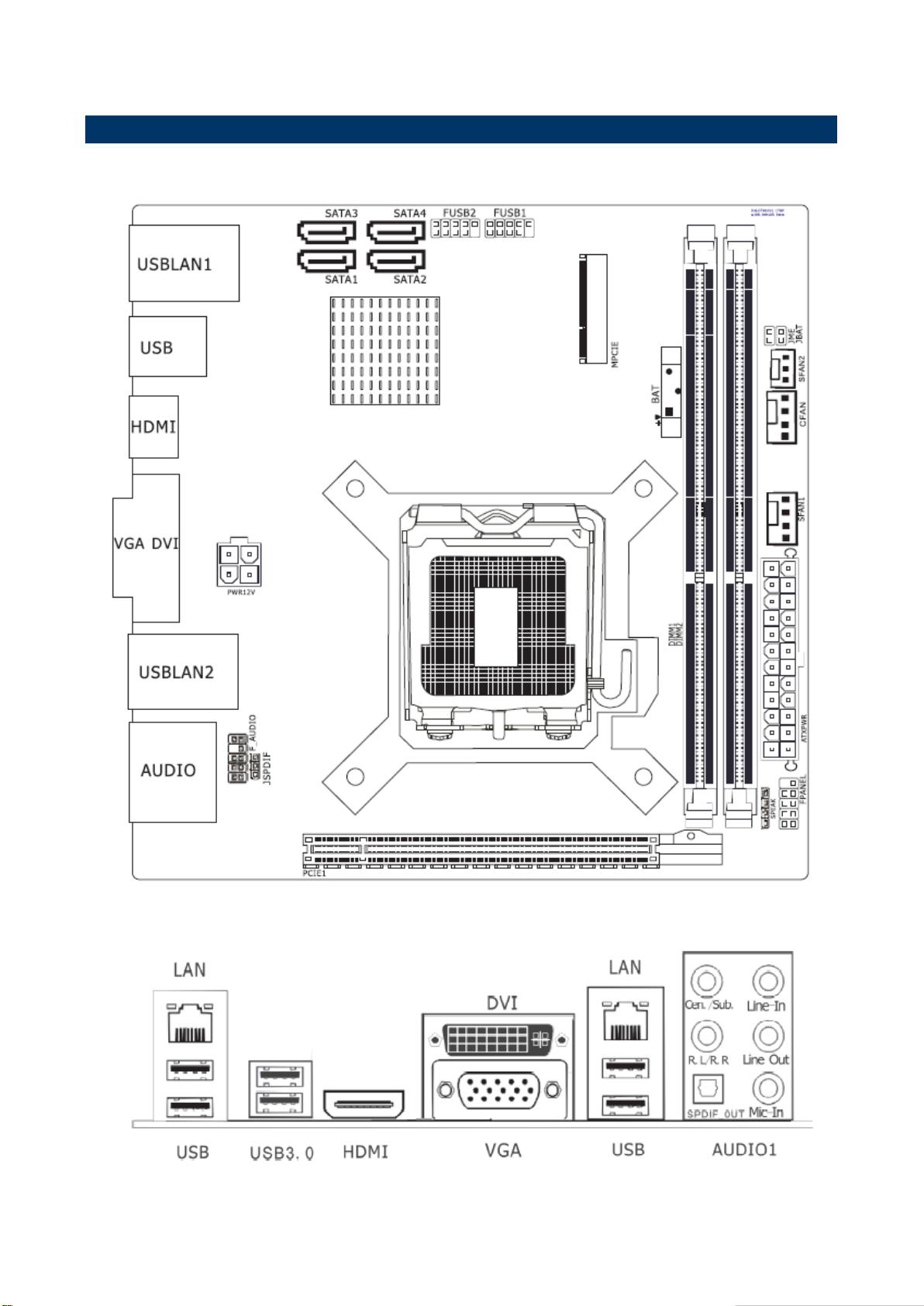

2.1 Product Overview

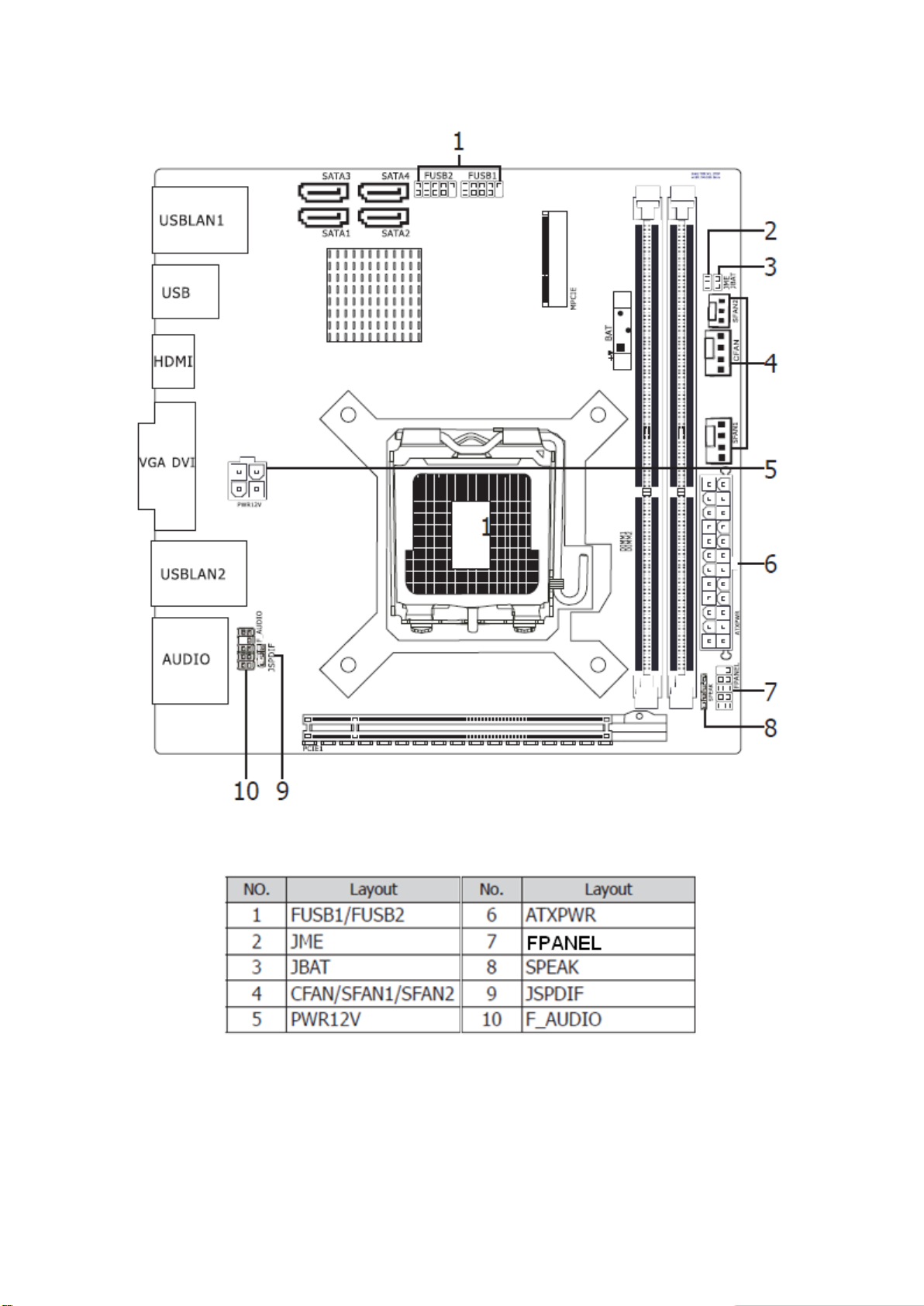

2.1.1 Main board layout

2.1.2 Connecting Rear Panel I/O Devices

EMX-H61 Quick Installation Guide

8 EMX-H61 Quick Installation Guide

EMX-H61 Quick Installation Guide

EMX-H61 Quick Installation Guide 9

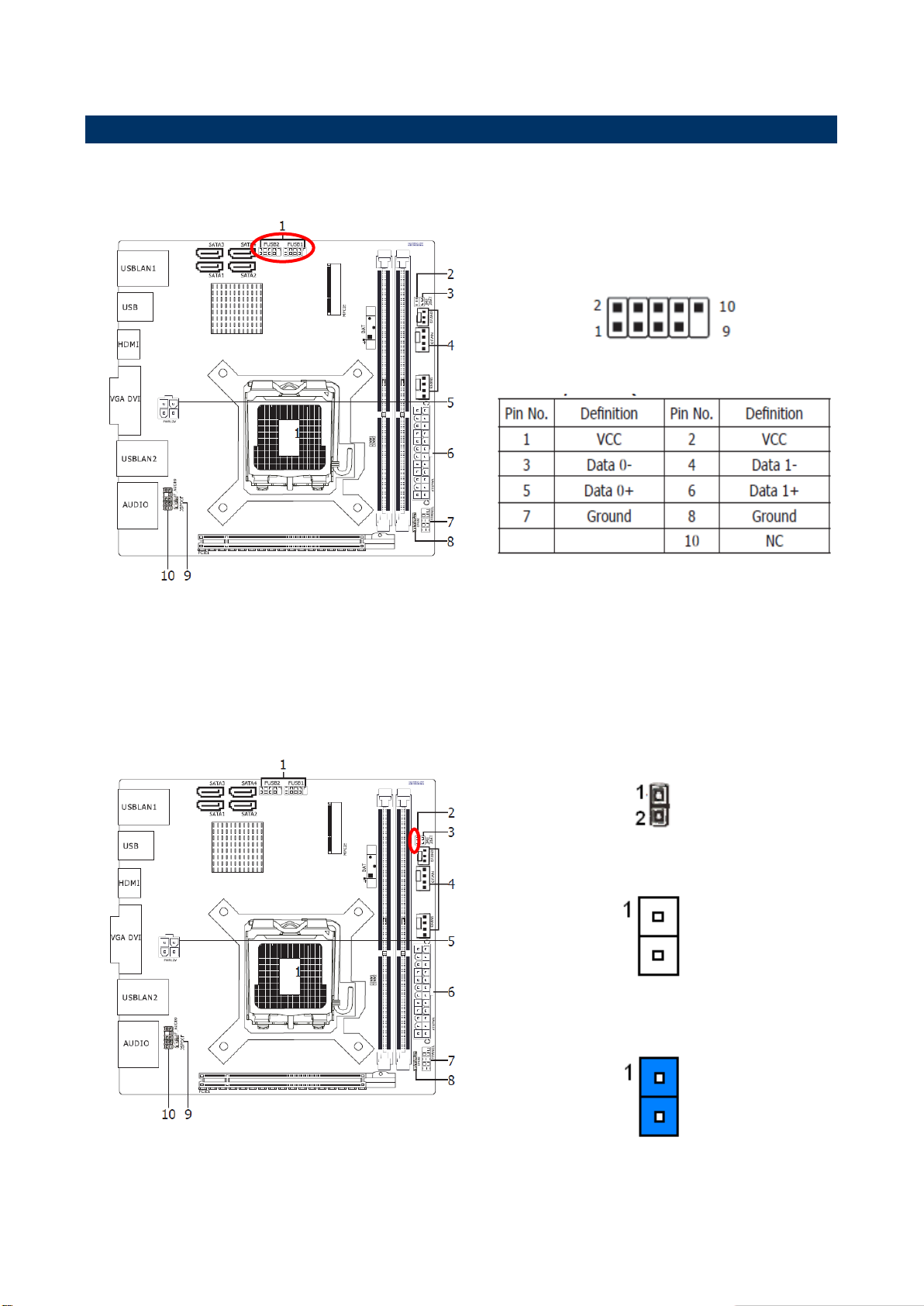

2.2 Setting Jumpers & Connectors

2.2.1 Additional USB Port Headers (FUSB1/FUSB2)

2.2.2 JME

Can’t refresh the ME

Refresh the ME

EMX-H61 Quick Installation Guide

10 EMX-H61 Quick Installation Guide

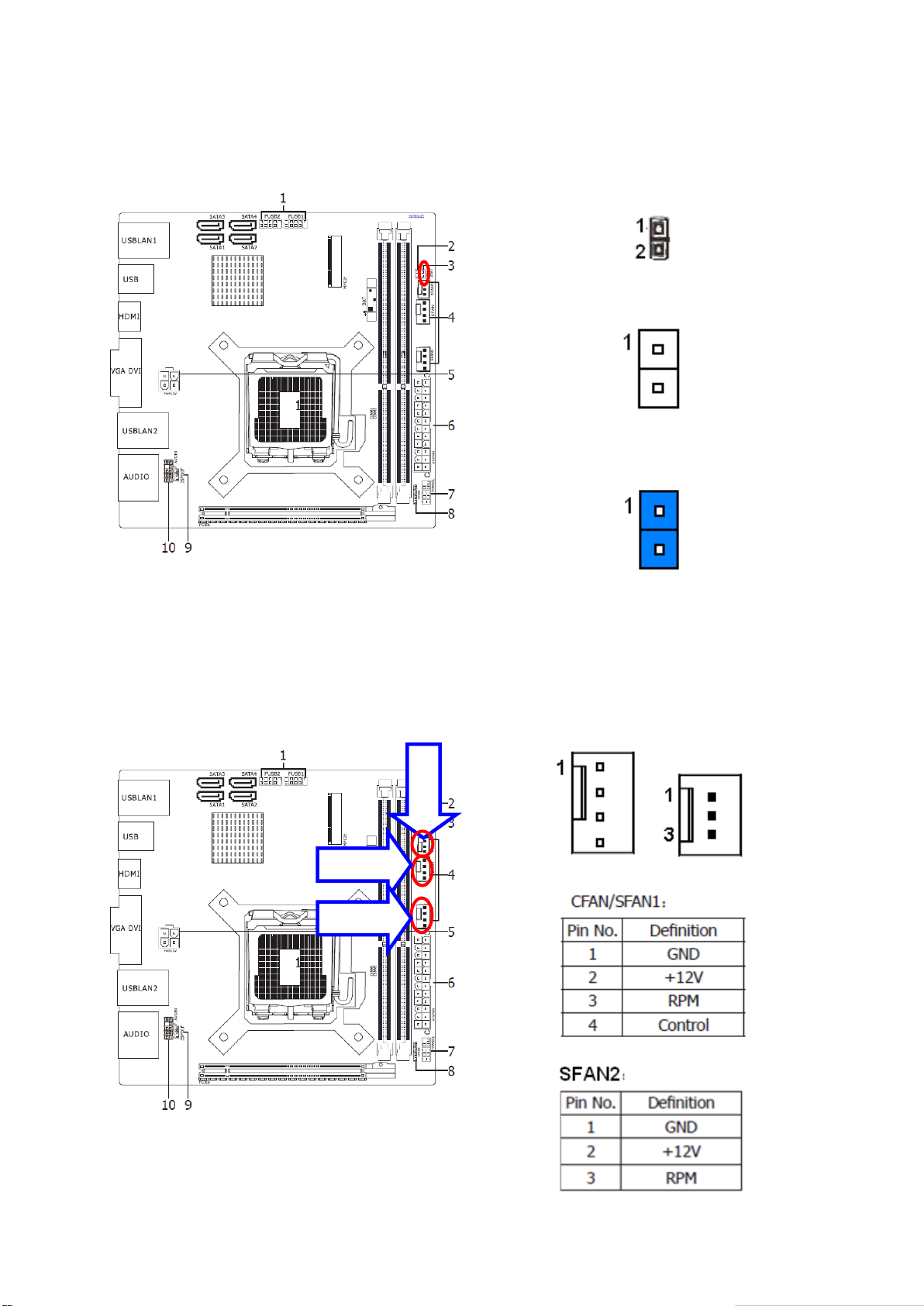

2.2.3 CMOS Memory Clearing Header (JBAT)

* Default

Normal*

Clear CMOS

2.2.4 CPU/System Fan Power Connectors Header (CFAN/SFAN1/SFAN2)

CFAN1

SFAN1

SFAN2
