Avalue Technology ECS-BSW Manuel utilisateur

Part No. E2017ECSWA0R

ECS-BSW

Fanless Intel® Celeron® Processor N3160 Tiny Box PC

Quick Reference Guide

1st Ed –19 September 2016

ECS-BSW

2 ECS-BSW Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Quick Reference Guide

ECS-BSW Quick Reference Guide

CONTENT

1. Getting Started............................................................................................................4

1.1 Safety Precautions ................................................................................................4

1.2 Packing List...........................................................................................................4

1.3 System Specifications ...........................................................................................5

1.4 System Overview...................................................................................................8

1.4.1 Front/Rear View........................................................................................................................... 8

1.5 System Dimensions...............................................................................................9

2. Hardware Configuration...........................................................................................10

2.1 ECS-BSW connector mapping ............................................................................11

2.1.1 Serial Port 1 connector (COM1)................................................................................................. 11

2.1.2 Serial Port 2/3/4/5 connector (COM2/3/4/5) .............................................................................. 11

2.2 Installing Din Rail Mounting (ECS-BSW).............................................................12

2.3 Installing Hard Disk (ECS-BSW)..........................................................................12

ECS-BSW

4 ECS-BSW Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x ECS-BSW Fanless Intel® Celeron® Processor N3160 Tiny Box PC

Other major components include the followings:

—1 x Adapter

—1 x Power Cord

—1 x HDD mylar

Quick Reference Guide

ECS-BSW Quick Reference Guide

1.3 System Specifications

System

Mother Board

ECM-BSW-N3160

CPU

Intel® Celeron® Processor N3160 (2M Cache, up to 2.24 GHz)

CPU Cooler (Type)

Fanless

Memory

1 x 204-pin DDR3L 1600MHz SO-DIMM Socket Supports Up to

8GB

Adapter

60W Adapter (DC in 12V@5A)

Microphone

1 x Mic-in, 1 x Line-out

Operating System

Windows/ Linux

Storage

Hard Disk Drive

1 x 2.5” SATA HDD/SSD

External I/O

USB Port

4 x USB 3.0, 2 x USB 2.0

Video Port

1 x VGA, 1 x HDMI

Audio Port

1 x Mic-in, 1 x Line-out

COM Port

5 x RS-232 (Default)

*COM1-232/422/485 (Optional)

LAN Port

2 x RealTek RTL8119 Gigabit Ethernet

Wireless LAN Antenna

1 x SMA connector (Optional)

Switch

1 x Power on/off Switch

Indicator Light

1 x HDD/SSD LED, 1 x Power LED

Expansion Slots

1 x Full-size Mini PCI-e Socket Supports mSATA

1 x Half Size Mini PCI-e Socket supports WiFi module

Mechanical

Power Type

Single power ATX Support S0, S3, S4, S5

Power Connector Type

DC in 12V

Dimension

180mm x 126mm x 68mm

Weight

3.3lbs (1.5Kgs)

Color

Black

Fanless

Yes

Reliability

EMI Test

CE/FCC Class B

Safety

UL/CB design compatible

Vibration Test

Sine Vibration test (Non-operation)

Reference IEC60068-2-6 Testing procedures

Test Fc : Vibration sinusoidal

ECS-BSW

6 ECS-BSW Quick Reference Guide

1 Test Acceleration : 2G

2 Test frequency : 5 ~ 500 Hz

3 Sweep：1 Oct/ per one minute. (logarithmic)

4 Test Axis : X,Y and Z axis

5 Test time :30 min. each axis

6 System condition : Non-Operating mode

Package Vibration Test

Reference IEC60068-2-64 Testing procedures

Test Fh : Vibration boardband random Test

1. PSD: 0.026G²/Hz , 2.16 Grms

2. Non-operation mode

3. Test Frequency : 5-500Hz

4. Test Axis : X,Y and Z axis

5. 30 min. per each axis

Random Vibration Operation

Reference IEC60068-2-64 Testing procedures

Test Fh : Vibration boardband random Test

1. PSD: 0.00454G²/Hz, 1.5 Grms

2. Operation mode

3. Test Frequency : 5-500Hz

4. Test Axis : X,Y and Z axis

5. 30 minutes per each axis

6. IEC 60068-2-64 Test: Fh

7. Storage : mSATA or SSD

Mechanical Shock Test

Bump Test

Reference IEC 60068-2-29 Testing procedures

Test Eb : Bump Test

1. Wave form：Half Sine wave

2. Acceleration Rate：10g for operation mode

3. Duration Time：11ms

4. No. of Shock：Z axis 300 times

5. Test Axis: Z axis

6. Operation mode

Drop Test

Packing Drop

Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Test Ea :

Drop Test

1. One corner , three edges, six faces

2. ISTA 2A, IEC-60068-2-32 Test:Ed

Quick Reference Guide

ECS-BSW Quick Reference Guide

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F) (w/HDD), ambient w/ air flow

0°C ~ 45°C (32°F ~ 113°F) (w/SSD, mSATA), ambient w/ air flow

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Storage Temperature

-20°C ~ 75°C (-22°F ~ 167°F)

Mounting

Din rail (optional)

Note:

Specifications are subject to change without notice.

ECS-BSW

8 ECS-BSW Quick Reference Guide

1.4 System Overview

1.4.1 Front/Rear View

Connectors

Label

Function

Note

POWER

Power on button

HDD

HDD Indicator

PWR

System power indicator

LAN1/2

RJ-45 Ethernet 1/2

USB

2 x USB2.0 connector

4 x USB3.0 connector

COM1~5

Serial port 1~5 connector

COM1-232/422/485 (Optional)

DC IN

DC power-in connector

HDMI

HDMI connector

LINE OUT

Line-out audio jack

MIC IN

Mic-in audio jack

VGA

VGA connector

Quick Reference Guide

ECS-BSW Quick Reference Guide

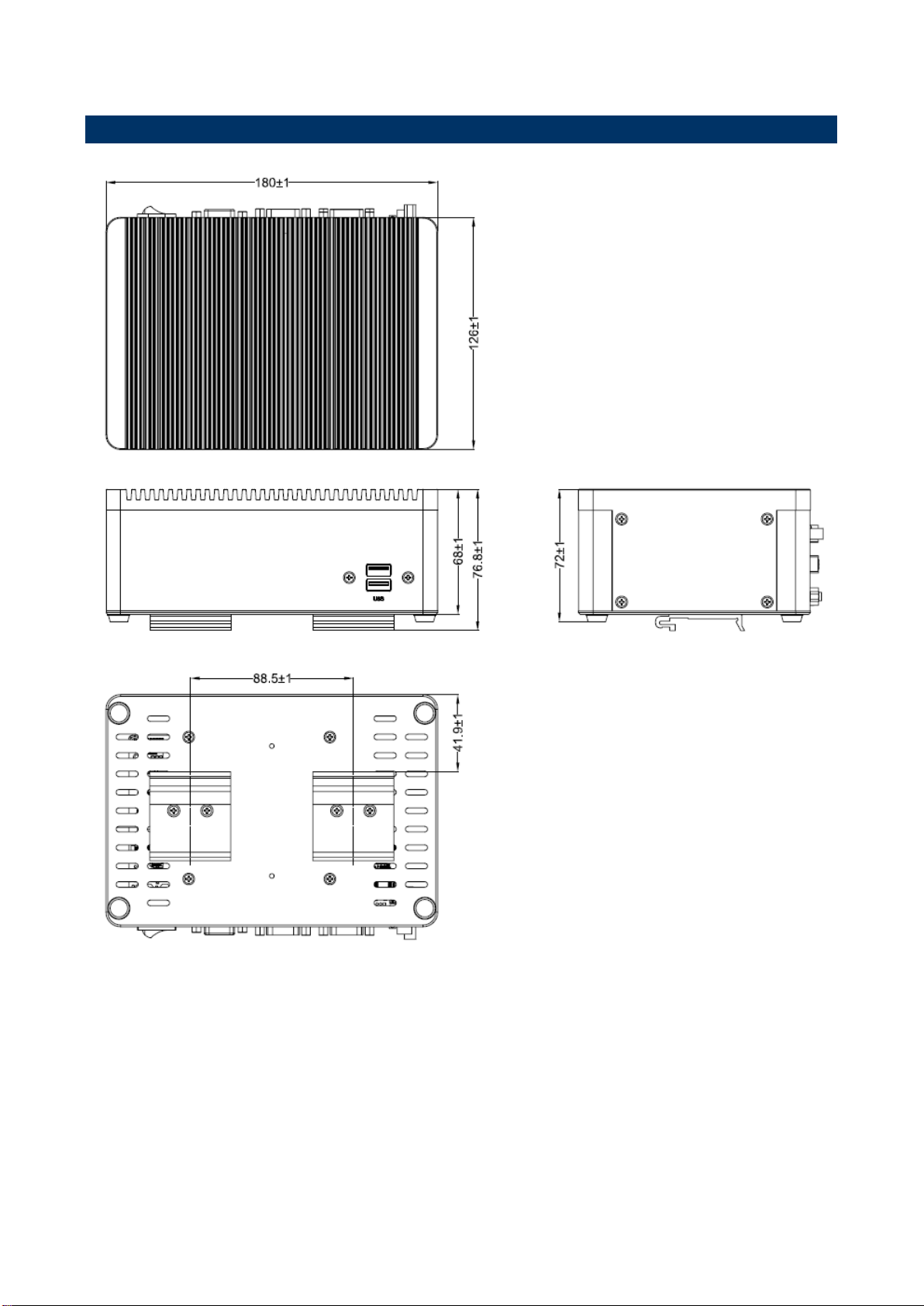

1.5 System Dimensions

(Unit: mm)

ECS-BSW

10 ECS-BSW Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- ECM-BSW User’s Manual

Note: If you need more information, please visit our website:

http://www.avalue.com.tw
