Avalue Technology EPC-CDV Manuel utilisateur

Part No. E2017CCDVA0R

EPC-CDV

Fanless Intel® Atom™ D2550 Tiny Box PC

with Intel® NM10 Express Chipset

Quick Reference Guide

1st Ed –27 July 2012

All manuals and user guides at all-guides.com

all-guides.com

EPC-CDV

2EPC-CDV Quick Reference Guide

Content

1. Getting Started............................................................................................................3

1.1 Safety Precautions ................................................................................................3

1.2 Packing List...........................................................................................................3

1.3 System Specifications ...........................................................................................4

1.4 System Overview...................................................................................................6

1.4.1 Front & Rear View ................................................................................................................... 6

1.5 System Dimensions...............................................................................................7

1.5.1 Top/ Front & Side (with rubber foot) ............................................................................................ 7

1.5.2 Top/ Front & Side (with wallmount).............................................................................................. 8

2. Hardware Configuration.............................................................................................9

2.1 EPC-CDV connector list ......................................................................................10

2.2 EPC-CDV connector mapping.............................................................................11

2.2.1 External Serial Port 1 connector (COM1) .................................................................................. 11

2.2.2 External Serial Port 2 connector (COM2/DVI)........................................................................... 11

2.2.3 VGA connector (VGA)................................................................................................................ 12

2.3 Installing Aluminum Stand (EPC-CDV)................................................................13

2.4 Installing Hard Disk & Memory (EPC-CDV).........................................................14

2.5 Installing Mounting Bracket (Optional).................................................................16

All manuals and user guides at all-guides.com

Quick Reference Guide

EPC-CDV Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x EPC-CDV (with ECM-CDV)

1 x Quick Reference Guide

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Chipset drivers and utilities

Other major components include the followings:

—Screw kit for 2.5”HDD/SSD and stand fixing

—AC to DC Adapter

—Power Cord

—Aluminum Stand

All manuals and user guides at all-guides.com

EPC-CDV

4EPC-CDV Quick Reference Guide

1.3 System Specifications

System

Board

ECM-CDV

CPU

Onboard Intel® Atom™ D2550 1.86GHz CPU

BIOS

AMI 16Mbit SPI BIOS

System Chipset

Intel® NM10 Express Chipset

I/O Chip

Nuvoton W83627DHG-P

System Memory

One 204-pin DDR3 SODIMM Socket Up to 4GB DDR3 800/ 1066 SDRAM

SSD

One CompactFlash Type I/II Socket

Hard Disk

1 x 2.5” SATA HDD/ SSD

Watchdog Timer

Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring System Temperature, Voltage with Auto Throttling Control

External I/O

COM Port

1 x RS-232, 1 x RS-232/ 422/ 485 (Setting by Jumper & BIOS)

LAN Port

2 x RJ-45

Antenna

2 Knockouts for Antenna Mounting

(Options to Add WiFi & 3G)

VGA

1 x VGA

Audio Port

Mic-in, Line-in, Line-out

USB Port

5 x USB 2.0 (Rear 4; Front 1)

Expansions

1 x Mini-PCIe Socket (mSATA supported)

Display

Chipset

Intel® Cedarview Integrated Graphics

Resolution

CRT Mode: 1920 x 1200 @ 60Hz

Audio

AC97 Codec

Realtek ALC892 Supports 5.1-CH Audio

Audio Interface

Mic-in, Line-in, Line-out

Ethernet

LAN Chip

2 x Intel® 82574L Gigabit Ethernet

Ethernet Interface

10/ 100/ 1000 Base-Tx Gigabit Ethernet Compatible

All manuals and user guides at all-guides.com

Quick Reference Guide

EPC-CDV Quick Reference Guide

Environment &

Mechanical

Power Requirement

+12 ~ +26Vdc (+12V/ 5A Lockable DC Plug Adapter is an Accessory to This System)

ACPI

Single Power ATX Support S0, S3, S4, S5

ACPI 3.0 Compliant

Power Type

AT/ ATX (ATX is The Default Setting)

Operating Temperature

0 ~ 50°C (32 ~ 122°F) (w/ CF & SSD), Ambient w/ Air Flow

0 ~ 40°C (32 ~ 104°F) (w/ HDD), Ambient w/ Air Flow

Storage Temperature

-40 ~ 75°C (-40 ~ 167°F)

Relative Humidity

0% ~ 90% Relative Humidity, Non-condensing

Dimension (W x D x H)

7” x 4.4” x 2.0” (178mm x 112mm x 50mm)

Weight

2.7lbs (1.2Kgs)

Mounting

VESA Compliance

All manuals and user guides at all-guides.com

EPC-CDV

6EPC-CDV Quick Reference Guide

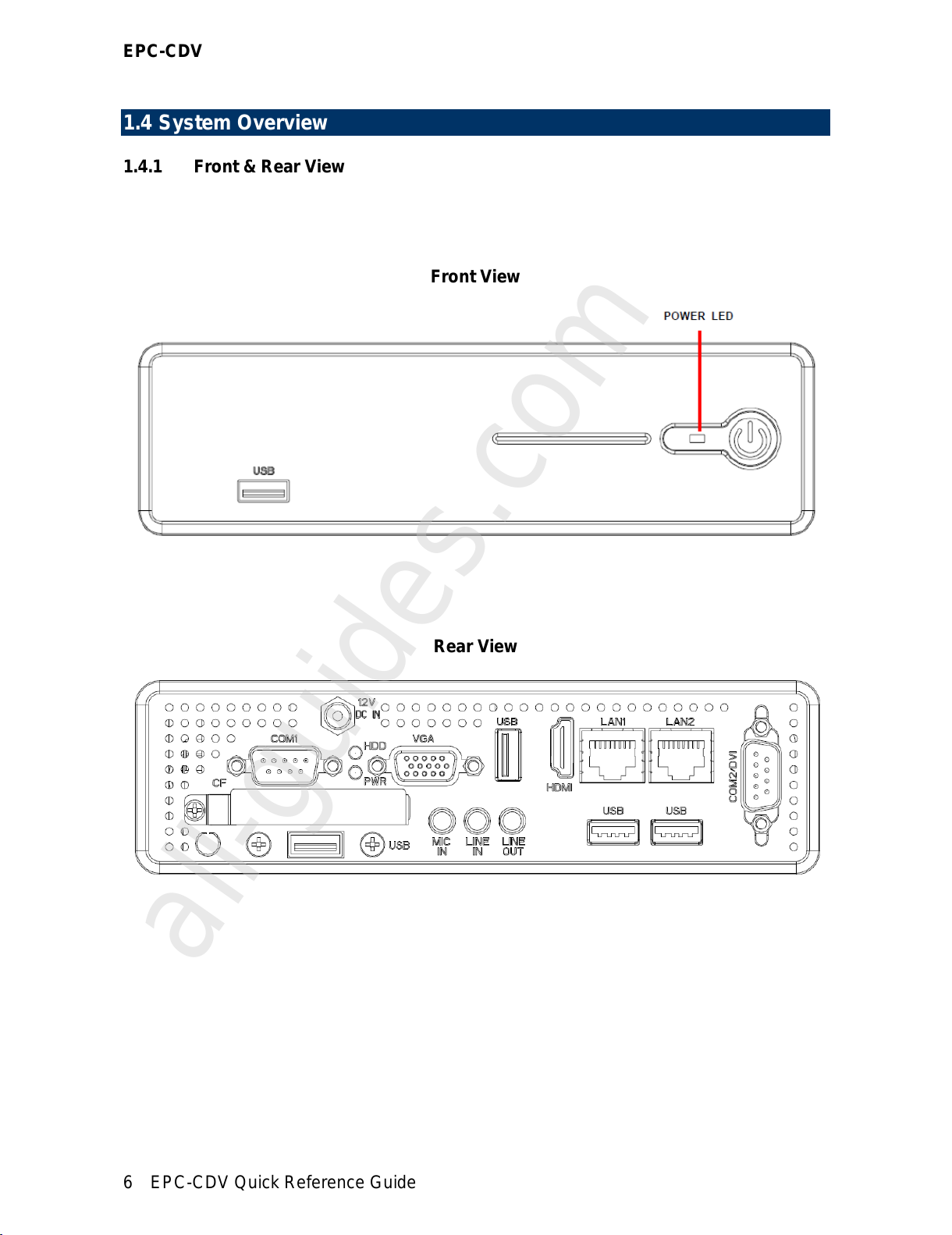

1.4 System Overview

1.4.1 Front & Rear View

Front View

Rear View

All manuals and user guides at all-guides.com

all-guides.com

Quick Reference Guide

EPC-CDV Quick Reference Guide

1.5 System Dimensions

1.5.1 Top/ Front & Side (with rubber foot)

(Unit: mm)

All manuals and user guides at all-guides.com

EPC-CDV

8EPC-CDV Quick Reference Guide

1.5.2 Top/ Front & Side (with wallmount)

(Unit: mm)

All manuals and user guides at all-guides.com

Quick Reference Guide

EPC-CDV Quick Reference Guide

2.Hardware

Configuration

Please refer to ECM- CDV Quick Installation Guide or User’s Manual for

advanced information.

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

All manuals and user guides at all-guides.com

EPC-CDV

10 EPC-CDV Quick Reference Guide

2.1 EPC-CDV connector list

Connectors

Label

Function

Note

COM1

Serial port 1 connector

COM2/DVI

Serial port 2 connector

Compact Flash

Compact Flash card connector

Type I/II x 1

12V DC-IN

DC power-in connector

LAN1

RJ-45 Ethernet 1

LAN2

RJ-45 Ethernet 2

LINE IN

Line-in audio jack

LINE OUT

Line-out audio jack

MIC IN

Mic-in audio jack

HDD

HDD indicator

USB1~5

USB 1~5 connector

PWR

System power indicator

VGA

VGA connector

D-sub 15-pin, female

HDMI

HDMI connector
