Auto maskin DCU 305 R2 Manuel utilisateur

Rudolf R2

User’s Manual

DCU 305 R2 Control Unit configuration tool

Rudolf R2 User's Manual 0BIntroduction - 4BImportant information •i

Contents

1Introduction....................................................................................4

1.1 Important information 4

1.2 System requirements 4

1.2.1 Minimum PC requirements 5

1.3 Installation of Rudolf R2 5

1.3.1 Uninstall previous installations 5

1.3.2 Installation 6

2Menu Overview ..............................................................................7

2.1 File 7

2.1.1 New 7

2.1.2 Open 8

2.1.3 Save 8

2.1.4 Save As… 8

2.1.5 Close 8

2.1.6 Export as Text 8

2.1.7 E-mail… 9

2.1.8 Print… 9

2.1.9 Exit 9

2.2 Communication 9

2.2.1 Load from control unit… 9

2.2.2 Transmit to control unit… 10

2.2.3 Retrieve log… 12

2.3 Settings 13

2.3.1 Backup System Settings… 13

2.3.2 Control unit Clock 14

2.3.3 Service 14

2.3.4 Options… 15

3Buttons...........................................................................................17

4Configuration Sections .................................................................18

4.1 Main 19

4.1.1 Main Operation Mode 19

4.1.2 Control Unit Language 21

4.1.3 Port P3 Functionality 21

4.1.4 Display Backlight Delay 22

4.1.5 Inverting LCD on Alarm 22

4.1.6 Warning Requires Acknowledge 22

4.1.7 Classifiable Project

Feil! Bokmerke er ikke definert.

4.1.8 J1939/CAN & J1708/J1587 support 22

4.2 Switch 23

4.2.1 Input Channel 24

4.2.2 Terminal 24

4.2.3 Active 24

4.2.4 Description 24

4.2.5 Action Type 24

ii •0BIntroduction - 4BImportant information Rudolf R2 User's Manual

4.2.6 Switch type 24

4.2.7 Warning/Alarm/Shutdown on RUN only 25

4.2.8 Initial delay 25

4.2.9 Broken Wire Detection 25

4.2.10 Delay before alarm/shutdown 25

4.2.11 Additional Switch Inputs 26

4.3 Analog In 27

4.3.1 Add a new sensor 27

4.3.2 Active 28

4.3.3 Input Type 28

4.3.4 Description 28

4.3.5 Sensor Range 28

4.3.6 Units 28

4.3.7 Limit 28

4.3.8 Action Type 29

4.3.9 Double Scale 29

4.3.10 Above or below limit 30

4.3.11 Action on RUN only 30

4.3.12 Initial delay 30

4.3.13 Delay before Warning/Alarm/Shutdown 30

4.4 Standby operation 31

4.4.1 Initial Start Delay (Preheat timer) 31

4.4.2 Cranking Time 32

4.4.3 Delay between Start Attempts 32

4.4.4 Number of Start Attempts 32

4.4.5 Delay before disconnecting Gen. Breaker 32

4.4.6 Cooling time 32

4.5 Start/Fuel 33

4.5.1 Initial Start Delay 33

4.5.2 Cranking Time 33

4.6 Speed sensor 34

4.6.1 Pickup Information 34

4.6.2 Pickup One/Two RPM Sender 34

4.6.3 Ready to take Load 35

4.6.4 Nominal/Max Speed 35

4.6.5 Overspeed 35

4.6.6 RUN Detected At 36

4.6.7 Run Detection Delay 36

4.6.8 Additional RUN Detection 36

4.6.9 Speed Relays 36

4.7 Battery 37

4.7.1 Start Battery Voltage 37

4.7.2 Low Battery Voltage Alarm 37

4.7.3 Delay before Alarm 37

4.8 Info 38

4.8.1 Fields 38

4.9 Relays 39

4.9.1 RK-60 39

4.9.2 RK-66 R2 39

4.9.3 MK-6 and MK-14 39

4.9.4 Signals to the optional Relay Cards 40

4.9.5 Available configurable signals 41

4.9.6 Disable Broken Wire Alarm on Terminal 44 42

Document revisions

Date Revision

March 2001

Release

March 2002 Support for control unit firmware 4.25 and above

November 2002 Added

May 2005

CAN / diagnostic info added for 4.35 and above

July 2005

Restart possibility after downloading added for 4.37 and above.

September 2006 Described the new function Additional Run detection delay

Information given in this specification may change without prior

notice.

This document must not be copied without permission from Auto-

Maskin AS.

Title: Rudolf R2 User's Manual

Document order no: 09326

Revision: July 2009

All trademarks acknowledged.

Related documentation:



DCU 305 R2 User’s Manual, Eng

Article 06322



DCU 305 R2 Communication Manual, Eng

Article 06324



DCU 305 R2 Installation Manual

Article 06325

Archive: p:\so_arc\sah\2001.1\autom012.doc

4•0BIntroduction - 4BImportant information Rudolf R2 User's Manual

1 Introduction

This document describes the Rudolf R2 and Rudolf R2 Light

software for PC.

Rudolf R2 is the PC parameter software used to completely

customise the DCU 305 R2 range of Diesel Engine control

units; hereafter referred to as the control unit only.

Note: Rudolf R2 is backward compatible and new versions

completely replace earlier releases and versions.

Rudolf R2 is hereafter referred to as Rudolf only.

1.1 Important information

Rudolf is a powerful configuration tool that can completely

change the current behaviour of the control unit.

Make sure you know your system well and use precaution

whenever changing critical parameters in an installed system.

1.2 System requirements

Rudolf runs under Microsoft® Windows® 95/98/ME and

Windows® NT/2000/XP, and occupies ~30MB of the harddisk

space.

Note: Rudolf will not run on Windows 3.x.

The project files occupies 2-3k bytes only, and can easily be

emailed between organisations.

Rudolf R2 User's Manual 0BIntroduction - 6BInstallation of Rudolf R2 •5

1.2.1 Minimum PC requirements

A PC equipped with a Pentium processor running at 200MHz.

Windows® 95/98/ME: 32MB RAM

Windows® NT/2000/XP: 64MB RAM

Use a color screen with 800 x 600 dpi resolution or better.

Rudolf is delivered on a CD, so make sure the PC is equipped

with a CD-drive.

1.3 Installation of Rudolf R2

1.3.1 Uninstall previous installations

Before installation, be sure to uninstall any previous copies of

Rudolf.

Insert the CD-ROM in the drive. Run the SETUP.EXE file.

Select Remove and follow the guidelines from the uninstall

program.

6•0BIntroduction - 6BInstallation of Rudolf R2 Rudolf R2 User's Manual

1.3.2 Installation

Close all other programs before installation. Insert the CD-

ROM in the drive. Run the SETUP.EXE file.

Follow the guidelines on screen as given by the Setup program.

Rudolf R2 User's Manual 1BMenu Overview - 7BFile •7

2 Menu Overview

2.1 File

The file menu is used for creating new project files, opening

existing project files and saving current files.

The project files are small (2-3k bytes) and their extension is

RDF, for instance MYFILE.RDF or PROJECT 173.RDF.

2.1.1 New

Alt+F+N Select File-New to create a new project. The new project file has

default values for most parameters.

Often, it is faster to open an earlier project that is similar,

modify it, and save it with a new name.

8•1BMenu Overview - 7BFile Rudolf R2 User's Manual

2.1.2 Open

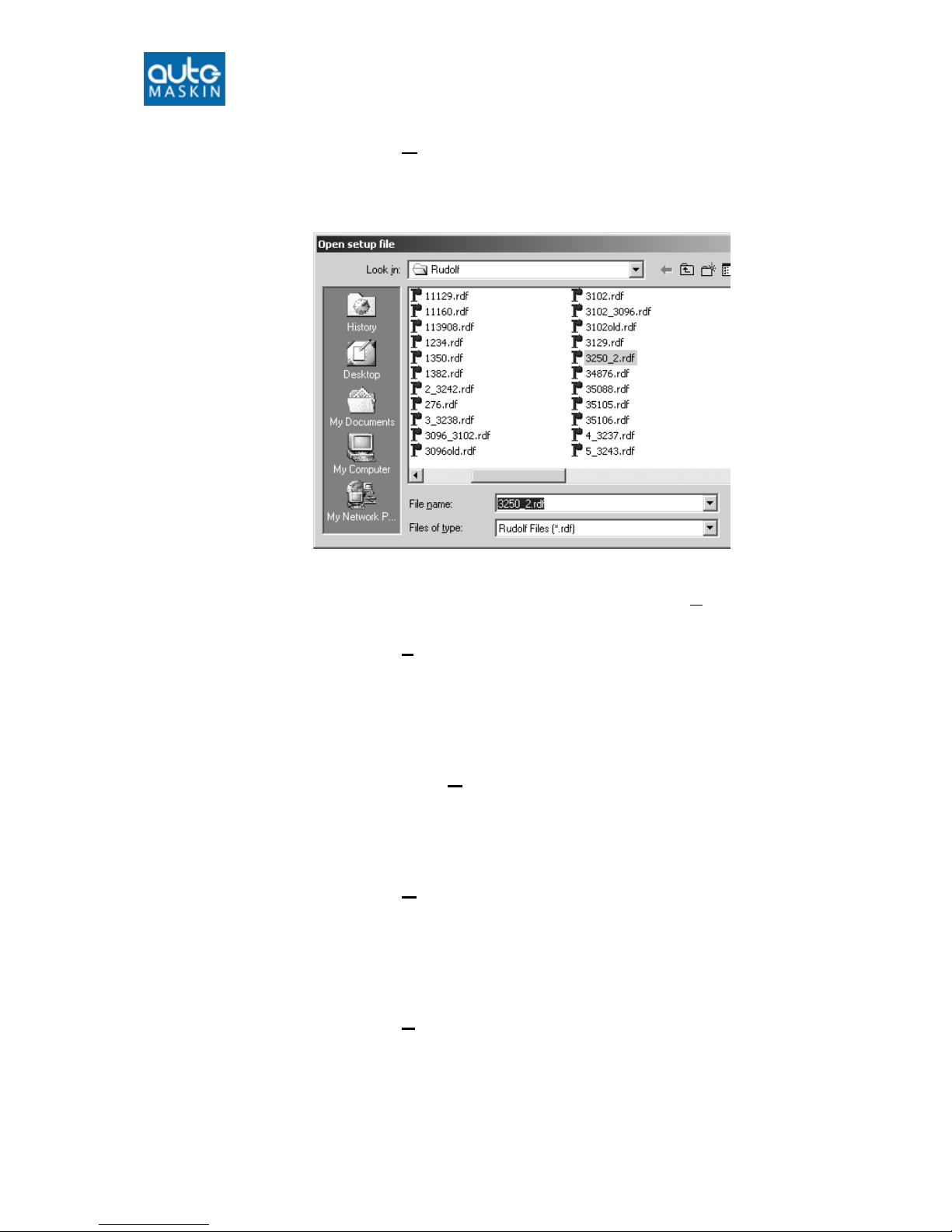

Alt+F+O Select File-Open to open a previous project. The following dialog

appears:

Select a file with the .RDF extension, and click Open.

2.1.3 Save

Alt+F+S Select File-Save. If this is the first time the project is saved,

Rudolf will prompt for a file name.

Type a file name. The extension .RDF is added automatically.

2.1.4 Save As…

Alt+F+A This menu is used when saving a project with a new name.

Type the new name and press Save.

2.1.5 Close

Alt+F+C

This closes the open file. If it is not saved, Rudolf will prompt you

to save it.

2.1.6 Export as Text

Alt+F+E The complete project setup can be exported to a text-file. The text-

file can easily be included into a word-processor document.
