Audiovox 3200 Instructions d'installation

DVD3200

Installation and Owner’s Manual

Audiovox Corporation

150 Marcus Blvd.

Hauppauge, NY 11788

1-800-225-6074

www.audiovox.com

Contents

Page

Contents...................................................................................................................................................2

Safety......………………………………….................................................................................................. 3

Introduction...............................................................................................................................................4

Installation.............................................................................................................................................5-6

Front Panel Controls.................................................................................................................................7

Rear Panel Connections...........................................................................................................................8

Stand Alone DVD Remote Control Function ............................................................................................9

Standard Connections............................................................................................................................10

Getting Started........................................................................................................................................12

DVD Icon List..........................................................................................................................................13

Audio CD Icon List..................................................................................................................................14

DVD Operation..................................................................................................................................15-16

Playing a Video CD...........................................................................................................................16-18

Favorite Track Selection (FTS)..........................................................................................................19-20

Customizing DVD Play..................................................................................................................... 21-23

Troubleshooting......................................................................................................................................24

Maintenance...........................................................................................................................................25

Specifications..........................................................................................................................................26

WARNING

RISK OF ELECTRICAL

SHOCK, DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRICAL SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with the arrowhead symbol,

within an equilateraltriangle, is intended to alert the

user to the presence of uninsulated "dangerous

voltage" within the product's enclosure that may be

of sufficient magnitude to constitute a electric

shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE

Introduction

Congratulations on your purchase of an Audiovox DVD3200! Your DVD-Video player is a Player for

digitalvideo discs conforming to the universal DVD Video standard. With it,you will be able to

Enjoy full-length movies with true cinema picture quality, and stereo sound. The unique features of

DVD

-Video, such as selection of soundtrack and subtitle languages, and of different camera angles

(depending on the disc), are allincluded. You will find your player easy to use, by way of the On

Screen Display, in combination with the remote control, as well as the main faceplate controls. It is

important to note that CD-R, and CD-RW discs must be FINALIZED before they can be played on

this player. The disc types which run on the player, feature one or more of these logos on the disc

Unpackin

First, check and identify the contents of your DVD3200 player package, as listed below:

- DVD-Video Player

- DIN Plug Power Harness

- Power Harness Extension

- DIN Sleeve

- 6'Stereo Audio/Video RCA Cable

- Mounting Strap

- Accessory Kit

- DIN Sleeve Removal Tools

- Stand-Alone Remote Control with Batteries

If any of these items should be damaged or missing, please inform your supplier without delay.

Please keep all packaging materials, as you might need to transport your player in the future.

DVD- Video

DVD has brought about a true revolution in video quality. The wonders of DVD-Video are possible

due to the use of the latest state-of-the-art MPEG2 data compression that enables an entire movie

to be put on a single 5-inch disc. The complex MPEG2 technology captures even the most

complex pictures in all of their original glory. Technically, DVD-Video provides crystal clear digital

pictures with a high resolution of over 500 lines and 720 pixels (picture elements) to each line!

This is more than double the resolution of VHS, better than Laser Discs, and is the closest match

to the digitalmasters made in the recording studios! DVD-Video is poised to be the universal

video system of the future, offering optimal viewing quality on any TV screen.

Installation-DVD3200

This unit is designed for installation in vehicle cabs with an existing radio opening. In many

cases, a special installation kit will be required to mount the DVD3200 to the dashboard.

These kits are available at electronics supply stores and car stereo specialist shops. Always

check the kit application before purchasing to make sure the kit works with your vehicle.

MUST

Universal Installation Procedure Using DIN Mounting Sleeves

Slide the mounting sleeve off ofthe chassis. If it is locked into position, remove the end caps and

use the removal tools (supplied) to disengage it.

Check the dashboard opening size by sliding the mounting sleeve into it. If the opening is not large

enough, carefully cut or file as necessary until the sleeve easily slides into the opening. Do not

force the sleeve into the opening or cause it to bend or bow. Check that there is sufficient space

behind the dashboard for the DVD player chassis. Wire prior to actually installing the sleeve. (See

Figure 10 on page 15) Wiring the DIN power harness assembly should take place after hole size is

confirmed. Mount sleeve after wiring.

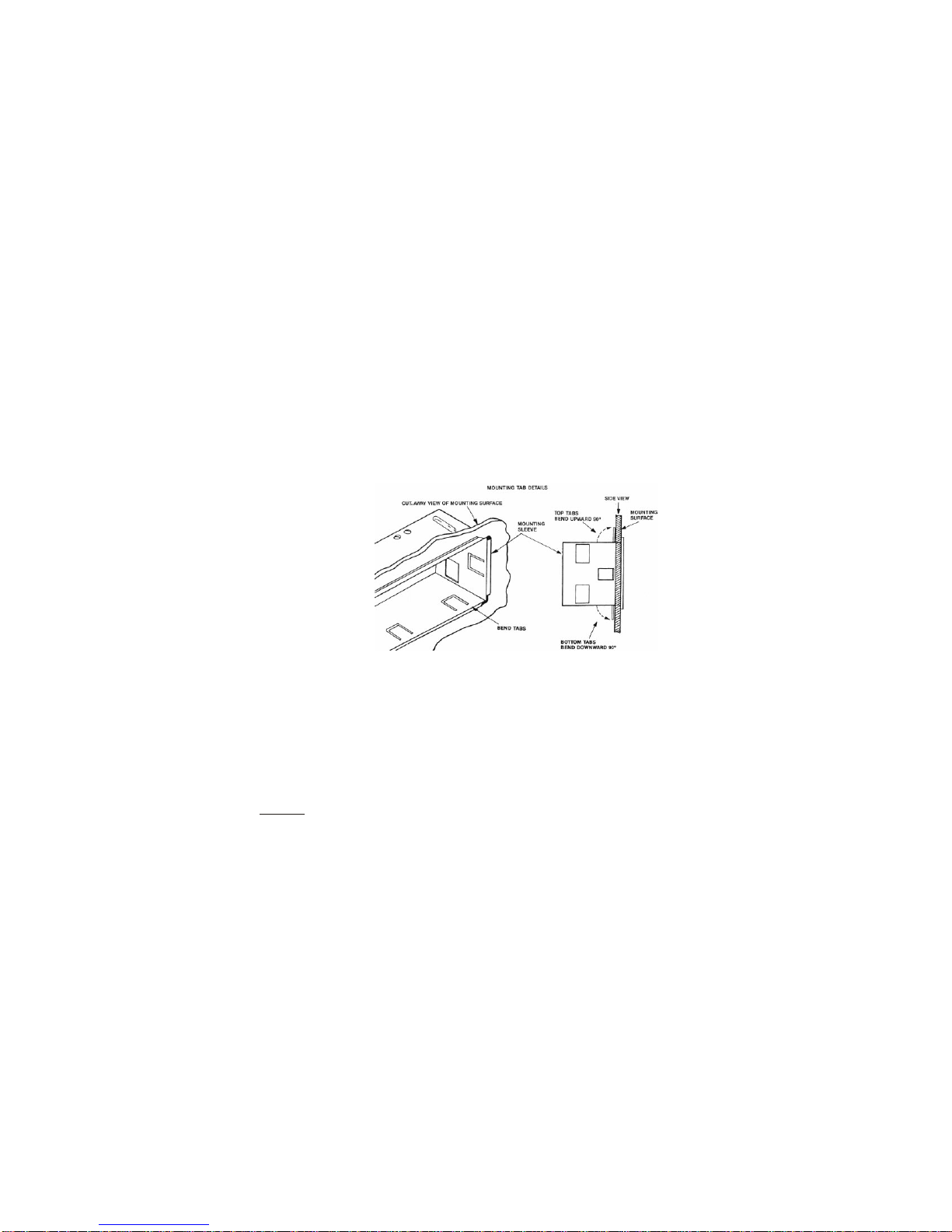

Locate the series of bend tabs along the top, bottom, and sides of mounting sleeve. With the sleeve

fully inserted into the dash opening, bend as many tabs as necessary so that the sleeve is firmly

secured to the dashboard.

Follow the wiring diagram carefully, (See Figure 10 on page 15) and make certain all connections

of the wiring harness are properly secured and insulated to ensure proper operation of this unit.

After completing the wiring connections, turn the unit on to confirm operation (ignition switch must

be “ON”). If unit does not operate, recheck all wiring until problem is corrected. Once proper

operation is achieved, turn offignition switch and proceed with final mounting of the chassis.

Carefully slide the DVD player into the mounting sleeve, making sure it is right-side-up until fully

seated, and that the spring clips lock it into place.

Attach one end of the DIN mounting strap (supplied) to the screw stud on the rear chassis using the

flange nut provided (See Figure 2 on page 6). Fasten the other end of the DIN mounting strap to a

secure part of the dashboard, either above or below the DVD player using the screw and flange nut

provided. Bend strap to position as necessary.

The rear of the DVD player be supported with the strap to prevent damage to the

dashboard from the weight of the DVD player or improper operation due to vehicle vibration.

CAUTION:

Figure 1

Installation Usin

Kits:

If your vehicle requires the use of an installation kit to mount this DVD player, follow the instructions

included with the installation kit to attach the DVD player to the mounting plate supplied with the kit.

Wire and test the DVD player as described in step 4 on page 5.

Installthe DVD player / mounting plate assembly to the sub-dash according to the instructions of the

installation kit.

Attach the DVD player support strap to the player and the dashboard as described in step 6 on page

Replace the dashboard trim panel

Figure 2

Figure 3

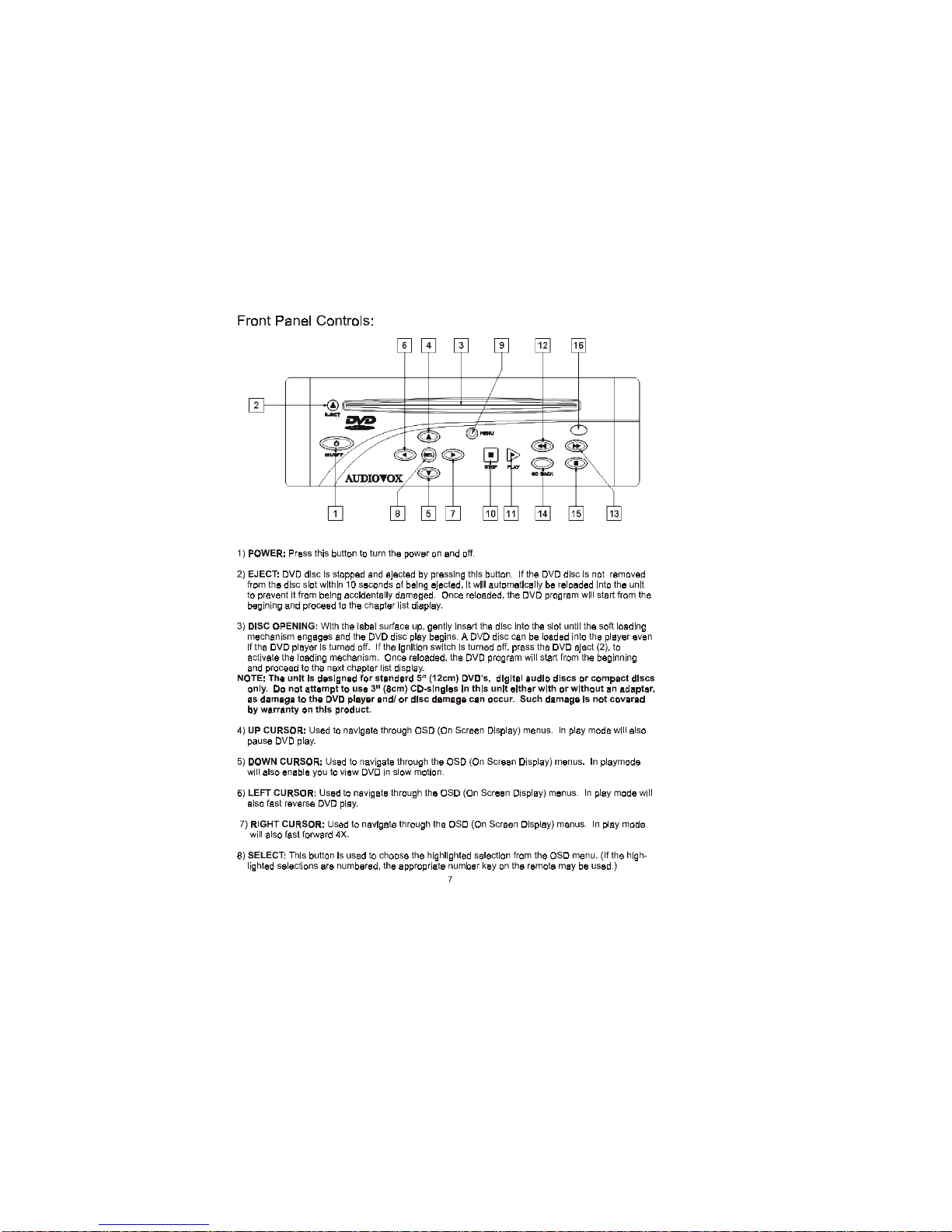

Rear Panel Connections:

Figure 4

9) Select this button to access the DVD menus. Titles and chapters may be included on the

DVD OSD menu along with Camera Angles, Spoken language, and Sub-title options. To remove the

OSD menu press the menu button again.

10) Pressing this button willstop play of the DVD disc.

11) Pressing this button will start play of the DVD disc.

12) Pressing this button will shift the play to the previous chapter.

13) Pressing this button will skip forward to the next chapter.

14) If pressed in the OSD menu mode this button will return you to the previous screen.

This works the same as the RETURN on the remote control.

15) f pressed, this button will temporarily stop play of the DVD on the frame of play you are

watching. Pressing this button again will step frame by frame. Pressing PLAY resumes play.

16) This eye picks up the IR signal from the remote. A blocked

“eye” willnot allow the remote to function properly.

MENU:

STOP:

PLAY:

PREVIOUS / FAST REVERSE:

NEXT / FAST FORWARD:

GO BACK:

PAUSE: I

INFRARED SENSOR EYE:

Loading the Batteries into the Infrared Remote Control

(Figure 5)

Open the battery compartment cover and insert two “AAA” (R03) batteries as indicated inside the

battery compartment. Note polarity. Close the cover.

Unless otherwise mentioned, all operations can be directly carried out with the

remote control. Always point the remote control directly at the DVD player, making sure there are

no obstructions in the path of the infrared beam. When there are corresponding keys on the front

panel, they can be used also.

CAUTION: DO NOT MIX OLD AND NEW BATTERIES. NEVER MIX DIFFERENT TYPES OF

BATTERIES (STANDARD, ALKALINE, AND SO ON).

OPERATION NOTE:

Stand-Alone DVD Remote Control Function

: (Figure 6)

1) (On Screen Display) This button turns the on

screen display on and off.

2) If the DVD disc contains sequences

recorded from different camera angles, pressing this

button causes the angle icon to appear and show

you the number of camera angles available and

allows you to change the angle if you wish.

3) This button controls the language

selector and allows you to choose whether subtitles

are able to be viewed or not.

4) This button allows you to select the language

you prefer from the menu.

5) These numeric keys allow you to directly enter

the highlighted menu chapter, or track selection.

6) This button is the mode selector for the Title /

Chapter.

7) Pressing this button will enable the user to

select the DVD defined menu.

8) Use this button to acknowledge the highlighted

menu selection.

9) : Use this icon to navigate through the menu

selections. In play mode will also pause play.

10) : Use this icon to navigate the menu selections.

In play mode this button will also fast reverse.

11) : Use this icon to navigate the menu selections.

In play mode this button will also fast forward 4X.

12) : Use this button to navigate the menu selections.

In play mode this button will also allow the DVD play

o be viewed in slow motion.

13) :Pressing this button will select the previous

chapter.

14 chapter.

15) : Pressing this button will pause the DVD play.

Pressing pause again will step through the sequence

frame by frame.

OSD:

ANGLE:

SUBTITLE:

AUDIO:

0-9:

T-C:

MENU:

OK:

) : Pressing this button will select the next

Figure 5

Figure 6

13) : Pressing this button will start the DVD play.

Another press will resume play at the point at

which the DVD was stopped.

14) :Pressing this button will stop the DVD play.

15) With a disc inserted in the DVD player,

in stop mode this button will allow you to select

player settings such as aspect ratio, etc.

16) This button will allow you to go back

one menu step.

17) : Pressing this button will turn the DVD player

on or set the player on standby.

SETUP:

RETURN:

Figure 6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audiovox Lecteur DVD

Audiovox

Audiovox Mobile VIDEO PROV1022 Manuel utilisateur

Audiovox

Audiovox VOD1221 P Manuel utilisateur

Audiovox

Audiovox VOH10FR Manuel utilisateur

Audiovox

Audiovox AVD300 Manuel utilisateur

Audiovox

Audiovox VOD1023 - 10.2 Inch Dropdown Mobile Video... Manuel utilisateur

Audiovox

Audiovox DVD Home Theater System Manuel utilisateur

Audiovox

Audiovox VOH8512 Manuel utilisateur

Audiovox

Audiovox AVD200T Manuel utilisateur

Audiovox

Audiovox VOD715 - DVD Player With LCD Monitor Manuel utilisateur

Audiovox

Audiovox VOD122 - DVD Player With LCD Monitor Manuel utilisateur

Audiovox

Audiovox D1500B - DVD Player - 5 Manuel utilisateur

Audiovox

Audiovox DVD3200 Instructions d'installation

Audiovox

Audiovox AVD400A - AVD 400A - DVD Player Manuel utilisateur

Audiovox

Audiovox AVDHD Manuel utilisateur

Audiovox

Audiovox VOD85 - DVD Player With LCD Monitor Manuel utilisateur

Audiovox

Audiovox VE 1020E Manuel utilisateur

Audiovox

Audiovox PVS3393 Manuel utilisateur

Audiovox

Audiovox VODEXL10 A Manuel utilisateur

Audiovox

Audiovox VE727 - VE - 7" LCD TV Manuel utilisateur

Audiovox

Audiovox AVD400TA Manuel utilisateur

Audiovox

Audiovox VOD916 - DVD Player With LCD Monitor Manuel utilisateur

Audiovox

Audiovox AVXMTG 10U Manuel utilisateur

Audiovox

Audiovox VE920 Manuel de service

Audiovox

Audiovox VOD1022 Manuel utilisateur

Manuels Lecteur DVD populaires d'autres marques

Sony

Sony DVP-F11 Manuel utilisateur

Philips

Philips DVP3560K/F8 Manuel utilisateur

LENCO

LENCO DVP-740 X2 Manuel utilisateur

JVC

JVC XV-N650BEU Manuel utilisateur

Aiwa

Aiwa XD-DV370 Manuel utilisateur

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuel utilisateur

Denon

Denon DVM-1805 - DVD Changer Manuel utilisateur

Toshiba

Toshiba SD-3815 Manuel utilisateur

Tevion

Tevion 44330 Manuel utilisateur

Samsung

Samsung DVD-HD860 Manuel utilisateur

Sylvania

Sylvania DP170SL8 Manuel utilisateur

Toshiba

Toshiba SD-P1200 Manuel utilisateur

JVC

JVC XV-D9000E Manuel utilisateur

Dolby Laboratories

Dolby Laboratories CP650 Manuel utilisateur

Philips

Philips DVD737K/931 Manuel utilisateur

Denon

Denon DVD-5900 Manuel utilisateur

Philips

Philips DVD 951 Manuel utilisateur

Philips

Philips DVDR3460 Manuel utilisateur
