Audiovox AVDHD Manuel utilisateur

AVDHD

½DIN SLOT-IN DVD PLAYER

Owner’s Manual

AVDHD

AUXIN

A. Welcome

Thank you for choosing the AVDHD DVD Player. TheAVDHD is de-

signed to optimize the enjoyment of your favorite DVDs in the mobile

environment. This DVD Player is constructed to provide years of reli-

able, trouble-free service. Please read this manual thoroughly prior

to operating the player and save it for future reference.

B. Precautions

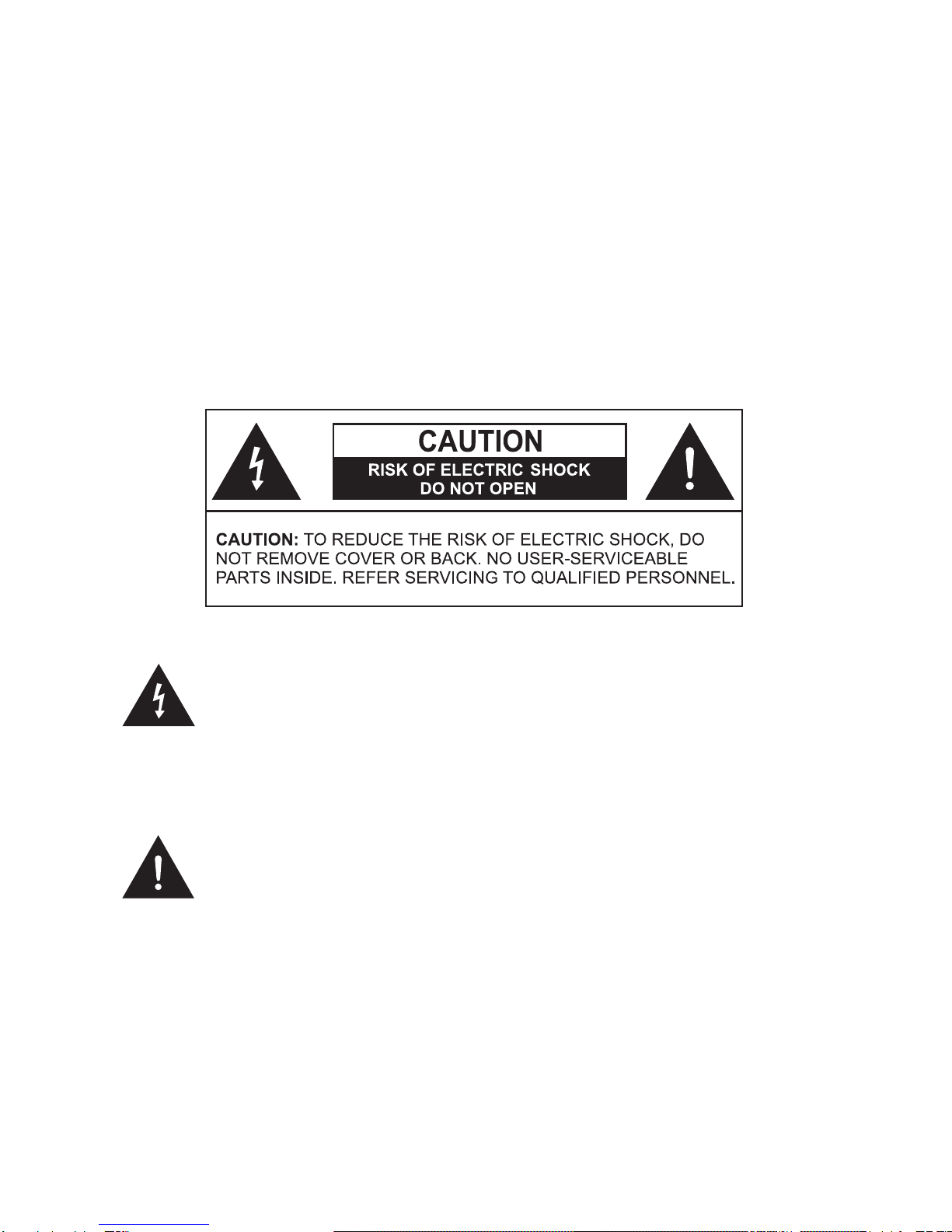

EXPLANATIONOF GRAPHICSYMBOLS

The lighting flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated ‘dangerous voltage’ within the product’s enclosure

that may be of sufficient magnitude to constitute risk of electric

shock to persons.

The exclamation point within an equilateral triangle is intended

toalerttheusertothepresenceofimportantoperatingand main-

tenance (servicing) instructions in the literature accompanying

theappliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT

EXPOSE THIS DEVICE TO MOISTURE.

SAFETY PRECAUTION

Forsafety reasons donot allow childrento unfasten seat-beltsto change

video media or make any adjustments to the system. Enjoy your enter-

tainment system but always remember the safety of all passengers is

the number one priority.

IMPORTANT NOTICE

An LCD panel and/or video monitor may be installed in a motor vehicle

and visible to the driver if the LCD panel or video monitor is used for

vehicle information, system control, rear or side observation or

navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must be

installed so that these features will only function when the vehicle is in

“park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or

DVD play that operates when the vehicle is in gear or when the parking

brake is not applied must be installed to the rear of the driver’s seat

where it will not be visible, directly or indirectly, to the operator of the

motor vehicle.

1. OBJECTS AND LIQUID

Do not insert objects of any kind into the system through its open-

ings; do not spill or spray liquid on or into the system (this may

result in a fire or electric shock). Do not place heavy objects on the

unit.To ensureproperventilationandproper operation,never cover

or block the slots and openings.

2. DISASSEMBLY

Do not attempt to disassemble the unit. There is a risk of electric

shock and/or exposure to Laser Radiation. Contact qualified ser-

vice personnel if your system is in need of repair.

3. CLEANING UNIT

Whencleaning,makesurethesystemis unplugged fromthe power

source. Do not use any solvents or cleaning materials. Clean the

DVD player using a lightly dampened lint free cloth to wipe the unit.

4. DISCS or (DISC Media)

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources. Do not touch the surface of the disc. Handle

the disc by its edges. Clean the disc by wiping the disc from the

center out with a soft lint free cleaning cloth. Remove the disc from

the unit and store it in its case after playing. Some playback opera-

tionsof discs maybeintentionally fixed bysoftware producers. Unit

plays discs according to the disc contents the software producers

designed therefore some playback features may not be available.

Refer to the instructions supplied with the discs.

5. Powering the DVD Player

This system MUST be powered from switched (Accessory) power

as indicated on the marking label. Power should be applied to the

unit when the ignition key is in the Run and/orAccessory positions.

Use only the supplied power cable provided with this set to avoid

electric hazards.

6.Operation

When the temperature rises dramatically from a very low tempera-

ture,moisturemaycondenseinsidetheAVDHDandcausetheDVD

player to malfunction. If theAVDHD does not operate properly un-

der these conditions leave the AVDHD turned on for at least 30

minutes for the moisture to evaporate.

C.Contents

1. 1 Main Unit

2. 1 Remote control with one Battery

3. 1 12VDC Power Harness

4. 2 Brackets with 4 Screws

5. 1 Remote IR Receiver

6. 1AV cable (RCAto RCA)

7. 1 Owner's Manual (not shown)

AUDIOVOX

1. 2.

3. 4.

5. 6.

AVDHD

AUXIN

D.Controls

MainUnit(RefertoFigure1)

1. Power Button

2. Play/Pause Button

3. Stop Button

4. Previous/NextButton

5. Eject Button

6. Remote Control Sensor

7. Disc Slot

8. Reset Button

9. AUXINLED

10. IRInput

11. VideoOutput

12. Audio L Output Jack

13. Audio R Output Jack

14. VideoInputJack

15. AudioLInputJack

16. AudioRInputJack

17. External Remote Eye Input

18. DC In 12V Power Supply Connector

AVDH D

AUX IN

612345

bl bm bn bo bp bq br bs bt

RemoteControl View

(Referto Figure2)

1) MODE Button

2) POWER Button

3) MENUButton

4) UP/DOWN/

LEFT/RIGHTButton

5) ENTER/PLAYButton

6) VOLUME +/- Buttons

7) NUMERICKEYPAD

8) 10+ Button

9) TITLE Button

10) AUDIOButton

11) REPEAT Button

12) SUBTITLEButton

13) DISPLAYButton

14) EJECT Button

15) SETUP Button

16) PAUSE Button

17) STOP Button

18) NEXTButton

19) PREVIOUSButton

20) SCAN FORWARD Button

21) SCAN REVERSE Button

22) MUTEButton

23) GOTO Button

24) ZOOMButton

25) A-B REPEAT Button

26) ANGLEButton

27) SLOW Button

Figure2

F.Connections

Figure3

1. Powering your DVD Player ( Refer to Figure 3)

Connect the black wire (-) to the vehicle ground. Connect the red

wire (+) to a switched (Accessory) 12VDC source. Plug the other

end into the 12VDC input jack on the back of the unit.

2. Remote IR Receiver ( Refer to Figure 3)

Plugthe 1/8”plugon theremote IRcable intothe IR INjack onthe

back of the DVD player. Place the IR receiver anywhere in the

vehicle to allow remote control from any location.

3. Connecting to a Monitor ( Refer to Figure 3)

a. Match the color-coded plugs to the appropriate jacks on the

back of the DVD PlayerA/V OUTPUT jacks: Yellow (video) to

Yellow, White(leftaudio) toWhite, and Red(right audio)toRed.

4. Connecting an External Video Source ( Refer to Figure 3)

To connect a video game or another audio/video source, plug the

A/V cable into the A/V input jacks on the rear of the DVD player.

Yellow(video) to Yellow,White(leftaudio) toWhite,andRed(right

audio) to Red.

YELLOW

WHITE

RED

YELLOW

WHITE

RED

White Audio In

Red Audio In

Yellow Video in

White AudioOut

Red AudioOut

Yellow VideoOut

Input from DC 12V power source

External Remote Sensor

IR INPUT

POWER

EJECT

PLAY

SLOW

PAUSE

STOP

FASTFORWARD

FASTREVERSE

UP/DOWN/LEFT/RIGHT

ENTER

NUMBERS

RETURN

REPEAT

DISPLAY

ANGLE

SUBTITLE

AUDIO

ZOOM

SETUP

Turn the unit on/off

Eject/load the disc

Start Play/Execute item or setting

Play at 1/2, 1/4, 1/6 or 1/7 times speed

Still Picture

(1 time) Stop at the present playing point /

(2 times) Stop playing

Go to the next chapter, track or scene during play

back

Go back to the preceding chapter, track or scene

during play back

Scan forward at 2, 4, 8 or 20 times normal speed

Scan backward at 2, 4, 8 or 20 times normal

speed

Used for Menu Navigation

Execute item or setting

Select item or setting

Return

Display the root menu of the disc

Repeat playing title, chapter, or track

Display information (title, chapter, track, time, etc.).

Change the angles of a scene

Select the subtitle language

Select the audio language

Enlarge an image to 2, 3, or 4 times the

original

When the unit is in play mode this button will bring

up a display for Brightness + Sharpness adjustment.

For DVD playback Setup press stop and then press

Setup to select and set items, and exit the setup

menu.

G.Playing

After connecting power to the unit, press the power button on the

main unit momentarily. Insert the disc into the slot on the front of the

unit,the unitwill loadthedisc andstart playingautomatically:If there’s

a disc inside the unit, press the POWER button, the unit will start

playingautomatically.

1. BASIC OPERATION

2. MENU

A DVD is divided into sections called titles and chapters. When you

play a DVD, a root menu of the disc will appear on the screen of your

TV or Monitor. Contents of the menu will vary depending on the disc

content.PressMENUduringplaybacktodisplaythemainmenu. Some

DVDs only allow you to select disc playback options using the DVD

root menu.

3. DISPLAY

1) Display mode

During playback press DISPLAY to display the current disc playback

information. Press display again to remove the display.

Display Mode

1. The type of disc.

2. The number of current title.

3. The number of total titles.

4.The number of current chapter.

5. The elapsed time of title.

6.The number of total chapters.

7. The remaining time of title.

8.Thenumberofthecurrent

angle.

9.The number of total angles.

10.Thenumberofthecurrentaudiolanguage.

11. The numberof total audiolanguages.

12.Thenumberofcurrent subtitle language.

13.The number of total subtitle languages.

14.Currentsubtitlelanguage.

15.Dolbyaudiomode.

16.Currentaudio language selected.
