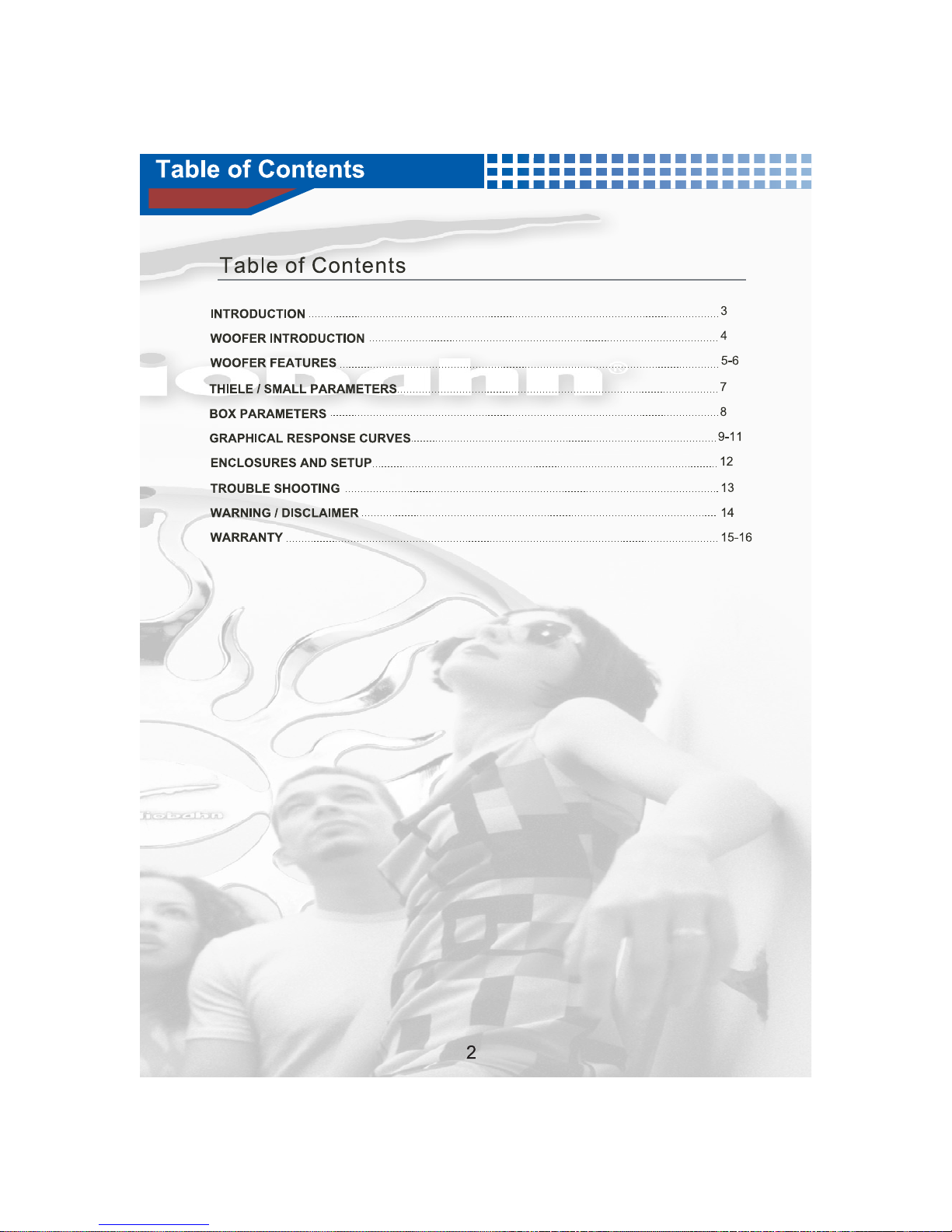

Table des matières

Autres manuels AudioBahn Subwoofer

AudioBahn

AudioBahn AW101T Manuel utilisateur

AudioBahn

AudioBahn ABP101N Manuel utilisateur

AudioBahn

AudioBahn 2 SUB SERIES-PARALLEL - SCHEMA Manuel utilisateur

AudioBahn

AudioBahn AW1000V Manuel utilisateur

AudioBahn

AudioBahn AW1008T Manuel utilisateur

AudioBahn

AudioBahn DUB1000 Manuel utilisateur

AudioBahn

AudioBahn ABS10H Manuel utilisateur

AudioBahn

AudioBahn 2 SUB PARALLEL-PARALLEL - DIAGRAM Manuel utilisateur

AudioBahn

AudioBahn AW1051M Manuel utilisateur

AudioBahn

AudioBahn AW105M Manuel utilisateur

AudioBahn

AudioBahn AW100T Manuel utilisateur

AudioBahn

AudioBahn AWT10X Manuel utilisateur

AudioBahn

AudioBahn AWT10X Manuel utilisateur

AudioBahn

AudioBahn 1 SUB WIRING - DIAGRAM Manuel utilisateur

AudioBahn

AudioBahn AWIS-12 Manuel utilisateur

AudioBahn

AudioBahn AW1000V Manuel utilisateur

AudioBahn

AudioBahn AW1005N Manuel utilisateur

AudioBahn

AudioBahn AW1005Q Manuel utilisateur

AudioBahn

AudioBahn ABP100T Manuel utilisateur

AudioBahn

AudioBahn AW101T Manuel utilisateur

AudioBahn

AudioBahn ATB6T Manuel utilisateur

AudioBahn

AudioBahn AWES12P Manuel utilisateur

AudioBahn

AudioBahn AWP210T Manuel utilisateur

AudioBahn

AudioBahn AW831SE Manuel utilisateur

Manuels Subwoofer populaires d'autres marques

Sony

Sony XS-AW8 Manuel utilisateur

Sony

Sony XS-L836 Manuel utilisateur

B&C Speakers

B&C Speakers 15 HPL 76W Manuel utilisateur

Velodyne

Velodyne DD-18+ Manuel utilisateur

Sonance

Sonance Cinema Series SUB 10-150 Manuel utilisateur

Hifonics

Hifonics HW-12 Guide de démarrage rapide

Magnat Audio

Magnat Audio ADR 130 BP Manuel utilisateur

Blitz

Blitz BZP106 Manuel utilisateur

Technics

Technics SB-AS500 Manuel utilisateur

Lyngdorf

Lyngdorf BW-2 Manuel utilisateur

Lyngdorf

Lyngdorf BW-3 Manuel utilisateur

Pyle Pro

Pyle Pro PYLE PRO PDW15125 Manuel utilisateur

REL Acoustics

REL Acoustics Q Series Manuel utilisateur

Pioneer

Pioneer Elite S-W1EX Manuel utilisateur

L-Acoustics

L-Acoustics KIVA SB15M Guide de démarrage rapide

B&C Speakers

B&C Speakers Woofer 12 HPL 76 Manuel utilisateur

KEF

KEF KUBE 200 Manuel utilisateur

Yamaha

Yamaha SW500 Manuel utilisateur

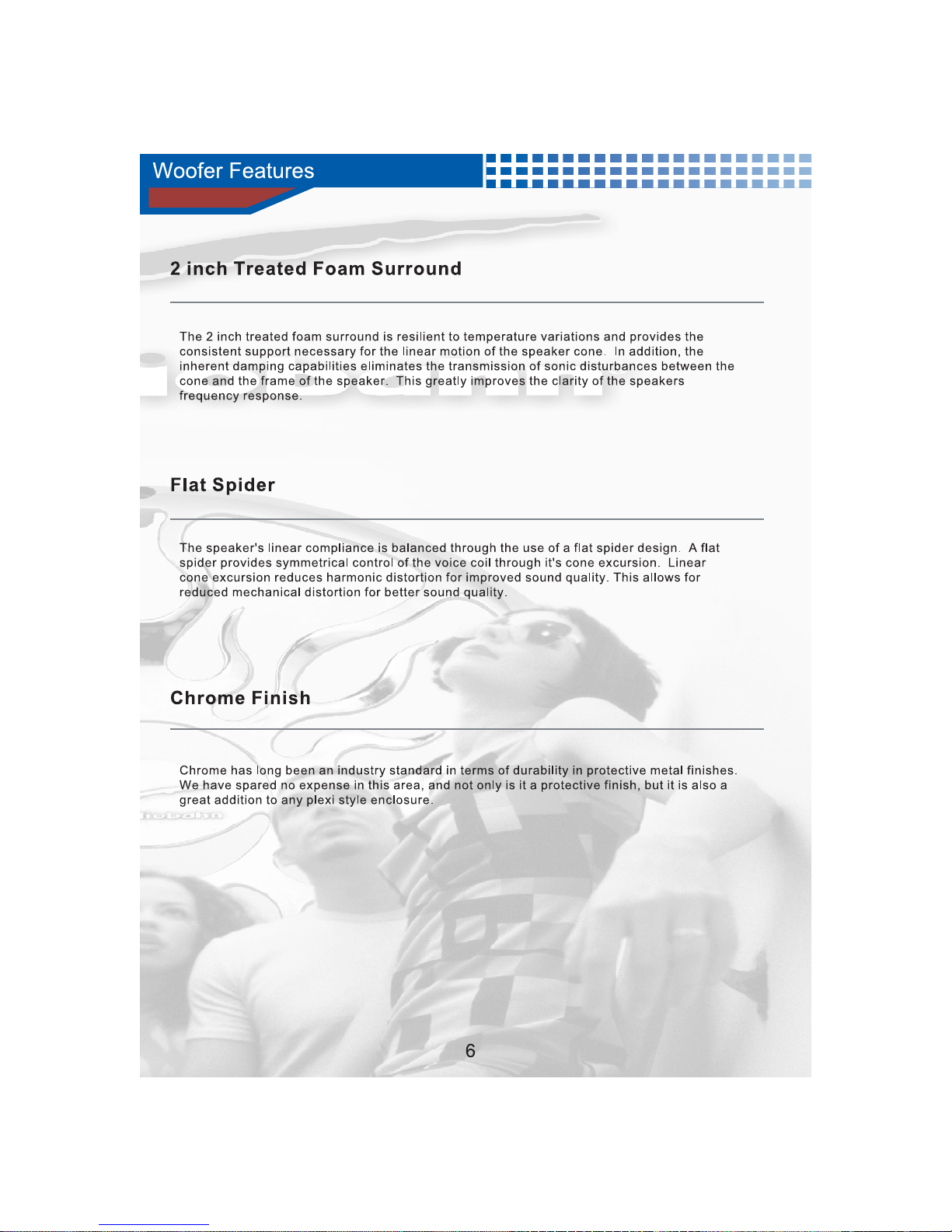

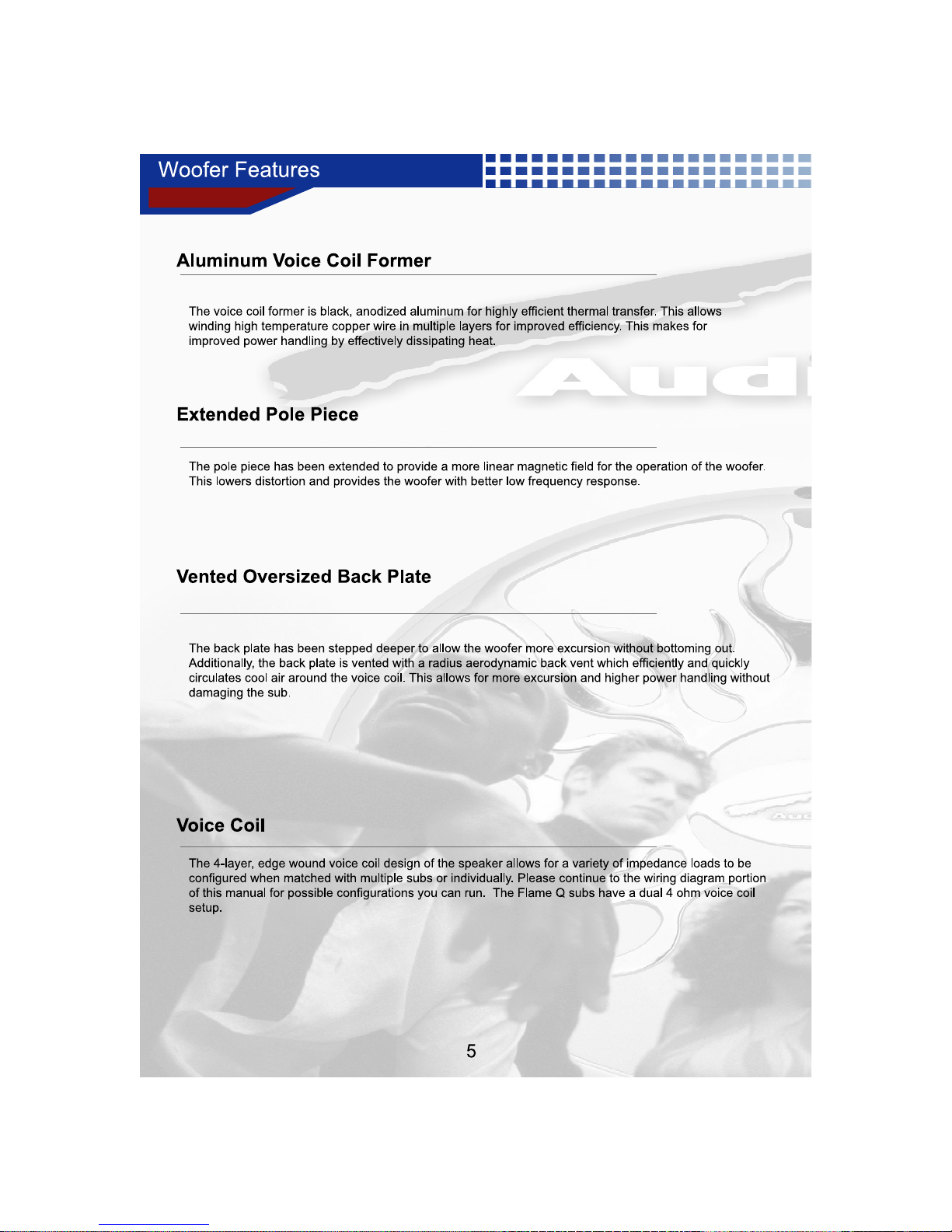

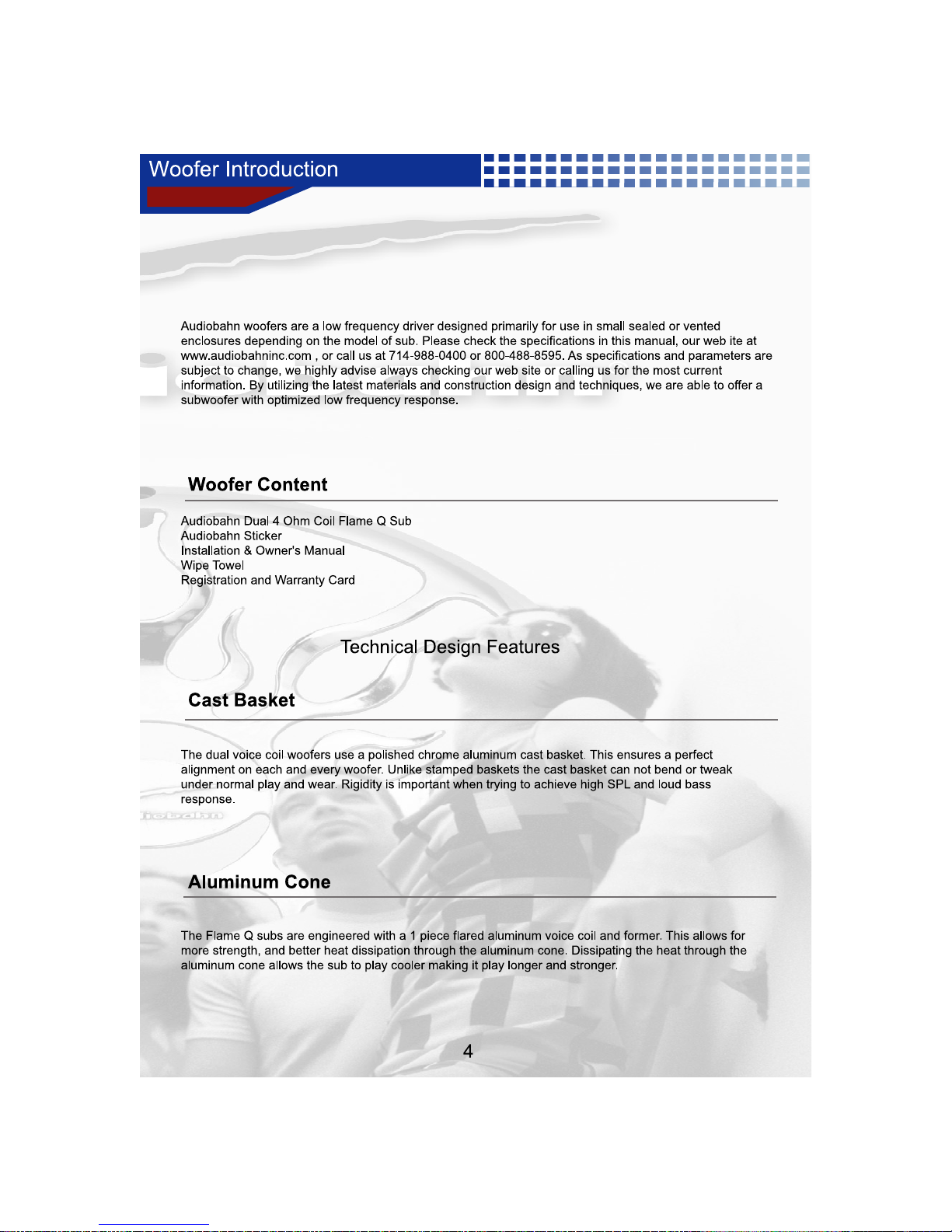

Theile / Small Parameters

7

Model # AW1006T AW1206T AW1506T

Fs 35.2 Hz 31.5 Hz 30.2 Hz

Qts 0.72 0.35 0.59

Qes 0.89 0.4 0.71

Qms 3.93 2.53 3.74

Vas(Liters) 12Liters 33Liters 67Liters

Vas (Cu. Ft.) 0.42 Cu. Ft. 1.2 Cu.Ft. 2.37 Cu.Ft.

Re 3.0 ohms 3.0 ohms 3.4 ohms

Le 1.3mH 1.50mH 2.5mH

Mmd 245 Grams 240 grams 318 grams

Xmax +/-19mm +/-18mm +/-19 mm

RMS 900 watts 1100 Watts 1300 watts

Sd 0.031 M2 0.044 M2 0.075 M2

Freq. Resp. 22Hz-500Hz 20Hz-500Hz 18Hz-500Hz

Efficiency 95 dB 96.4 dB 96.4 dB

EBP 40 79 42

Depth 6 3/8" 6 3/4" 8 1/4"

Hole 9" 10 7/8" 13 3/4"

Diamater 10 1/4" 12 1/2" 15 3/8"

Displacement 0.21 Cu. Ft. 0.27 Cu.Ft. 0.47 Cu.Ft.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

Dimensions

Audiobahn Woofer Parameters

Vas does not represent the volume of a Box. Vas is just a parameter used when calculating a box.

Box Parameters

8

Model # AW1006T AW1206T AW1506T

Ported

Air Space (Cu. Ft.) 0.65 1.3 1.65

PortSize(Inches) 2x6.5 3x6.75 4x10

Port Vel. (%) 48.31 34.65 32.7

-3dB (Hz) 31.5 35 35

TuneFreq.(Hz)404040

Sub Disp. (Cu. Ft.) 0.21 0.25 0.47

Port Disp.(Cu. Ft.) 0.01 0.024 0.066

TotalVol.(Cu.Ft.) 0.75 1.5 2

Ported

Air Space (Cu. Ft.) 1.4 2.3 2.65

Port Size (Inches) 3 x 6.75 4 x 7.25 (2) 3 x 8

Port Vel. (%) 24.19 19.6 26.41

-3dB (Hz) 30 32.5 30

TuneFreq.(Hz)393836

Sub Disp. (Cu. Ft.) 0.21 0.25 0.47

Port Disp.(Cu. Ft.) 0.024 0.046 0.058

TotalVol.(Cu.Ft.) 1.5 2.5 3

Ported

Air Space (Cu. Ft.) 2.4 3.2 3.6

Port Size (Inches) 4 x 6.25 (2) 4 x 12 (2) 4 x 8.75

Port Vel. (%) 14.39 9.65 16.14

-3dB (Hz) 29 30 30

TuneFreq.(Hz)393638

Sub Disp. (Cu. Ft.) 0.21 0.25 0.47

Port Disp.(Cu. Ft.) 0.04 0.165 0.117

TotalVol.(Cu.Ft.) 2.5 3.5 4

EBP 74 80 80

Model #

Sealed NR NR NR

Minimum (Cu. Ft.) 0.5 0.5 1.25

Maximum (Cu. Ft.) 1 1.25 3

SPL (dB) 80 84.9 86

All sealed boxes already include the displacment for the subwoofer. NR = (Not Recommended)

Remember to build your box to the total volume, not just air space, as total volume includes all displacement.

Audiobahn Box Specifications

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is,

the higher the frequency the sub will play, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port = (3.14) X (radius) (squared)

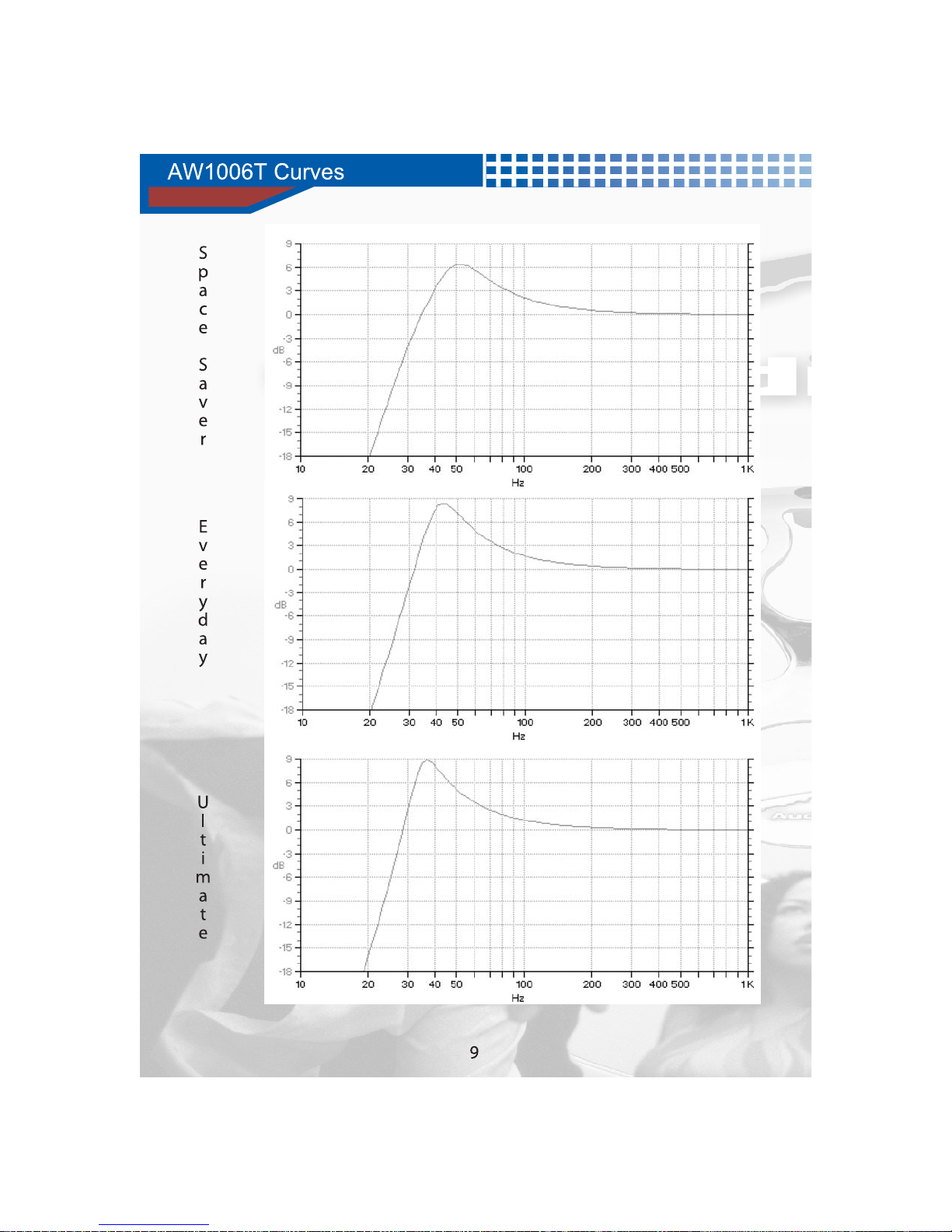

Ultimate SPL Bass Box

(not designed for competition use)

Everyday Bass Performer

Space Saver Bass Design

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity

translates to port noise, so the lower the number, the less port noise you will incur.
