AudioBahn AW1005N Manuel utilisateur

ULTRA-HIGH EXCURSION SUBWOOFERS

AW1005N / AW1205N / AW1505N / AW1805Q

OPERATING INTSTRUCTIONS

PLEASE RETAIN MANUAL FOR FUTRE USE AND REFERENCE

QUALITY, RLIABILITY, & PURE BLISS

Audiobahn’s classic six-leg cast basket model has evolved into a fresh and innovative design for today’s

cutting-edge installation projects. Wholly manufactured with heavyweight high-pressure cast aluminum,

three durable stabilizers provide added durability employing bolt-tight construction linking them to the six

legs and the specially slotted T-YOKE allows for more efficient heat dissipation. But what’s most eye-

catching about the six-leg family of subwoofers is its exclusive Crown, which hovers over the woofer’s cone,

providing protection in cramped installation environments and allowing ample space for cone excursion.

This new feature adds an edgy appeal that fits the image Audiobahn has maintained since its inception in

1997. The Crown, as well as the entire basket, features Audiobahn’s multi-textured surfacing of chrome and

satin aluminum making for a striking blend of smooth and rough. In addition, the venting plate is highlighted

with the recognizable Audiobahn anodized blue tone to add an alluring combination in chrome and color.

The AW1805Q however will keep the original 6-Leg Cast Basket and model # AW1805Q

Theile / Small Parameters

Model # AW1005N AW1205N AW1505N AW1805Q

Fs 35.2 Hz 31 Hz 28.2 Hz 23.2Hz

Qts 0.44 0.34 0.33 0.41

Qes 0.47 0.37 0.36 0.44

Qms 7.03 4.7 4.4 5.27

Vas

(

Liters

)

13 Liters 33 Liters 77 Liters 133 liters

Vas

(

Cu. Ft.

)

0.45 Cu.Ft. 1.15 Cu.Ft. 2.7 Cu.Ft. 4.70 Cu.Ft.

Re 2.0 ohms 2.1 ohms 2.0 ohms 3.3 ohms

Le 1.05 mH 0.85 mH 1.1 mH 2.85 mH

Mmd 202 Grams 228 grams 320 grams 610 grams

Xmax +/-16mm +/- 16 mm +/- 15 mm +/- 26 mm

RMS 900 watts 1000 Watts 1000 watts 1200 watts

Sd 0.030 M2 0.045 M2 0.075 M2 0.110 M2

Freq. Resp. 25Hz-700Hz 23Hz-700Hz 20Hz-700Hz 16Hz-500Hz

Efficiency 91.7 dB 92.9 dB 94.8 dB 97dB

EBP 75 83 78 53

Depth 5 3/4" 6 3/8" 7 5/8" 7 3/4"

Hole 9 1/4" 11 1/8" 14" 16 3/4"

Diamater 10 7/8" 12 3/4" 15 1/2" 18 1/2"

Dis

lacement 0.17 Cu. Ft. 0.22 Cu.Ft. 0.27 Cu.Ft. 0.37 Cu.Ft.

Audiobahn Woofer Parameters

Dimensions

Vas does not re

resent the volume of a Box. Vas is

ust a

arameter used when calculatin

a box.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

Box Parameters

Model # AW1005N AW1205N AW1505N AW1805Q

Ported

Air S

ace

(

Cu. Ft.

)

0.6 1.3 1.6 2.4

Port Size

(

Inches

)

2.5 x 8.5 3 x 7.8 4 x 10

(

)

3 x 7.75

Port Vel.

(

)

36 30.5 26.3 52.79

-3dB

(

)

37 33.5 36.5 33.5

Tune Fre

(

)

45 38 40 38

Sub Dis

(

Cu. Ft.

)

0.17 0.25 0.3 0.4

Port Dis

(

Cu. Ft.

)

0.022 0.028 0.066 0.056

Total Vol.

(

Cu. Ft.

)

0.75 1.5 2 3

Ported

Air Space (Cu. Ft.) 1.35 2.3 2.6 3.35

Port Size (Inches) 3 x 7.75 4 x 7.25 (2) 3 x 8.5 (2) 4 x 11.25

Port Vel. (%) 22 18.14 20.67 28.98

-3dB

(

)

31 32 31 31

Tune Fre

(

)

37 38 35 36

Sub Dis

(

Cu. Ft.

)

0.17 0.25 0.3 0.4

Port Dis

(

Cu. Ft.

)

0.029 0.047 0.064 0.154

Total Vol.

(

Cu. Ft.

)

1.5 2.5 3 4

Ported

Air S

ace

(

Cu. Ft.

)

2.35 3.2 3.55 4.35

Port Size

(

Inches

)

4 x 8.15

(

)

4 x 11.25

(

)

4 x 11.25 6 x 9.8

Port Vel.

(

)

12.61 9.17 11.97 25.16

-3dB (Hz) 30 30 30 29.5

Tune Fre

(

)

36 37 35 35

Sub Dis

(

Cu. Ft.

)

0.17 0.25 0.3 0.4

Port Dis

(

Cu. Ft.

)

0.053 0.152 0.153 0.148

Total Vol.

(

Cu. Ft.

)

2.5 3.5 4 5

EBP

75 83 78 53

Model # AW1005N AW1205N AW1505N AW1805Q

Sealed NR NR NR

Minimum

(

Cu. Ft.

)

0.25 0.5 0.75 1.5

Maximum

(

Cu. Ft.

)

1 1.25 1.75 4

SPL

(

)

82.6 86.4 88.9 87.9

All sealed boxes alread

include the displacment for the subwoofer. NR =

(

Not Recommended

)

2003 Audiobahn Box S

ecifications

Remember to build

our box to the total volume, not

ust air space, as total volume includes all displacement.

An EBP of less then 45 is SUGGESTED for onl

a sealed box and

reater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is,

the hi

her the frequenc

the sub will pla

, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port =

(

3.14

)

(

radius

)

(

squared

)

Ultimate SPL Bass Box

(not designed for competition use)

Ever

Bass Performer

ace Saver Bass Desi

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity

translates to port noise, so the lower the number, the less port noise

ou will incur.

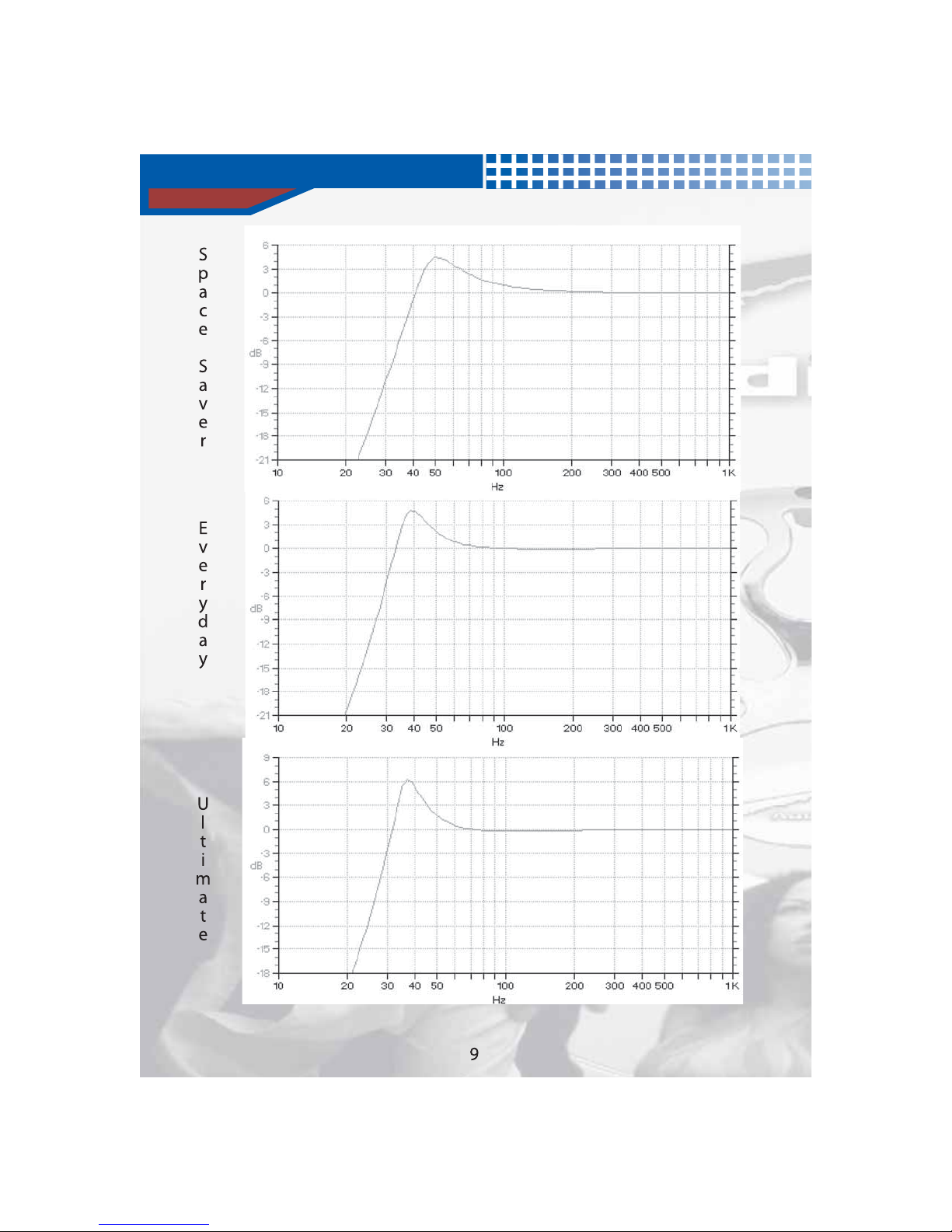

AW1005N Curves
