AudioBahn ALUM10N Manuel utilisateur

SOUND Q SERIES SUBWOOFERS

ALUM10N / ALUM12N / ALUM15N

OPERATING INTSTRUCTIONS

PLEASE RETAIN MANUAL FOR FUTRE USE AND REFERENCE

QUALITY, RLIABILITY, & PURE BLISS

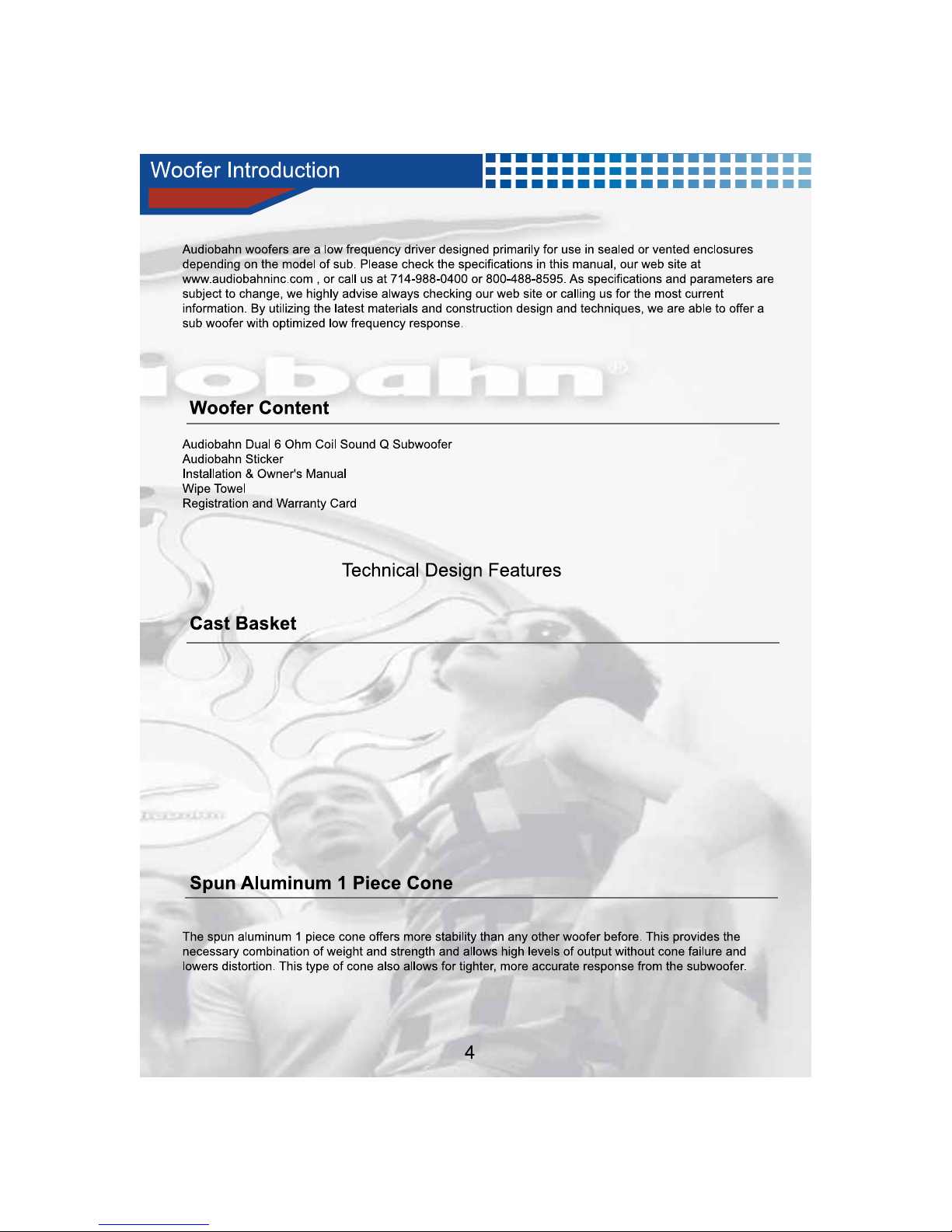

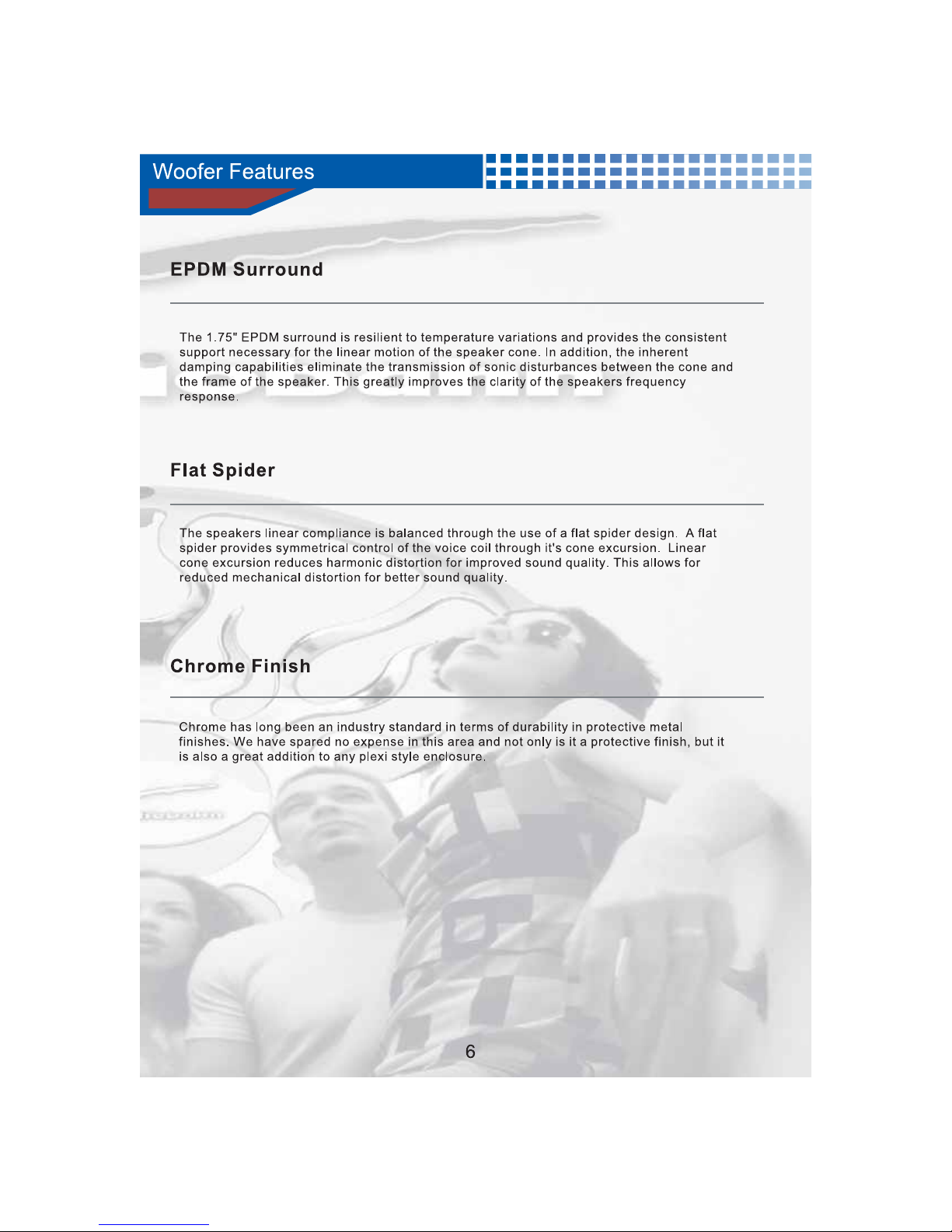

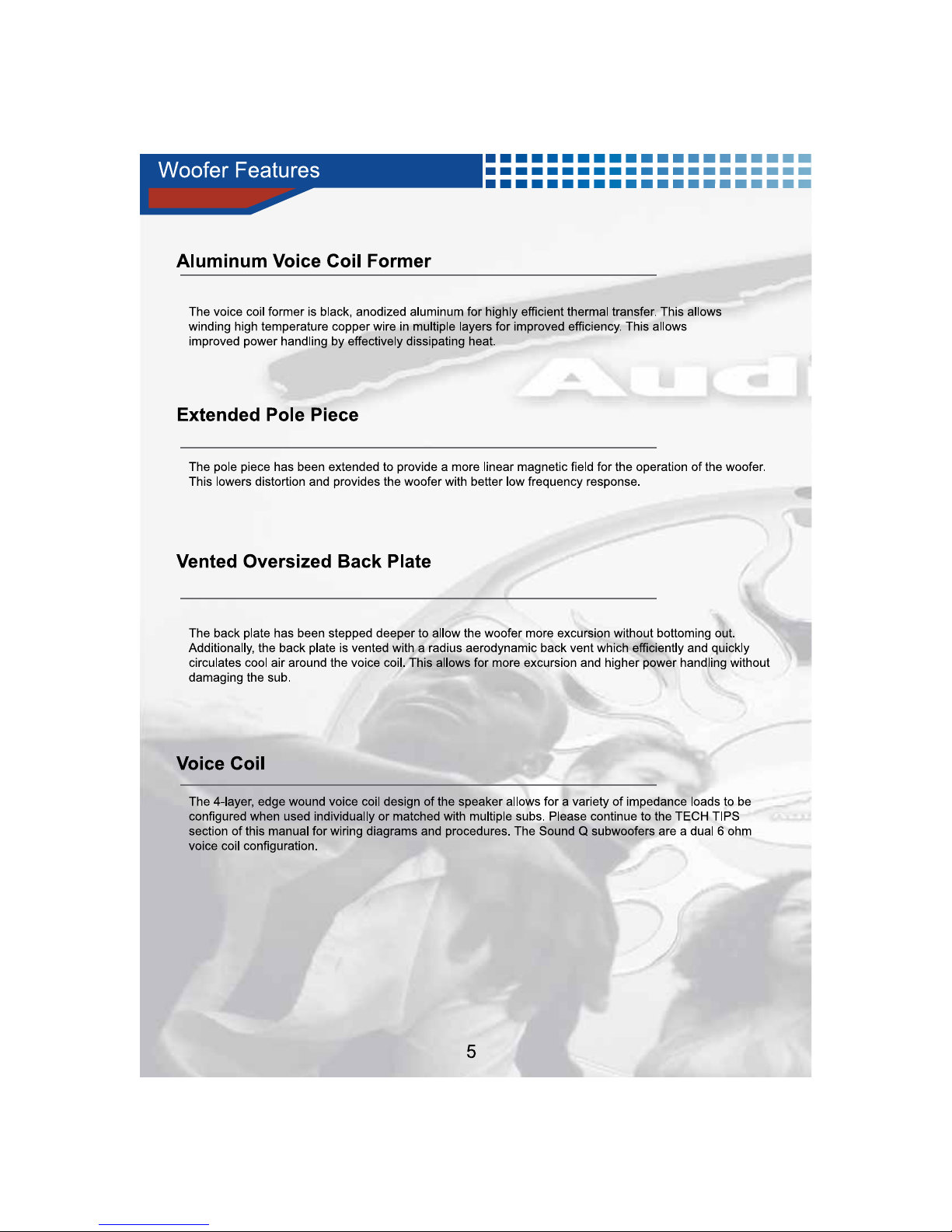

Audiobahn’s classic six-leg cast basket model has evolved into a fresh and innovative design for today’s

cutting-edge installation projects. Wholly manufactured with heavyweight high-pressure cast aluminum,

three durable stabilizers provide added durability employing bolt-tight construction linking them to the six

legs and the specially slotted T-YOKE allows for more efficient heat dissipation. But what’s most eye-

catching about the six-leg family of subwoofers is its exclusive Crown, which hovers over the woofer’s

cone, providing protection in cramped installation environments and allowing ample space for cone

excursion. This new feature adds an edgy appeal that fits the image Audiobahn has maintained since its

inception in 1997. The Crown, as well as the entire basket, features Audiobahn’s multi-textured surfacing

of chrome and satin aluminum making for a striking blend of smooth and rough. In addition, the venting

plate is highlighted with the recognizable Audiobahn anodized blue tone to add an alluring combination in

chrome and color.

Model # ALUM10N ALUM12N ALUM15N

Fs 26.4 Hz 24.4 Hz 24.4 Hz

Qts 0.47 0.47 0.56

Qes 0.51 0.52 0.63

Qms 4.9 4.8 5.64

Vas

(

Liters

)

35 Liters 76 Liters 130 Liters

Vas

(

Cu. Ft.

)

1.24 Cu.Ft. 2.66 Cu.Ft. 4.5 Cu.Ft.

Re 6.0 ohms 5.4 ohms 5.5 ohms

Le 2.50 mH 2.7 mH 3.15 mH

Mmd 158 Grams 186 Grams 290 Grams

Xmax +/- 13 mm +/-14 mm +/-16 mm

RMS 800 watts 1000 Watts 1100 watts

Sd 0.033 M2 0.049 M2 0.085 M2

Fre

. Res

. 20Hz-500Hz 18Hz-500Hz 18Hz-500Hz

Efficienc

95.6 dB 96.4 dB 96.4 dB

EBP 56 47 39

th 5" 5 5/8" 7 1/4"

Hole 9 1/4" 11 1/8" 14"

Diamater 10 7/8" 12 3/4" 15 1/2"

Dis

lacement 0.15 Cu. Ft. 0.18 Cu.Ft. 0.23 Cu.Ft.

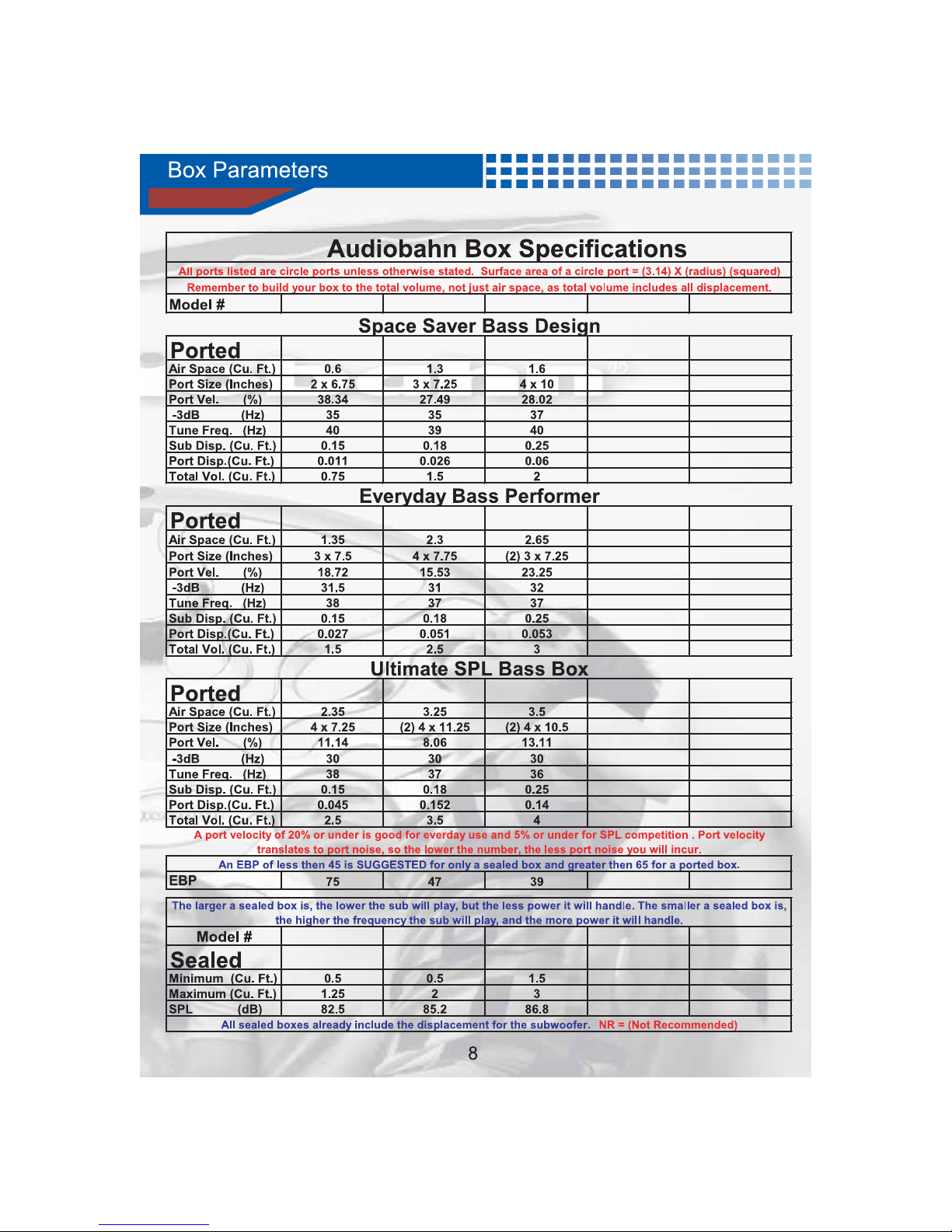

Vas does not represent the volume of a Box. Vas is just a parameter used when calculating a box.

An EBP of less then 45 is SUGGESTED for onl

a sealed box and

reater then 65 for a

orted box.

Dimensions

Audiobahn Woofer Parameters

ALUM10N ALUM12N ALUM15N

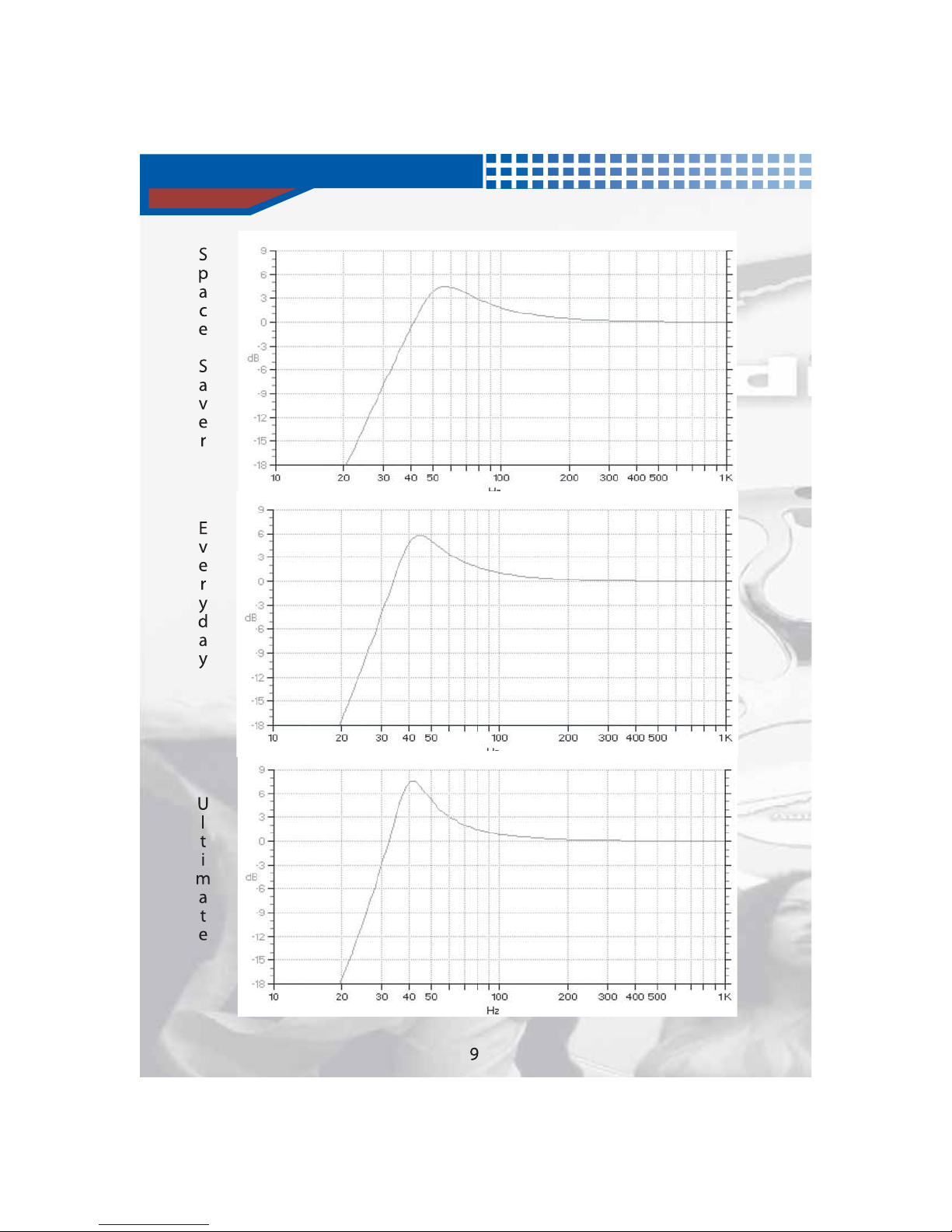

ALUM10N Curves
