AudioBahn ATB6T Manuel utilisateur

The Audiobahn Way

To bring the product to market that excites the consumer through

sound and vision from an orientation of integrity and customer service. We

make you look as good as you sound. We strive to take car audio to an

extreme the world has never seen, and a world that never stops evolving.

Audiobahn was established in 1997 with one long-term goal in mind,

"Build it Bigger, Badder, & Better, and the people will take notice!" We

back this statement with an engineering team that has brought home several

Innovations, Design & Engineering Showcase Awards, and a marketing team

from around the world that spends countless hours developing our no

compromise products to satisfy the most discriminating enthusiasts.

Our global manufacturing facilities feature ISO9002 ratings (the highest

level of quality control awarded in the electronics manufacturing industry), fully

robotic assembly lines and a state of the art, California based R & D

laboratory.

Due to overwhelming response from our competitors, and our goal to

participate in even more events this year, we created *"TEAM AUDIOBAHN."

This organization is designed to create a support network along with shirts and

perks for team members. "TEAM AUDIOBAHN" is not only for the diehard

competitor, but also for anyone that loves car audio as much as we do. With

four levels of play, one is right for you to get started in the Audiobahn family.

Our Technical Department and entire staff look to strive above and

beyond the rest of the pack by going that extra mile to help you out. Whether

you happen to be a veteran competitor, or a beginner car audio enthusiast that

does not know a voice coil from a spider. We are all her to help you get the

best system you can with what you have.

Judge for yourself, and remember what it's all about, "If it's not

Bigger, Badder & Better, it's not Audiobahn." If audio is your life,

Audiobahn is the brand for you! We make you look as good as you sound.

People never stop trying to get the best product, so we will never stop making

it.

*To learn more about "TEAM AUDIOBAHN" please give us a call, see our website at

website at www.audiobahninc.com, or email us at [email protected] to learn about all

the details.

Getting Started-----------------------------------------------------

Introduction----------------------------------------------------------

Contents of Carton------------------------------------------------

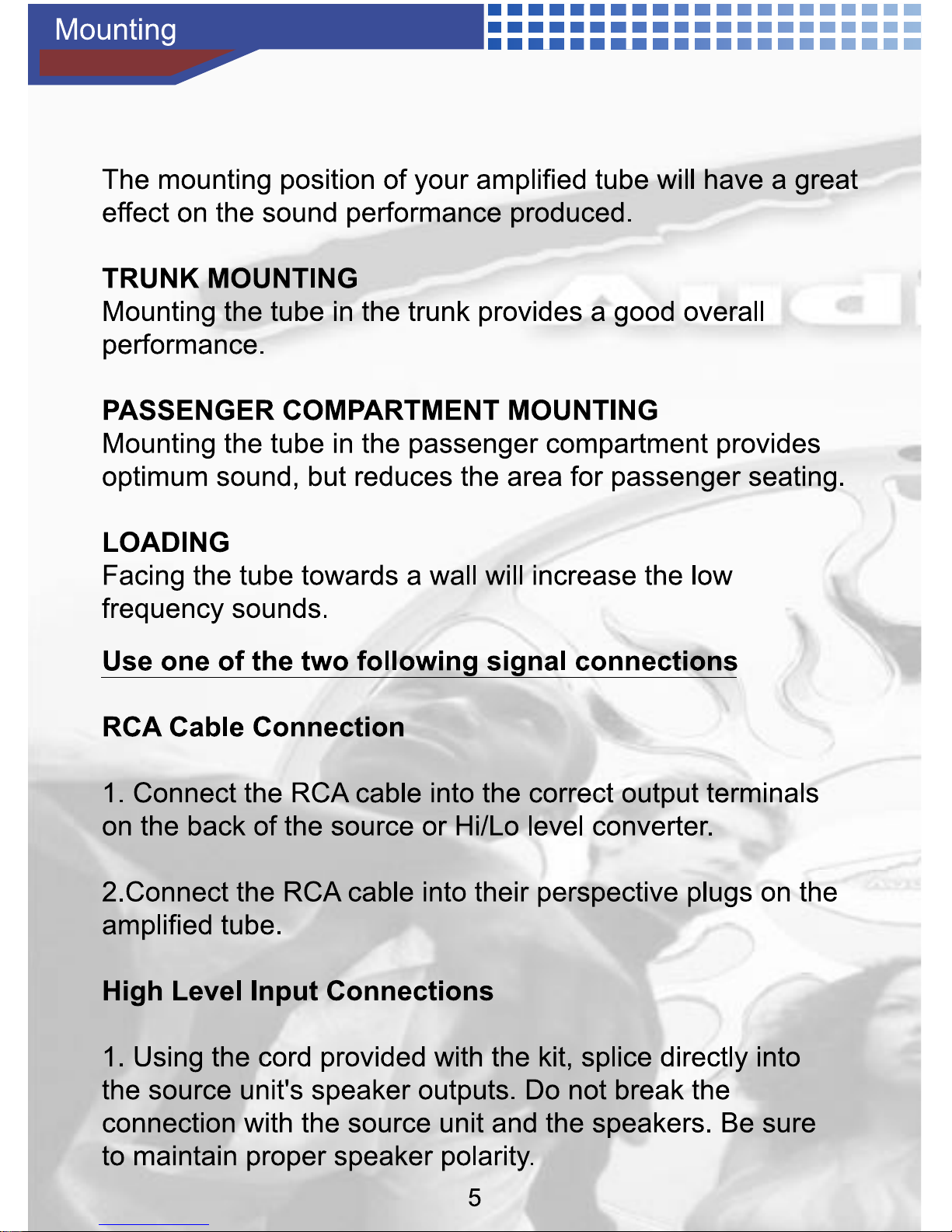

Mounting-------------------------------------------------------------

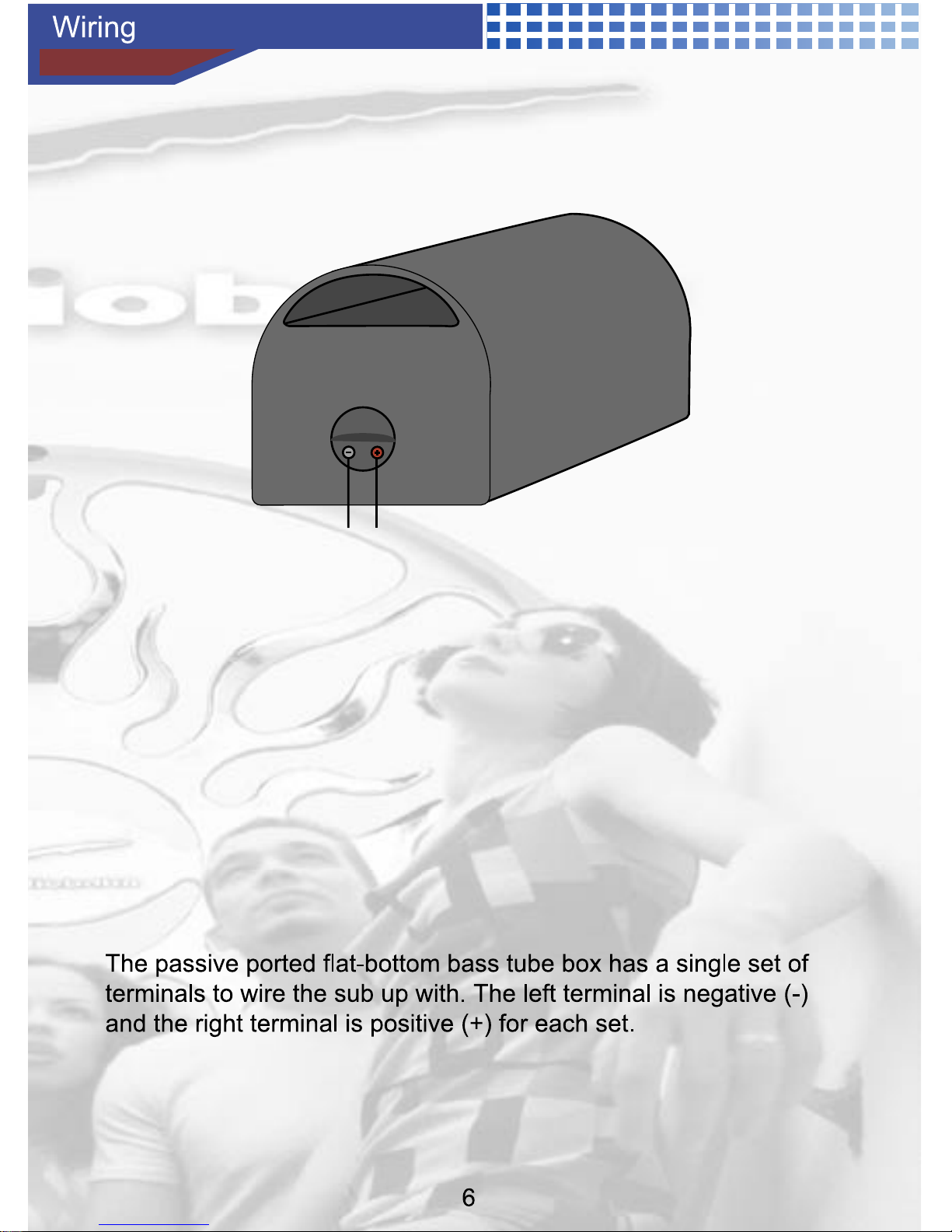

Wiring-----------------------------------------------------------------

Specifications-------------------------------------------------------

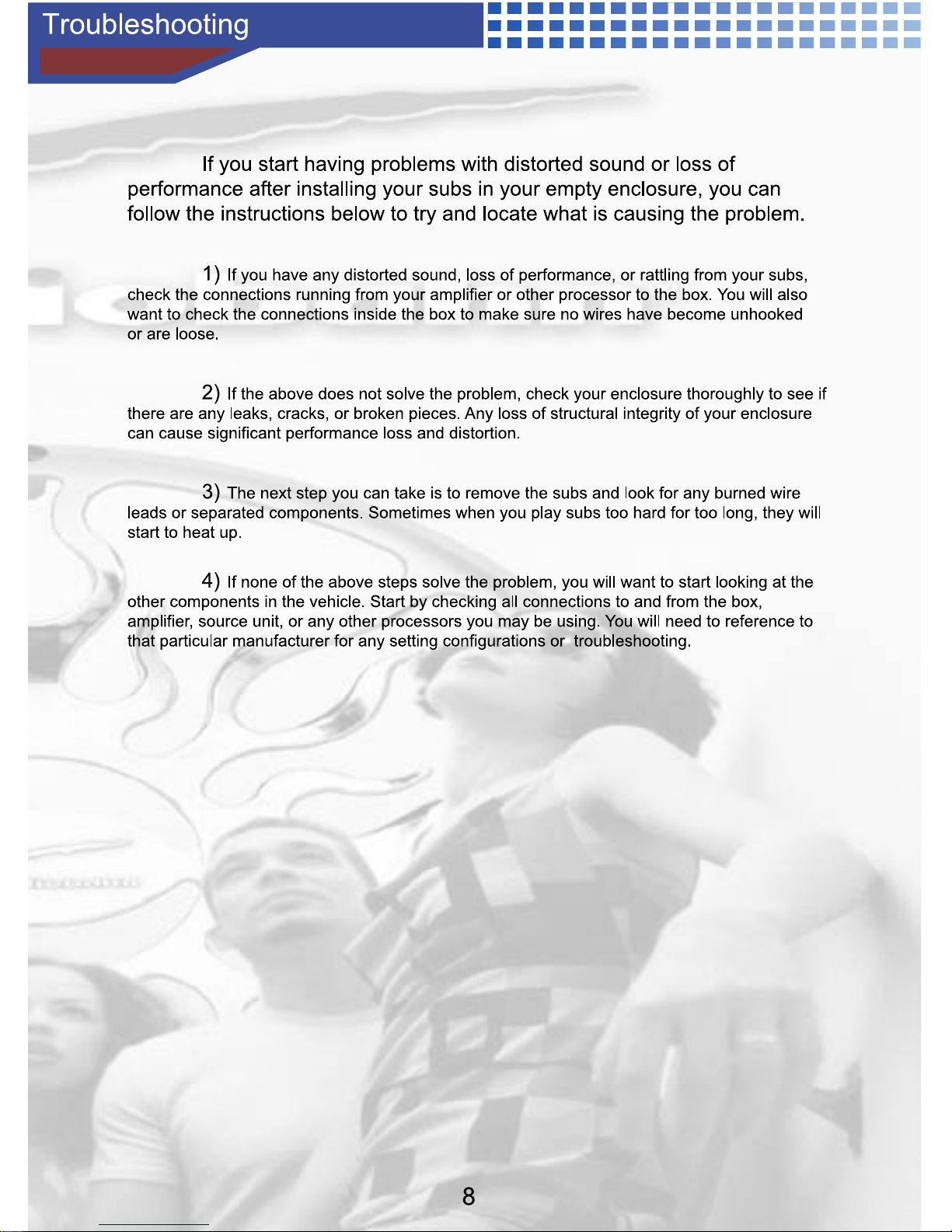

Troubleshooting----------------------------------------------------

Warning and Disclaimer-----------------------------------------

Warranty-------------------------------------------------------------

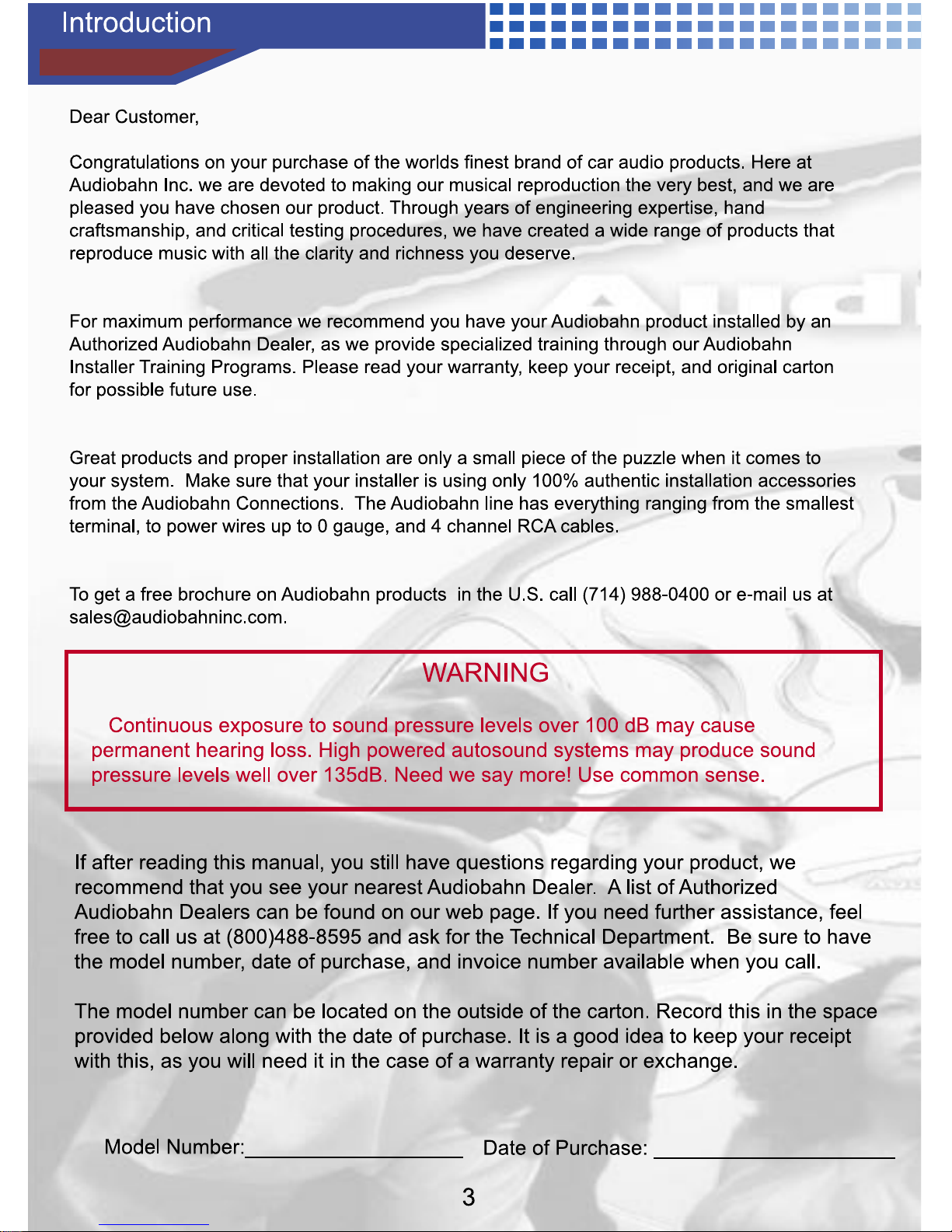

Welcome to Audiobahn Inc.. This manual has been designed to provide information for

the owner, salesperson, and installer. For those of you who want quick information on

how to install this product, please turn to the installation section of this manual. Other

information can be located by using the table of contents. We at Audiobahn Inc. have

worked very hard to make sure that all of the information in this manual is current, but,

as we are constantly finding new ways to improve our product, this information is subject

to change without notice. All updated information can be found on our web page in the

technical support section.

Getting Started

Table of Contents

10-11

Contents of Carton

Amplified Subwoofer with Flame Grill

Installation & Operation Manual

Warranty Card

Power Cable with Fuse and Ring

Terminal

Ground Wire with Ring Terminal

Heat Shrink and Zip Ties

18 Gauge Remote Turn on Wire

Bass Knob with Cord

1 Fuse

High Level Input Harness

Sticker

Dog Tag

1. Make sure to carefully read and understand the instructions before

attempting to install your new Audiobahn tube.

2. Before making any electrical connection, make sure that you disconnect

the battery's ground cable to prevent the possibility of short circuit or damage

to your electronic equipment.

3. For easier assembly, we suggest you run all wires prior to mounting your

amplified tube.

4. Route all of the RCA cables close together, and away from any power

wires.

5. Use high quality connectors that can be found in the Audiobahn

Connections catalog. This will minimize signal and power loss.

6.Think before you drill! Be careful not to cut or drill into gas tank, fuel lines,

brake or hydraulic lines, vacuum lines, or electrical wiring when working on

any vehicle.

7. Avoid running wires over or through sharp edges. Use rubber or plastic

grommets to protect any wires routed through metal, especially the firewall.

8. ALWAYS protect the battery and electrical system from damage with proper

fusing.

9. When grounding to the chassis of the vehicle, scrape all paint from the

metal to ensure a good clean ground connection. Grounding connections

should be as short as possible, and always be connected to metal that is

welded to the main body or chassis of the vehicle.

Contents of Carton
