AudioBahn AW102N Manuel utilisateur

NATURAL EXCURSION SUBWOOFERS

AW102N / AW122N / AW152N

OPERATING INTSTRUCTIONS

PLEASE RETAIN MANUAL FOR FUTRE USE AND REFERENCE

QUALITY, RLIABILITY, & PURE BLISS

Audiobahn’s classic six-leg cast basket model has evolved into a fresh and innovative design for today’s

cutting-edge installation projects. Wholly manufactured with heavyweight high-pressure cast aluminum,

three durable stabilizers provide added durability employing bolt-tight construction linking them to the six

legs and the specially slotted T-YOKE allows for more efficient heat dissipation. But what’s most eye-

catching about the six-leg family of subwoofers is its exclusive Crown, which hovers over the woofer’s

cone, providing protection in cramped installation environments and allowing ample space for cone

excursion. This new feature adds an edgy appeal that fits the image Audiobahn has maintained since its

inception in 1997. The Crown, as well as the entire basket, features Audiobahn’s multi-textured surfacing

of chrome and satin aluminum making for a striking blend of smooth and rough. In addition, the venting

plate is highlighted with the recognizable Audiobahn anodized blue tone to add an alluring combination in

chrome and color.

Theile / Small Parameters

Model # AW102N AW122N AW152N

Fs 345.1 Hz 33.4 Hz 33.5 Hz

Qts 0.53 0.66 0.881

Qes 0.57 0.71 0.952

Qms 9.89 8.92 8.83

Vas

(

Liters

)

22.13 liters 49 liters 74 liters

Vas

(

Cu. Ft.

)

0.78 Cu Ft. 1.71 Cu. Ft. 2.6 Cu. Ft.

Re 3.3 3.3 3.31 ohms

Le 2.4 mH 2.42 mH 12.54 mH

Mmd 128

rams 148

rams 245

rams

Xmax +/- 10mm +/- 11 mm +/-11mm

RMS 450 watts 550 RMS 650 watts

Sd 0.031 M2 0.048 M2 0.078 M2

Freq. Resp. 29Hz-1kHz 26Hz-1kHz 22Hz-7kHz

Efficiency 92.3 dB 92.8 dB 94 dB

EBP 59 49 34

Depth 5" 5 5/8" 7 1/8"

Hole 9 1/4" 11 1/8" 14"

Diamater 10 7/8" 12 3/4" 15 1/2"

Displacement 0.1 0.15 0.2

Audiobahn Woofer Parameters

Dimensions

Vas does not re

resent the volume of a Box. Vas is

ust a

arameter used when calculatin

a box.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

Box Parameters

Model # AW102N AW122N AW152N

Ported

Air S

ace

(

Cu. Ft.

)

0.625 1.3 1.65

Port Size

(

Inches

)

2 x 6.75 3 x 7.75 4 x 10

Port Vel.

(

)

31.5 21 21.25

-3dB

(

)

36.5 35 38

Tune Fre

(

)

40 38 40

Sub Dis

(

Cu. Ft.

)

0.1 0.15 0.23

Port Dis

(

Cu. Ft.

)

0.011 0.028 0.066

Total Vol.

(

Cu. Ft.

)

0.75 1.5 2

Ported

Air Space (Cu. Ft.) 1.3 2.25 2.65

Port Size (Inches) 3 x 8.0 4 x 8.5 (2) 3 x 8

Port Vel. (%) 15 12.5 17

-3dB

(

)

30.5 30 31

Tune Fre

(

)

37 37 36

Sub Dis

(

Cu. Ft.

)

0.1 0.15 0.23

Port Dis

(

Cu. Ft.

)

0.029 0.055 0.058

Total Vol.

(

Cu. Ft.

)

1.5 2.5 3

Ported

Air S

ace

(

Cu. Ft.

)

2.33 3.2 3.7

Port Size

(

Inches

)

4 x 8 4 x 10.5

(

)

4 x 9.5

Port Vel.

(

)

8.75 6.5 10

-3dB (Hz) 29.5 29 29

Tune Fre

(

)

36 38 37

Sub Dis

(

Cu. Ft.

)

0.1 0.15 0.23

Port Dis

(

Cu. Ft.

)

0.053 0.141 0.128

Total Vol.

(

Cu. Ft.

)

2.5 3.5 4

EBP 61 49 99

Model #

Sealed

Minimum

(

Cu. Ft.

)

0.5 0.75 1.25

Maximum

(

Cu. Ft.

)

1.25 2 3.25

SPL

(

)

85 88 88.5

59All sealed boxes alread

include the displacment for the subwoofer. NR =

(

Not Recommended

)

Audiobahn Box S

ecifications

Remember to build

our box to the total volume, not

ust air space, as total volume includes all displacement.

An EBP of less then 45 is SUGGESTED for onl

a sealed box and

reater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is,

the hi

her the frequenc

the sub will pla

, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port =

(

3.14

)

(

radius

)

(

squared

)

Ultimate SPL Bass Box

(not designed for competition use)

Ever

Bass Performer

ace Saver Bass Desi

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity

translates to port noise, so the lower the number, the less port noise

ou will incur.

AW102N AW122N AW152N

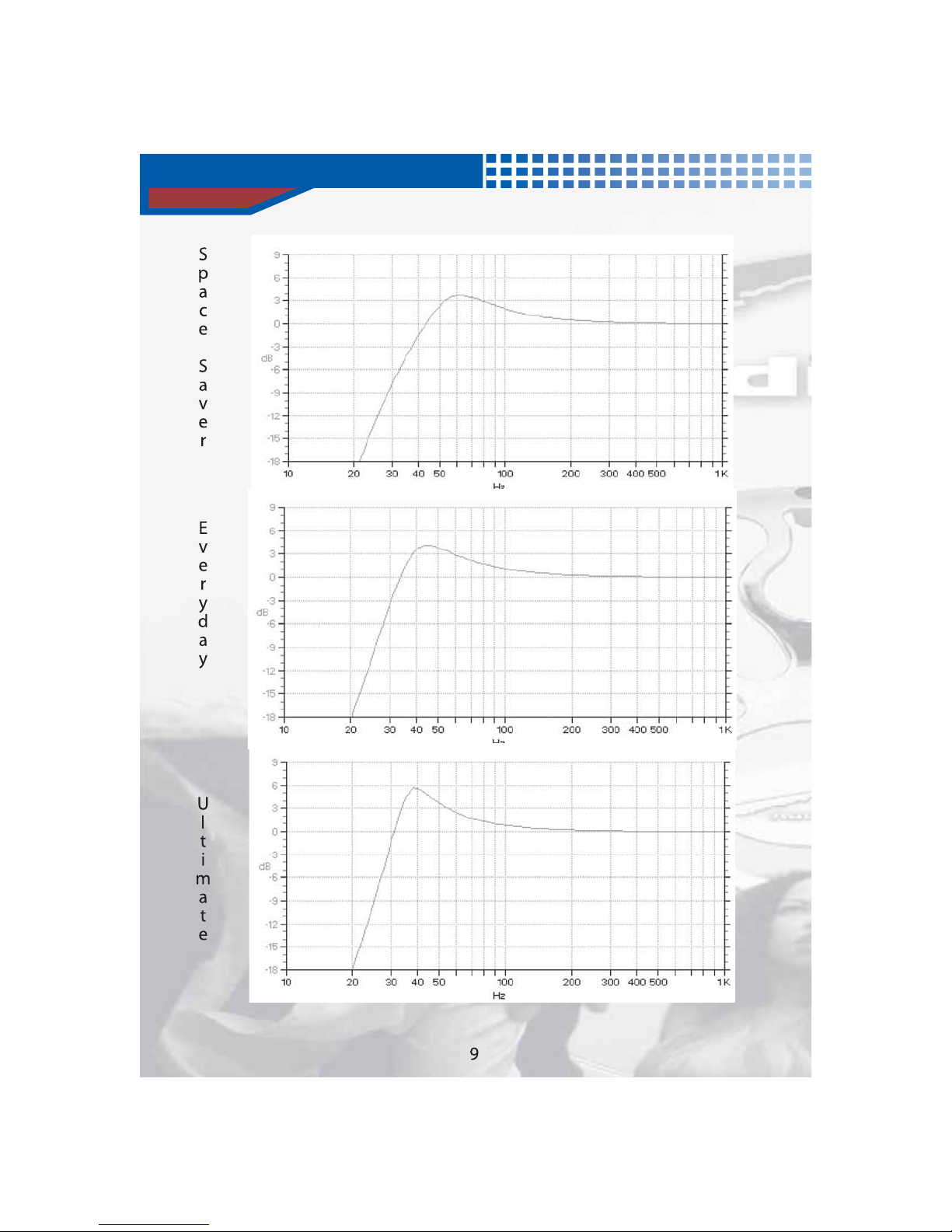

AW102T Curves
