ATEN VS481 Manuel utilisateur

VS481A

USER MANUAL

HDMI Switch

FCC Information

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy, and if not

installed and used in accordance with the instruction manual, may

cause interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna;

Increase the separation between the equipment and receiver;

Connect the equipment into an outlet on a circuit different from

that which the receiver is connected;

Consult the dealer or an experienced radio/television technician

for help.

RoHS

This product is RoHS compliant.

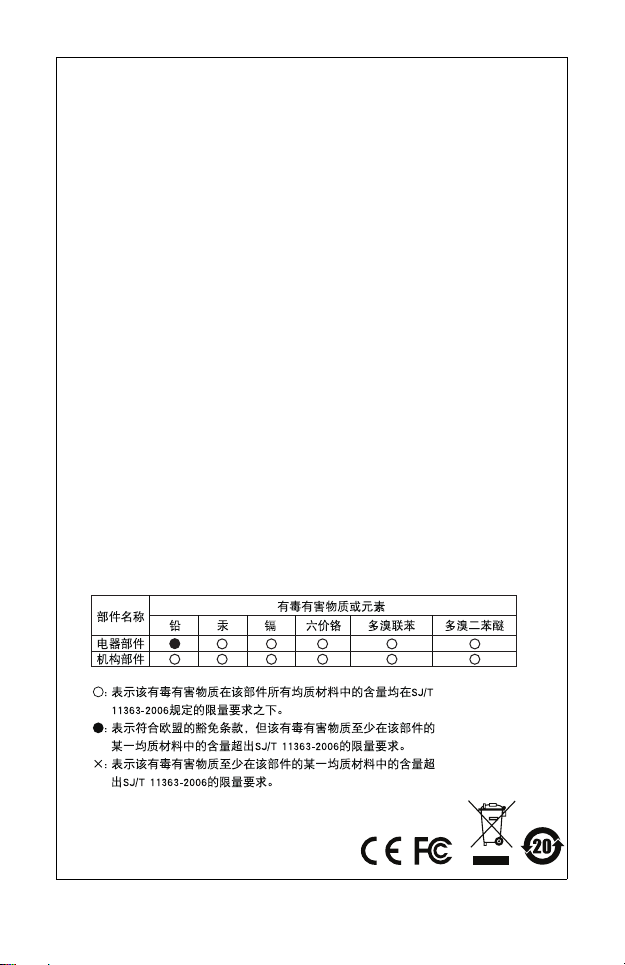

SJ/T 11364-2006

The following contains information that relates to China.

- 3 -

VS481AUser Manual

Online Registration

You can register your product at our online support center:

Online Support

International

North America

International http://support.aten.com

North America ATEN TECH http://www.aten-usa.com/

product_registration

ATEN NJ http://support.aten.com

Email Support [email protected]

Online

Support

Technical Support http://support.aten.com

Troubleshooting

Documentation

Software Updates

http://www.aten.com

Telephone Support 886-2-8692-6959

Email Support ATEN TECH [email protected]

ATEN NJ [email protected]

Online

Support

Techn i c a l

Support

ATEN TECH http://www.aten-usa.com/support

ATEN NJ http://support.aten.com

Troubleshooting

Documentation

SW Updates

ATEN TECH http://www.aten-usa.com

ATEN NJ http://www.aten.com

Telephone Support ATEN TECH 1-888-999-ATEN

ATEN NJ 1-732-356-1703

- 4 -

Package Contents

The VS481AHDMI Switch package contains the following items:

1 VS481AHDMI Switch

1 IR Remote Control Unit

1 Power Adapter

1 HDMI Cable (1.8 m)

1 User Manual*

1 Quick Start Guide

Check to make sure that all the components are present and that

nothing got damaged in shipping. If you encounter a problem,

contact your dealer.

Read this manual thoroughly and follow the installation and

operation procedures carefully to prevent any damage to the unit,

and/or any of the devices connected to it.

*Features may have been added to the VS481Asince this

manual was printed. Please visit our website to download the

most up-to-date version of the manual.

Manual Part No. PAPE-1286-200G

Printing Date: 02/2008

ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights

reserved. All other trademarks are the property of their respective owners.

- 5 -

Overview

With more and more HDMI devices entering the Home Theater

market, the need for simultaneous access to different HDMI A/V

sources is becoming increasingly important. Now, the VS481A

HDMI Switch offers an easy and affordable way to add HDMI

capabilities to your home theater system by allowing you to

switch easily between up to four HDMI A/V sources that are

connected to your HDMI display.

With four HDMI A/V input ports, the VS481AHDMI Switch allows

you to connect four HDMI devices (such as an HD camcorder or

satellite box, HD-DVD player, hi-def Blu-ray player, home theater

PC, stand-alone streaming media player, or gaming console) to

your HDMI monitor, display, projector or TV at the same time. The

remote control and convenient front panel pushbuttons allow you

to quickly and easily toggle between A/V sources, while the front

panel LEDS indicate the source device at a glance.

For your convenience, the VS481Ahas a single input port

mounted on the front panel for connecting mobile or temporary

devices, such as digital cameras, while your permanent device

connections are out of sight on the rear of the unit.

Furthermore, for complete system and install integration, RS232

control is standard through the VS481A’s built-in bi-directional

RS-232 serial remote port that allows the switch to be controlled

through a high-end controller, PC, and/or home automation /

home theater software package.

- 6 -

Features

Allows up to four HDMI A/V sources to be connected to one

HDMI display

Toggle between A/V sources using remote control or front

panel pushbuttons

Supports high-resolution video – HDTV resolutions of 480p,

720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA

(1600x1200), and WUXGA (1920 x 1200)

Supports 12-bit Deep Color for HDMI formats

Supports Dolby True HD and DTS HD Master Audio

Up to 60 Hz refresh rate

Long-distance transmission – up to 20 m (24 AWG) and 15 m

(28 AWG)

Built-in bi-directional RS-232 serial remote port for high-end

system control

Plug-and-play – no software installation required

DDC compatible

HDMI 1.3b compliant

HDCP 1.1 compliant

Supports HDMI Type A 19-pin female connector

Signaling rates up to 2.25 Gbits in support of 1080p display.

All-metal casing

LED indication of A/V source devices

Easy and affordable way to add four HDMI inputs to your

home theater system

- 7 -

System Requirements

Source Devices(s)

HDMI Type A output connector(s)

Note: A DVI/HDMI adapter is required when connecting a DVI

source device.

Display Device

A display device or receiver with an HDMI Type A input

connector

Cables

4 HDMI cables

Note: 1. Not all cables are included in this package. We strongly

recommend that you purchase high-quality cables of

appropriate length since this will affect the quality of the

audio and video display. Contact your dealer to

purchase the correct cable sets.

2. If you wish to utilize the VS481A’s high-end serial

controller function, you will also need to purchase an

appropriate RS-232 cable. See Installing the RS-232

Controller, page 11.

- 8 -

Components

VS481AFront View

No. Component Function

1 HDMI In Plug the cable from an HDMI source

device into this port (number 4).

2 Port Selection

Pushbuttons

Pressing a port selection pushbutton

routes the A/V source from the

corresponding input port to the output port

for display.

3 IR Receiver This receives signals from the IR remote

control.

4 Port LEDs There are two port LEDS next to each port

selection pushbutton.

The ON LINE LED (top, orange) lights

to indicate that the device attached to

the corresponding port is powered on.

The SELECTED LED (bottom, green)

lights to indicated that the port is

selected.

1234

- 9 -

VS481ARear View

No. Component Function

1 Power Jack The power adapter cable plugs in here.

2 HDMI Out The cable from the HDMI display device

plugs in here.

3 HDMI In The cables from the HDMI source devices

can plug into any of three available ports.

4 RS-232 Serial

Port

This is the serial remote port for input

source selection and high-end system

control.

21 4

HDMI IN

HDMI IN HDMI IN

HDMI OUT

- 10 -

IR Remote Control

No. Component Function

1 Port Up / Port

Down Buttons

Press the Port Up button to cycle forward

through the source devices (1 to 2; 2 to 3; 3 to

4; 4 to 1).

Press the Port Down button to cycle backward

through the source devices (4 to 3; 3 to 2; 2 to

1; 1 to 4).

2 Port Selection

Buttons

Press a button to bring the focus directly to the

source device attached to its associated port.
