Atdec AD-TVC-70A Manuel utilisateur

Installation Guide

AD-TVC-70A

AD-TVC-70A Page 1 of 8

AV Cart 70

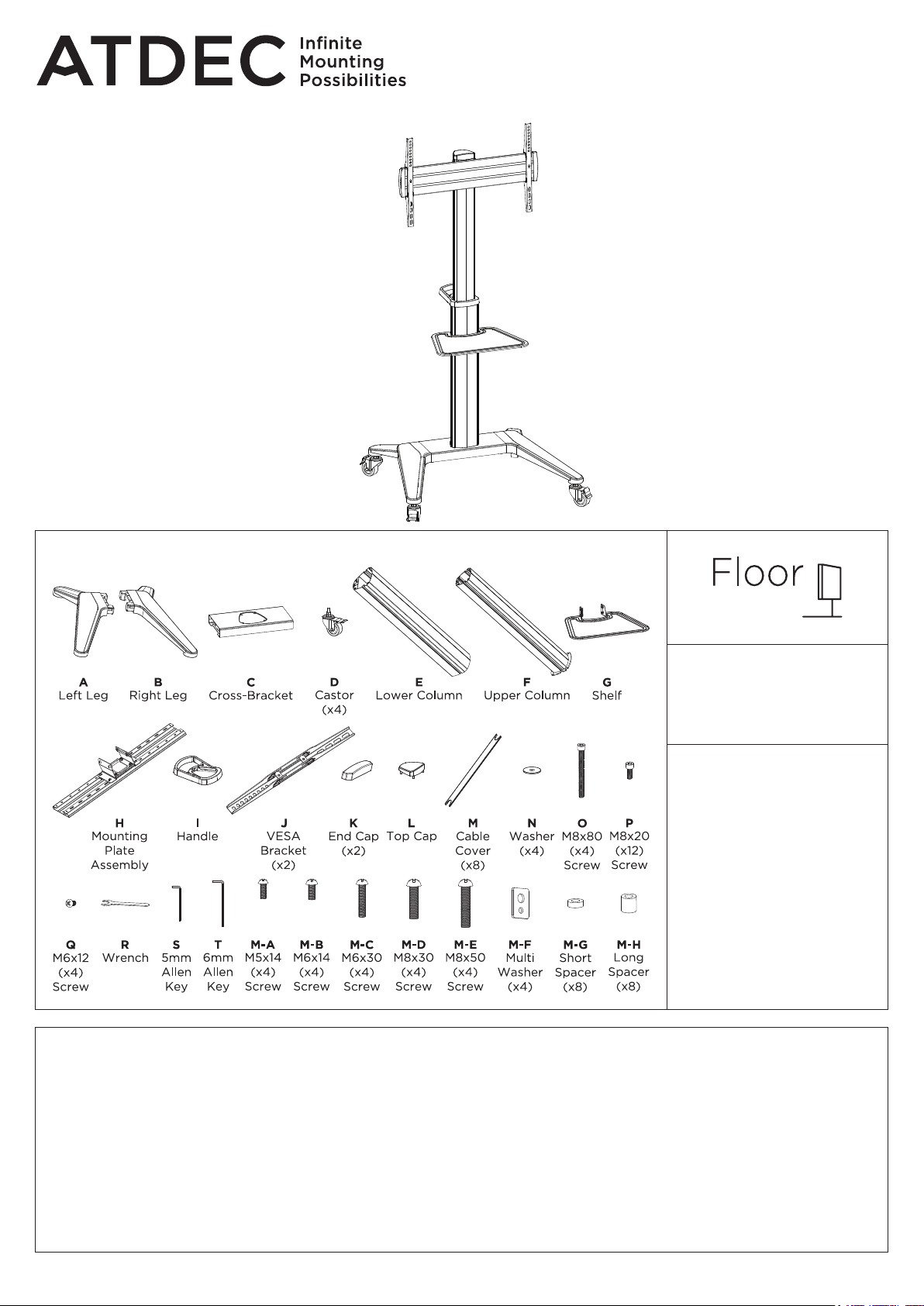

COMPONENT CHECKLIST

REQUIRED TOOLS

• Phillips Head

Screwdriver

DISPLAY SIZE

40” - 70”

DISPLAY WEIGHT

0 - 70kg

(0 - 154lbs)

SHELF WEIGHT

0 - 5kg

(0 - 11lbs)

CAPACITY

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to assemble this product correctly may cause serious injury/death during or following installation.

! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these instructions and the

consequences of incorrect installation.

! Do not over tighten screws.

! Two person installation is recommended.

! Product not suitable for use outdoors.

! After installation is complete check to verify that AV Cart is secure and safe for use.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA

locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.

Please contact Atdec if you would like further information.

! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on

the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.

WARNING!

! DO NOT ALLOW CHILDREN UNDER 16 TO PLAY WITH OR MOVE CART

! MOVE CART SLOWLY

! USE WITH DISPLAYS HEAVIER AND/OR LARGER THAN SPECIFIED MAY RESULT IN INSTABILITY, TIP

OVER AND RISK OF DEATH OR SERIOUS INJURY

DO NOT APPLY FORCE

AT TOP

DO NOT APPLY MOVING

FORCE ON FRONT OR

BACK

ONLY ADULTS SHOULD

MOVE THIS CART

UNLOCK

BRAKES BEFORE

MOVING

LOCK

BRAKES WHEN

STATIONARY

APPLY

FORCE ON NARROW SIDES

PUSH NEAR MIDDLE

DO NOT PULL

AD-TVC-70A Page 2 of 8

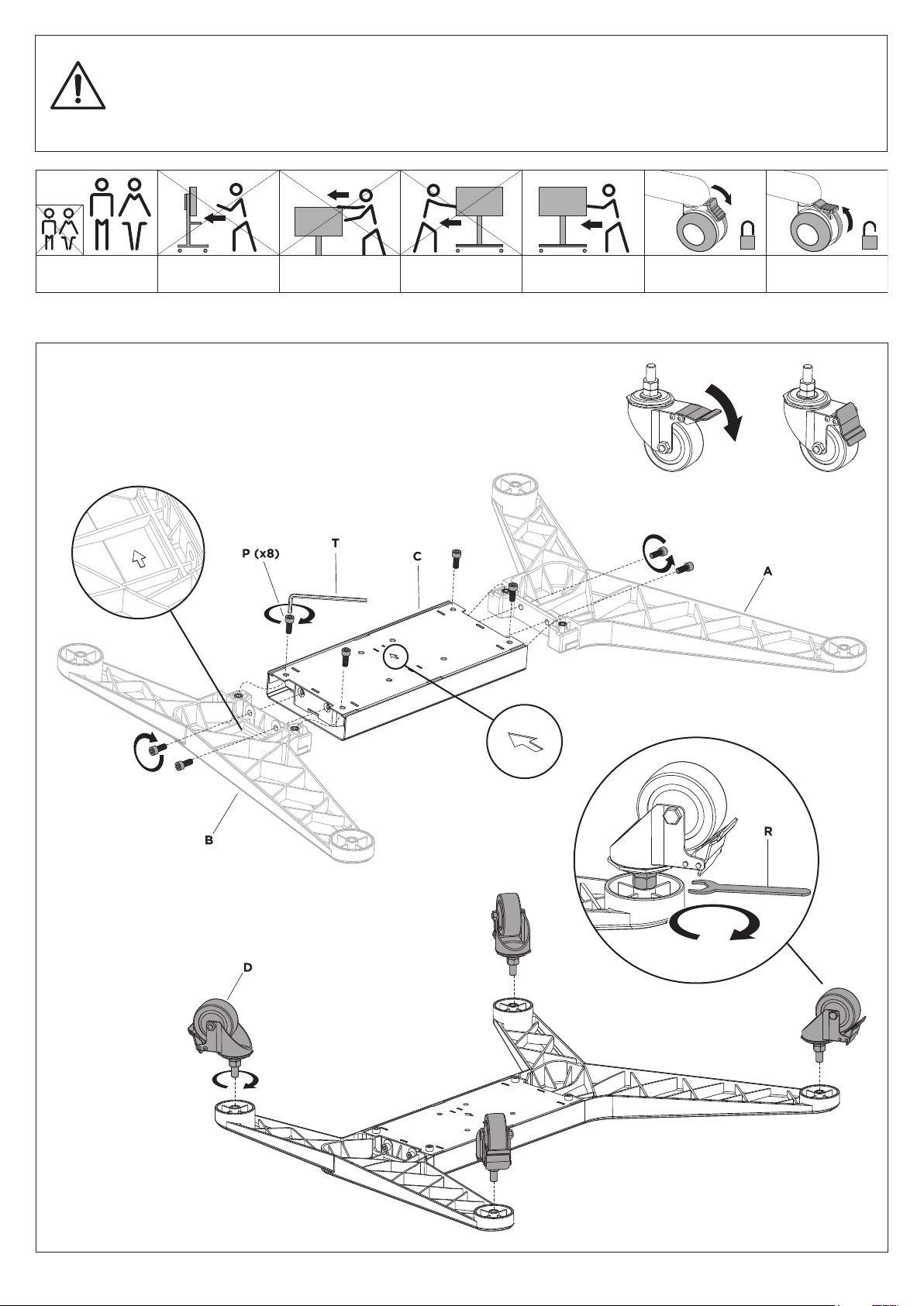

1. Assemble the Base

NOTE: Lock the brakes on the

castors to avoid any sudden

movements during installation.

AD-TVC-70A Page 3 of 8

3.1. 3.2.

3.3. 3.4.

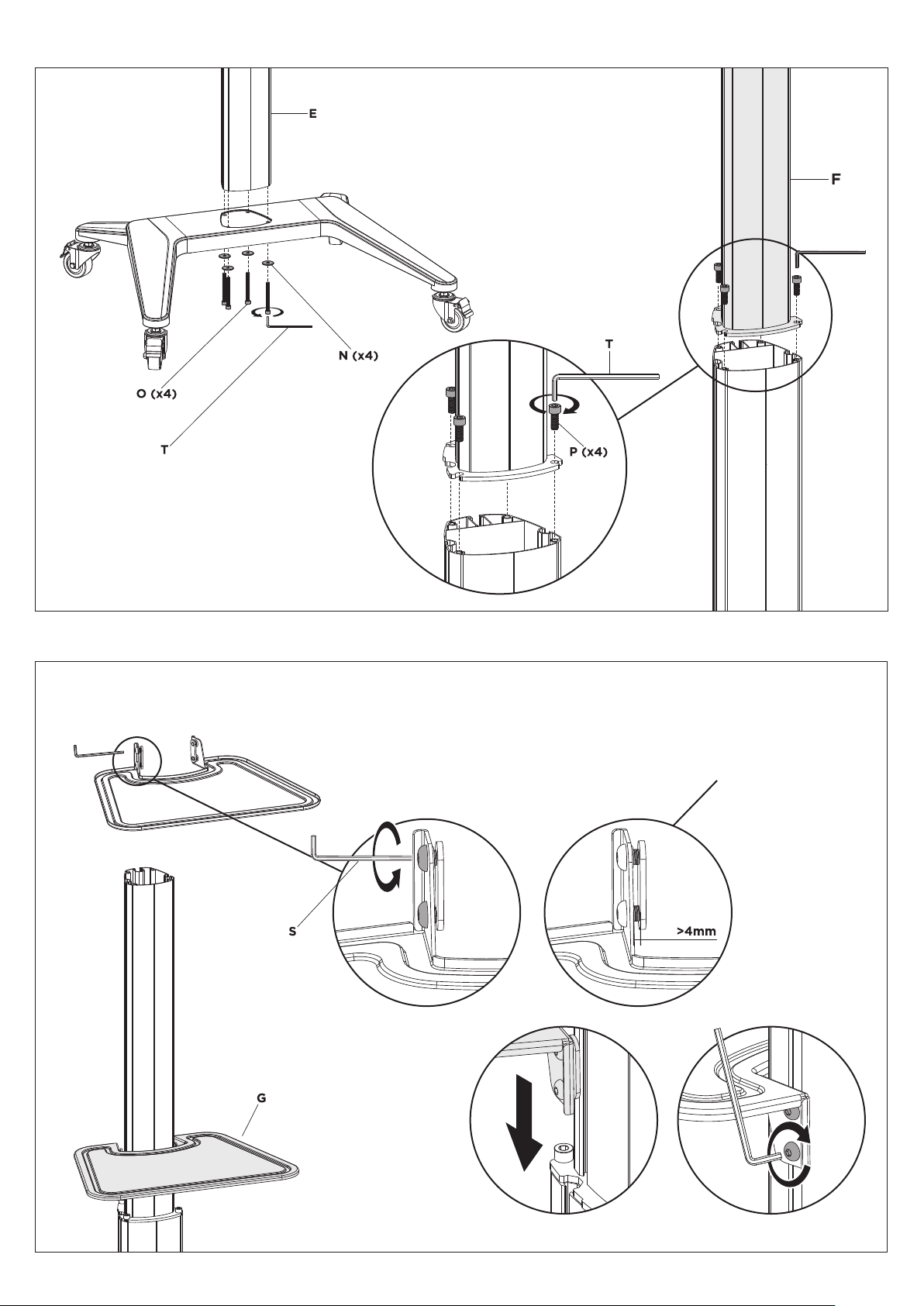

3. Attach Shelf

2. Assemble the Column

Attach column (part Eand part F) to base assembly

with corresponding screws (part N, Oand P).

Loosen the hex screws for the shelf’s silver mounting plates and slide the shelf assembly through

the left and right channels of the lower column. Tighten the hex screws with the 5mm Allen Key

at the desired height.

NOTE: Ensure there is a

>4mm gap between the

shelf and the mounting

plate before attempting

to slide the shelf onto

the lower column.

AD-TVC-70A Page 4 of 8

5.1. Unscrew the bracket

assembly from the

display rail.

5.2. Loosen the hex

screws for the silver

mounting plates.

5.3. Slide the mounting

plates through the left

and right channels of

the upper column.

5.4. Firmly tighten the

hex screws to secure the

bracket at the desired

height for the display.

NOTE: Ensure there

is a >4mm gap

before attempting to

slide the shelf onto

the upper column.

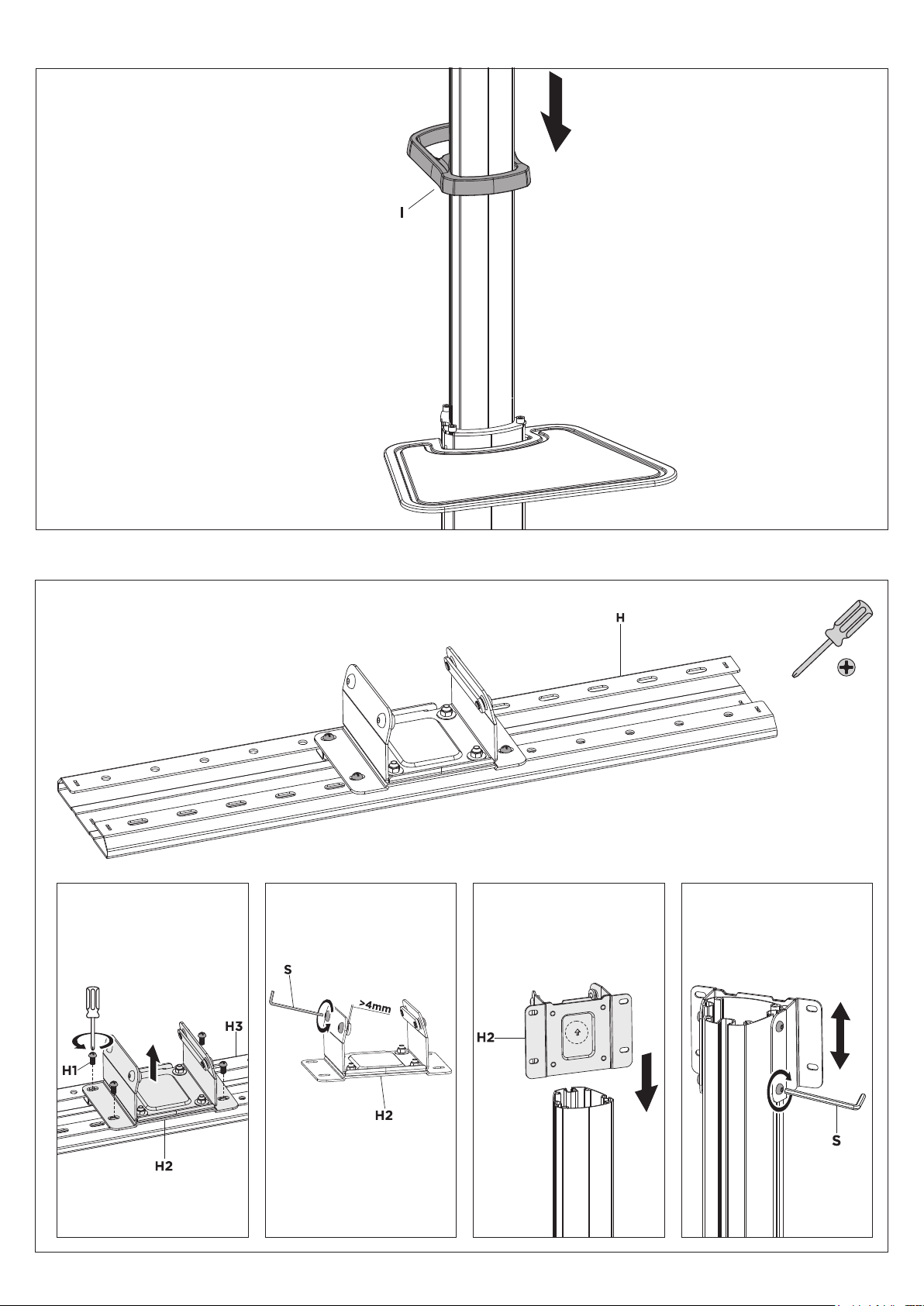

5. Attaching the bracket to the column

4. Secure Handle

Slide handle (part I) over column

and secure at part Eand Fby

gently pulling the handle apart to

allow it to snap in place.

AD-TVC-70A Page 5 of 8

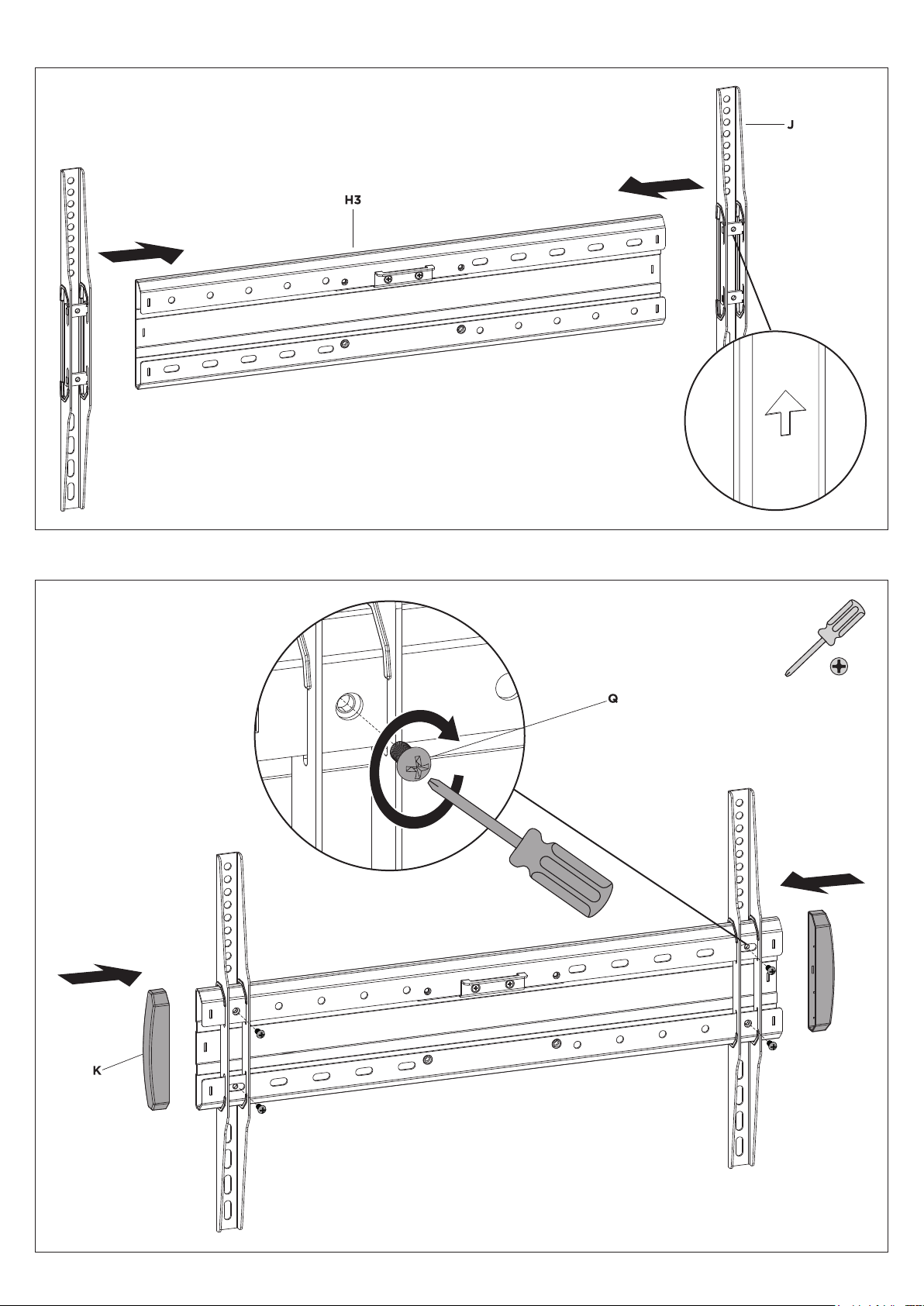

7. Attaching End Caps to mounting plate

6. Position VESA Brackets on mounting plate

Secure brackets with screws (part Q)

and attach end caps (part K).

Slide the VESA brackets onto the display rail and position at

the required width for the display. NOTE: Brackets should be

positioned an equal distance about the centre of the rail.

NOTE: Ensure the arrows

are pointing upwards.

AD-TVC-70A Page 6 of 8

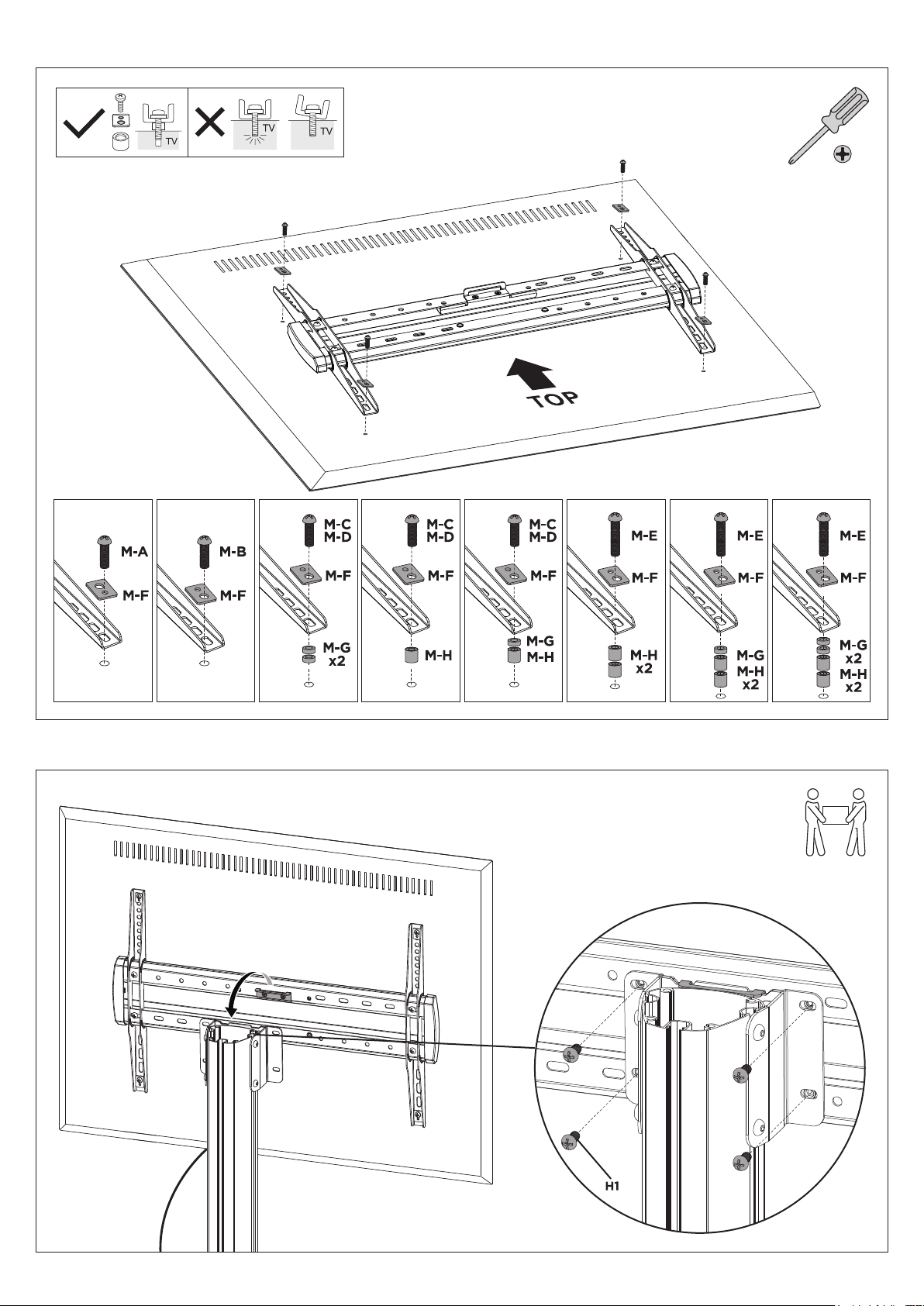

8. Attach Display to Bracket

9. Secure Screen

NOTE:

• Always use a multi-washer.

• Use the shortest combination of spacers (if necessary)

ensuring the display is not loose and screws are not forced

too deep into the display.

9.1. Hook the display rail onto the

mounting bracket on the column. 9.2. Secure the rail to the bracket using

screws (part H1) removed in Step 5.1.

NOTE: Display must be supported until

screws are fastened to rail.

AD-TVC-70A Page 7 of 8

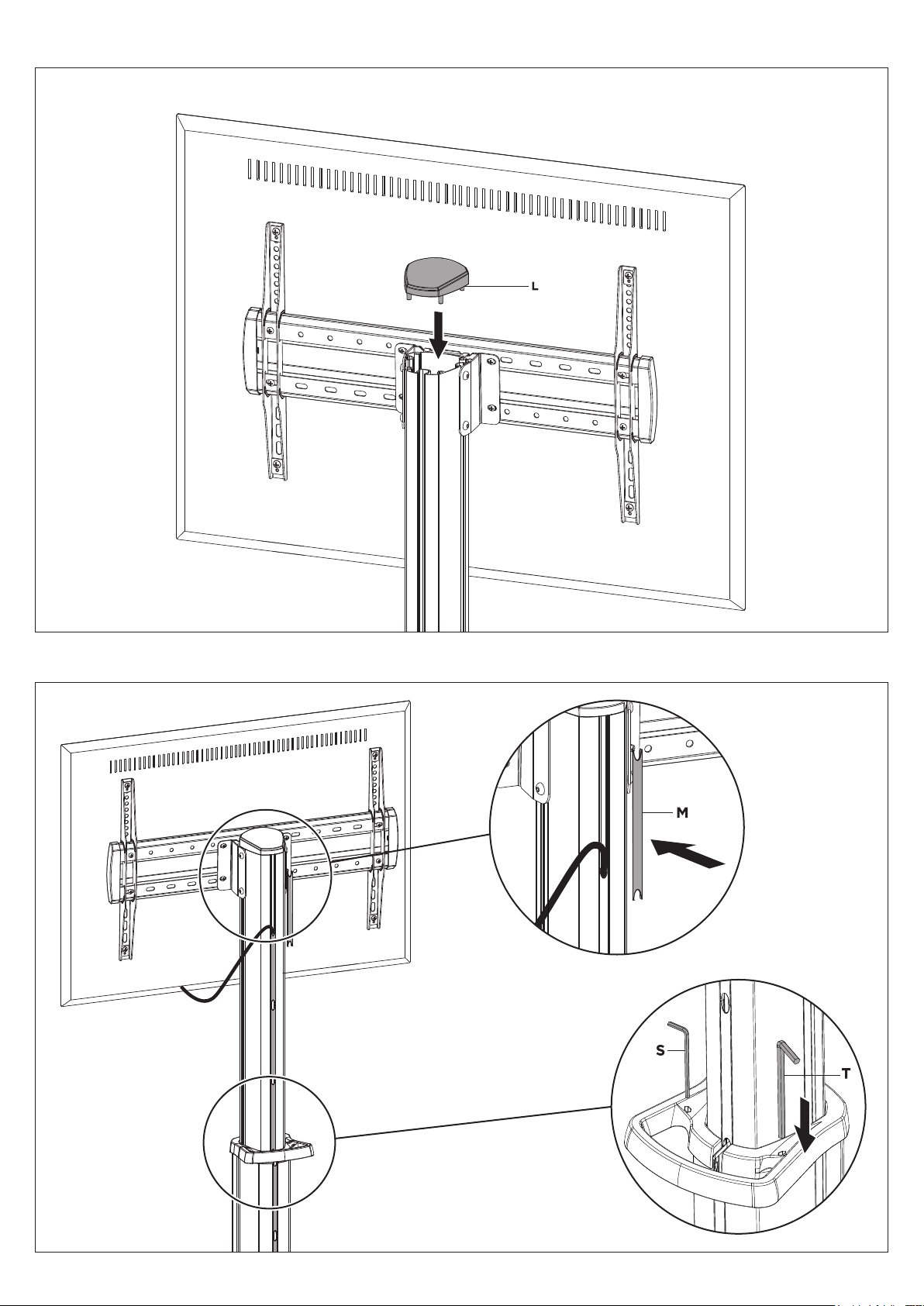

10. Assemble Cap

11. Cable Management

Install the top cap (part L) to the upper column.

11.1. To organise cables,

insert them into the

channel at the rear of

the columns and secure

by pressing the rubber

cable covers into the

rear column channel.

11.2. Allen key Sand Tcan

be stored in the handle for

your convenience.

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

AD-TVC-70A Page 8 of 8

MAINTENANCE

• Tighten fasteners and check if the cart is secure and safe to use at regular intervals (at least every three months.)

• Please contact your distributor if you have any questions.
