Atdec AD-TVAC-CM Manuel utilisateur

Installation Guide

AD-TVAC-CM

AD-TVAC-CM Page 1 of 6

AV Cart Camera Mount

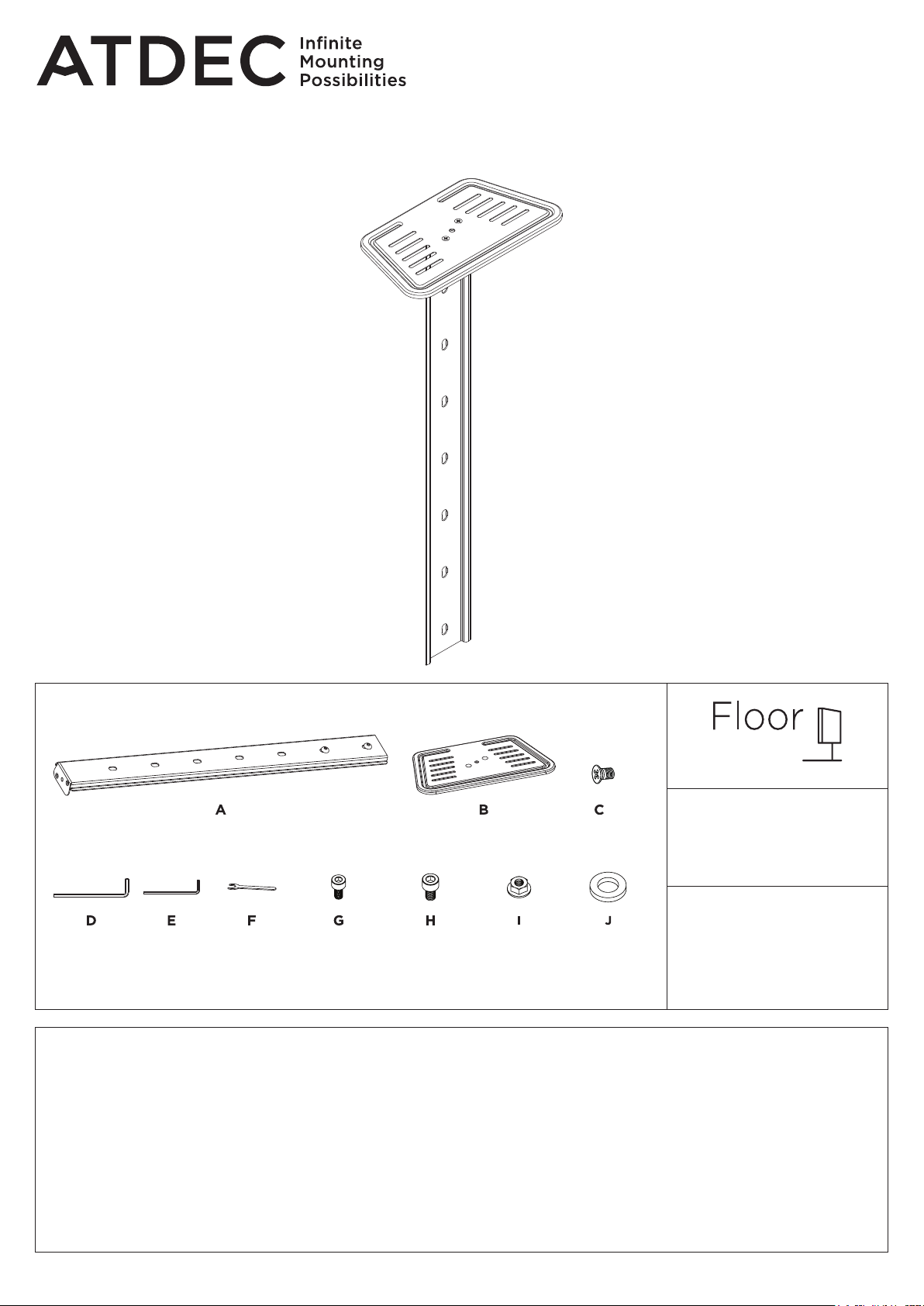

COMPONENT CHECKLIST

Connecting bracket Camera Shelf M5 x 8 mm

Screw (x2)

5mm

Allen Key

M5 x 10

Screw (x2)

M6 x 10

Screw (x2)

M6 Flange

Nut

M6 Washer

(x2)

4mm

Allen Key

Wrench

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to assemble this product correctly may cause serious injury/death during or following installation.

! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these instructions and the

consequences of incorrect installation.

! Do not over tighten screws.

! Two person installation is recommended.

! Product not suitable for use outdoors.

! After installation is complete check to verify that AV Cart is secure and safe for use.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA

locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.

Please contact Atdec if you would like further information.

! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on

the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.

REQUIRED TOOLS

• Phillips Head

Screwdriver

SHELF WEIGHT

0 - 5kg

(0 - 11lbs)

CAPACITY

AD-TVAC-CM Page 2 of 6

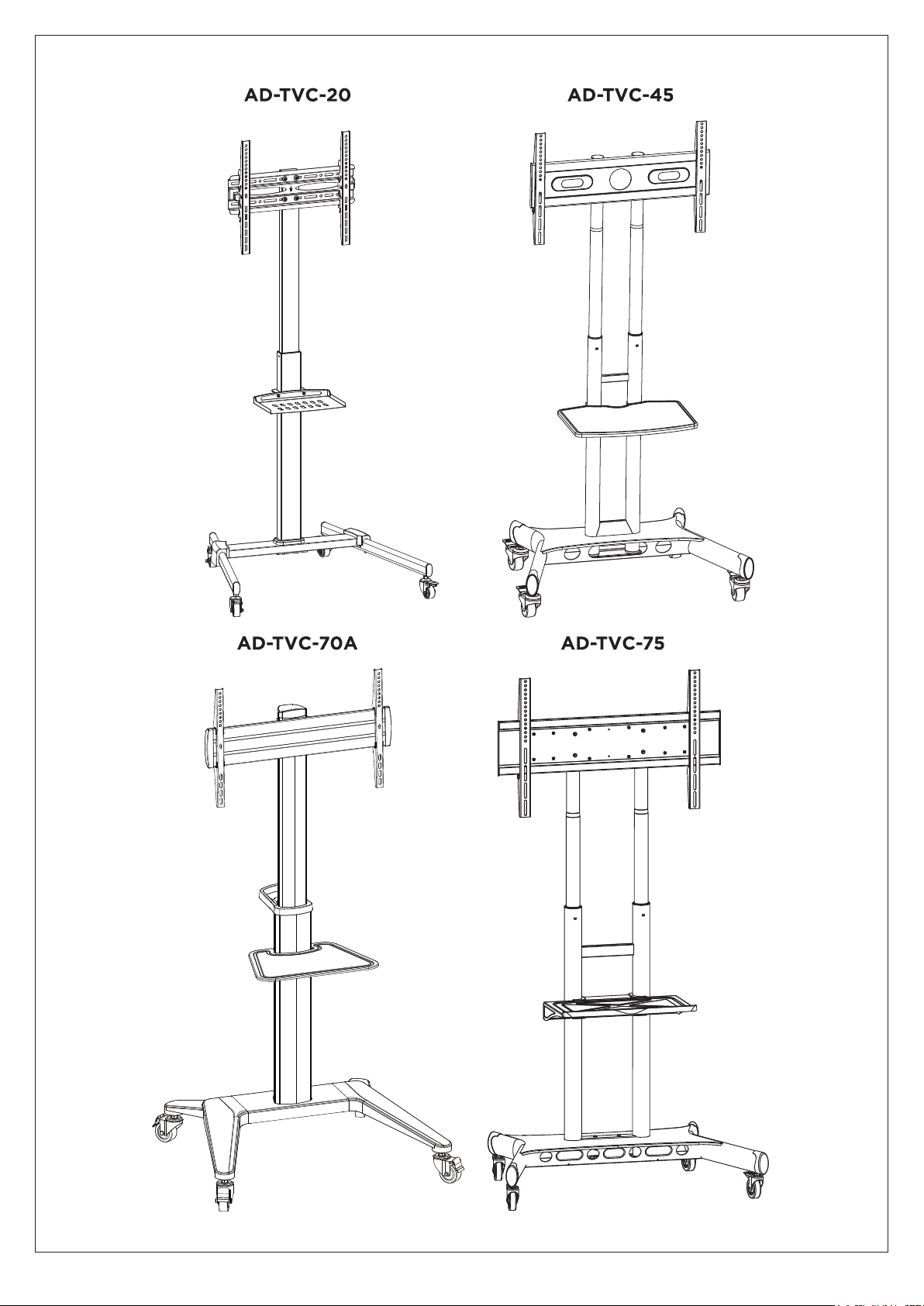

Compatible with:

AD-TVAC-CM Page 3 of 6

> 4 mm

1. Constructing Camera Mount Assembly

2. Attach camera mount assembly to cart

FOR AD-TVC-20 CART

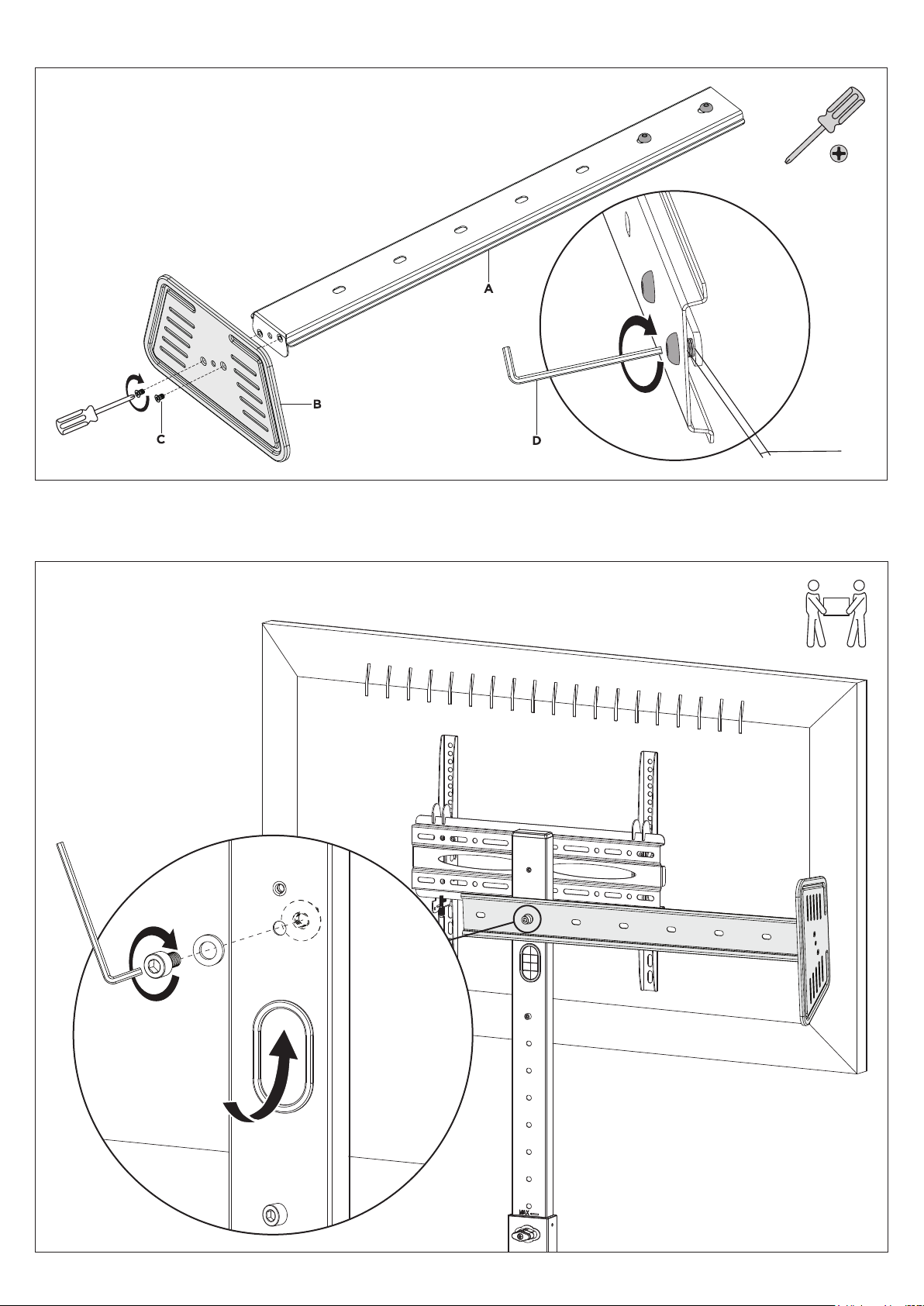

Attach shelf (part B) to connecting bracket (part A) with screws

(part C).

For AD-TVC-70A, loosen screws on silver mounting plate with

allen key.

NOTE: Ensure there is a 4mm gap between the silver bracket

and the connecting bracket before attempting to slide the

mount onto the upper column.

For AD-TVC-20, AD-TVC-45, AD-TVC-75 and AD-TVC-80

remove silver mounting plate completely.

Position camera mount

perpendicular to oor at

desired height.

Attach mount to cart with with

M6 screw, washer and ange

nut (part H, Iand J) with 5mm

allen key (part D).

NOTE: Position nut behind the

correct hole through the cable

management slot.

With assistance, support

camera mount whilst the

screw is being secured

through the nut. Use wrench

(part F) to assist if required.

AD-TVAC-CM Page 4 of 6

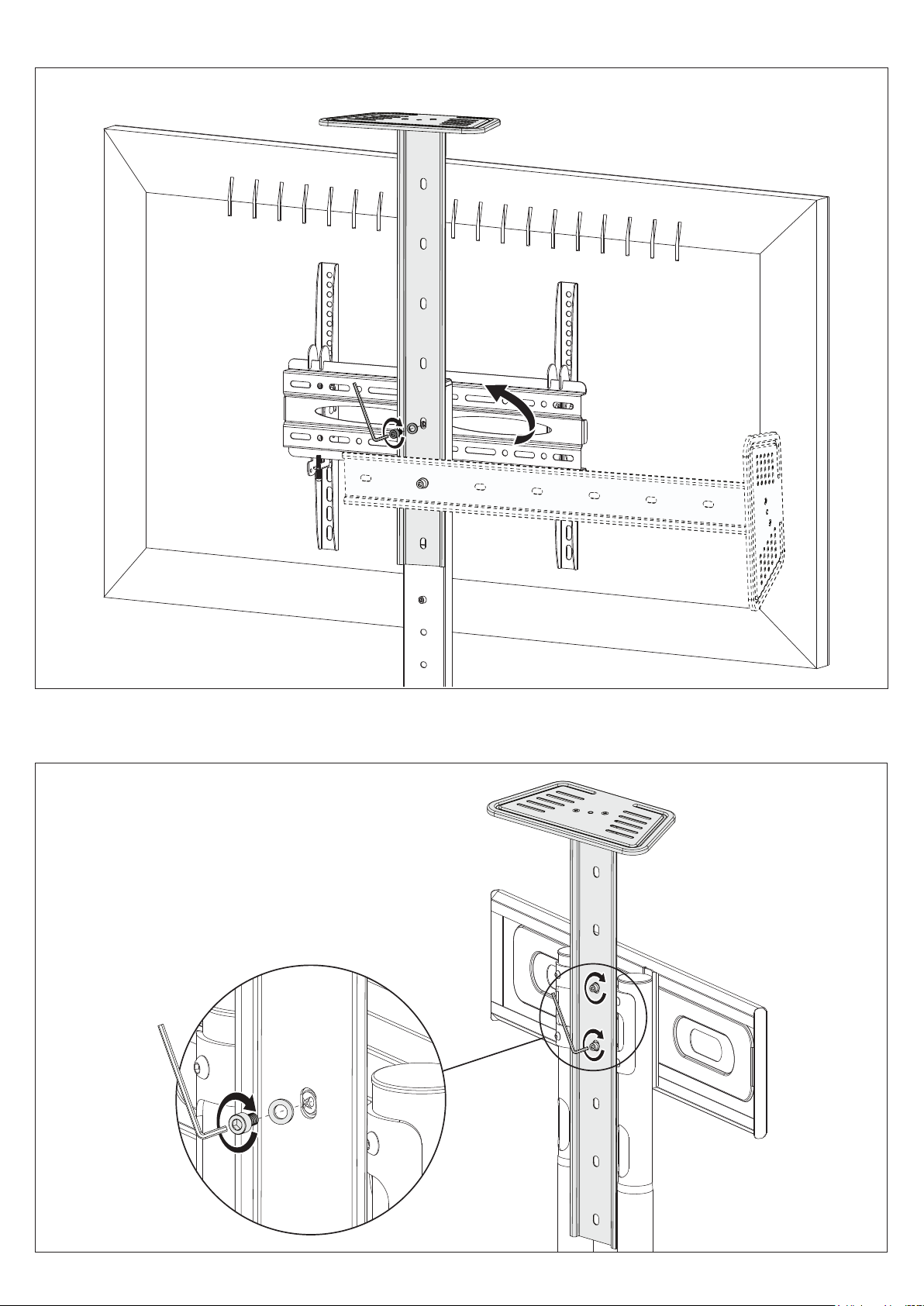

FOR AD-TVC-45 CART

2. Attach camera mount assembly to cart

3. Secure camera mount assembly to cart

Rotate the mount and secure the top xture with an M6 screw and washer (part Hand J) with 5mm allen key (part D).

Attach camera mount with

M5 screws and washers (part

Gand J) at desired height

with 4mm allen key (part E)..

AD-TVAC-CM Page 5 of 6

3. Attach Camera Mount

FOR AD-TVC-70A CART

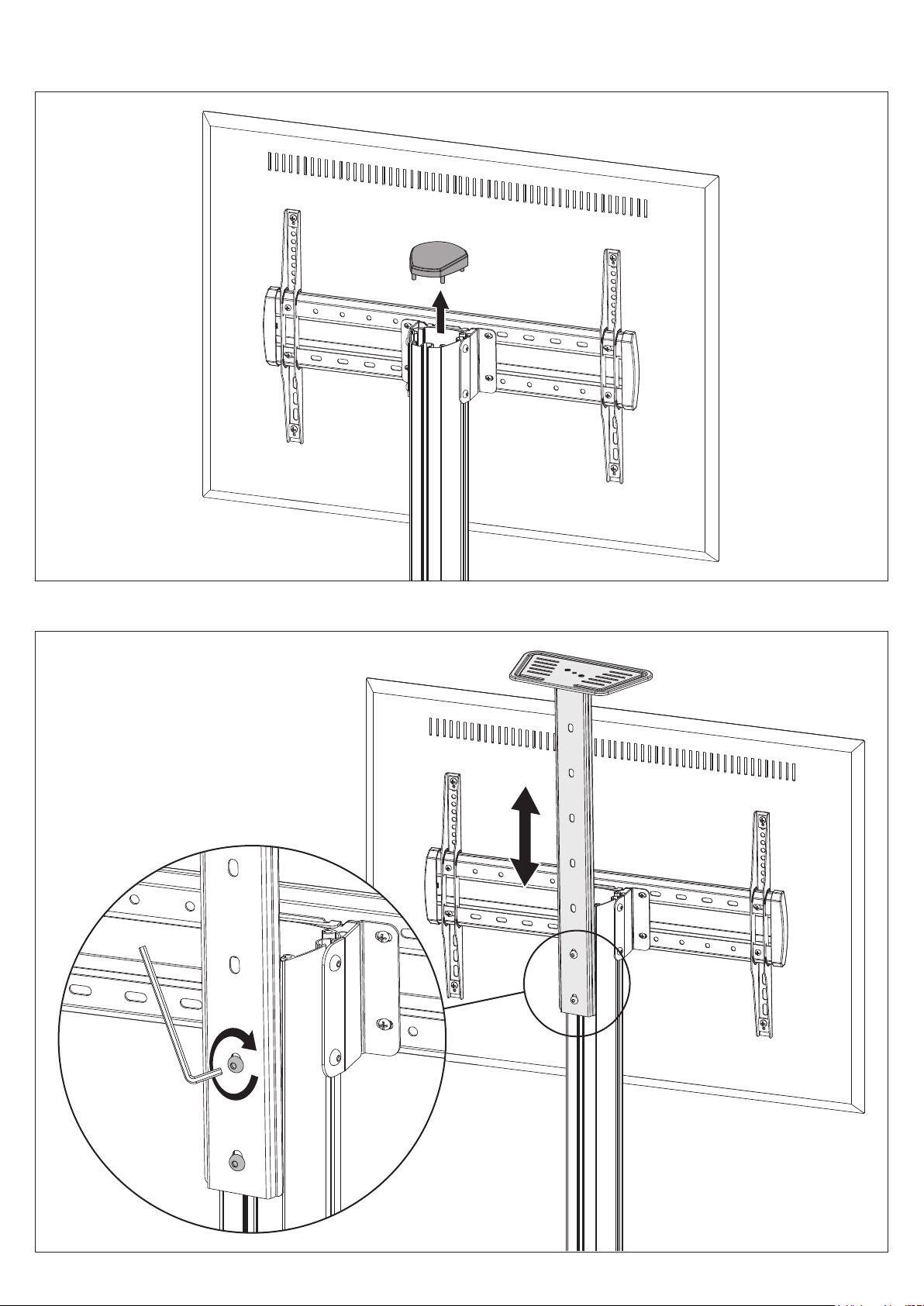

2. Remove cap

Slide the silver mounting plate through the

rear channel of the upper column down to

the desired height and tighten screws with

5mm allen key (part D).

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

MAINTENANCE

• Tighten fasteners and check if the cart is secure and safe to use at regular intervals (at least every three months.)

• Please contact your distributor if you have any questions.

AD-TVAC-CM Page 6 of 6

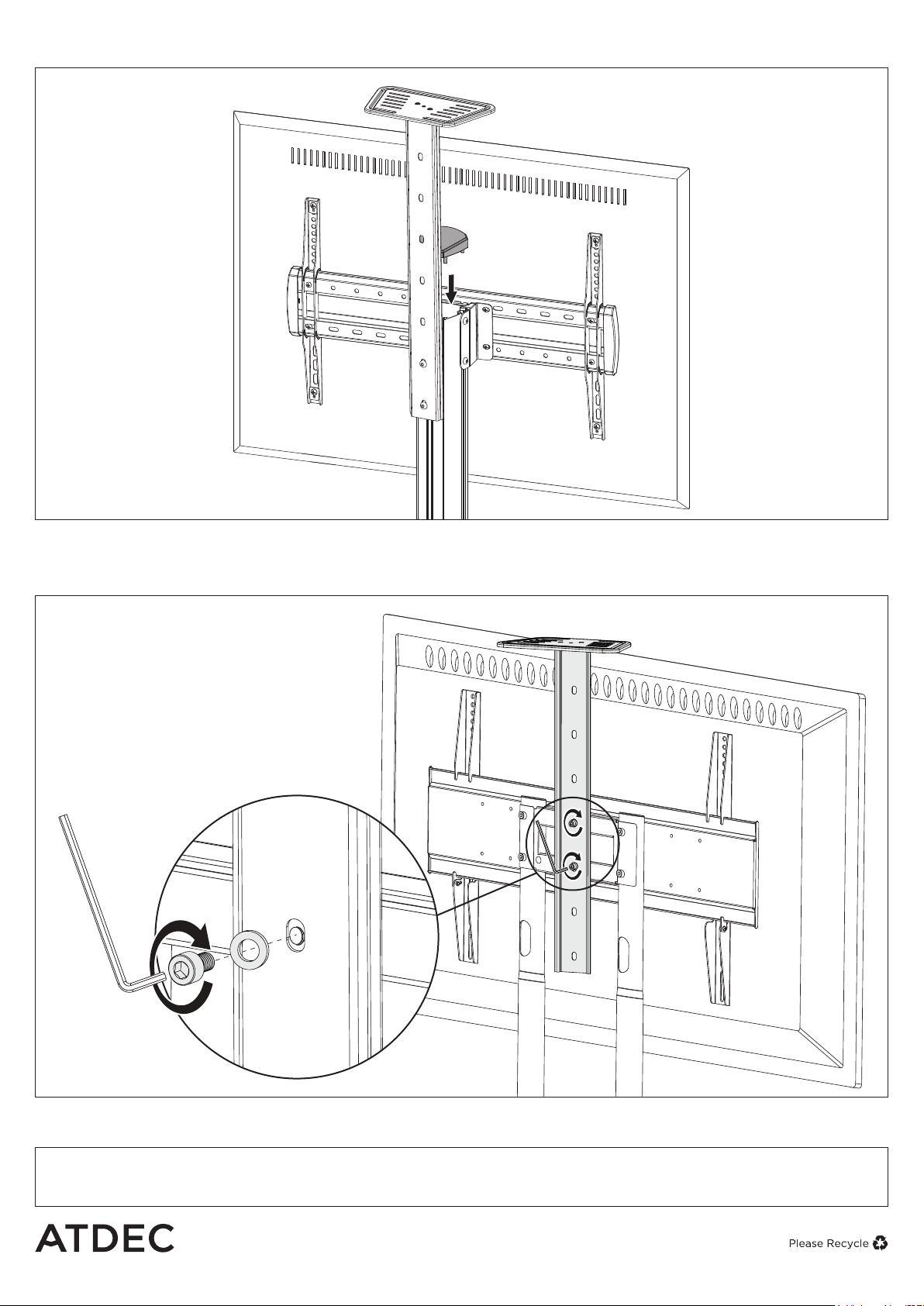

FOR AD-TVC-75 CART

2. Attach camera mount assembly to cart

4. Attach Cap

Attach camera mount with

M5 screws and washers

(part Gand J) at desired

height with 5mm allen key

(part E).

Ce manuel convient aux modèles suivants
