User’s manual

TL90071

DECT 6.0 expansion handset

for use with AT&T models

TL92271/TL92371/TL92471/

TL96271/TL96371/TL96471

with BLUETOOTHBLUETOOTH®

wireless technology

Model number: TL90071

Type: DECT 6.0 expansion handset

Serial number:

Purchase date:

Place of purchase:

Both the model and serial number of your AT&T product can be

found on the bottom of the handset charger.

Save your sales receipt and original packaging in case it is

necessary to return your telephone for warranty service.

The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such

marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under

license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and

trade names are those of their respective owners.

the AT&T logo are trademarks of AT&T Intellectual Property licensed to

Advanced American Telephones, San Antonio, TX 78219. Printed in China.

Congratulations

on purchasing your new AT&T product. Before using this AT&T

product, please read Important safety information on

pages 22-23

of this user’s manual. Please thoroughly read the user’s manual for

all the feature operations and troubleshooting information you need

to install and operate your new AT&T product. You can also visit our

website at www.telephones.att.com or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

The ENERGY STAR® program (www.energystar.gov) recognizes

and encourages the use of products that save energy and help

protect our environment. We are proud to mark this product with

the ENERGY STAR® label indicating it meets the latest energy

efficiency guidelines.

Compatible with

Hearing Aid T-Coil

TIA-1083

Telephones identified with this logo have reduced noise and

interference when used with most T-coil equipped hearing

aids and cochlear implants. The TIA-1083 Compliant Logo is a

trademark of the Telecommunications Industry Association. Used

under license.

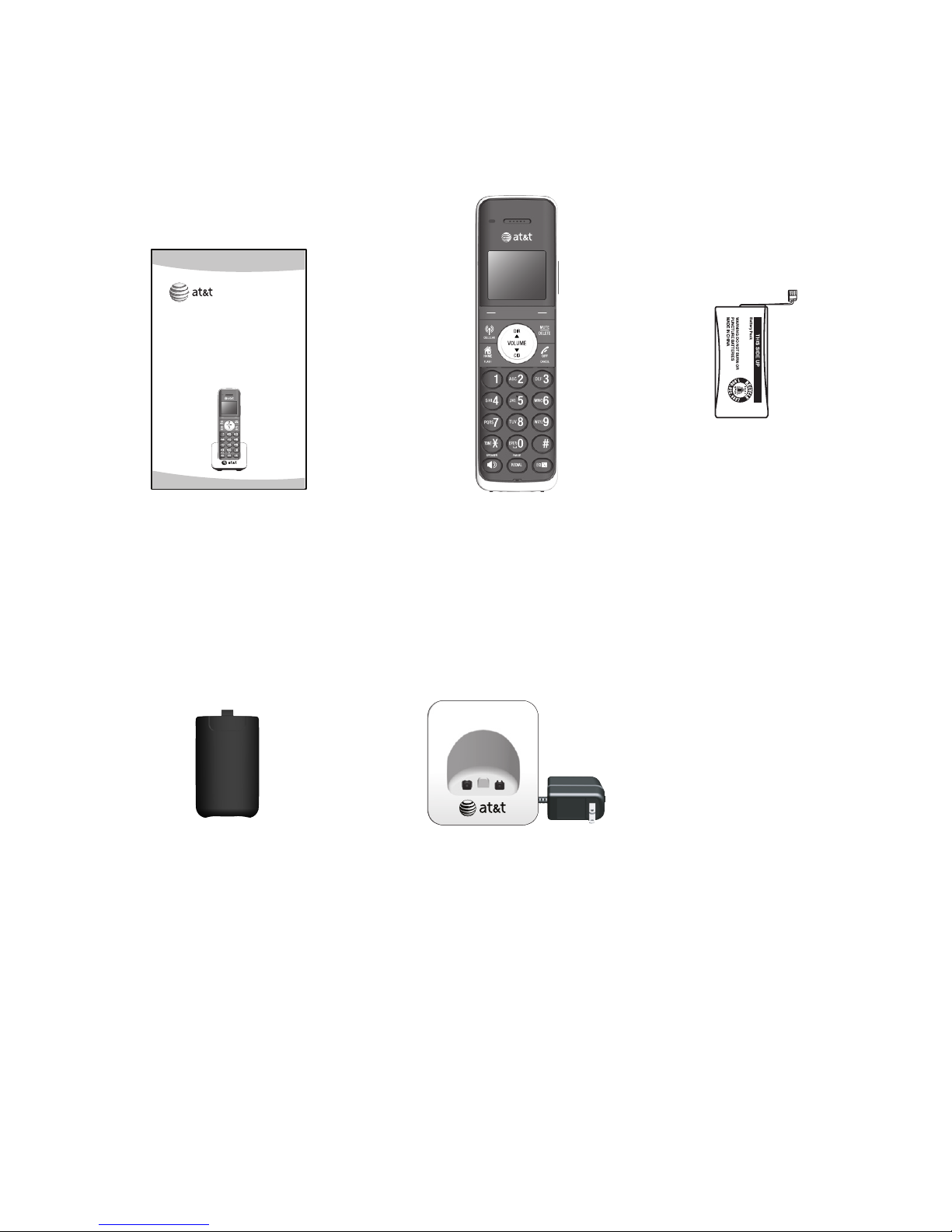

Parts checklist

Your telephone package contains the following items. Save your

sales receipt and original packaging in the event warranty service

is necessary.

Cordless handset

Charger for cordless

handset with power

adapter installed

Battery for

cordless handset

Battery compartment

cover

User’s manual

BY 1021

BT183342/BT283342

2.4V 400mAh Ni-MH

User’s manual

TL90071

DECT 6.0 expansion handset

for use with AT&T models

TL92271/TL92371/TL92471/

TL96271/TL96371/TL96471

with BLUETOOTHBLUETOOTH®

wireless technology

Table of contents

Getting started

Installation................................................................................................................ 1

Quick reference guide - handset................................................................... 2

Charger installation.............................................................................................. 5

Battery installation and charging.................................................................. 6

Registration and deregistration

Adding and registering handsets .................................................................. 8

Deregistering handsets ....................................................................................10

Deregister all handsets from the telephone base........................10

Appendix

Troubleshooting ...................................................................................................12

Maintenance...........................................................................................................21

Important safety information ........................................................................22

Safety information.........................................................................................22

Especially about cordless telephones.................................................23

Precautions for users of implanted cardiac pacemakers ..........24

Pacemaker patients......................................................................................24

Especially about telephone answering systems ............................24

FCC Part 68 and ACTA......................................................................................25

FCC Part 15............................................................................................................27

Limited warranty..................................................................................................28

Technical specifications ...................................................................................31

DECT 6.0 digital technology.....................................................................31

Telephone operating range......................................................................31

Redefining long range coverage and clarity....................................31

HD audio ............................................................................................................31

User’s manual

TL90071

DECT 6.0 expansion handset

for use with AT&T models

TL92271/TL92371/TL92471/

TL96271/TL96371/TL96471

with BLUETOOTHBLUETOOTH®

wireless technology

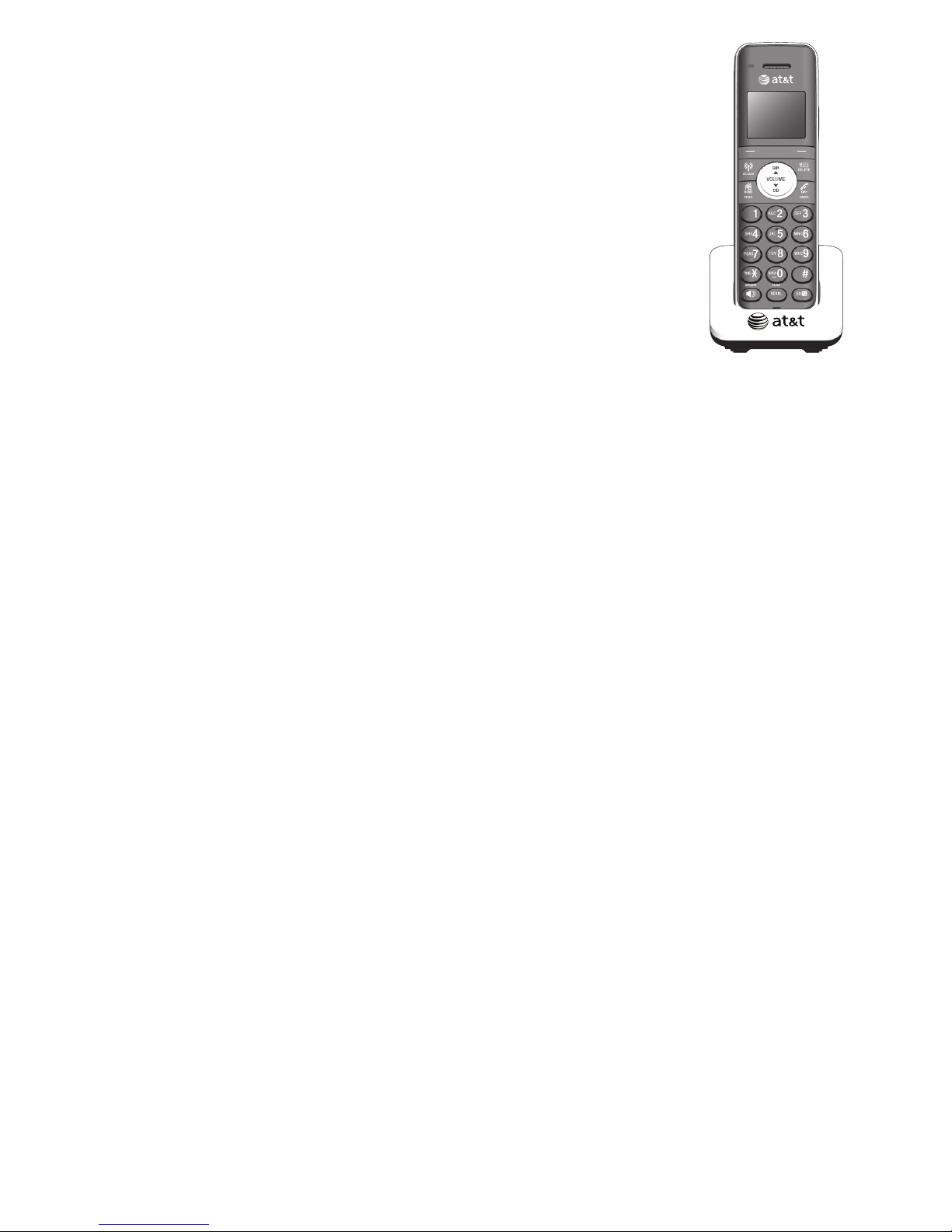

Your product may be shipped with a protective sticker covering

the handset or telephone base display - remove it before use.

For customer service or product information, visit our website at

www.telephones.att.com or call 1 (800) 222-3111. In

Canada, dial 1 (866) 288-4268.

Avoid placing the telephone base too close to:

Communication devices such as television sets, VCRs, or

other cordless telephones.

Excessive heat sources.

Noise sources such as a window with traffic outside, motors,

microwave ovens, refrigerators, or fluorescent lighting.

Excessive dust sources such as a workshop or garage.

Excessive moisture.

Extremely low temperature.

Mechanical vibration or shock such as on top of a washing

machine or work bench.

•

You must install and charge

the handset battery before

using the cordless handset.

See pages 6-7 for easy

instructions.

Installation

Getting started

CHARGE light

On when the handset is charging in the

telephone base or charger.

Softkeys (2)

Press to select a menu item displayed above

the key.

While in a menu, press to select an item or save

an entry or setting.

CELLULAR

Press to make or answer a cell call.

During a cell call, press to answer an incoming

call when you hear a call waiting alert.

Flashes quickly when there is an incoming

cell call.

Flashes slowly when a cell call is on hold.

HOME/FLASH

Press to make or answer a home call.

During a home call, press to answer an incoming

call when you hear a call waiting alert.

Flashes quickly when there is an incoming

home call.

Flashes slowly when a home call is on hold.

While reviewing a caller ID history entry, press

repeatedly to add or remove 1in front of the

telephone number before dialing or saving it in

the directory.

TONE

Press to switch to tone dialing temporarily

during a call if you have pulse service.

Press to toggle the name order when saving a

caller ID log entry into a directory.

/SPEAKER

Press to make or answer a home call using the

speakerphone.

Press to turn on the handset speakerphone.

Press again to resume normal handset use.

REDIAL/PAUSE

Press repeatedly to view the last 10

numbers dialed.

While entering numbers, press and hold

to insert a dialing pause.

Quick reference guide - handset

Getting started

DIR /VOLUME

Press to scroll up while in menus.

During a call or message playback, press to

increase the listening volume.

Press to show directory entries when the

telephone is not in use.

While entering names or numbers in the

directory, press to move the cursor to the left.

MUTE/DELETE

During a call, press to mute the microphone.

While predialing, press to delete digits.

While reviewing the redial list, directory or caller ID

history, press to delete an individual entry.

While entering or editing a directory entry, press

to erase a digit or character.

While the handset is ringing, press to silence the

ringer temporarily.

During message or announcement playback,

press to delete a message or announcement.

OFF/CANCEL

While using menus, press to cancel an operation,

back up to the previous menu, or exit the menu

display.

Press and hold to return to idle mode.

During a call, press to hang up.

Press and hold while the telephone is not in use

to erase the displayed messages (XX Missed

calls and Download fail).

While the handset is ringing, press to silence the

ringer temporarily.

CID /VOLUME

Press to scroll down while in menus.

During a call or message playback, press to

decrease the listening volume.

Press to show the caller ID history when the

telephone is not in use.

While entering names or numbers in the

directory, press to move the cursor to the right.

# (pound key)

Press repeatedly to display other dialing options

when reviewing a caller ID history entry.

During an outside call, intercom call, message

or announcement playback, press to change the

quality of the audio to best suit your hearing.

Quick reference guide - handset

Getting started

Quick reference guide - handset

Feature menu

Play messages

Answering sys

Directory

Caller ID log

Intercom

Bluetooth

Ringers

Set date/time

Settings

Website

Main menu

The selected menu item is highlighted.

PUSH TO TALK

Press to begin a one-to-one or one-to-group

broadcast.

Press and hold to begin a one-to-group broadcast

when the handset is not in use.

Using menus

Press MENU in idle mode (when the telephone is not in use)

to enter the main menu.

Use CID or DIR to scroll through menu items.

Press SELECT to select or save the highlighted item.

-OR-

Press OFF/CANCEL to cancel an operation, back up to the

previous menu, or exit the menu display.

For complete instructions, refer to the user’s manual provided with

your TL92271/TL92371/TL92471/TL96271/TL96371/TL96471

telephone system. If you are unable to find your user’s manual,

go to www.telephones.att.com to read and/or download

the manual.

Getting started

IMPORTANT INFORMATION:

Use only the power adapter(s) provided with this product. To obtain a

replacement, visit our website at www.telephones.att.com or

call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

The power adapters are intended to be correctly oriented in a vertical or floor

mount position. The prongs are not designed to hold the plug in place if it is

plugged into a ceiling, under-the-table or cabinet outlet.

•

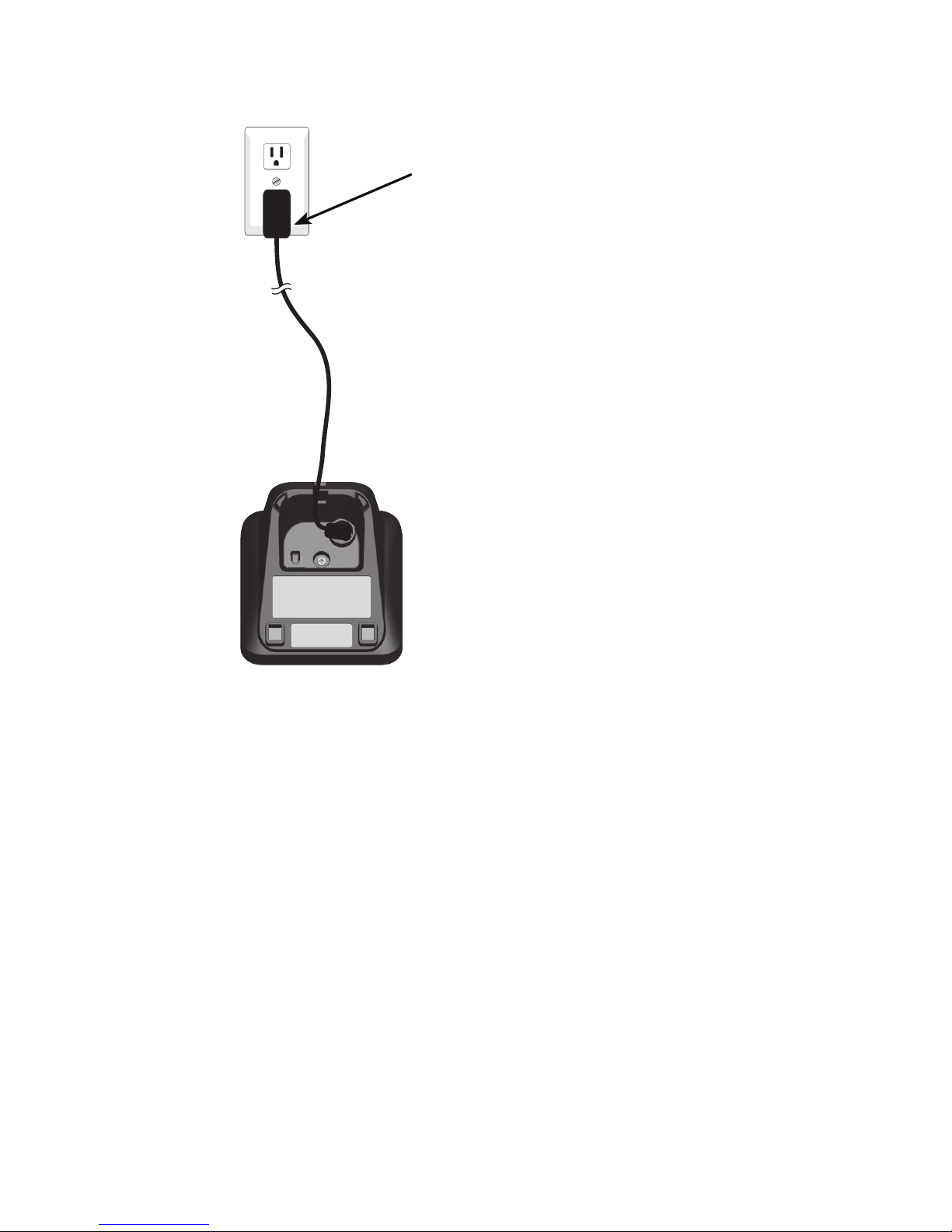

Charger installation

Plug the power adapter into an electrical

outlet not controlled by a wall switch.

Getting started

Battery installation and charging

Install the battery as shown on page 7. Once you have installed

the battery, the screen indicates the battery status (see the table

below). If necessary, place the handset in the telephone base or

charger to charge the battery. For best performance, keep the

handset in the telephone base or charger when not in use. The

battery is fully charged after 16 hours of continuous charging.

See the table on page 31 for battery operating times.

If the screen shows Place in charger and flashes, you need to

charge the handset without interruption for at least 30 minutes

to give the handset enough charge to use the telephone for a

short time. The following table summarizes the battery charge

indicators and actions to take.

Battery indicators Battery status Action

The screen is blank

or shows Place

in charger and

flashes.

The battery has no or

very little charge. The

handset cannot be used.

Charge without interruption

(at least 30 minutes).

The screen shows

Low battery and

flashes.

Battery has enough

charge to be used for a

short time.

Charge without interruption

(at least 30 minutes).

The screen shows

HANDSET X.

Battery is charged. To keep the battery

charged, place it in the

telephone base or charger

when not in use.

NOTE: If you are on a phone call in low battery mode, you hear four short

beeps every minute.

Getting started

Autres manuels pour TL90071

Table des matières

Autres manuels AT&T Combiné

AT&T

AT&T E5640 Manuel utilisateur

AT&T

AT&T E5640 Manuel utilisateur

AT&T

AT&T ID-282H Manuel utilisateur

AT&T

AT&T CL80109 Manuel utilisateur

AT&T

AT&T TL90077 Manuel utilisateur

AT&T

AT&T BE50 Manuel utilisateur

AT&T

AT&T TL90031 Manuel utilisateur

AT&T

AT&T G1AR Manuel d'instructions

AT&T

AT&T E2662B Manuel utilisateur

AT&T

AT&T CRL80112 Manuel utilisateur

AT&T

AT&T CL80100 Manuel utilisateur

AT&T

AT&T SB67108 - AT&T Manuel utilisateur

AT&T

AT&T TL76008 Manuel utilisateur

AT&T

AT&T EL50003 Manuel utilisateur

AT&T

AT&T 2400 Manuel utilisateur

AT&T

AT&T EP590-2 - AT&T 5.8 GHz Expansion Handset Manuel utilisateur

AT&T

AT&T E560-1 Manuel utilisateur

AT&T

AT&T CL82107 Manuel utilisateur

AT&T

AT&T 5800 Manuel utilisateur

AT&T

AT&T GL2113-0 Manuel utilisateur

AT&T

AT&T E5902B Manuel utilisateur

AT&T

AT&T TL90071 Manuel utilisateur

AT&T

AT&T CL80100 Manuel utilisateur

AT&T

AT&T STX-2 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur

Sony

Sony SBH52 Manuel utilisateur
