Quick Start Guide
AT&T SB67040 Cordless Accessory Handset
2

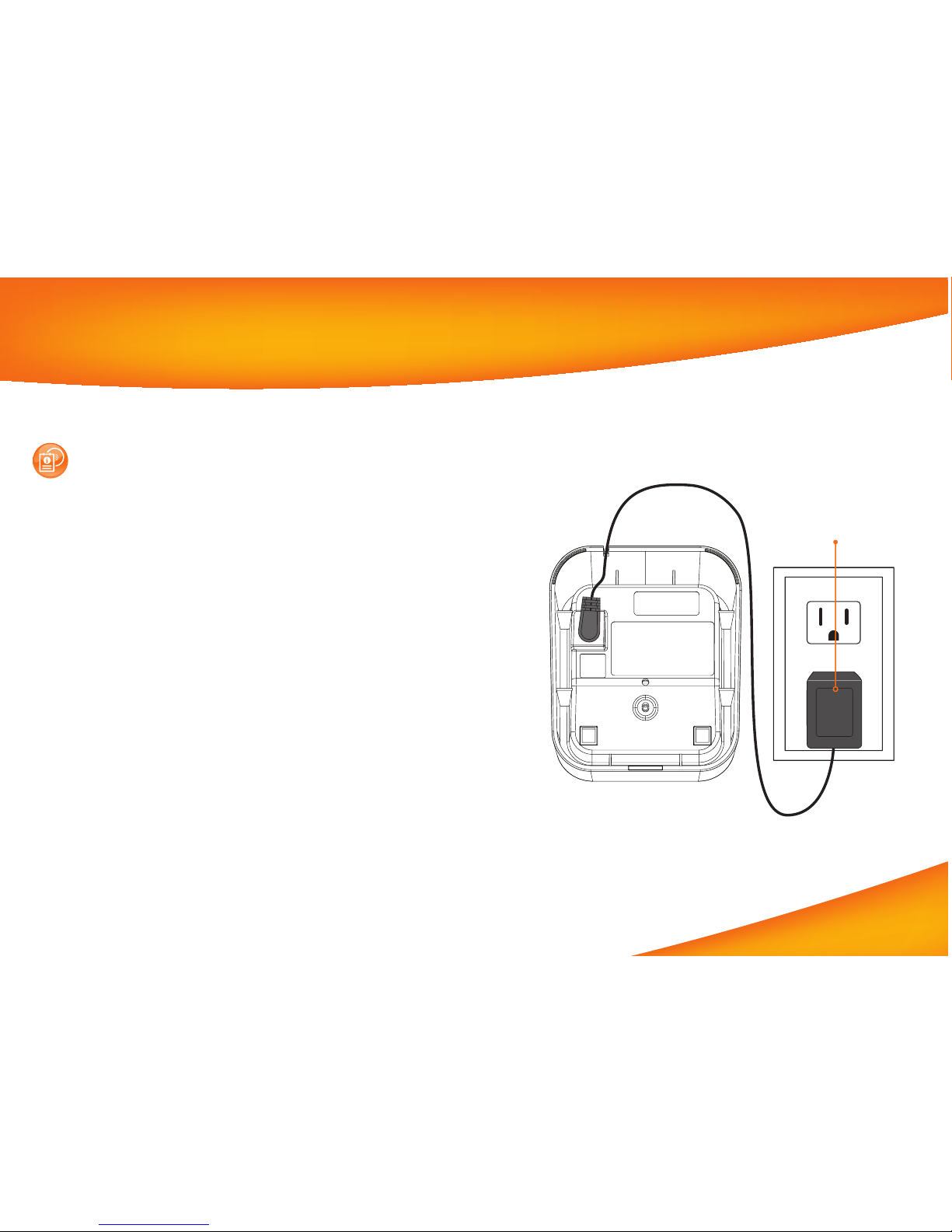

Charger Installation
To install the SB67040 Cordless Handset Charger:
Plug the power adapter into an electrical1.
outlet not controlled by a wall switch.
Plug the small end of the power adapter2.
into the jack on the underside of the charger.
Route the cord through the slot as shown in Figure 1.3.
This Quick Start Guide provides installation, registration
and some operating instructions so you can start
using your SB67040 Cordless Handset. For more
information see the Synapse User’s Guide at
www.telephones.att.com/SynapseGuides
The SB67040 Cordless Handset uses a rechargeable
2.4v nickel-metal hydride cell (NiMH) pack and comes
with a battery charger. Place the SB67040 Cordless
Handset in the charger when not in use.
Figure 1. Handset Charger Power Connect
Power Adapter
3

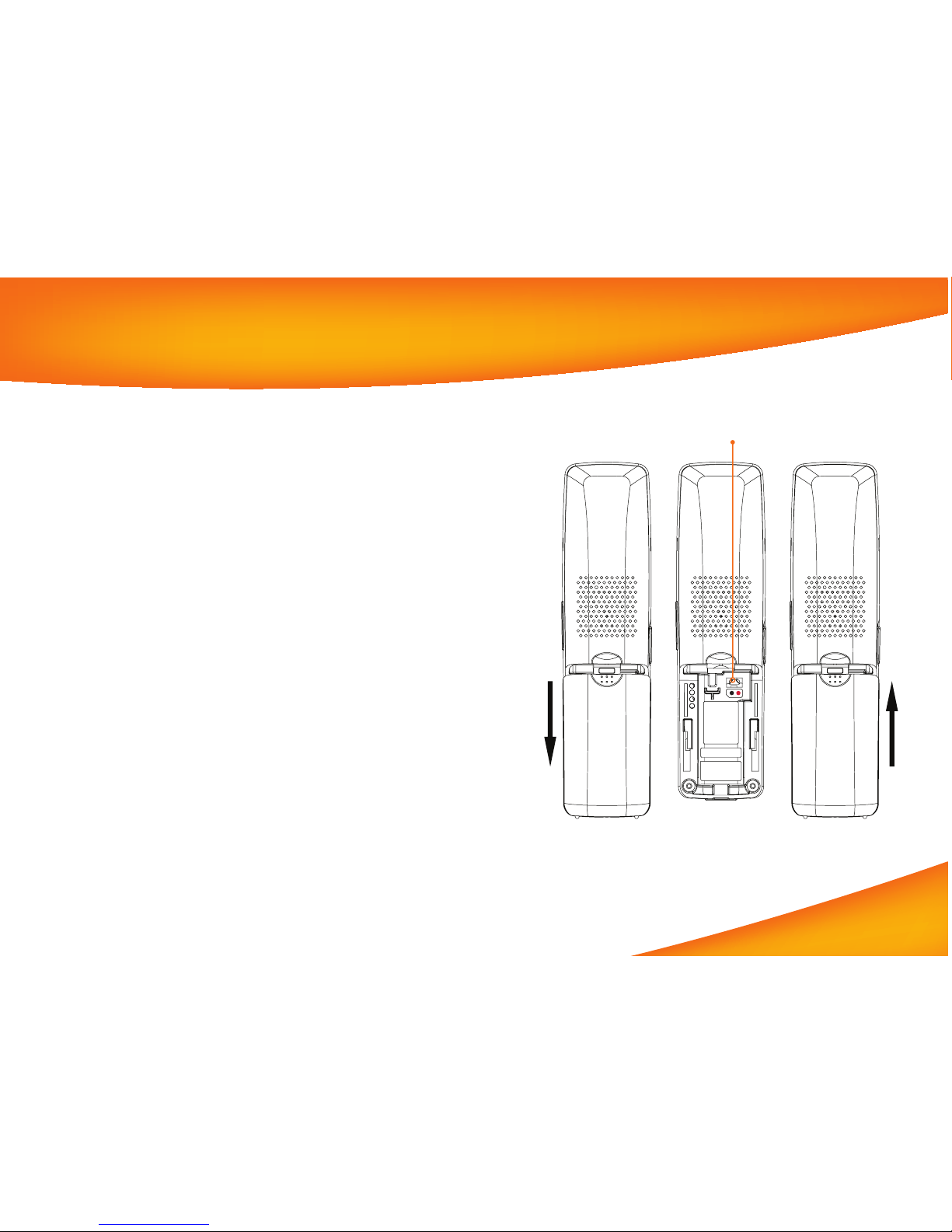

Battery Installation
To install the SB67040 Cordless Handset battery:
Remove the battery cover as shown in Figure 2.1.
Plug the battery connector securely into the plug inside2.
the Handset battery compartment, matching the color-
coded label.
Place the battery in the compartment with3. THIS SIDE UP
facing up.
Align the cover flat against the battery compartment,4.
then slide it upwards until it clicks into place.
Figure 2. Install Handset Battery
Battery Connector
4
Battery Installation (Continued)
To install the SB67040 Cordless Handset battery: (Continued)
5. The LCD displays a blank screen during startup.
•After startup, if there is some charge in the battery, the LCD
displays the Place in charger screen shown in Figure 3.
•If the screen is blank, place the Handset in the charger.
NOTE: For customer service or product information, contact your installer
at the number on the cover of this guide. If your installer is
unavailable, visit our website at www.telephones.att.com/smb
or call 1 (888) 916-2007. In Canada dial 1 (888) 883-2474.
Figure 3. Place in Charger Screen
12:00a
Place in charger.

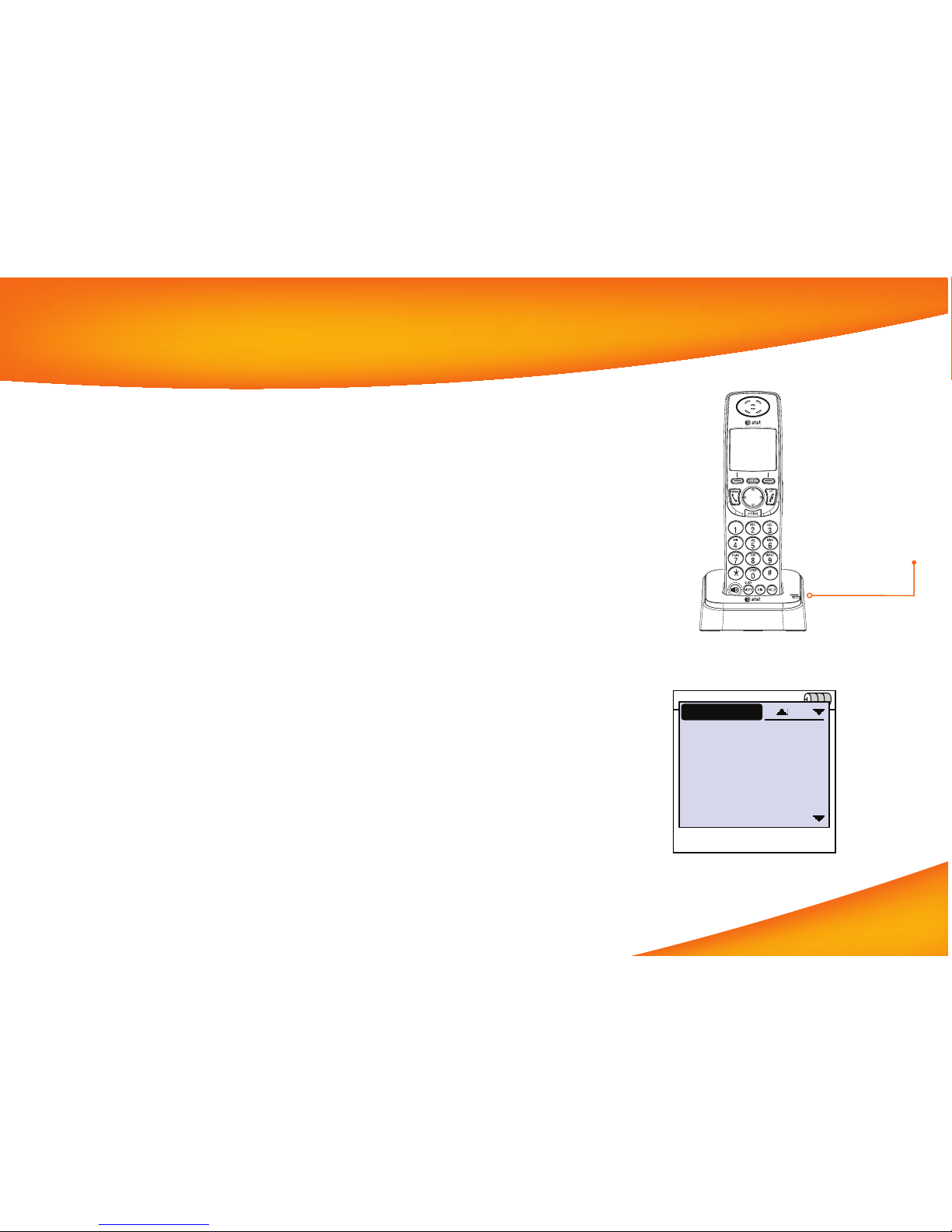

To charge the Handset battery:
Place the Handset in the charger as shown in Figure 4.1.
•The CHARGE light will be on when the Handset is charging.
•The REGISTER screen shown in Figure 5 should display within
15 seconds.
NOTE: Charge the Handset battery for at least 16 hours before use. When
fully charged, the Handset battery provides approximately five hours
of talk time or three days of standby time.
5
Battery Charging
Figure 5. Register Screen
Figure 4. Handset in Charger
Charge
Light
12:00a Dec 0112:00a Dec 01
To register Handset:
1. Go to your
Deskset.
2. Press MENU.
3. Select User
REGISTER
1/3
12:00a
Place in charger.
6
Handset Registration
To register the SB67040 Cordless Handset:
If the Handset is not registered to a Deskset, the Place in charger
notification screen shown in Figure 6 displays upon powering up.
Place the Handset into the charger. The1. REGISTER Handset screen
shown in Figure 7 displays.
This procedure provides instructions for registering a SB67040 Cordless
Accessory Handset. Only one Cordless Handset and one Cordless Headset
can be registered to a Deskset.
Figure 6. Place In Charger Screen
Figure 7. Register Screen
12:00a Dec 0112:00a Dec 01
To register Handset:
1. Go to your
Deskset.
2. Press MENU.
3. Select User
REGISTER
1/3
Press2. MENU on the SB67030 Deskset.
Press3. 2on the Deskset.
Press4. 6on the Deskset to display the Cordless Settings
menu shown in Figure 8. The screen reflects whether
the Handset and Headset are registered.
Press5. 1on the Deskset to begin the registration process.
To register the Handset press6. Register as shown in Figure 9.
•Once the Handset registration begins, the Handset
and Deskset display Registration in Progress screens.
7
Handset Registration (Continued)
To register the SB67040 Cordless Handset: (Continued)
Quick
Dial
1. Ha ndse t
2. He adse t
(Not Registered)
Cordless Settings
(Registered)
Use or to scroll then press
SELECT or press 1 - 2.
Figure 8. Cordless Registration
Figure 9. Register Cordless
Quick
Dial
Cordless Handset Registration
Cordless Ha ndse t is currently
Not Regist ered.
Re gister Ex it
Place cordless handset in charger.
Press Register to begin process.
To register the SB67040 Cordless Handset: (Continued)
•If the registration process times out, the Handset displays
Registration Failed as shown in Figure 11, generates an
error tone, and resets. Try registration again.
•When registration is complete, the Deskset and Handset
display Handset Registered and the Handset generates
confirmation tones. Figure 10 shows the Handset messages.
7. Press Exit to return to the Cordless Settings screen.
NOTE: The registration process on both Deskset and Handset will end
after two minutes. If registration is not successful, try again.
8
Handset Registration (Continued)
Registration
Failed.
Figure 11. Registration Failed
Handset
Registered.
Registration in
progress...
Figure 10. Handset Registered
9
Handset Registration (Continued)
To deregister the Handset:
Perform Steps 2 through 4 of the “To register the SB670401.
Cordless Handset:” procedure on page 7.
Press2. 1on the Deskset to begin the deregistration
process.
To deregister the Handset, press3. DeReg , as shown in Figure 12.
To confirm deregistration, press4. YES . Press NO to keep the
Handset registered.
To return to the Cordless Settings screen, press5. Exit .
Figure 12. Deregistration Screen
Quick
Dial
Cordless Handset Registration
Cordless Handse t is currently
Registered.
Ex itDeReg
Press DeReg to deregister the Cordless
Handset.
Handset Overview
Off
Ends current call.
Volume (On side)
Decreases and increases
the ringer or incoming voice
volume.
Dial pad, 0-9, *, #
Dials, performs shortcuts,
or accesses areas in a list.
DIR
Accesses the Directory.
Hold
Places active call on hold.
Options
Accesses options depending
on the current mode.
Mute/Quick
Mutes the handset microphone
while on an active or conference
call. Pressing and holding accesses
Quick Dial numbers.
Speaker
Generates dial tone in Idle
mode. Toggles audio to and
from speaker during active call.
Phone
Starts or answers a call.

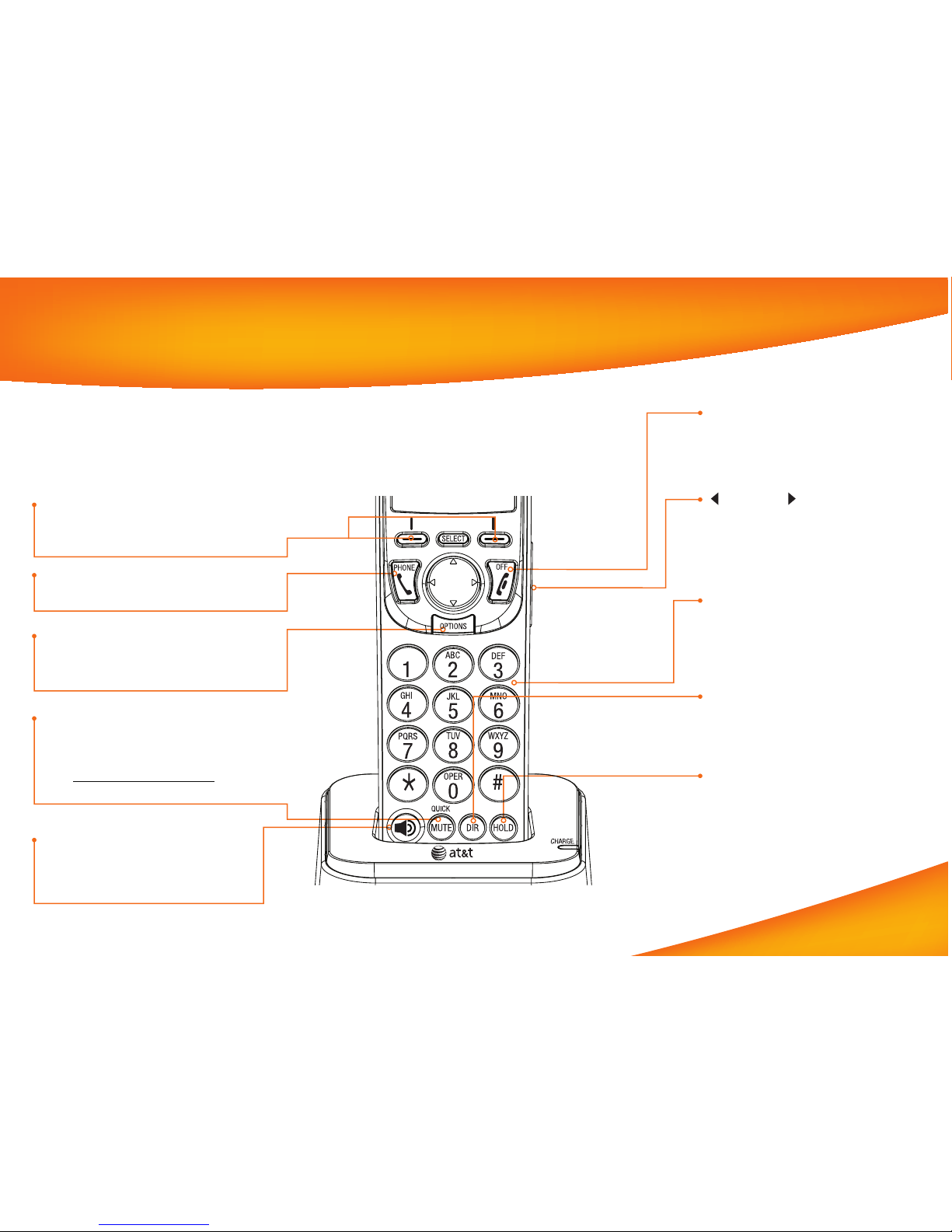

The optional SB67040 Cordless Handset duplicates many of the Deskset
features. Figures 13 and 14 illustrate and describe the keys for the SB67040
Cordless Handset.
10
Figure 13. SB67040 Cordless Handset Key Functions
Soft Keys
Label in display changes
according to the current task.
