AT&T E560-1 Manuel utilisateur

User Manual (Part 2)

5.8 GHz Expansion

Handset E560-1

For use with AT&T

model

E5634B/E5633/E5630/E5603B

/E5600

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 1

You must charge the

battery and register the

handset before use. STOP! See pages 2-3

for easy instructions.

Table of contents

For customer service or product

information, visit our web site at

www.telephones.att.com

or call 1-800-222-3111.

Please also read

Important Product

Information

Enclosed in product package.

Before you begin........................................1

Parts checklist ............................................1

Battery & charging installation ...............2

Registration.................................................3

Replacing a Handset..................................4

Re-Registering a Handset ........................5

Belt clip & optional headset....................6

Quick reference guide..............................7

AT&T and the Globe Design are trademarks of AT&T Corp.,

licensed to Advanced American Telephones.

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 2

Before you begin

This cordless telephone

operates with the maximum

power allowed by the

Federal Communications

Commission (FCC). Even

so, this handset and base

can communicate over only

a certain distance — which

can vary with the locations

of the base and handset, the

weather, and the

construction of your home

or office.

If you receive a call

while you are out of

range, the handset might

not ring — or if it does

ring, the call might not

connect when you press

PHONE. Move closer to the

base, then press PHONE to

answer the call.

If you move out of range

during a phone

conversation, you might

hear noise or interference.

To improve reception, move

closer to the base.

If you move out of range

without pressing OFF,

your phone will be left off

the hook.To hang up

properly, walk back toward

the telephone base,

periodically pressing OFF

until the call is

disconnected.

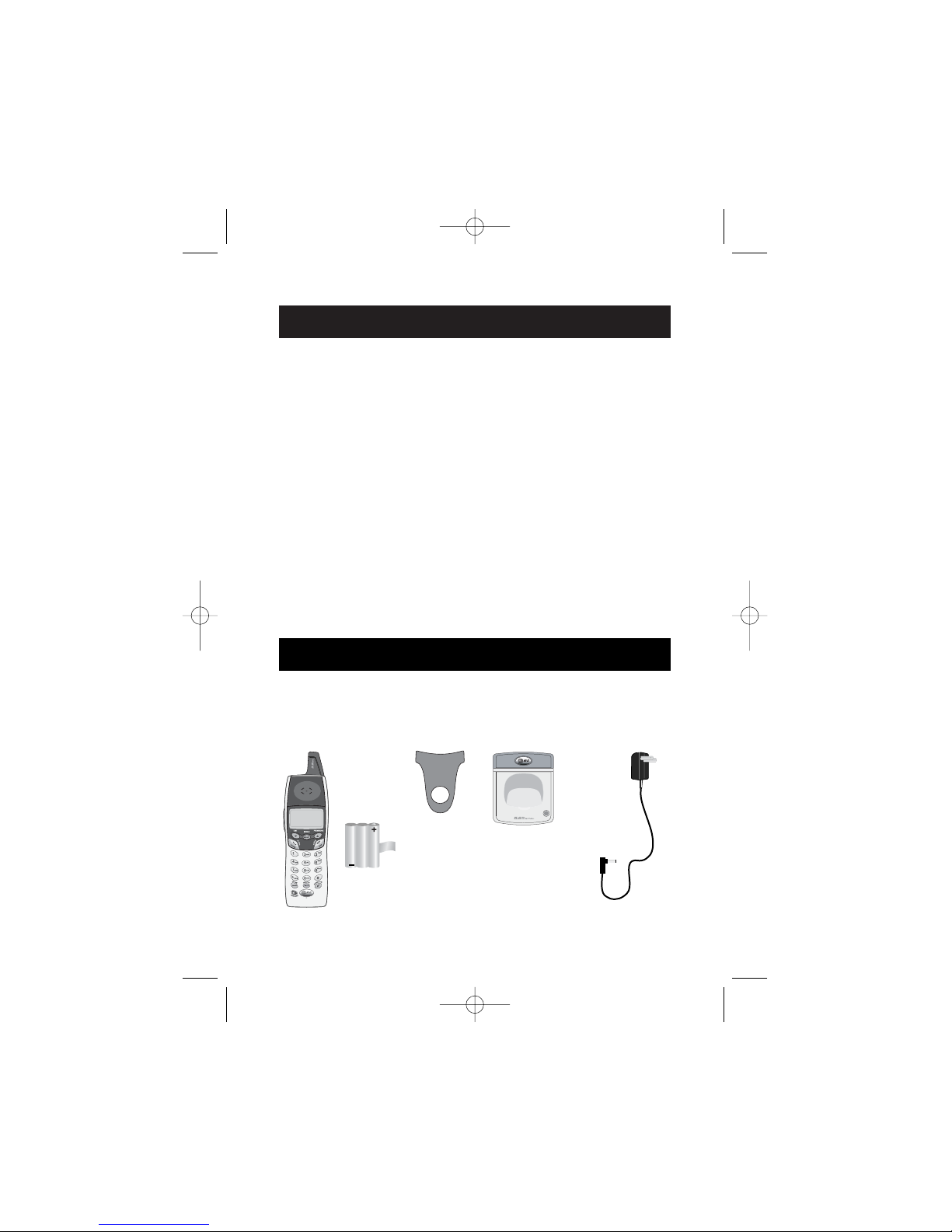

Parts checklist

Remember to save your sales receipt and original packaging in

case you ever need to ship your telephone for warranty service.

Check to make sure the telephone package includes the

following:

CHARGING

Handset charger

Telephone

handset Power

adapter

Belt clip

Battery

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 3

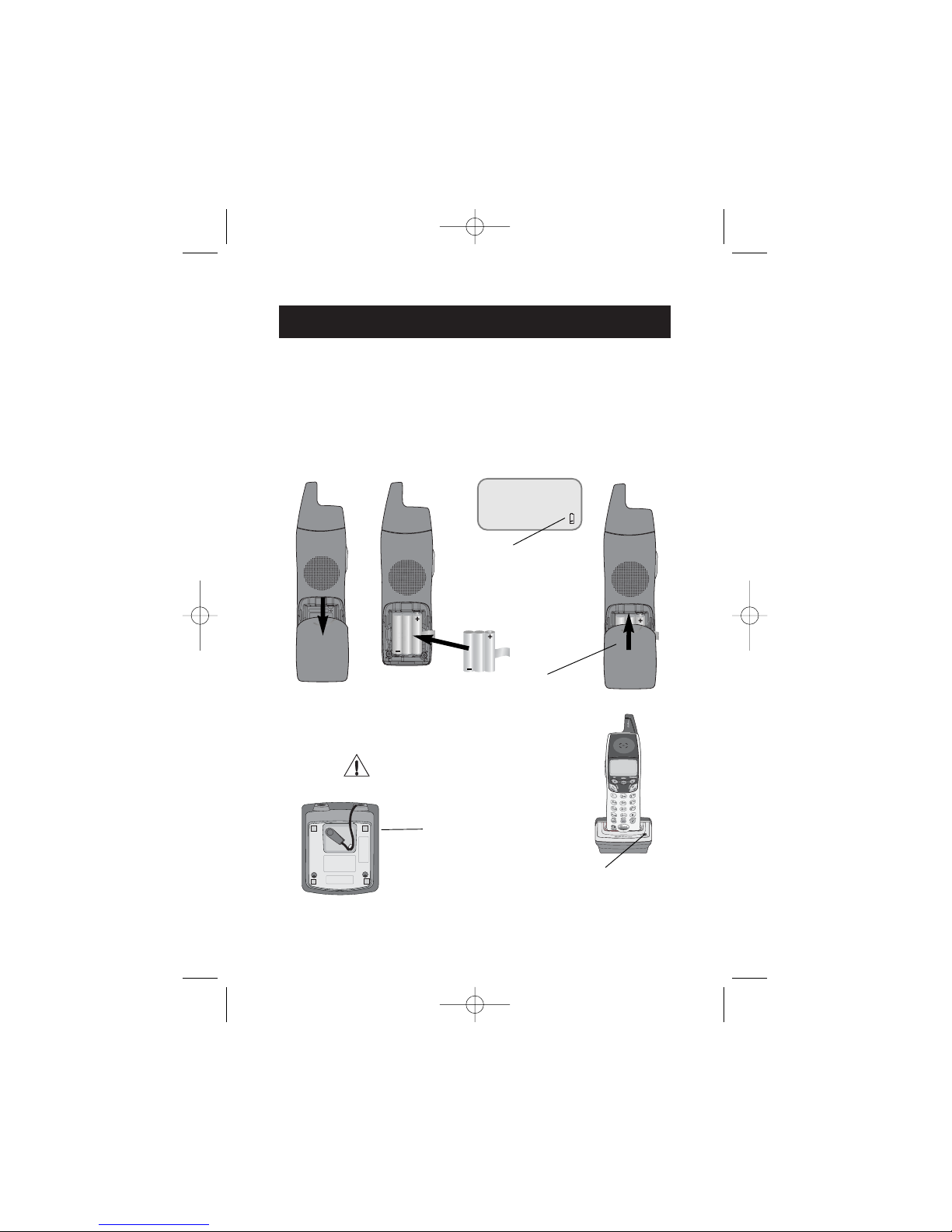

Battery & charger installation

After installation, place the handset in the charger and allow the

battery to charge for 15 hours before use.You can keep the battery

charged by returning the handset to the charger after each use.

When battery power is fully depleted, a full recharge takes about 12

hours.Average talk time on a fully charged battery is about eight

hours depending on environmental conditions, standby time is

approximately four days.

Light remains on while

battery is charging.

Plug power cord into jack on

underside of charger, then plug

transformer into electrical outlet.

Insert supplied

battery.

Low battery indicator

Return handset to base or

charger to recharge when

this symbol flashes.

(Handset will beep when

battery is low.)

Caution: Use only supplied

rechargeable battery or AT&T

replacement battery model 2420 (SKU

00578. Part number 80-5542-00-00).

LOW BATTERY

Press tab to open

battery

compartment.

Then replace

compartment

cover.

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 4

Registration

HANDSET 2

Before using a new E560-1 handset, you must register it with the E5633/

E5630/E5603B/E5600 base. During registration, you must enter the 15-digit

ID number of the telephone base.The Base ID is located on the bottom of

the base unit.

The handset provided with your E5600/E5630 is

automatically registered as Handset 1. Additional

handsets will be assigned numbers in the order they

are registered (Handset 2, Handset 3, or Handset 4).

You can register a maximum of 4 handsets.

The E5633/E5603B has 3 handsets automatically

registered as Handset 1, 2 and 3. You can register

one additional handset, which will be assigned number

The E5634B has 4 handsets automatically registered

as Handsets 1, 2, 3, and 4. Y

ou cannot register any

additional handsets to the E5634B.

To add a new handset:

• Make sure your handset batteries are properly

installed and charged.

• Your handset will display “SEARCHING...”.

• Press and hold the SELECT key until the handset

displays “ENTER BASE ID”.

• Enter the 15-digit Base ID number from the

bottom of the base unit.

(E5633/E5630/E5603B/E5600)

• Press SELECT to accept the code and complete

registration.

NOTE:

If an invalid base ID code is entered you will hear an error tone

and the handset will continue to display “ ENTER BASE ID ”. To make

corrections while entering the code, you can erase digits by pressing the

DELETE key.

Once a valid base ID code is entered and accepted by

the base unit, the new handset will be assigned the

next available handset number (Handset 2, Handset 3,

or Handset 4).You can register a maximum of four

handsets per base unit.

Handset 1

Enter base ID, then press SELECT.

ENTER BASE ID

Handset 2 Handset 3

Handset 4

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 5

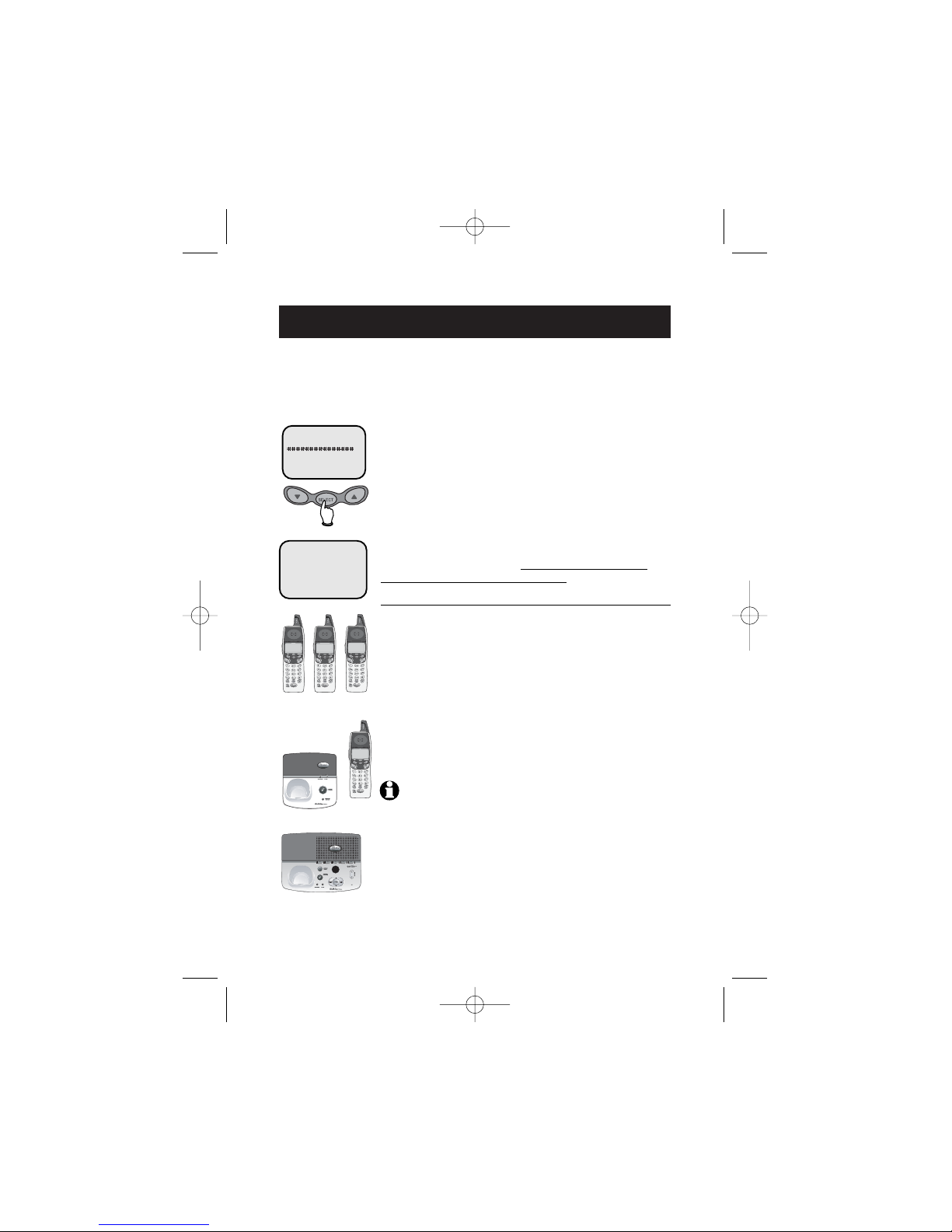

Replacing a Handset

If you are replacing a handset on a system that has the maximum

number of handsets registered (4), or wish to change the

assigned handset number of your registered handsets, you must

first de-register the handsets, then re-register all handsets.

De-Register All Handsets

• Unplug the power supply from the base unit.

(E5634B/E5633/E5630/E5603B/E5600)

• Remove all handsets from the charge cradles and base.

• Plug in the power supply while pressing and holding the

HANDSET LOCATOR button.

• Continue pressing HANDSET LOCATOR until the IN USE,

CHARGING (E5634B/E5633/E5630/E5603B/E5600) and

MESSAGE WAITING (E5603B and E5600 only) indicators are

lit. (this could take up to 10 seconds).

• Release the HANDSET LOCATOR button.

• All Handsets will display:

Once the base indicators turn off (up to 30 seconds), the

handsets have been de-registered from the base, and can now be

re-registered (see page 5).

ENTER BASE ID

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 6

You can re-register handsets after de-registering from the base.

Or you can re-register handsets to a new base unit, if you have

replaced your base unit for any reason.

To re-register a handset:

• Make sure your handset batteries are properly installed and

charged.

• Your handset will display “SEARCHING...”.

• Press and hold the SELECT key until the handset displays

“ENTER BASE ID”.

• Enter the 15 digit Base ID number from the bottom of the

base.

• Press SELECT to accept the new code and complete

re-registration.

To re-register a handset to a new base unit:

• Make sure your handset batteries are properly installed and

charged.

• Unplug the old base unit.

• Install the new base unit by plugging it into the electrical

outlet and phone jack.

• Your handset will display “SEARCHING...”.

• Press and hold the SELECT key until the handset displays

“ENTER BASE ID”.

• Enter the new15-digit Base ID number from the bottom of

the new base unit.

• Press SELECT to accept the new code and complete

re-registration.

NOTE:

If an invalid base ID code is entered you will hear an error tone and the

handset will continue to display “ENTER BASE ID”. To make corrections while

entering the code, you can erase digits by pressing the DELETE key.

Once a valid base ID code is entered and accepted by the base

unit, the new handset will be assigned the next available handset

number (Handset 1, Handset 2, Handset 3, or Handset 4).You can

Re-Registering a Handset

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 7

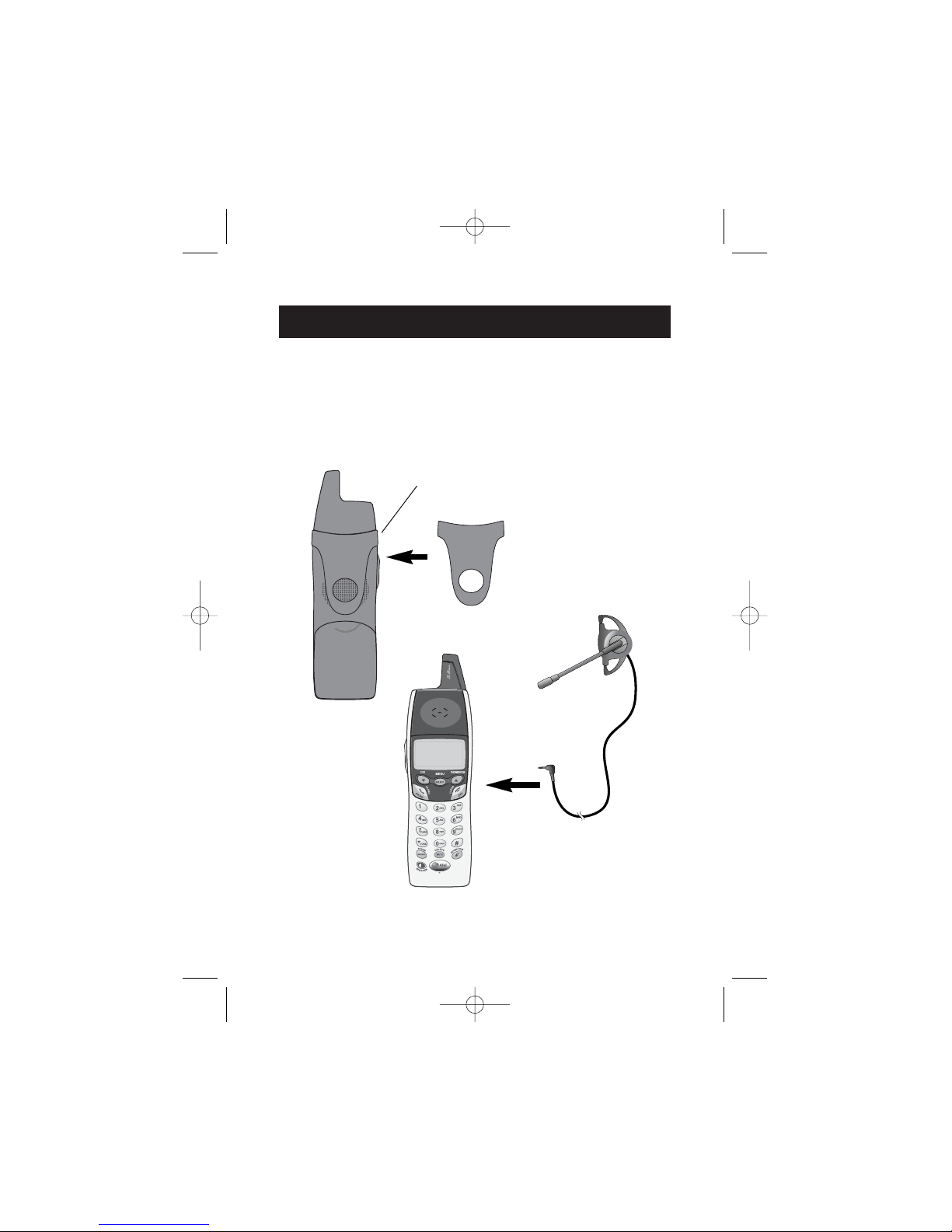

Belt clip & optional headset

Install belt clip as shown below if desired.

For hands-free telephone conversations, you can use any industry

standard 2.5 mm headset (purchased separately). For best results

use an AT&T 2.5 mm headset.

Snap belt clip into notches on

side of handset. Rotate and pull

to remove.

Plug 2.5 mm headset

into jack on side of

handset (beneath

small rubber cap)

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 8

For complete instructions, please refer to the manual provided with

your E5634B, E5633, E5630, E5603B or E5600 telephone.

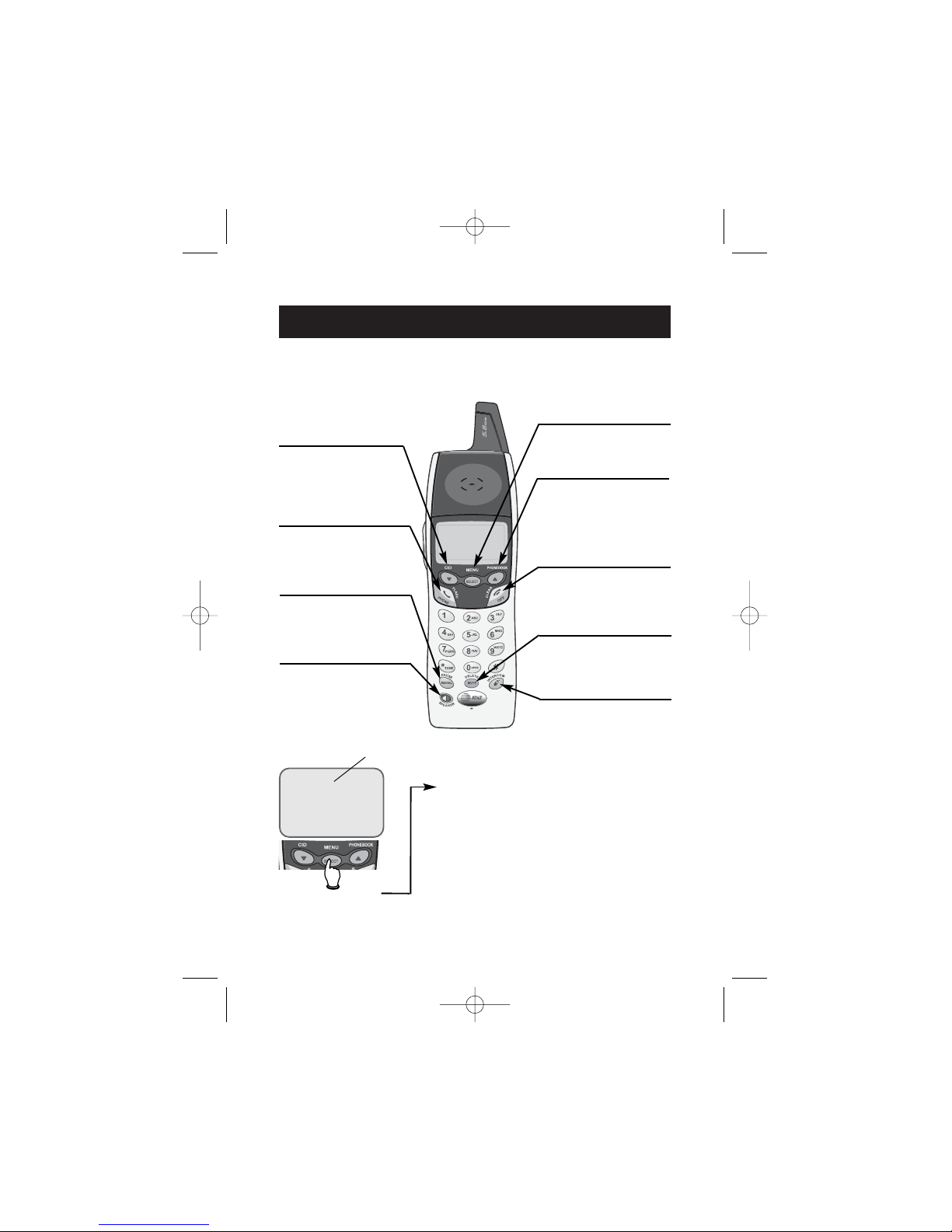

Quick reference guide

Feature menu

>PHONE BOOK

CALL LOG

Feature Menu

Phone book

Call Log

Ringer Volume

Ringer Tone

Key Tone

Language

Clear MSG WAIT

Dial Type

Press

to scroll

through menu items.

Press SELECT to select or

modify a highlighted item.

Press OFF to cancel an

operation, back up to the

previous menu, or exit the

menu display.

>shows highlighted item

Off/Clear

During a call, press to hang up.

While using menus, press to cancel an

operation, back up to the previous

menu, or exit the menu display.

Redial/Pause

Press to view redial memory.

While entering numbers, press and hold

to insert a dialing pause .

VCID

Press to scroll down in menus.

Press when phone is not in use to

display Caller ID information . While

entering names, press to move the

cursor to the left.

Speaker

Press to activate handset speakerphone.

Press again to resume normal handset

use (earpiece).

^PHONE BOOK

Press to scroll up in menus.

Press when phone is not in use to

display phone book entries. While

entering names, press to advance

cursor.

Phone/Flash

Press to begin a call, then dial a number.

During a call, press to receive an

incoming call, if Call Waiting is activated .

Mute/Delete

Press to mute microphone . While

reviewing call log, press and hold to

clear Caller ID log .

Intercom

Press to initiate an intercom

conversation or transfer a call.

Handset Select/Menu

Press to display menu, or to select

highlighted item from menu.

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 9

www.telephones.att.com

AT&T and the Globe Design are trademarks of AT&T Corp.,

licensed to Advanced American Telephones. Printed in China. Issue 5 AT&T 07/05.

91-000341-030-000

91-000341-030-000-E560-1 Manual July.11,05.qxd 2/13/1950 7:21 PM Page 10

Autres manuels pour E560-1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AT&T Combiné

AT&T

AT&T DL70010 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AT&T

AT&T SB67108 - AT&T Manuel utilisateur

AT&T

AT&T MS2025 Manuel utilisateur

AT&T

AT&T 5800 Manuel utilisateur

AT&T

AT&T BL102-0S Manuel utilisateur

AT&T

AT&T TL86009 Manuel utilisateur

AT&T

AT&T EP590-3 Manuel utilisateur

AT&T

AT&T TL77008 Manuel utilisateur

AT&T

AT&T TL90071 Manuel utilisateur

AT&T

AT&T CRL80112 Manuel utilisateur

AT&T

AT&T EP590-2 - AT&T 5.8 GHz Expansion Handset Manuel utilisateur

AT&T

AT&T G1AR Manuel d'instructions

AT&T

AT&T TL30100 Manuel utilisateur

AT&T

AT&T E5640 Manuel utilisateur

AT&T

AT&T CL80100 Manuel utilisateur

AT&T

AT&T TL90073 Manuel utilisateur

AT&T

AT&T CRL30102 Manuel utilisateur

AT&T

AT&T E5640 Manuel utilisateur

AT&T

AT&T BL102-2S Manuel utilisateur

AT&T

AT&T STX-2 Manuel utilisateur

AT&T

AT&T CL82219 Manuel utilisateur

AT&T

AT&T CLP99003 Manuel utilisateur

AT&T

AT&T CLP99573 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur

Sony

Sony SBH52 Manuel utilisateur
