Asus RT-N16 Manuel utilisateur

User Manual

RT-N16

Multi-functional Gigabit Wireless N Router

No part of this manual, including the products and software described in it, may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form or by any means, except documentation kept by the purchaser for

backup purposes, without the express written permission of ASUSTeK Computer Inc.

(“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or

altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)

the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES

OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE

OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED

FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME

WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY

ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR

INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS

AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identication or

explanation and to the owners’ benet, without intent to infringe.

E4484

First Edition V1

May 2009

Table of contents

About this guide .................................................................................... 4

How this guide is organized .............................................................. 4

Conventions used in this guide ......................................................... 5

Chapter 1: Knowing your wireless router

Package contents .................................................................................. 6

System requirements ............................................................................ 6

Before you proceed............................................................................... 6

Hardware features ................................................................................. 7

Front panel ........................................................................................ 7

Rear panel......................................................................................... 8

Bottom panel ..................................................................................... 9

Mounting options................................................................................. 10

Chapter 2: Setting up the hardware

Setting up the wireless router .............................................................11

Setting up a wired connection..........................................................11

Setting up a wireless connection..................................................... 12

Conguring the wireless router ......................................................... 13

Using the web GUI.......................................................................... 13

Chapter 3: Conguring the network clients

Accessing the wireless router............................................................ 14

Setting an IP address for wired or wireless client ........................... 14

Chapter 4: Conguring via the web GUI

Conguring via the web GUI............................................................... 22

Using the Network Map....................................................................... 23

Setting up WAN using the Quick Internet Setup (QIS).................... 24

Using the router as a UPnP Media Server...................................... 25

Using AiDisk......................................................................................... 28

Managing EzQoS bandwidth .............................................................. 30

Upgrading the rmware ...................................................................... 31

Restoring/Saving/Uploading settings................................................ 32

Using the USB application.................................................................. 33

Creating a user account.................................................................. 33

Table of contents

About this guide

This user guide contains information that you need to install and congure the

ASUS Wireless Router.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Knowing your wireless router

This chapter provides information on the package contents, system

requirements, hardware features, and LED indicators of the ASUS Wireless

Router.

Setting up an FTP site..................................................................... 35

Connecting a USB printer................................................................... 36

Chapter 5: Installing the utilities

Installing the utilities........................................................................... 41

Device Discovery ................................................................................. 43

Firmware Restoration.......................................................................... 43

WPS Wizard.......................................................................................... 44

Using WPS Wizard.......................................................................... 44

Download Master ................................................................................. 50

Using the Download Master............................................................ 50

Chapter 6: Troubleshooting

Troubleshooting................................................................................... 52

ASUS DDNS Service............................................................................ 55

Frequently Asked Questions (FAQs)............................................... 55

Appendices

Notices.................................................................................................. 57

ASUS Contact information.................................................................. 66

• Chapter 2: Setting up the hardware

This chapter provides instructions on setting up, accessing, and conguring the

ASUS Wireless Router.

• Chapter 3: Conguring the network clients

This chapter provides instructions on setting up the clients in your network to

work with your ASUS Wireless Router.

• Chapter 4: Conguring via the web GUI

This chapter provides instructions on conguring the ASUS Wireless Router

using its web graphics user interface (web GUI).

• Chapter 5: Installing the utilities

This chapter provides information on the utilities that are available from the

support CD.

• Chapter 6: Troubleshooting

This chapter provides you with a troubleshooting guide for solving common

problems you may encounter when using the ASUS Wireless Router.

• Appendices

This chapter provides you with the regulatory Notices and Safety Statements.

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

6RT-N16 Chapter 1: Knowing your wireless router

Knowing your

wireless router

Package contents

Check the following items in your ASUS Wireless Router package.

RT-N16 Wireless Router

Power adapter

Support CD (manual, utilities)

RJ45 cable

Quick Start Guide

Note: If any of the items is damaged or missing, contact your retailer.

System requirements

Before installing the ASUS Wireless Router, ensure that your system/network

meets the following requirements:

• An Ethernet RJ-45 port (10Base-T/100Base-TX/1000Base-TX)

• At least one IEEE 802.11b/g/n device with wireless capability

• An installed TCP/IP and Internet browser

Before you proceed

Take note of the following guidelines before installing the ASUS Wireless Router:

• The length of the Ethernet cable that connects the device to the network (hub,

ADSL/cable modem, router, wall patch) must not exceed 100 meters.

• Place the device on a at and stable surface as far from the ground as

possible.

• Keep the device clear from metal obstructions and away from direct sunlight.

• Keep the device away from transformers, heavy-duty motors, uorescent lights,

microwave ovens, refrigerators, and other industrial equipment to prevent

signal loss.

• Install the device in a central area to provide ideal coverage for all wireless

mobile devices.

Chapter 1: Knowing your wireless router RT-N16

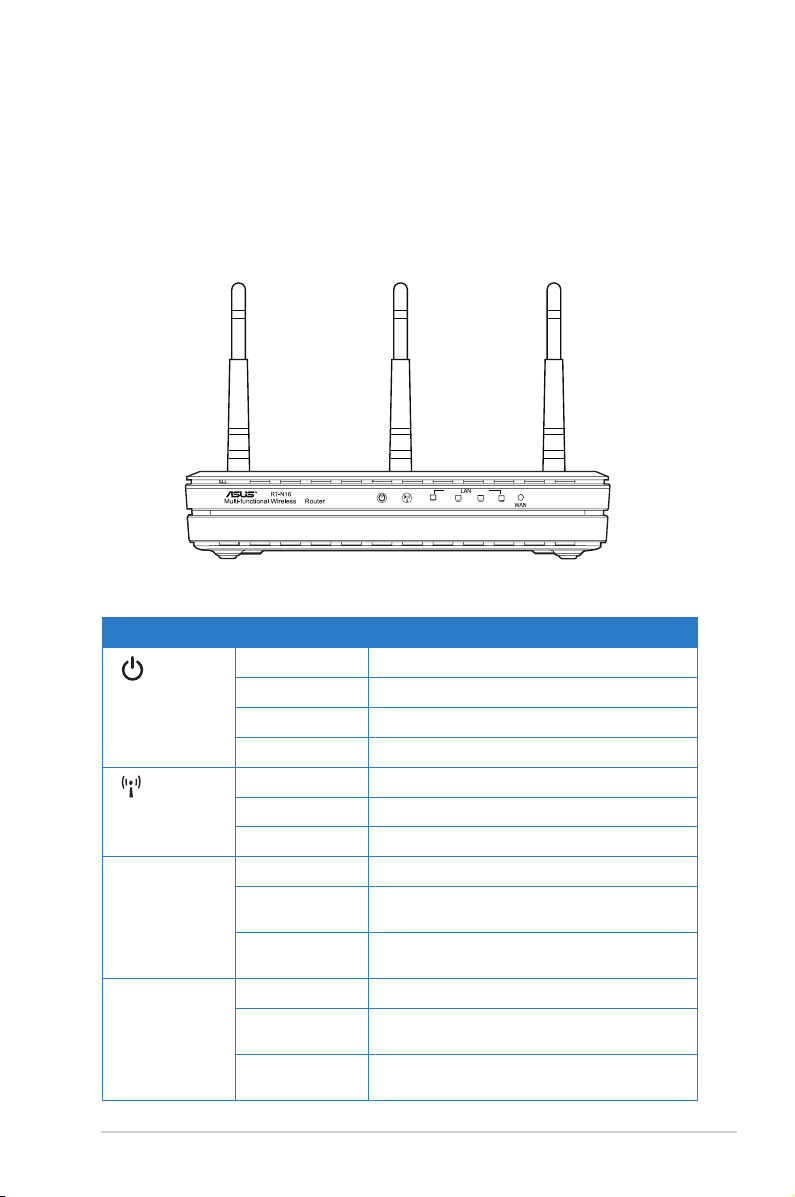

Status indicators

LED Status Indication

(Power) Off No power

On System ready

Flashing-slow Rescue mode

Flashing-quick WPS processing

(Wireless

Network)

Off No power

On Wireless system ready

Flashing Transmitting or receiving data (wireless)

LAN 1-4

(Local Area

Network)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

WAN

(Wide Area

Network)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

• Install the device at least 20cm from a person to insure that the product is

operated in accordance with the RF Guidelines for Human Exposure adopted

by the Federal Communications Commission.

Hardware features

Front panel

PWR 2.4GHz 1234

8RT-N16 Chapter 1: Knowing your wireless router

Rear panel

Label Description

WPS This button launches the WPS wizard.

RESTORE This button restores the system to its factory default

settings.

WAN Connect an RJ-45 Ethernet cable to this port to establish

WAN connection.

LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to

establish LAN connection.

(USB 2.0)

Insert USB 2.0 devices such as USB hard disks and

USB ash drives (at least 2GB capacity) into these

ports.

DC IN Insert the AC adapter into this port to connect your

router to a power source.

To avoid signal interference among the three antennas, we recommend that you

orient them as the following illustration shows:

Chapter 1: Knowing your wireless router RT-N16

Bottom panel

Item Description

1Mounting hooks

Use the mounting hooks to mount your router on concrete or

wooden surfaces using two round head screws.

2Air vents

These vents provide ventilation to your router.

Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting

options on the next page of this user manual.

10 RT-N16 Chapter 1: Knowing your wireless router

Mounting options

Out of the box, the ASUS Wireless Router is designed to sit on a raised at surface

like a le cabinet or book shelf. The unit may also be converted for mounting to a

wall or ceiling.

To mount the ASUS Wireless Router:

1. Look on the underside for the two mounting hooks.

2. Mark two upper holes in a at surface.

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS Wireless Router onto

the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if

it is too loose.

Autres manuels pour RT-N16

Table des matières

Autres manuels Asus Routeur sans fil

Asus

Asus ZenWiFi XD6 Manuel utilisateur

Asus

Asus RT-AC68U Manuel utilisateur

Asus

Asus V-M.2 PCIE Manuel utilisateur

Asus

Asus RT-AC88U Manuel utilisateur

Asus

Asus ZenWiFi XD6S Manuel utilisateur

Asus

Asus WL520GC - Wireless Router Manuel utilisateur

Asus

Asus RT-AX82U Manuel utilisateur

Asus

Asus ZenWiFi Pro XT12 Manuel utilisateur

Asus

Asus RT-G32 - Wireless Router Manuel utilisateur

Asus

Asus WL-AM604 Manuel utilisateur

Asus

Asus RT-AC52U Manuel utilisateur

Asus

Asus RT-N16 Manuel utilisateur

Asus

Asus ZenWiFi Pro XT12 Manuel utilisateur

Asus

Asus RX3041 Manuel utilisateur

Asus

Asus WL 520GU - Wireless Router Manuel utilisateur

Asus

Asus RT-N12 Series Manuel utilisateur

Asus

Asus ZenWiFi AX Mini XD4N Manuel utilisateur

Asus

Asus RT-N10 - Wireless Router - 802.11b/g/n Manuel utilisateur

Asus

Asus Lyra MAP-AC2200 Manuel utilisateur

Asus

Asus RT-AC66U B1 Manuel utilisateur

Asus

Asus RT-N10E EZ N Manuel utilisateur

Asus

Asus RT-G32 - Wireless Router Manuel utilisateur

Asus

Asus RT-AX82U Manuel utilisateur

Asus

Asus ZenWiFi XD6 Manuel utilisateur

Manuels Routeur sans fil populaires d'autres marques

Milesight

Milesight UG67 Manuel utilisateur

Airlogic

Airlogic AirSync Class 1 Manuel du propriétaire

Samsung

Samsung WCH730B Manuel utilisateur

TELEFONICA

TELEFONICA USB Adapter Manuel utilisateur

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuel utilisateur

Askey

Askey RAC2V1K Manuel utilisateur

Alloy

Alloy WLF2454AP-S Manuel utilisateur

TP-Link

TP-Link TL-WR542G Manuel utilisateur

NETGEAR

NETGEAR WNR2000v4 Manuel utilisateur

Hama

Hama 53120 Manuel utilisateur

Intellinet

Intellinet 524582 Manuel utilisateur

D-Link

D-Link DIR-506L Manuel utilisateur

Sapido

Sapido GR297n Manuel utilisateur

AMTC

AMTC WR7502 Manuel utilisateur

Compaq

Compaq CP-2W - iPAQ Connection Point Manuel utilisateur

SMC Networks

SMC Networks WBR14-N2 FICHE Manuel utilisateur

Draytek

Draytek Vigor2120 Series Manuel utilisateur

Sitecom

Sitecom WLR-4000 Manuel utilisateur
