Asus RT-AC66U B1 Manuel utilisateur

Quick Start Guide

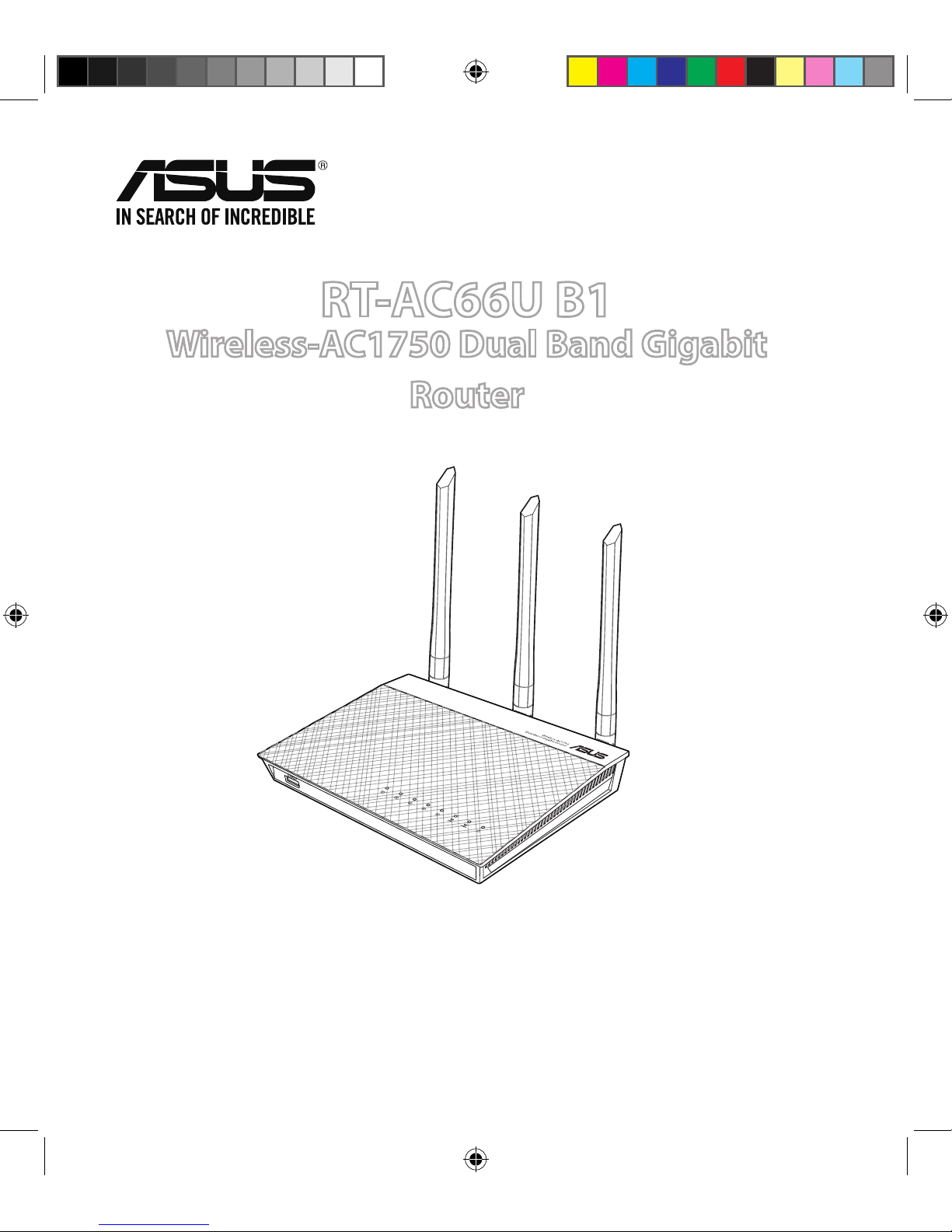

RT-AC66U B1

Wireless-AC1750 Dual Band Gigabit

Router

APAC11886 / Revised Edition v2 / July 2016

APAC11886_RT-AC66U_B1_QSG.indb 1 2016-08-01 17:42:18

Table of contents

English.............................................................................................3

繁體中文 ........................................................................................16

簡體中文 ........................................................................................29

Bahasa Indonesia.........................................................................42

ไทย

..................................................................................................55

APAC11886_RT-AC66U_B1_QSG.indb 2 2016-08-01 17:42:18

English

Package contents

RT-AC66U B1 AC adapter

Network cable Quick Start Guide

Support CD (User Manual/utilities) Warranty card

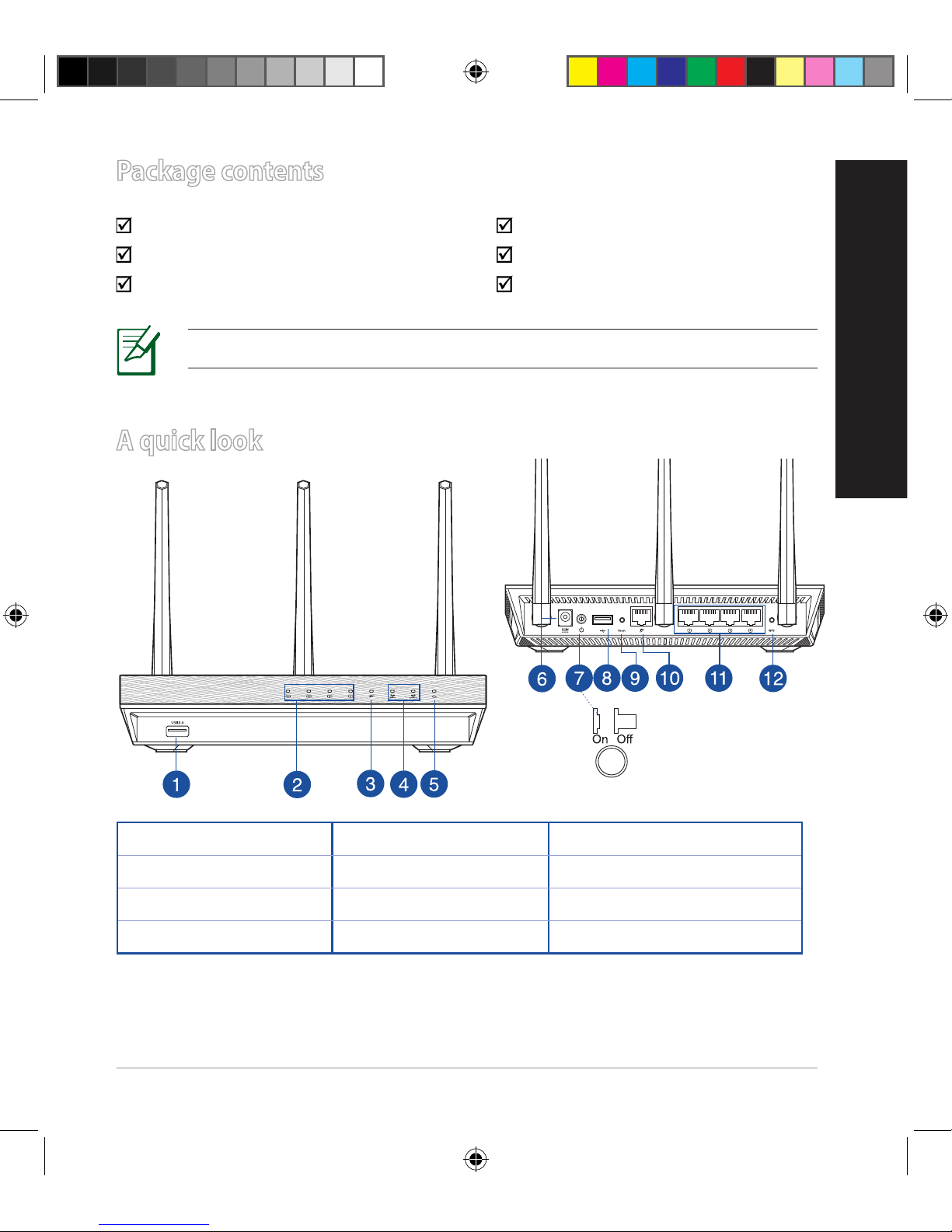

A quick look

1) USB 3.0 port 5) Power LED 9) Reset button

2) LAN LED 6) Power (DC-IN) port 10) WAN port

3) WAN LED 7) Power switch 11) LAN ports

4) 2.4GHz/5GHZ LED 8) USB 2.0 port 12) WPS button

NOTE: If any of the items is damaged or missing, contact your retailer.

APAC11886_RT-AC66U_B1_QSG.indb 3 2016-08-01 17:42:18

English

NOTES:

• USB External HDD/Flash disk:

 •ThewirelessrouterworkswithmostUSBHDDs/Flashdisksupto

2TBandsupportsread-writeaccessforFAT16,FAT32,EXT2,EXT3,

andNTFS.

 •TosafelyremovetheUSBdisk,launchthewebGUI

(http://router. asus.com), then in the Network Map page's upper

right corner, click the USB icon and click Eject USB 1.

 •IncorrectremovaloftheUSBdiskmaycausedatacorruption.

 •Forthelistoflesystemandharddiskpartitionsthatthe

wirelessroutersupports,visithttp://event.asus.com/networks/

disksupport

• Forthelistofprintersthatthewirelessroutersupports,visit

http://event.asus.com/networks/printersupport

APAC11886_RT-AC66U_B1_QSG.indb 4 2016-08-01 17:42:18

English

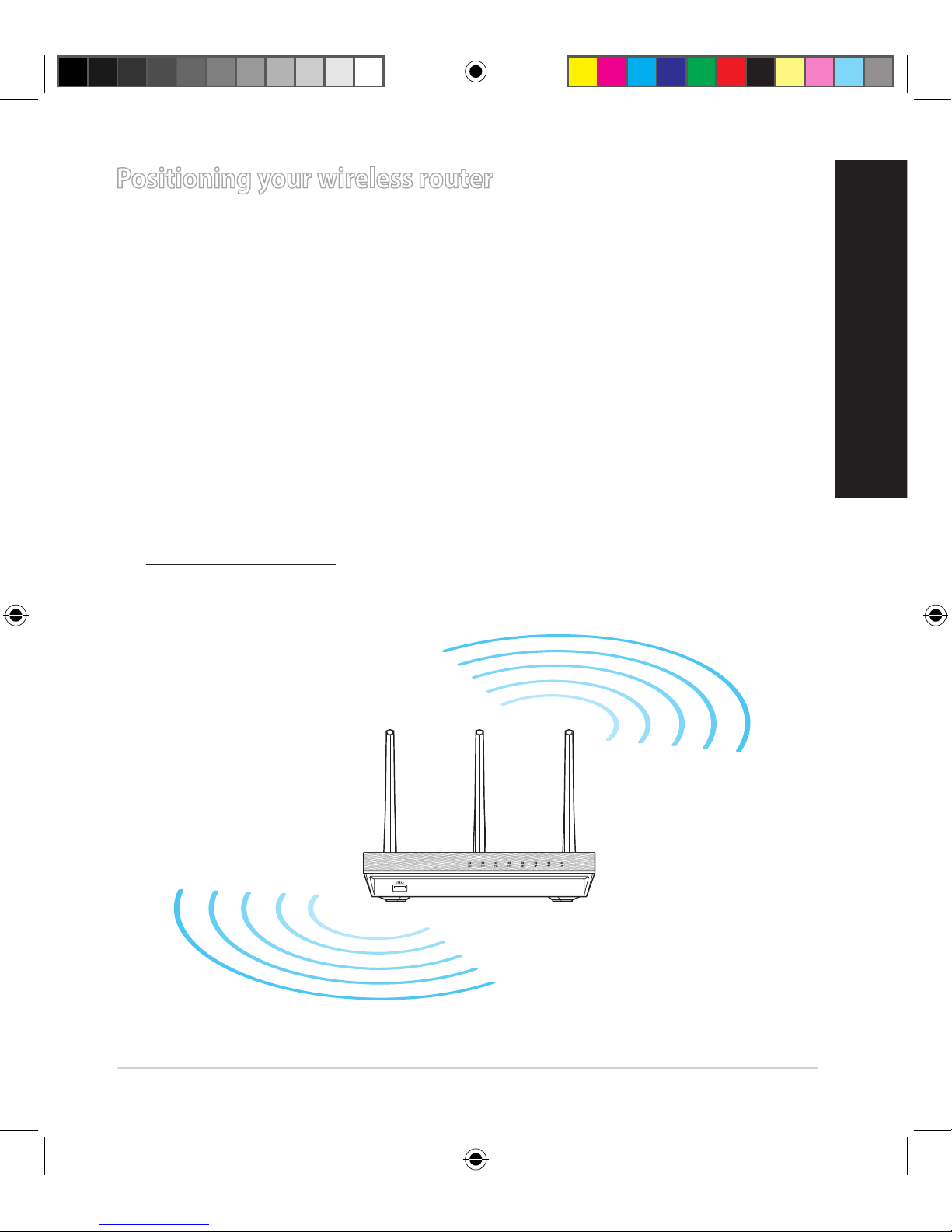

Positioning your wireless router

Forthebestwirelesssignaltransmissionbetweenthewirelessrouterandthe

networkdevicesconnectedtoit,ensurethatyou:

• Placethewirelessrouterinacentralizedareaforamaximumwirelesscoverage

forthenetworkdevices.

• Keepthedeviceawayfrommetalobstructionsandawayfromdirectsunlight.

• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fidevices,2.4GHz

computerperipherals,Bluetoothdevices,cordlessphones,transformers,

heavy-dutymotors,uorescentlights,microwaveovens,refrigerators,andother

industrialequipmenttopreventsignalinterferenceorloss.

• Toensurethebestwirelesssignal,orientthethreedetachableantennasas

shown in the drawing below.

• Foroptimumperformance,adjusttheinternalcoolingsystem.Refertotheuser

manual for details.

• Alwaysupdatetothelatestrmware.VisittheASUSwebsiteat

http://www.asus.comtogetthelatestrmwareupdates.

90°

English

APAC11886_RT-AC66U_B1_QSG.indb 5 2016-08-01 17:42:18

English

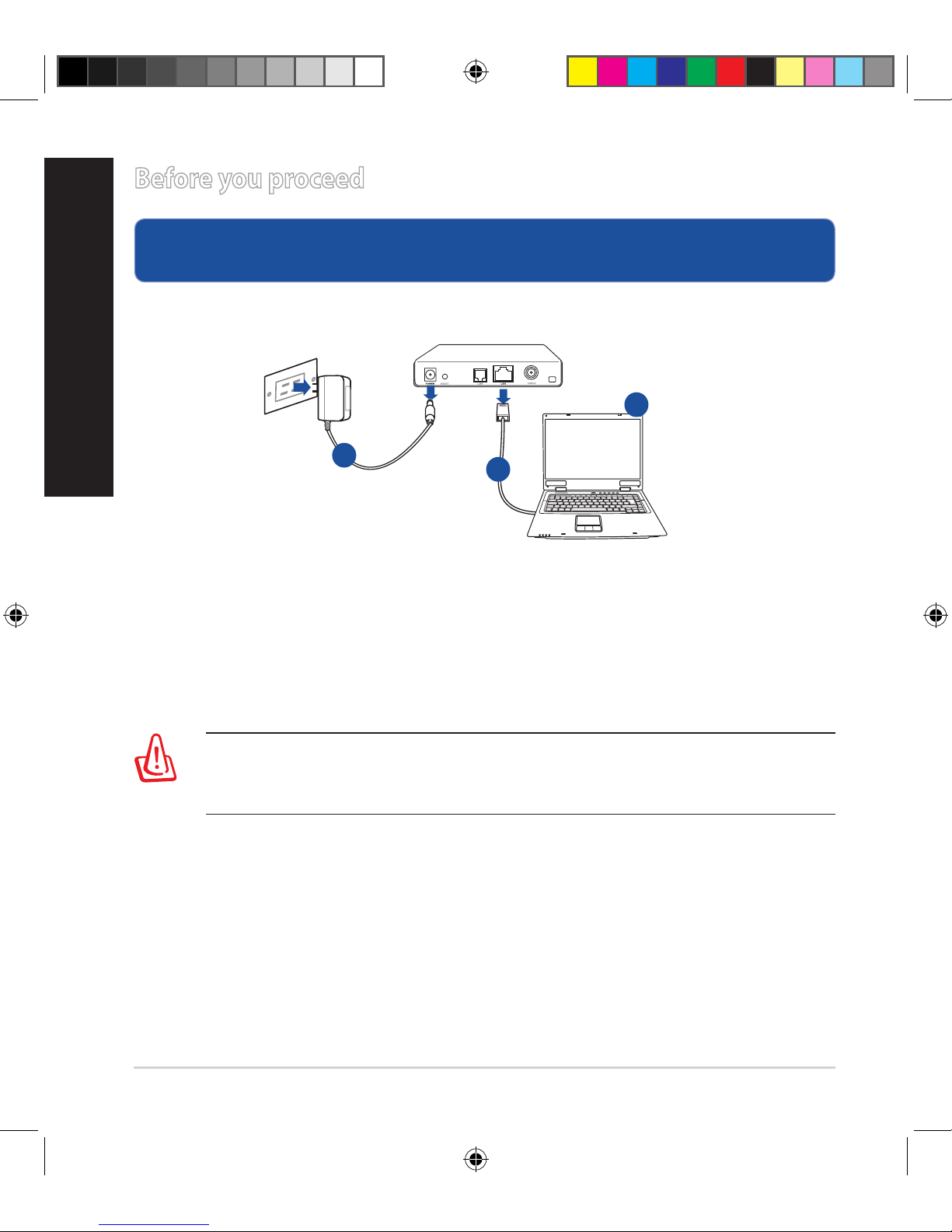

Before you proceed

1. Unpluganddisconnectthewires/cablesfromyourexistingmodemsetup

and release your computer’s outmoded IP address.

a: Unplug the AC adapter from the power outlet and disconnect it from your

cable/ADSL modem.

b: Disconnect the network cable from your cable/ADSL modem.

c: Reboot your computer (recommended).

Modem

OFF!

English

WARNING! Before disconnecting the wires/cables, ensure that your

cable/ADSL modem has been turned o for at least two minutes. If your

modemhasabackupbattery,removeitaswell.

APAC11886_RT-AC66U_B1_QSG.indb 6 2016-08-01 17:42:19

English

2. Setupyourwirelessenvironment.

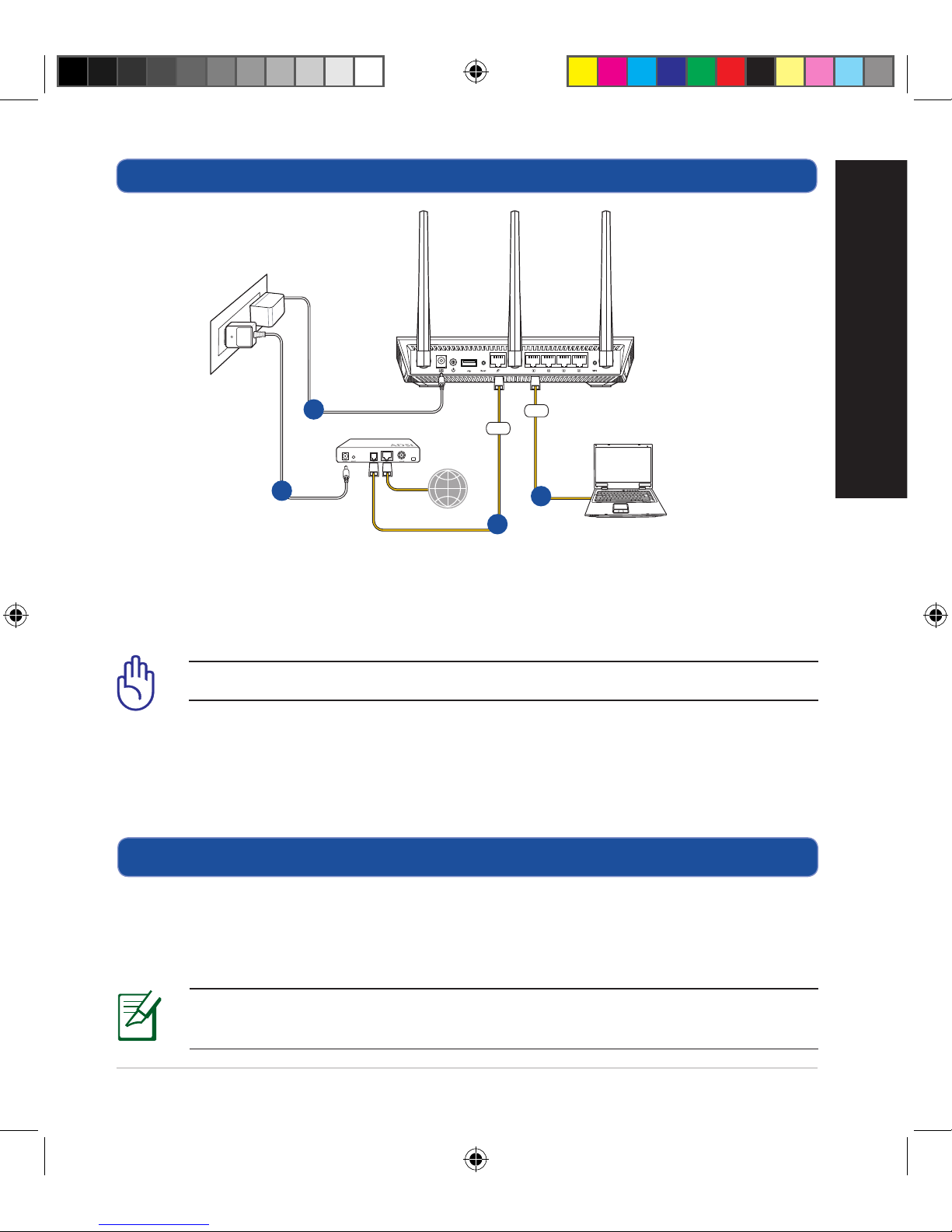

a: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a

power outlet.

b: Using the bundled network cable, connect your computer to your wireless

router’s LAN port.

IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.

c: Using another network cable, connect your modem to your wireless router’s

WAN port.

d: Insert your modem’s AC adapter to the DC-IN port and plug it to a power

outlet.

3. Disable some settings on your computer.

A. Disable the proxy server, if enabled.

B. Set the TCP/IP settings to automatically obtain an IP address.

C. Disable the dial-up connection, if enabled.

NOTE:Formoredetailsondisablingyourcomputersettings,referto

Frequently Asked Questions (FAQs).

RT-AC66U B1

WAN

LAN

Internet

Modem

English

APAC11886_RT-AC66U_B1_QSG.indb 7 2016-08-01 17:42:19

English

1. Congureyourwirelesssettingsviathewirelessrouter’swebgraphics

user interface (web GUI).

a: LaunchyourwebbrowsersuchasInternetExplorer,Firefox,GoogleChrome,

or Safari.

Getting started

English

NOTE: If QIS does not launch automatically, follow these steps to

manuallylaunchQIS:

•Onyourwebbrowser,keyinhttp://router.asus.com and run the

Quick Internet Setup (QIS) Wizard again.

•Disabletheproxysettings,dial-upconnection,andsetyourTCP/IP

settingstoautomaticallyobtainanIPaddress.Formoredetails,refer

to the FAQs section or use the Setup Wizard in the support CD for

auto-diagnosis.

APAC11886_RT-AC66U_B1_QSG.indb 8 2016-08-01 17:42:19

English

b: The wireless router’s Quick Internet Setup (QIS) feature automatically detects

if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP.

Keyinthenecessaryinformationforyourconnectiontype.

IMPORTANT!ObtainthenecessaryinformationaboutyourInternet

connectiontypefromyourInternetServiceProvider(ISP).

NOTE: The auto-detection of your ISP connection type takes place

whenyoucongurethewirelessrouterforthersttimeorwhenyour

wireless router is reset to its default settings.

NOTE: You can assign a network name with up to 32 characters.

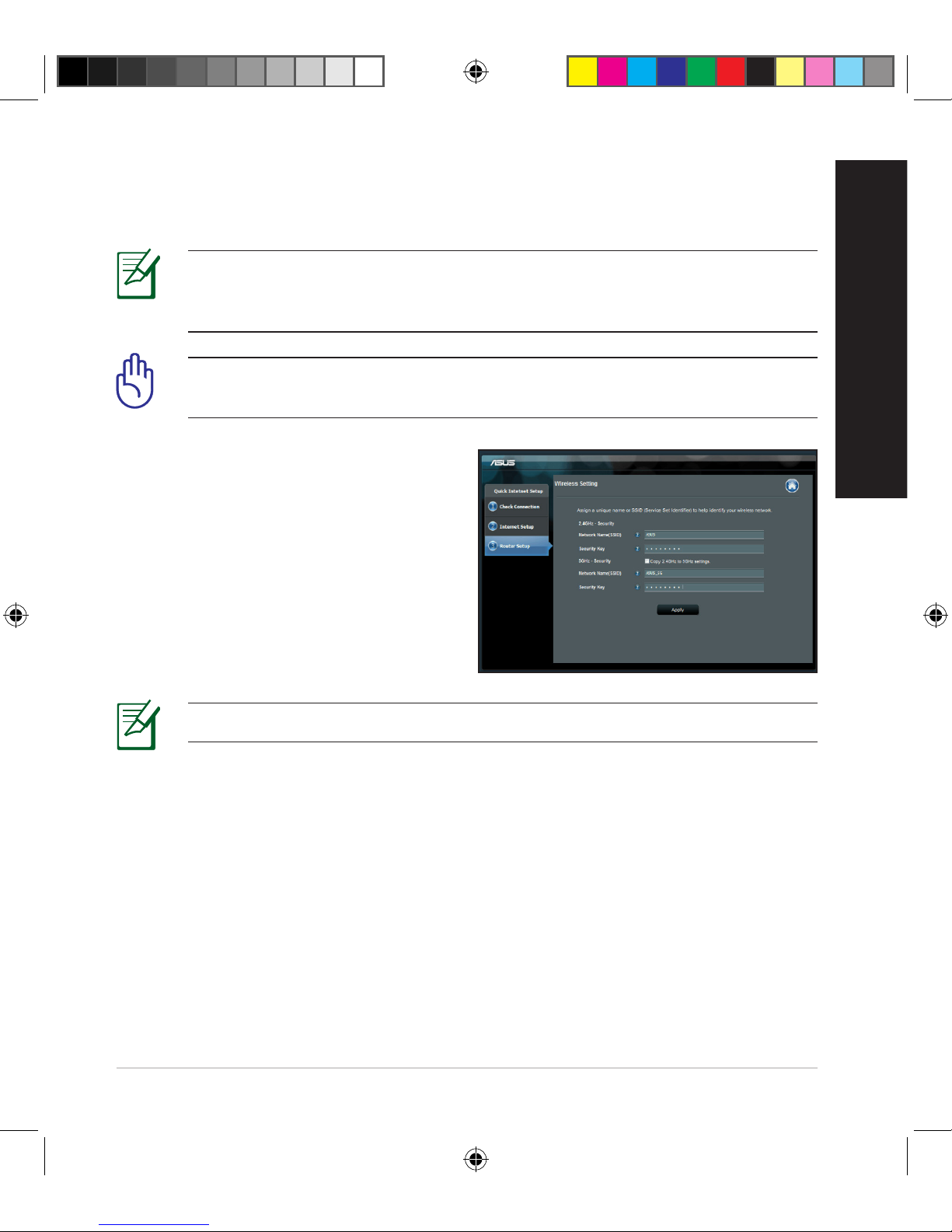

c: Assign the network name (SSID)

and security key for your 2.4GHz

and 5GHz wireless connection. Click

Apply when done.

d: Your Internet and wireless settings

are displayed. Click Next to contin-

ue.

e: Read the wireless network con-

nection tutorial. When done, click

Finish.

English

APAC11886_RT-AC66U_B1_QSG.indb 9 2016-08-01 17:42:19

English

Frequently Asked Questions (FAQs)

After following the steps, I still cannot access the wireless router’s web

graphics user interface (web GUI) to congure the wireless router settings.

A. Disable the proxy server, if enabled.

Windows® 7

1. Click Start > Internet Explorer to launch the web

browser.

2. Click Tools > Internet options > Connections tab

> LAN settings.

3. FromtheLocalAreaNetwork(LAN)Settings

screen, untick Use a proxy server for your

LAN.

4. Click OK when done.

English

APAC11886_RT-AC66U_B1_QSG.indb 10 2016-08-01 17:42:20
