Asus EA-N66 Manuel utilisateur

Quick Start Guide

EA-N66

3-in-1 Dual-band Wireless-N900

Range Extender / AP / Wi-Fi Bridge

apac8660_ea-n66_qsg.indb 1 15/10/13 14:52:06

A8660 / Third Edition / Sept. 2013

English................................................................................................................................ 3

󰒫󰚸 ........................................................................................................................... 10

󰏠󰚸

.......................................................................................................................... 18

Bahasa Indonesia............................................................................................................ 25

Bahasa Malaysia.............................................................................................................. 32



..................................................................................................................................... 39

apac8660_ea-n66_qsg.indb 2 15/10/13 14:52:07

English

Package contents

EA-N66 Power adapter

Network cable Quick Start Guide

NOTE: If any of the items is damaged or missing, contact your retailer.

Mounting options

Out of the box, ASUS EA-N66 is designed to sit on a raised at surface like a le

cabinet or book shelf. The unit may also be converted for mounting to a wall or

ceiling.

1. Look on the underside for the mounting hook.

2. Mark an upper hole in a at surface.

3. Tighten one screw until only 1/4’’is showing.

4. Latch the hook of your EA-N66 onto the screw.

NOTES:

• Re-adjust the screw if you cannot latch EA-N66 onto the screw or if it is too

loose.

• The screw is not included in the EA-N66 package contents.

apac8660_ea-n66_qsg.indb 3 15/10/13 14:52:08

English

A quick look

1) Ethernet port

2) DC In port

3) LED indicator

OFF: No power or physical connection

Blinking slowly: Establishing connection

Solid light: Excellent connection

Flickering light: Weak connection

Blinking fast intermittently: Establishing WPS connection

4) Air vent

5) Mounting hole

6) WPS button

7) Reset button

apac8660_ea-n66_qsg.indb 4 15/10/13 14:52:09

English

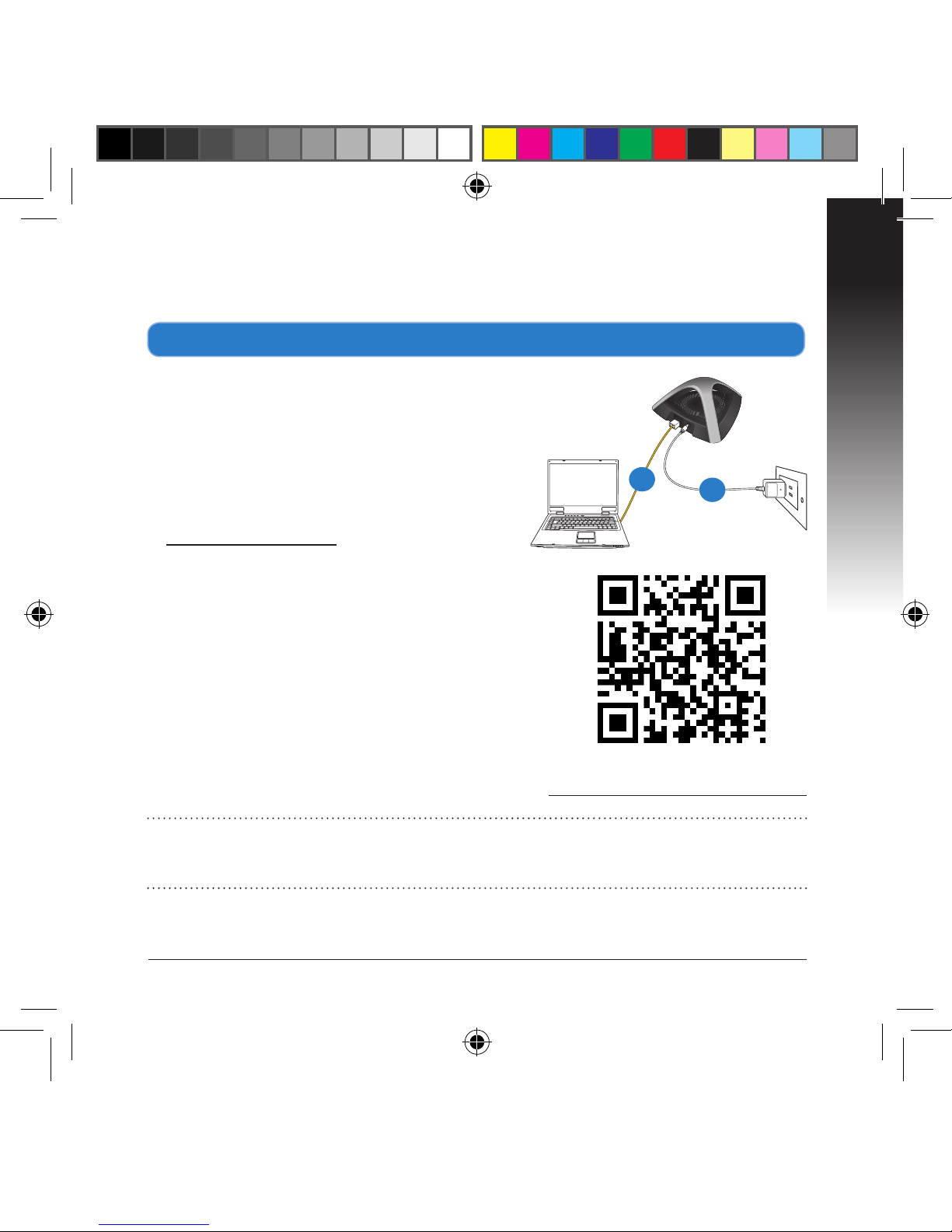

a. Insert your EA-N66’s power adapter to the

DC-In port and plug it to a power outlet.

b. Using the bundled network cable, connect

your computer to your EA-N66’s LAN port.

EA-N66’s LED blinks slowly indicating that it

is booting up and establishing connection.

c. In your web browser, key in

www.asusrouter.com. Key in admin as the

default username and password to log

into EA-N66’s web graphical user interface

(Web GUI).

d. From EA-N66’s Web GUI, select your pre-

ferred operation mode.

e. Follow the onscreen instructions to com-

plete the wireless connection setup.

f. Check if EA-N66’s LED indicator turns a solid

light, which indicates that EA-N66 has suc-

cessfully connected to the wireless network.

NOTE: You can use the WPS function to connect your EA-N66 as an Ethernet

adapter to your wireless network without logging into its Web GUI. For more

details, refer to the next section Using WPS.

See the setup tutorial video at

http://youtu.be/MseyzQVjaPY

Getting started

Setting up your EA-N66

Wall Power Outlet

apac8660_ea-n66_qsg.indb 5 15/10/13 14:52:12

English

Using WPS

The WPS (Wi-Fi Protected Setup) button allows

you to connect to a secured and protected

network with a simple click.

a. Insert your EA-N66’s power adapter to the

DC-In port and plug it to a power outlet.

b. Press the WPS button on your EA-N66 and

on your router until the power LEDs of these

devices blink fast and intermittently, which

indicates that EA-N66 is establishing connec-

tion with your router or wireless network.

c. Wait until EA-N66’s power LED turns a solid

light, which indicates that it has successfully

established connection with your wireless

network.

d. Using the bundled network cable, connect your HD media player, Internet TV,

set top box, or other Ethernet-enabled device, to your EA-N66’s LAN port.

e. You can now start doing Internet or network related activities such as media

streaming, Internet surng, and others.

IMPORTANT: If your EA-N66’s LED indicator turns into a ickering light, which

indicates a weak connection, move your EA-N66 closer to your router.

NOTE: Use ASUSWRT (the router’s Web GUI) to congure the wireless pairing.

See the WPS tutorial video at

http://youtu.be/uUB1zie6ty4

apac8660_ea-n66_qsg.indb 6 15/10/13 14:52:12

English

Ethernet Adapter mode

By default, EA-N66 is set to the Ethernet

Adapter mode. In this mode, you can con-

nect any Ethernet-enabled device to your

wireless home network via the

wireless router. This mode is perfect for

home theater devices such as Internet TV,

TiVo, and Blu-ray player.

Operation modes

ASUS EA-N66 provides three operation modes: Ethernet Adapter, Access Point

(AP), and Repeater.

NOTE: Please follow the GUI Setup Wizard for these modes.

Internet TV

ADSL/

Cable

modem

IMPORTANT:

• For the best wireless performance, place EA-N66 at a distance of more than 1.5

meters away from the parent Access Point (AP).

• You can adjust the transmission power of EA-N66 from its web interface.

apac8660_ea-n66_qsg.indb 7 15/10/13 14:52:15

English

Frequently Asked Questions

Q1: I cannot access the web GUI to congure the EA-N66 settings.

• Close all running web browsers and launch again.

• Follow the steps below to congure your computer settings based on its

operating system.

Windows 7

A. Disable the proxy server, if enabled.

1. Click Start > Internet Explorer to launch the web

browser.

2. Click Tools > Internet options > Connections tab >

LAN settings.

3. From the Local Area Network (LAN) Settings screen,

untick Use a proxy server for your LAN.

4. Click OK when done.

B. Set the TCP/IP settings to automatically obtain an

IP address.

1. Click Start > Control Panel > Network and Internet

>Network and Sharing Center > Manage network

connections.

2. Select Internet Protocol Version 4 (TCP/IPv4), then

click Properties.

3. Tick Obtain an IP address automatically.

4. Click OK when done.

apac8660_ea-n66_qsg.indb 8 15/10/13 14:52:17

English

Mac 10.5.8

A. Disable the proxy server, if enabled.

1. From the menu bar, click Safari >

Preferences... > Advanced tab.

2. Click Change Settings... in the Proxies eld.

3. From the list of protocols, deselect FTP Proxy

and Web Proxy (HTTP).

4. Click OK when done.

B. Set the TCP/IP settings to automatically

obtain an IP address.

1. Click the Apple icon > System Prefer-

ences > Network.

2. Select Ethernet and select Using DHCP in

the Congure eld.

3. Click Apply when done.

Q2: When I set my EA-N66 to Repeater Mode, should I use the same

SSID with my parent AP?

• We recommend that you use a dierent SSID for your EA-N66 so you can

choose the one with the best signal strength (between your EA-N66 and your

parent AP).

apac8660_ea-n66_qsg.indb 9 15/10/13 14:52:18

󰒫󰚸



 󰇨󰈽

󰀄󰅿 

󰔙󰆸󰈬󰀟󰇷󰏭





  󰪺󰎮󰎮󰎮





󰄛

󰍼󰑗󰐏󰙄

󰐏



󰐏󰔇󰆽󰉧󰐏

󰐏

apac8660_ea-n66_qsg.indb 10 15/10/13 14:52:20
