Asus RT-AX88U Manuel utilisateur
Quick Start Guide
快速使用指南

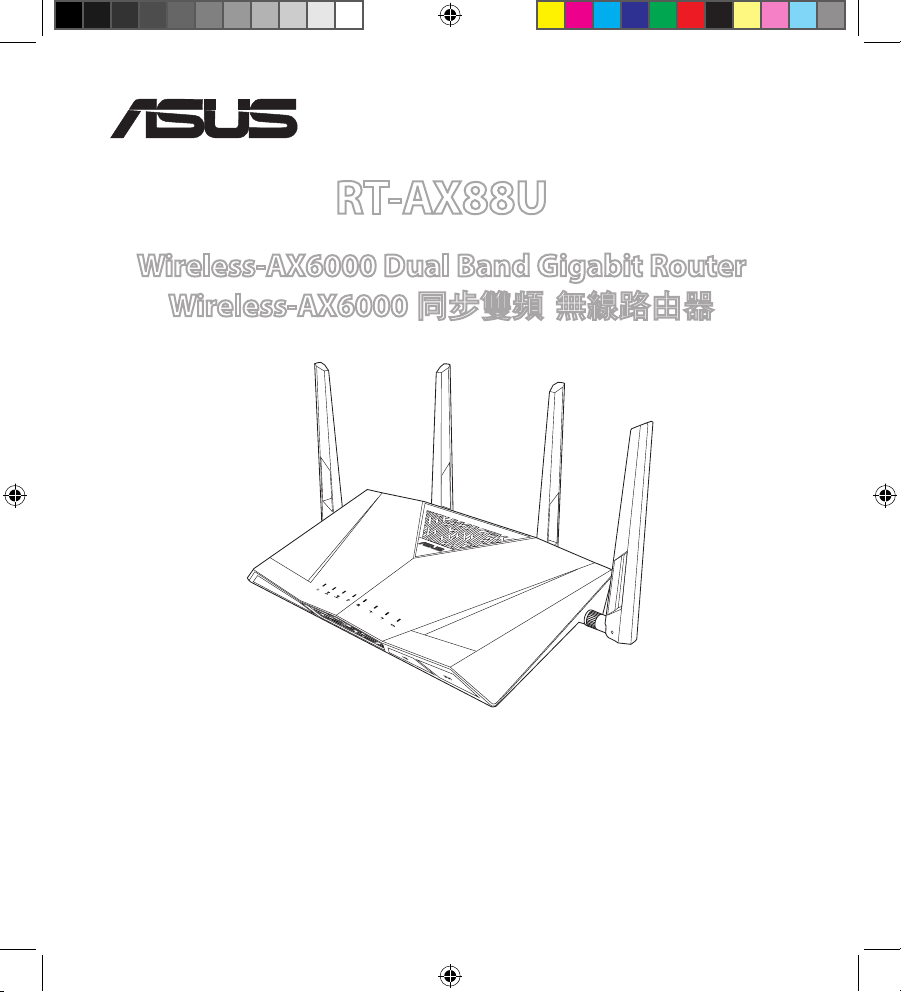

RT-AX88U
Wireless-AX6000 Dual Band Gigabit Router
Wireless-AX6000 同步雙頻 無線路由器
¨
APAC13245 / First Edition / August 2018
APAC13245_RT-AX88U_QSG.indb 1 2018/9/5 14:36:54
Table of contents
English.............................................................................................3
繁體中文 ........................................................................................10
簡體中文 ........................................................................................17
日本語 .............................................................................................24
Bahasa Indonesia.........................................................................31
Bahasa Malaysia...........................................................................38
ไทย ...................................................................................................45
tiếng Việt ........................................................................................52
APAC13245_RT-AX88U_QSG.indb 2 2018/9/5 14:36:54
3
English
A quick look at RT-AX88U
USB 3.0 port LED On/O button
Power LED Wi-Fi On/O button
5GHz LED USB 3.0 port
2.4GHz LED WAN (Internet) port
WAN (Internet) LED LAN 1 ~ 8 ports
LAN 1~8 LEDs WPS button
USB 3.0 LED (front) Reset button
USB 3.0 LED (back) Power (DC-IN) port
WPS LED Power button
3.0
WiFi
LED
Package contents
RT-AX88U Wireless Router AC adapter
Network cable (RJ-45) Quick Start Guide
APAC13245_RT-AX88U_QSG.indb 3 2018/9/5 14:36:56
4
English
Position your wireless router
For optimal wireless transmission between the wireless router and connected
wireless devices, ensure that you:
• Placethewirelessrouterinacentralizedareaforamaximumwirelesscoverage
for the network devices.
• Keepthewirelessrouterawayfrommetalobstructionsandawayfromdirect
sunlight.
• Keepthewirelessrouterawayfrom802.11gor20MHzonlyWi-Fidevices,
2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers,
heavy-duty motors, uorescent lights, microwave ovens, refrigerators, and other
industrial equipment to prevent signal interference or loss.
• Alwaysupdatetothelatestrmware.VisittheASUSwebsiteat
http://www.asus.comtogetthelatestrmwareupdates.
• Toensurethebestwirelesssignal,orientthefourdetachableantennasasshown
in the drawing below.
45°45°
WiFi
LED
APAC13245_RT-AX88U_QSG.indb 4 2018/9/5 14:36:56
5
English
Preparing your modem
1. Unplug the power cable/DSL modem. If it has a
battery backup, remove the battery.
NOTE: If you are using DSL for Internet, you
will need your username/password from your
Internet Service Provider (ISP) to properly
conguretherouter.
2. Connect your modem to the router with the
bundled network cable.
3. Power on your cable/DSL modem.
4. Check your cable/DSL modem LED lights to ensure
the connection is active.
Unplug
APAC13245_RT-AX88U_QSG.indb 5 2018/9/5 14:36:58
6
English
Setting up your RT-AX88U
You can set up your RT-AX88U via wired or wireless connection.
A. Wired connection
1. Plug your router into a power outlet and power it on. Connect the network
cable from your computer to a LAN port on your router.
2. The web GUI launches automatically when you open a web browser. If it does
not auto-launch, enter http://router.asus.com.
3. Set up a password for your router to prevent unauthorized access.
3.0
Modem
Wall Power Outlet
LINE LAN RESET PWR
Power
Laptop
LAN
d
a
WAN
c
b
APAC13245_RT-AX88U_QSG.indb 6 2018/9/5 14:36:58
7
English
B. Wireless connection
1. Plug your router into a power outlet and power it on.
3.0
Modem
Wall Power Outlet
LINE LAN RESET PWR
Power
a
WAN
b
Laptop
Tablet
Smart phone
2. Connect to the network with SSID shown on the product label on the back side
of the router. For better network security, change to a unique SSID and assign
a password.
ASUS router
2.4G Wi-Fi Name (SSID): ASUS_XX_2G
5G Wi-Fi Name (SSID): ASUS_XX_5G
* XX refers to the last two digits of 2.4GHz
MACaddress.Youcannditonthelabel
on the back of your RT-AX88U.
APAC13245_RT-AX88U_QSG.indb 7 2018/9/5 14:36:59
8
English
3. You can choose either the web GUI or ASUS Router app to set up your router.
a. Web GUI Setup
•
Once connected, the web GUI launches automatically when you open a
web browser. If it does not auto-launch, enter http://router.asus.com.
•
Set up a password for your router to prevent unauthorized access.
b. App Setup
Download ASUS Router App to set up your router via your mobile devices.
•
Turn on Wi-Fi on your mobile devices and connect to your RT-AX88U’s
network.
•
Follow ASUS Router App setup instructions to complete the setup.
ASUS Router
ASUS
Router
APAC13245_RT-AX88U_QSG.indb 8 2018/9/5 14:36:59
9
English
FAQ
1. WherecanIndmoreinformationaboutthewirelessrouter?
• OnlineFAQsite:https://www.asus.com/support/faq
• Technicalsupportsite:https://www.asus.com/support
• Customerhotline:refertotheSupportHotlinesectioninthisQuickStart
Guide
• Youcangettheusermanualonlineathttps://www.asus.com/support
Remembering your wireless router settings
• Rememberyourwirelesssettingsasyoucompletetheroutersetup.
Router Name: Password:
2.4 GHz network SSID: Password:
5GHz network SSID: Password:
NOTES:
• Useonlytheadapterthatcamewithyourpackage.Usingotheradapters
may damage the device.
• Specications:
DC Power adapter DC Output: +19V with 2.37A current
Operating Temperature 0~40oC Storage 0~70oC
Operating Humidity 50~90% Storage 20~90%
APAC13245_RT-AX88U_QSG.indb 9 2018/9/5 14:36:59
10
繁體中文
認識您的 RT-AX88U 無線路由器
USB 3.0 連接埠 指示燈（LED) 開啟 / 關閉按鈕
電源指示燈 Wi-Fi 開啟 / 關閉按鈕
5GHz 指示燈 USB 3.0 連接埠
2.4GHz 指示燈 WAN （網際網路）連接埠
WAN（網際網路）指示燈 LAN 1 ~ 8 網路連接埠
LAN 1~8 指示燈 WPS 按鈕
USB 3.0 指示燈（前側） 重置按鈕
USB 3.0 指示燈（後側） 電源（DC-IN）連接埠
WPS 指示燈 電源按鈕
3.0
WiFi
LED
包裝內容物
RT-AX88U 無線路由器 電源變壓器
RJ-45 網路線 快速使用指南
APAC13245_RT-AX88U_QSG.indb 10 2018/9/5 14:37:01
