English

NOTES:

• USB External HDD/Flash disk:

•The wireless router works with most USB HDDs/Flash disks up to

4TB and supports read-write access for FAT16, FAT32, NTFS, and

HFS+.

•To safely remove the USB disk, launch the web GUI

(http://router.asus.com), then in the Network Map page's upper

right corner, click the USB icon and click Eject USB 3.0/USB 2.0.

•Incorrect removal of the USB disk may cause data corruption.

•For the list of system and hard disk partitions that the wireless

router supports, visit

http://event.asus.com/networks/disksupport

• For the list of printers that the wireless router supports, visit

http://event.asus.com/networks/printersupport

Package contents

NOTE: If any of the items is damaged or missing, contact your retailer.

RT-ACRH13 Wireless Router AC adapter

Network cable (RJ-45) Quick Start Guide

Support CD (User Manual)

NA11652-RT-AC58U_QSG_V2.indb 3 2016-06-28 15:11:02

English

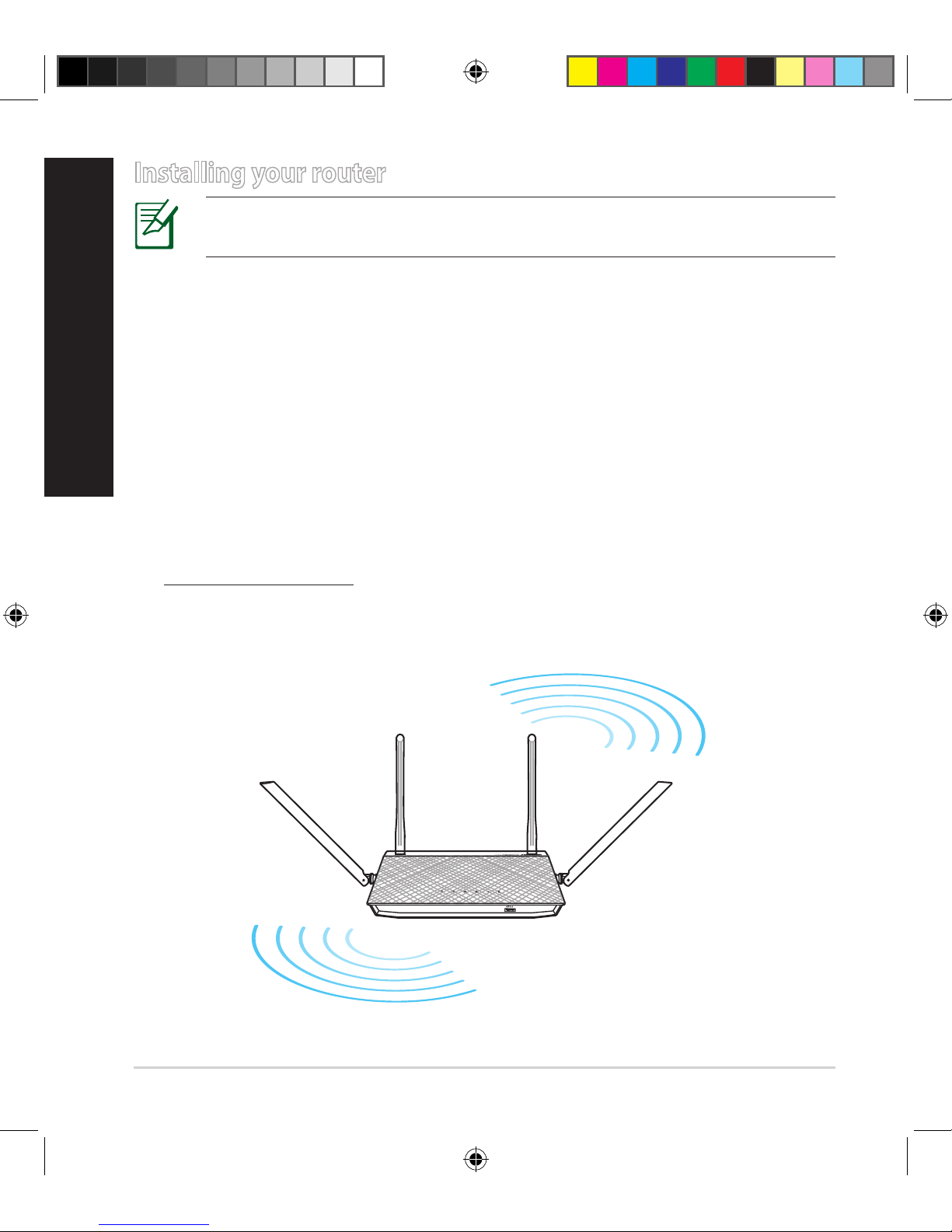

Installing your router

IMPORTANT:Beforeinstallingtherouter,ensurethatInternetconnec-

tionisavailable.

1. Position your wireless router.

Fortheoptimalwirelesstransmissionbetweenthewirelessrouterandconnect-

edwirelessdevices,ensurethatyou:

• Placethewirelessrouterinacentralizedareaforamaximumwirelesscoverage

forthenetworkdevices.

• Keepthewirelessrouterawayfrommetalobstructionsandawayfromdirect

sunlight.

• Keepthewirelessrouterawayfrom802.11gor20MHzonlyWi-Fidevices,

2.4GHzcomputerperipherals,Bluetoothdevices,cordlessphones,transformers,

heavy-dutymotors,uorescentlights,microwaveovens,refrigerators,andother

industrialequipmenttopreventsignalinterferenceorloss.

• Alwaysupdatetothelatestrmware.VisittheASUSwebsiteat

http://www.asus.comtogetthelatestrmwareupdates.

• Toensurethebestwirelesssignal,orientthefourantennasasshowninthe

drawingbelow.

45°45°

NA11652-RT-AC58U_QSG_V2.indb 4 2016-06-28 15:11:02

English

Modem

OFF!

2. Prepare your modem.

a. Unplug the AC adapter from the power outlet and disconnect it from your

cable/ADSL modem.

b. Disconnect the network cable from your cable/ADSL modem.

c. Reboot your computer (recommended).

WARNING! Before disconnecting the wires/cables, ensure that your

cable/ADSL modem has been turned for at least two minutes. If your

modem has a backup battery, remove it as well.

3. Set up your wireless environment.

RT-ACRH13

Internet

Modem

LAN WAN

NA11652-RT-AC58U_QSG_V2.indb 5 2016-06-28 15:11:02

English

a. Insertyourwirelessrouter’sACadaptertotheDC-INportandplugittoa

poweroutlet.

b. Usingthebundlednetworkcable,connectyourcomputertoyourwireless

router’sLANport.EnsurethattheWANandLANLEDsareblinking.

c. Usinganothernetworkcable,connectyourmodemtoyourwirelessrouter’s

WANport.

d. Insertyourmodem’sACadaptertotheDC-INportandplugittoapower

outlet.

4. Disable some settings on your computer.

a. Disabletheproxyserver,ifenabled.

b. SettheTCP/IPsettingstoautomaticallyobtainanIPaddress.

c. Disablethedial-upconnection,ifenabled.

NOTE:Formoredetailsondisablingyourcomputersettings,referto

Frequently Asked Questions (FAQs).

NA11652-RT-AC58U_QSG_V2.indb 6 2016-06-28 15:11:02

English

Setting up your router using the Quick Internet Setup

Wizard

To set up your router using QIS ((Quick Internet Setup):

1. Press the power button at the back of your router. Ensure that the Power,

LAN and WAN LEDs are on.

2. Launch your web browser such as Internet Explorer, Firefox, Google Chrome,

or Safari.

NOTE: If QIS does not launch automatically, enter http://router.asus.

com in the address bar and refresh the browser again.

3. Assign your router login name and password and click Next. You will need

this login name and password to log into RT-ACRH13 to view or change the

router settings. You can take note of your router login name and password

for future use.

4. The wireless router’s Quick Internet Setup (QIS) feature automatically detects

if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static

IP. Please obtain the necessary information about your Internet connection

type from your Internet Service Provider (ISP). If your connection type is

Dynamic IP (DHCP), QIS wizard will automatically direct you to the next step.

NOTE: If your connection type is Static I P, choose Static IP and click

Next. Key in IP address, subnet mask, default gateway and DNS server

information provided by your ISP. Click Next to proceed.

5. Assign the network name (SSID) and security key for your 2.4GHz and 5GHz

wireless connection. Click Apply when done.

6. Your Internet and wireless settings are displayed. Click Next to continue.

7. Read the wireless network connection tutorial. When done, click Finish.

NOTES:

• You can assign a network name with up to 32 characters.

• Watch the setup tutorial video if needed.

NA11652-RT-AC58U_QSG_V2.indb 7 2016-06-28 15:11:02

English

Connect to the wireless network

There are two ways for your wireless clients (notebook, tablet PC, smartphone

and so on) to connect to RT-ACRH13 wireless network.

Connect to the wireless network manually

To connect to the wireless network manually:

1. Enable the Wi-Fi function on your wireless client to scan for available wireless

networks.

2. Select the SSID or network name that you assigned to your RT-ACRH13net-

work.

3. Enter the password and click Connect.

Connect to the wireless network through WPS

RT-ACRH13 has a WPS (Wi-Fi Protected Setup) button for you to connect your

wireless client to RT-ACRH13 network without entering password.

To connect to the wireless network through WPS:

1. Press the WPS button at the back of RT-ACRH13.Refer to the section A quick

look for the location of the WPS button).

2. Press the WPS button of your wireless client within two minutes or follow the

WPS instructions that came with the wireless client. When connecting via

WPS, the WPS LED on your router blinks fast.

3. Wait until your router’s WPS LED turns into a solid light indicating a success-

fully connection between your router and your wireless client.

NA11652-RT-AC58U_QSG_V2.indb 8 2016-06-28 15:11:02

English

YourwirelessroutercomeswiththeintuitiveASUSWRTwebgraphicaluser

interface.ASUSWRTallowsyoutoeasilycongureitsvariousfeaturesthrougha

webbrowsersuchasInternetExplorer,Firefox,Safari,orGoogleChrome.

NOTE:Usethesearchbaronthebottomoftheinterfacetogetmore

informationfromASUStechnicalsupportsite

http://support.asus.com.

Managing the router via the ASUSWRT web GUI

IMPORTANT:

• Formoredetailsonusingyourrouter'sWeb

GUI,refertotheusermanual.

• Alwaycheckandupgradermwaretothe

latestversionforbetterexperience.

• VisitASUSNetworkingvideochannelfor

tutorialvideosonfeaturedfunctions.

NA11652-RT-AC58U_QSG_V2.indb 9 2016-06-28 15:11:02

English

AiCloud

ASUSAiCloudappprovidesyouwithaccesstoyourdatawhereverandwhen-

everyouhaveanInternetconnection.ItalsoallowsyoutoaccessyourASUS

WebStorageaccountviatheAiCloudmobileapponyouriOSorAndroiddevice,

orviaawebbrowser.

ToinstallAiCloud:

1. Ensurethatyourrouter’srmwareversionisthelatestoneandsupports

AiCloud.

2. DownloadAiCloudappfromGooglePlayorAppStore.

3. InstallyourUSBstoragedevicetoyourrouter.RefertosectionA quick look

forthelocationoftheUSBports.

4. ConnectyouriOSorAndroiddevicestotherouterthroughWi-Fi.TheAi-

Cloudappwillautomaticallyguideyouthroughthesetupprocess.

5. Youcannowaccess,streamandsharetoalllesinyourUSBstorage.Search

ASUSAiCloudformoreinformation.Watchtutorialvideosforstep-by-step

guide.

Google Play App Store

NA11652-RT-AC58U_QSG_V2.indb 10 2016-06-28 15:11:03
