Asus 90IG0560-MO3G10 Manuel utilisateur

RT-AC65PRT-AC65P

Wireless-AC1750 Dual Band Gigabit Router

User Guide

The stylish RT-AC65P features a 2.4GHz and 5GHz dual bands for an unmatched

concurrent wireless HD streaming; SMB server, UPnP AV server, and FTP server

for 24/7 file sharing; a capability to handle 300,000 sessions; and the ASUS

Green Network Technology, which provides up to 70% power-saving solution.

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’benet, without intent

to infringe.

E16497

First Edition

March 2020

Table of contents

1 Getting to Know Your Wireless Router 6

1.1 Welcome! ........................................................................................6

1.2 Package contents.........................................................................6

1.3 Your wireless router.....................................................................7

1.4 Positioning your router..............................................................9

1.5 Setup Requirements ................................................................ 10

1.6 Router Setup............................................................................... 11

1.6.1 Wired connection..................................................................11

1.6.2 Wireless connection.............................................................12

2 Getting Started 14

2.1 Logging into the Web GUI ..................................................... 14

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15

2.3 Connecting to your wireless network................................ 19

3 Conguring the General Settings 20

3.1 Using the Network Map ......................................................... 20

3.1.1 Setting up the wireless security settings......................21

3.1.2 Managing your network clients.......................................22

3.1.3 Monitoring your USB device.............................................23

3.2 Creating a Guest Network...................................................... 25

3.3 Using the Trac Manager...................................................... 27

3.3.1 Managing QoS (Quality of Service) Bandwidth..........27

3.3.2 Monitoring Trac .................................................................30

3.4 Setting up Parental Control................................................... 31

3.5 Using the USB Application..................................................... 32

3.5.1 Using AiDisk ............................................................................32

3.5.2 Using Servers Center............................................................34

Table of contents

4 Conguring the Advanced Settings 39

4.1 Wireless......................................................................................... 39

4.1.1 General......................................................................................39

4.1.2 WPS ............................................................................................42

4.1.3 WDS............................................................................................44

4.1.4 Wireless MAC Filter ...............................................................46

4.1.5 RADIUS Setting ......................................................................47

4.1.6 Professional.............................................................................48

4.2 LAN................................................................................................. 50

4.2.1 LAN IP ........................................................................................50

4.2.2 DHCP Server............................................................................51

4.2.3 Route .........................................................................................53

4.2.4 IPTV ...............................................................................................54

4.3 WAN ............................................................................................... 55

4.3.1 Internet Connection.............................................................55

4.3.2 Port Trigger..............................................................................58

4.3.3 Virtual Server/Port Forwarding........................................60

4.3.4 DMZ............................................................................................63

4.3.5 DDNS .........................................................................................64

4.3.6 NAT Passthrough...................................................................65

4.4 IPv6................................................................................................. 66

4.5 VPN Server................................................................................... 67

4.6 Firewall.......................................................................................... 68

4.6.1 General......................................................................................68

4.6.2 URL Filter ..................................................................................69

4.6.3 Keyword lter .........................................................................70

4.6.4 Network Services Filter .......................................................71

4.7 Administration ........................................................................... 72

4.7.1 Operation Mode ....................................................................72

4.7.2 System.......................................................................................73

Table of contents

4.7.3 Firmware Upgrade................................................................74

4.7.4 Restore/Save/Upload Setting ...........................................74

4.8 System Log .................................................................................. 75

5 Utilities 76

5.1 Device Discovery....................................................................... 76

5.2 Firmware Restoration .............................................................. 77

6 Troubleshooting 79

6.1 Basic Troubleshooting............................................................. 79

6.2 Frequently Asked Questions (FAQs) .................................. 82

Appendices 92

Notices ....................................................................................................... 92

1 Getting to Know Your Wireless1 Getting to Know Your Wireless

RouterRouter

NOTES:

• If any of the items are damaged or missing, contact ASUS for

technical inquiries and support, Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keep the original packaging material in case you would need future

warranty services such as repair or replacement.

RT-AC65P Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

1.1 Welcome!

Thank you for purchasing an ASUS RT-AC65P Wireless Router!

The stylish RT-AC65P features a 2.4GHz and 5GHz dual bands for

an unmatched concurrent wireless HD streaming; SMB server,

UPnP AV server, and FTP server for 24/7 le sharing; a capability

to handle 300,000 sessions; and the ASUS Green Network

Technology, which provides up to 70% power-saving solution.

1.2 Package contents

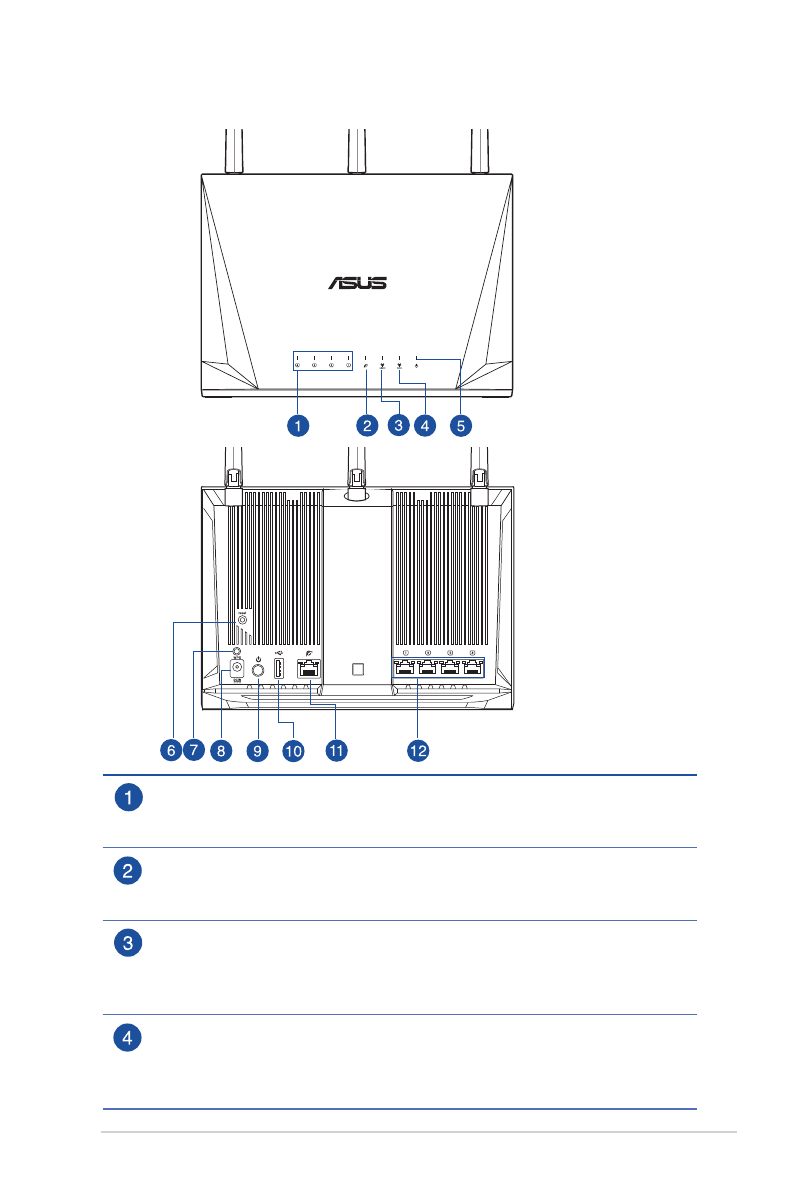

1.3 Your wireless router

LAN LED

O: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

WAN LED

O: No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

2.4GHz LED

O: No 2.4GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

5GHz LED

O: No 5GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

NOTES:

• Use only the adapter that came with your package. Using other

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +12V with max 2.5A current;

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

Power LED

O: No power.

On: Device is ready.

Flashing slow: Rescue mode

Flashing quick:WPS is processing.

Reset button

This button resets or restores the system to its factory default settings.

WPS button

This button launches the WPS Wizard.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

Power button

Press this button to power on or off the stystem.

USB 3.0 / 2.0 port

Insert a USB 3.0 / 2.0 device such as a USB hard disk or USB flash drive into this port.

Insert your iPad’s USB cable into this port to charge your iPad.

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

Off

1.4 Positioning your router

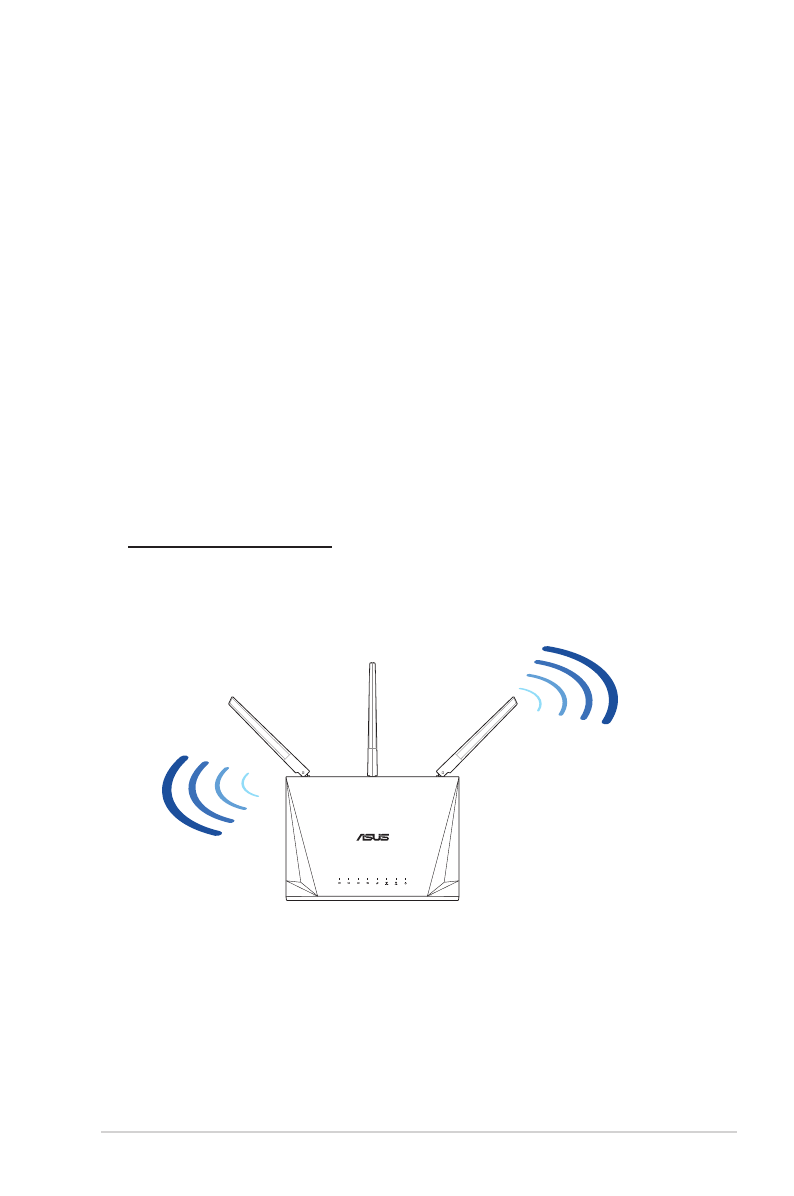

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the device away from metal obstructions and away from

direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Always update to the latest firmware.Visit the ASUS website at

http://www.asus.com to get the latest firmware updates.

• For optimum performance, please switch on the cooling

system.

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/

1000BaseTX)

• IEEE 802.11a/b/g/n/ac wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities, you may

install an IEEE 802.11a/b/g/n/ac WLAN adapter to your computer to

connect to the network.

• With its dual band technology, your wireless router supports 2.4GHz

and 5GHz wireless signals simultaneously.This allows you to do

Internet-related activities such as Internet surfing or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-definition audio/video files such as movies or music

using the 5GHz band.

• If you are using only one computer with single band

IEEE 802.11b/g/n WLAN adapter, you will only be able to use the

2.4GHz band.

• If you are using only one computer with dual band

IEEE 802.11a/b/g/n/ac WLAN adapter, you will be able to use the

2.4GHz or 5GHz band.

• If you are using two computers with both

IEEE 802.11a/b/g/n/ac WLAN adapters, you will be able to use both

2.4GHz and 5GHz bands simultaneously.

• The Ethernet RJ-45 cables that will be used to connect the network

devices should not exceed 100 meters.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Asus Routeur réseau

Asus

Asus SL1200 Manuel utilisateur

Asus

Asus wl-550ge Manuel utilisateur

Asus

Asus RX3141 Manuel utilisateur

Asus

Asus ZenWiFi Pro ET12 Manuel utilisateur

Asus

Asus RT-AC85P Manuel utilisateur

Asus

Asus 4G-AC53U Manuel utilisateur

Asus

Asus RT-AC53 Manuel utilisateur

Asus

Asus ROG Rapture GT-BE98 Pro Manuel utilisateur

Asus

Asus WL-AM604 Manuel utilisateur

Asus

Asus WL 520GU - Wireless Router Manuel utilisateur

Asus

Asus DSL-N12HP Manuel utilisateur

Asus

Asus RT-AX3000P Manuel utilisateur

Asus

Asus DSL-AC88U Manuel utilisateur

Asus

Asus RT-AX86U Manuel utilisateur

Asus

Asus RT-N15 SuperSpeed N Manuel utilisateur

Asus

Asus ROG Rapture GT-AC5300 Manuel utilisateur

Asus

Asus ROG Rapture GT-AXE11000 Manuel utilisateur

Asus

Asus RT-N66U Dark Knight Manuel utilisateur

Asus

Asus RT-AC68U Manuel utilisateur

Asus

Asus ROG Rapture GT-AC5300 Manuel utilisateur

Asus

Asus SL200 Manuel utilisateur

Asus

Asus GX-D1051 Manuel utilisateur

Asus

Asus DSL-N12E Manuel utilisateur

Asus

Asus RT-AC68W Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
