Asus RMAPretest Manuel utilisateur

RMA Pretest user Manual

Motherboard

Rev. 1.01

1.ASUS PRETEST FIXTURE PACK…………………………………………………………….3

Package Contests………………………………………………………………………………4

2.Customer pretest flow chart……………………………………………………………….5

3.Pretest operate description….……………………………………………………….6~12

4.Visual inspect fail description………………………………………………………13~14

5.ASUS Test program installation guide…………………………………………..15~18

6.Visual inspection………………………………………………………………………..19~25

7.Customer induce description……………………………………………………….26~30

8.Test tools introduction………………………………………………………………..31~40

9.Motherboard function test…………………………………………………………………41

10.Caution…………………………………………………………………………………………42

Contents

ASUS Pretest Fixtures Pack Rev. 1.00

Please read this document carefully; it contains important information about the “ASUS Pretest

Fixtures Pack (Rev. 1.00)”. Topics include:

- Customer Benefit

- Customer Responsibility

- Package Contents

Customer Benefit

Customers who have purchased the “ASUS Pretest Fixtures Pack” will obtain the advantage as shown

below:

1. Process RMA pretest on-site.

2. Process troubleshooting efficiently.

3. Reduce NDF(No Defect Found) rate and save shipping cost.

Save TAT(Turn Around Time). ASUS will keep auditing the return NDF rate monthly. If it keeps

under 10%, ASUS will provide higher RMA priority and 10 working days of TAT for customers who

have done the Pretest.

4. ASUS will provide one year non-periodical software update.

Customer Responsibility

Any documents, software, fixtures or know-how, which relates to the “ASUS Pretest Fixtures Pack” are

belong to ASUS confidential information. Customers must follow the items to purchase this package

and than get the advantage from it:

1. Sign the NDA(Non-Disclosure Agreement) before purchasing it.

2. Following ASUS RMA return procedure and fill in the necessary documents to

send the RMA products back to ASUS.

3. Provide test report to ASUS for future analysis.

4. All testing fixtures are forbidded to be resold.

Notice:

Customers who doesn’t follow the instruction to fill in & provide the necessary documents won’t get

higher RMA priority.ASUS have the right to decide whether to stop providing software updates to

customers.

Package Contents (70R-R00FT1000)

Test Fixtures

15-093004001 M017 CD-ROM TX97 Test CD *1

22-060000210 CABLE 20P IDC (L:100mm) *1

22-060000310 PGA 296P SOCK *1

22-060000320 PGA 370P SOCK *1

22-060001031 PGA 423P SOCK *1

22-060001020 PGA 462P SOCK *1

08-900006600 KLAMATH SIGNAL CARD (1.6m/m,2L,14*4.5cm ) *1

08-900009900 ENG_K7-S2K PIN TO NAME TEST (R1.00,4L,1.6mm,5670*2331 ) *1

60R-R00IR1000 IR LOOP BACK (1*5) *1

60R-R00IR1001 IR LOOP BACK (2*5) *1

60R-R00LA1000 LAN Fixture *1

70R-R00FT1010 MR MODEM CARD WS-5614DML (SOFTWARE MODEM CARD FCC) *1

20-201100075 ATX TO AT Cable *1

22-060001280 AUDIO CABLE (HOUSING*3(BLACK)) *1

22-060001290 AUDIO CABLE ( HOUSING*1B+HOUSING*2W ) *1

70-C1OG10-01 COM PORT-1 (REV1.00) *1

70-C1OG14-02 SWBO-OEM (REV2.00) *1

70-C1OG15-02 SWBO-ASUS (REV2.00) *1

80-C1G002-0202 ENG_PRT (R2.02) *1

80-C1G024-0100 ENG_GPORT_A (R1.00) *1

80-C1OG29-0100 PORT80M (R1.00) *1

22-210005890 User Manual AND Test Program CD *1

Customer Pretest flow chart

N Y

END

Visual inspection

Repairable? Return

to customer

Plug in CPU test card on

CPU_Slot(Socket).

1.Turn on the power supply

2.Check CPU volta

Please fill the Diagnostic

card

No component

dama

ed Paste arrow

sticker on

damage

component

1. Turn off power supply

2. Plug in (Com_port,Printer_port,USB,LAN,game,IR

port)Loopback and connect

floppy,hardisk,CD_ROM

Swbo board….

CMOS load Setup

Defaults

Update

BIOS

Execute Asus M/B

Pretest program

Test M/B

Function

Windows OS

(USB TEST)

1. Turn OFF Power supply

2. Remove CPU test card

Plug in cpu,Ram,port80M

1.Turn on the power supply

2.Check post code”C1”is

display

Asus mainboard test ok,Please

fill pretest report

1.Customer company

2.Pretest finish date

3.Mainboard model

4.Mainboard S/N

Send Report to ASUS TSD

contact window

Send M/B to Asus RMA

Pretest operate description

Visual inspection:

1. Inspect M/B have broken,oxidized…..

(Please refer Visual inspection description)

2. Customer induce or not.

(Please refer Customer Induce Description)

3. If any M/B components failed to work

after inspection,please paste the arrow

stacker and write on Diagnostic Card

If Visual inspection is OK.

Please plug in the power connector on Motherboard

Plug in CPU test Card on CPU_Slot(Socket) and

Turn on power supply.

Check CPU voltage on CPU test card

Turn OFF Power supply and Remove CPU

Test Ca rd

Plug in CPU on Motherboard CPU Slot

and CPU FAN connector

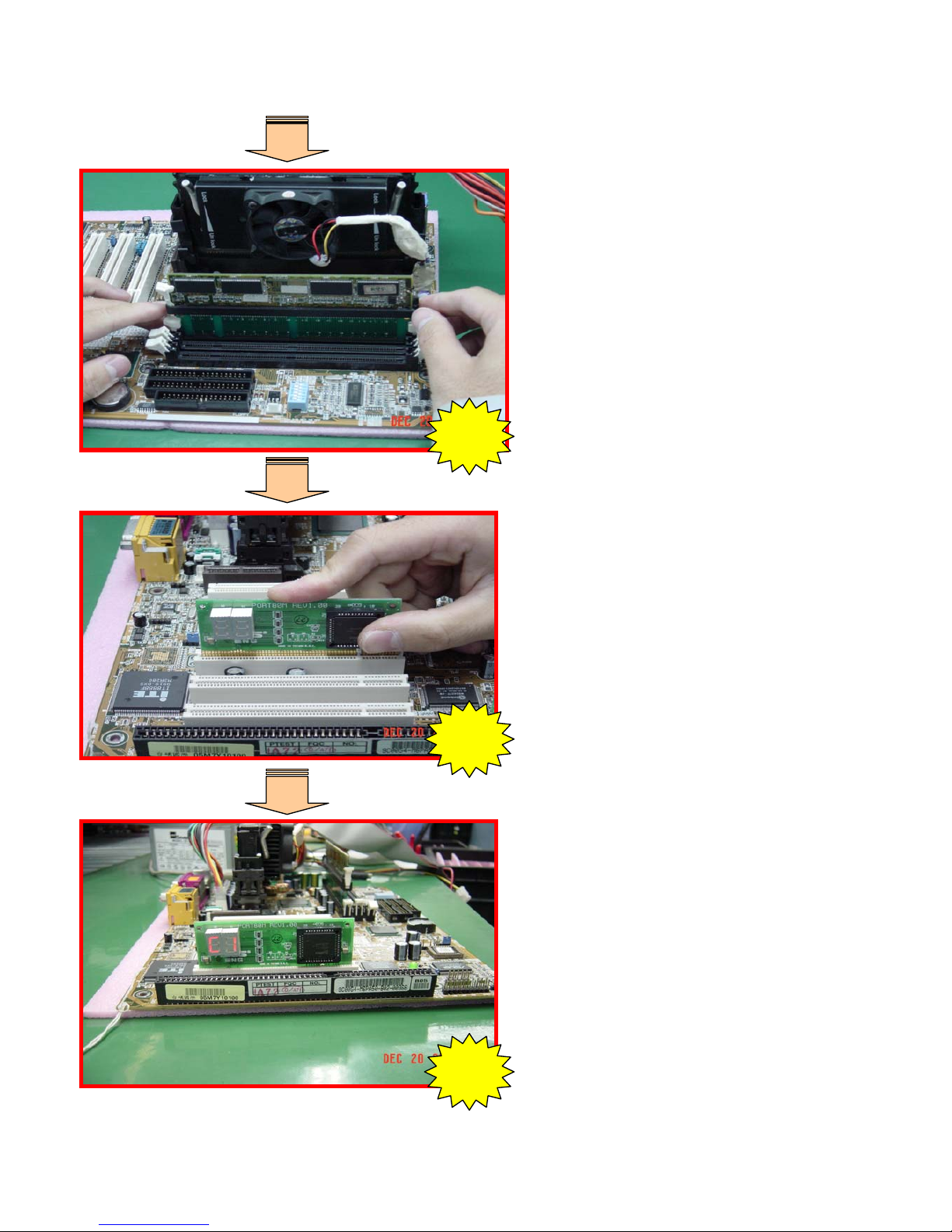

Plug in memory on Motherboard DIMM Slot

Plug in Port80M on Motherboard PCI Slot

1. Turn on the power supply

2. Check post code “C1” is display

1. Turn OFF the power supply

2. Plug in PS2 Keyboard

Plug in PS2 Mouse

Plug in COM_ports

Plug in Printer_port

Plug in Audio_port

Plug in Audio_port Loopback tail on

Motherboard audio connectors
