ASUS P4T-M Quick Setup Manual 1

P4T-M

Intel®850 ATX Motherboard

Quick Setup Manual

SPECIFICATIONSAND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED

FORINFORMATIONALUSE ONLY,ANDARESUBJECTTOCHANGEATANYTIME WITH-

OUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BYASUSTeK

COMPUTER INC. (ASUS). ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR

ANY ERRORS OR INACCURACIES THAT MAYAPPEAR IN THIS MANUAL, INCLUDING

THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Product Name: ASUS P4T-M

Release Date: December 2000

2ASUS P4T-M Quick Setup Manual

1. FEATURES

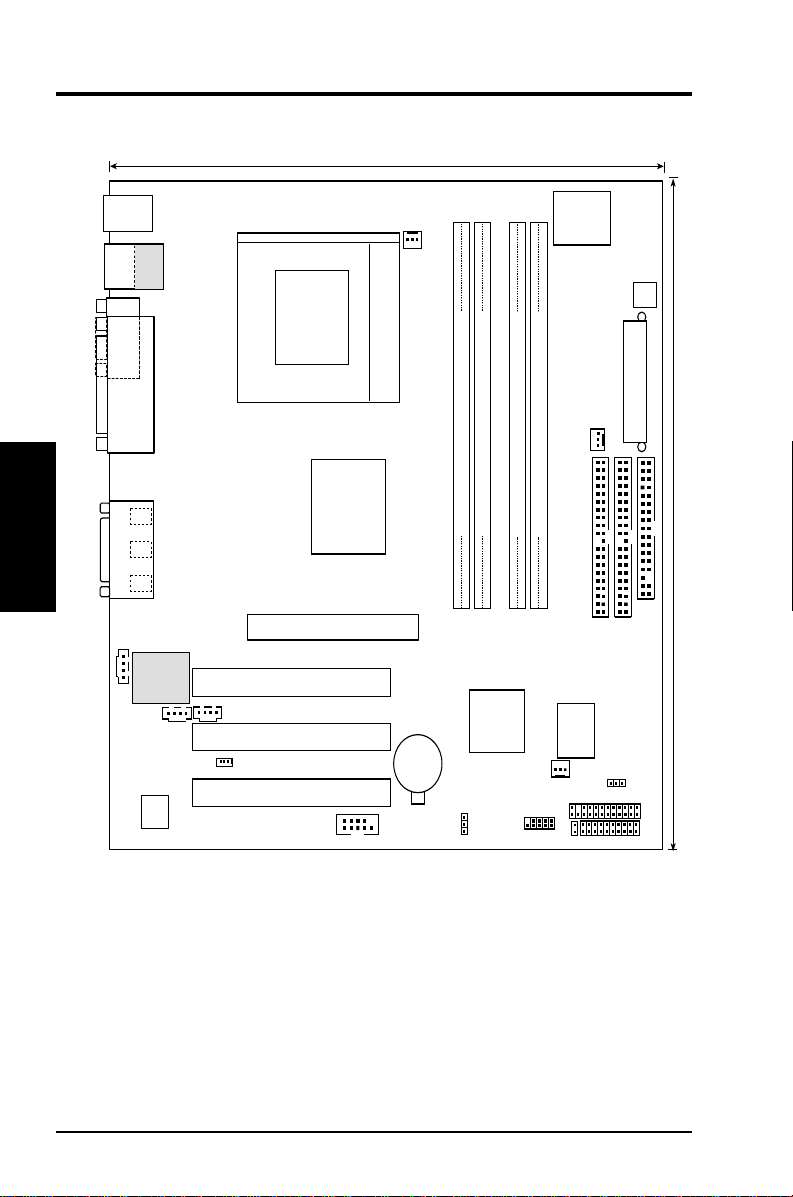

1.1 P4T-M Motherboard Layout

Motherboard Layout

3. H/W SETUP

24.4cm (9.60in)

24.4cm (9.6in)

PS/2KBMS

T: Mouse

B: Keyboard

PCI1

PCI2

PCI3

PANEL

FLOPPY

SECONDARYIDE

PRIMARYIDE

Intel I/O

Controller

Hub

(ICH2)

P4T-M

CHA_FAN

Accelerated Graphics Port (AGP)

CR2032 3V

Lithium Cell

CMOS Power

Socket 423

COM1

PARALLEL PORT

RIMMB2 (16/18 bit, 184-pin module)

RIMMB1 (16/18 bit, 184-pin module)

ATX Power Connector

4Mbit

Firmware

Hub

RIMMA2 (16/18 bit, 184-pin module)

RIMMA1 (16/18 bit, 184-pin module)

Multi

I/O

ATX12V

Intel 850

Memory

Controller

Hub (MCH)

USB1

USB2

Bottom:

RJ-45

Top:

GAME_AUDIO

Mic

Line

Out

Line

VIDEO

AUX_CON

COM2

AFPANEL

Realtek

RTL8139C

CPU_FAN

PWR_FAN

USB2

Audio

Codec

WOLCON

NO_REBOOT

CLRTC

IDELED

CD_IN

Grayed components are available only on certain models at the time of purchase.

ASUS P4T-M Quick Setup Manual 3

1.2 Layout Contents

Expansion

1) RIMMA1/A2/B1/B2 p.18 184-Pin System Memory Support

2) CPU p.19 Central Processing Unit (CPU)6

3) PCI1/2/3/4/5 p.25 32-bit PCI Bus Expansion Slots

4) AGPPRO p.26 Accelerated Graphics Port (AGP Pro) Slot

Connectors

1) PRIMARY/SECONDARYIDE p.30 Primary/Secondary IDE Connectors (Two 40-1pins)

2) FLOPPY p.30 Floppy Disk Drive Connector (34-1pins)

3 CPU_FAN, PCI_FAN p.31 CPU, PCI, MAIN Fan Connectors (Three 3-pin)

MAIN_FAN

4) WOL p.32 Wake-On-LAN Connector (3 pins)

5) USB2 p.32 USB Header (10-1 pins)

6) IA p.33 Internal Audio (4-pin VIDEO, CD_IN, AUX)

7) AFPANEL p.33 Connector (5 pins)

8) ATXPWR, AUXPWR, p.34 ATX 12V Power Supply Connectors

ATX12V

9) PWRLED (PANEL) p.35 System Power LED Lead (3-1 pins)

10) KEYLOCK (PANEL) p.35 Keyboard Lock Switch Lead (2 pins)

11) SPEAKER (PANEL) p.35 System Warning Speaker Connector (4 pins)

12) MSG.LED (PANEL) p.35 System Message LED (2 pins)

13) SMI (PANEL) p.35 System Management Interrupt Switch Lead (2 pins)

14) PWRSW (PANEL) p.35 ATX Power / Soft-Off Switch Lead (2 pins)

15) RESET (PANEL) p.35 Reset Switch Lead (2 pins)

1. FEATURES

4ASUS P4T-M Quick Setup Manual

2. HARDWARE SETUP

2.1 Getting Started

IMPORTANT: Due to Pentium 4 CPU’s power consumption requirement, an

ATX12V power supply is recommended for this motherboard. For typical system

configurations, anATX12V power supply that can supply at least 230W and at least

8.5A on the +12V lead is required. For heavily-loaded configurations, an ATX12V

power supply that can supply at least 300W is required.

Before using your computer, you must complete the following steps:

• Check Motherboard Settings

• Install Memory Modules

• Install the Central Processing Unit (CPU)

• Install Expansion Cards

• Connect Ribbon Cables, Panel Wires, and Power Supply

WARNING! Computer motherboards and expansion cards contain very delicate

Integrated Circuit (IC) chips. To protect them against damage from static electric-

ity, you should follow some precautions whenever you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do

nothaveone,touch both of your hands to a safely grounded object or to a metal

object, such as the power supply case.

3. Hold components by the edges and try not to touch the IC chips, leads or con-

nectors, or other components.

4. Placecomponents on a grounded antistaticpad or on the bagthat came with the

component whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or

remove the ATX power connector on the motherboard.

WARNING! Make sure that you unplug your power supply when adding or

removing system components. Failure to do so may cause severe damage to

your motherboard, peripherals, and/or components. The onboard LED when

lit acts as a reminder that the system is in suspend or soft-off mode and not

powered OFF.

ASUS P4T-M Quick Setup Manual 5

2. HARDWARE SETUP

2.2 System Memory

NOTE: No hardware or BIOS setup is required after adding or removing memory.

This motherboard has four 184-pin Rambus Inline Memory Modules (RIMM) sockets.

These sockets support 64Mbit, 128Mbit, and 256Mbit Direct RDRAM technologies.

IMPORTANT

1. The memory configuration of channelA(RIMMA1 and RIMMA2) and chan-

nel B (RIMMB1 and RIMMB2) must be identical (see below).

2. C-RIMMs (Continuity RIMM) must be used to complete the sockets that are

not populated by RDRAMs. A C-RIMM is necessary to avoid breaking the

signal lines, which are a serial connection in a Rambus interface, such as

used in this motherboard. This assures the electrical integrity of a Rambus

interface.

3. When C-RIMMs are required, it is recommended that they be inserted into

RIMMA2 and RIMMB2.

RIMMA1

RIMMA2

RIMMB1

RIMMB2

128MB RDRAM

C-RIMM

RIMMA1

RIMMA2

RIMMB1

RIMMB2

128MB RDRAM

RIMMA1

RIMMA2

RIMMB1

RIMMB2

128MB RDRAM

C-RIMM

Location Memory Module Subtotal

RIMMA1 RDRAM x1

(Rows 0&1) C-RIMM (use when socket will not be populated)

RIMMA2 RDRAM x1

(Rows 2&3) C-RIMM (use when socket will not be populated)

RIMMB1 RDRAM x1

(Rows 4&5) C-RIMM (use when socket will not be populated)

RIMMB2 RDRAM x1

(Rows 6&7) C-RIMM (use when socket will not be populated)

TOTALSYSTEM MEMORY =

(2GB Max)

NOTE: When using only two memory modules,

it is recommended that you use configuration a.

6ASUS P4T-M Quick Setup Manual

2. HARDWARE SETUP

2.2.1 Installing Memory

The memory module (RIMM/C-RIMM) will fit in only one orientation.

IMPORTANT:Do not touch the memory module’s connectors. Handle the mod-

ule only by the edges.

1. Make sure that the notch keys in the module are aligned with the small ribs

inside the RIMM sockets.

NOTCH KEYS

CONNECTORS

RDRAM (with heat spreader)MOUNTING NOTCH

RIBS (inside socket)

EJECTOR (TOP VIEW)

2. With the ejectors in the open position (as shown), push down gently but firmly

on the memory module until it snaps into place. The guides on the socket’s

ejectors should go through the two mounting notches on the module and the

ejectors should close. If necessary, push the ejectors inward to secure the mod-

ule in place.

Removing Memory

To release a memory module,pushboth ejectors outward and pull the module straight

up and out of the RIMM sockets.

WARNING! RIMM modules become extremely hot during operation. To re-

duce the risk of personal injury from hot surfaces, allow the modules to cool off

before removing them.

P4T-M

P4T-M 184-Pin RIMM Sockets

RIMM Sockets

RIMM with Heat Spreader

C-RIMM

ASUS P4T-M Quick Setup Manual 7

2. HARDWARE SETUP

2.3 Central Processing Unit (CPU)

The motherboard provides a ZIF Socket for the supported CPUs. The CPU that

came with the motherboard should have a fan attached to it to prevent overheating.

If this is not the case, then purchase a fan before you turn on your system.

P4T-M

P4T-M Socket 423

Gold Arrow

Socket 423 Pentium 4

Gold Arrow

Before you start, you should check to see that you have the following items:

(NOTE: Motherboard layout is not identical to the example.)

Rubber Pad Metal Baseboard

2 Metal heatsink retaining clips

4 Copper captive nuts

4 Pan Head screws

2 Heatsink support bases

4 Washers

8ASUS P4T-M Quick Setup Manual

2. HARDWARE SETUP

2.3.1 CPU Installation

Step 1: Install the Baseboard

A metal baseboard is required to install the heatsink to the motherboard. A rubber

pad is placed between the metal board and motherboard to provide insulation to

prevent shorting. (NOTE: Motherboard layout is not identical to the example.)

Rubber Pad Metal Baseboard

Align the rubber pad over

the metal baseboard so that

the holes match. Align the

motherboard over the rub-

ber pad and metal base-

board so that the screws on

the baseboard match up

with the motherboard’s

screw holes.

Placethefour washers over the four

screws on the baseboard. Tighten the four copper captive

nuts over the washers.

Motherboard

Washer

Copper captive nut

Motherboard

IMPORTANT:

This step is a M U S T! The washers

are necessary to prevent shorting.

ASUS P4T-M Quick Setup Manual 9

2. HARDWARE SETUP

Step 2: Install the CPU

A. Locate the ZIF socket on the motherboard.

B. Unlock the socket by pressing the lever sidesways and then lifting it up to a

90˚–100˚ angle.

C. Align the CPU over the socket such that its notched or marked corner matches

the socket’s corner near the end of the lever, while making sure that the CPU is

parallel to the socket.

D. Carefully insert the CPU into the socket until it fits in place. The illustration

below shows how to insert a CPU properly.

CAUTION!The CPU fits in only one orientation. Do not force the CPU into the

socket as it will bend the pins and damage the CPU. It should drop into the

socket with minimal pressure. If not, check its orientation or check for bent pins.

E. Secure the CPU into the socket by pushing the socket lever all the way down.

You will hear a click indicating that the lever is in place.

10 ASUS P4T-M Quick Setup Manual

2. HARDWARE SETUP

Step 3: Install the Heatsink Support Base

Place the two heatsink support base as shown and screw in the four pan head screws.

Step 4: Install the Heatsink

Carefully place the fan heatsink on top of the heatsink support base and connect the

fan power cable to the CPU fan connector.

Connect to the

CPU fan connector.

Autres manuels pour P4T-M

Table des matières

Autres manuels Asus Carte mère

Asus

Asus Pro B760M-C Manuel utilisateur

Asus

Asus P5WDG2 WS Professional Manuel utilisateur

Asus

Asus TUF X299 MARK 2 Manuel utilisateur

Asus

Asus ROG CROSSHAIR VIII FORMULA Manuel utilisateur

Asus

Asus PRIME B650M-A WIFI Manuel utilisateur

Asus

Asus ROG STRIX B360-H GAMING Manuel utilisateur

Asus

Asus P2E-VM Manuel utilisateur

Asus

Asus Rog Maximus X Apex Manuel utilisateur

Asus

Asus M2N68-VM - Motherboard - Micro ATX Manuel utilisateur

Asus

Asus P5Q-E Instructions d'utilisation

Asus

Asus K8V-F Manuel utilisateur

Asus

Asus WS C621E SAGE Series Manuel utilisateur

Asus

Asus C8HM70-I Series Manuel utilisateur

Asus

Asus TUF GAMING B650M-PLUS WIFI Manuel utilisateur

Asus

Asus P4R800-VM Manuel utilisateur

Asus

Asus P8Z68-V PRO Manuel utilisateur

Asus

Asus Puffer-UL8E Manuel utilisateur

Asus

Asus MEW-L Manuel utilisateur

Asus

Asus M3A78-T - Motherboard - ATX Manuel utilisateur

Asus

Asus P5A-VM Manuel utilisateur

Asus

Asus F2A85-M/CSM Manuel utilisateur

Asus

Asus CorLiving Manuel utilisateur

Asus

Asus ROG STRIX Z490-H GAMING Manuel utilisateur

Asus

Asus NCLV-D Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur

Epson

Epson S5U13700P00C000 Manuel utilisateur

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manuel utilisateur

Albatron

Albatron PX925XE Series Manuel utilisateur
