Assa Abloy YRD256 Manuel utilisateur

P/N - - Rev DYRL SLKFTSINSTL FUL

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO

THE PRODUCT AND VOID THE FACTORY WARRANTY

Yale Assure Lock

®®

Key Free Touchscreen Deadbolt

Installation and Programming Instructions

( 256/ 456)YRD YRD

x2 Silver

#8-32 x 5/16"

Machine screws

#7 wood & #8-32

machine x 20mm

Combination screws

M6x55mm

PPHMS

(2-1/4" )

Optional

Network Module

x2 Black

M6x44mm

PPHMS

(Standard 1-3/4" - 2" )

x2 Gold

M6x36mm

PPHMS

(1-3/8" )

Before you begin

for step-by-step installation

instructions & to register

your product

DOWNLOAD

THE BILT APP

P/N - - Rev DYRL SLKFTSINSTL FUL

Preparing Door

Refer to template for

correct door prep

P/N - - Rev DYRL SLKFTSINSTL FUL

d faute

2-3/8" position

2-3/4" position

Installing Latch & Strike Plate

Press

Pull

optional

Bolt must be in retracted

(unlocked) position. Note

horizontal orientation of

mechanism.

P/N - - Rev DYRL SLKFTSINSTL FUL

2Installing Touchscreen Escutcheon

Outside of DoorInside of Door

Bolt must be in retracted

(unlocked) position. Note

horizontal orientation of

mechanism.

P/N - - Rev DYRL SLKFTSINSTL FUL

3Installing Interior Mounting Plate

Loosen screw to

remove cover.

Choose through

bolt appropriate

for your door

thickness.

4Attaching the Cable Assembly

P/N - - Rev DYRL SLKFTSINSTL FUL

5Installing Interior Escutcheon

P/N - - Rev DYRL SLKFTSINSTL FUL

Testing Operation

Bolt must be in retracted

(unlocked) position before

installing batteries.

P/N - - Rev DYRL SLKFTSINSTL FUL

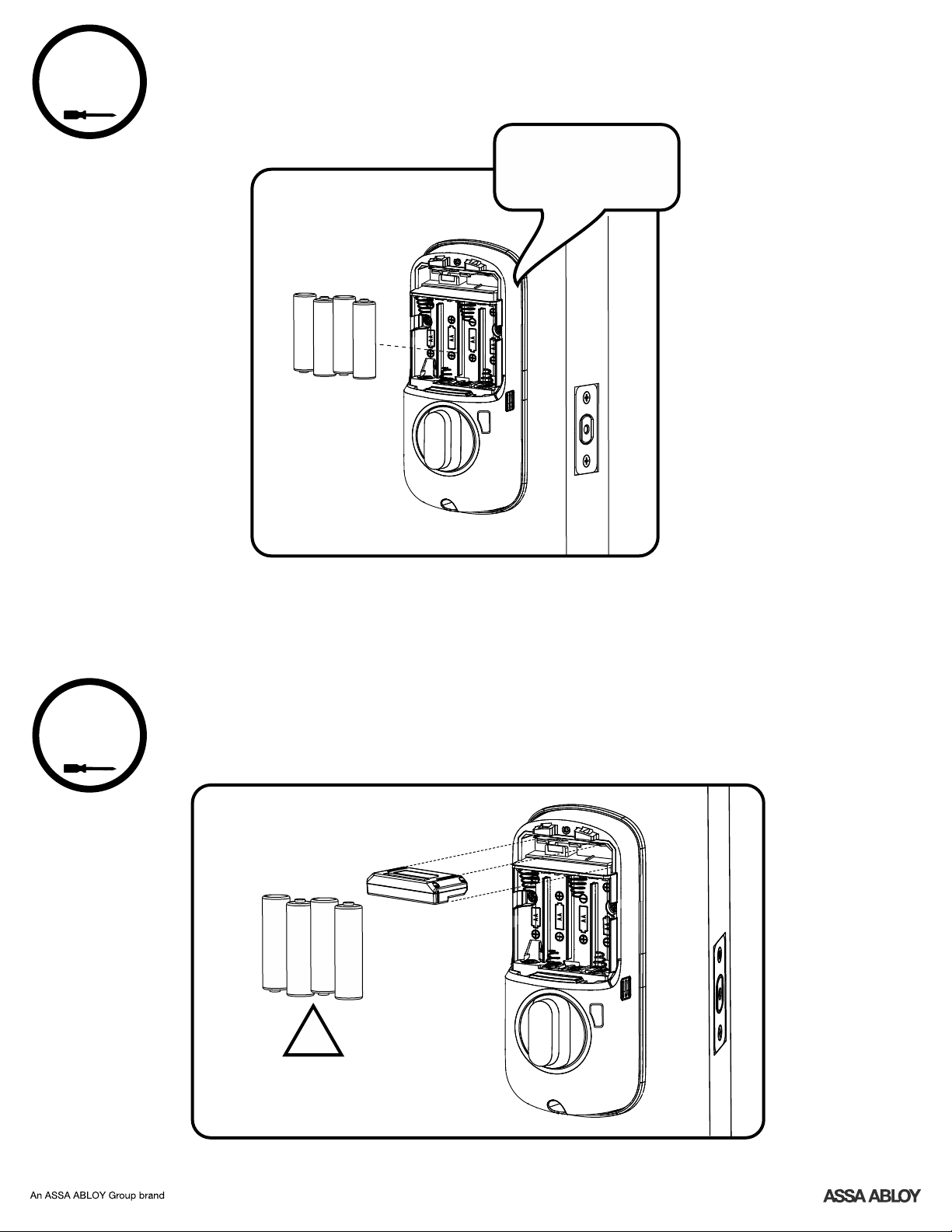

6Installing Batteries/Handing the Lock

"Welcome to

Yale Real Living."

Lock automatically adjusts for proper handing.

Batteries must be removed

prior to removing and/or

inserting network module.

Installing Optional Network Module

P/N - - Rev DYRL SLKFTSINSTL FUL

8Installing Cover

Tighten screw

to replace cover.

Congratulations, you've installed the Yale Assure Lock

®®

Key Free Touchscreen Deadbolt ( )!YRD YRD256/ 456

Continue to Programming Instructions

to customize your product.
