Installation & Programming Guide

EMTouch™ & EMTouch™ Classic Style

Electronic Deadbolt Locksets

EMTouch™

EMTouch™ Classic Style

ITEM NO. DESCRIPTION QTY.

1Key 2

2Outside Trim Plate Assembly 1

3Deadbolt Latch Assembly 2 3/8”or 2 ¾” Backset 1

4Inside Trim Plate Assembly 1

4a Inside Chassis

4b Inside Trim Plate

#8-32 x 3/8” Flat Head Machine Screw 2

9V Alkaline Battery 1

5#8-32 x 1½” Flat Head Machine Screw 2

6#8 x ¾”Wood Screw 4

7Strike Plate 1

8Security Plate 1

9#10 x 3”Wood Screw 2

What’s in the Box

2-3/8” or 2-3/4” Backset

2 1/8” Diameter Bore

1/8” Deep

2 ¼”

1 “ 1” Diameter Edge Bore

2. Door Jamb Prep

1. Door Prep

Preparation

Step 1: Fasten Security Plate using two #10 x 3”Wood Screws (item #9).

Step 2: Fasten Strike Plate using two #8 x ¾”Wood Screws (item #6).

2-3/4"

#10 x 3”Wood Screws

3/16” Deep

2 ¾”

11/8”

¾”

#8 x ¾”Wood Screws

1¼”

1¼” Deep

Scan

this QR

code for

details.

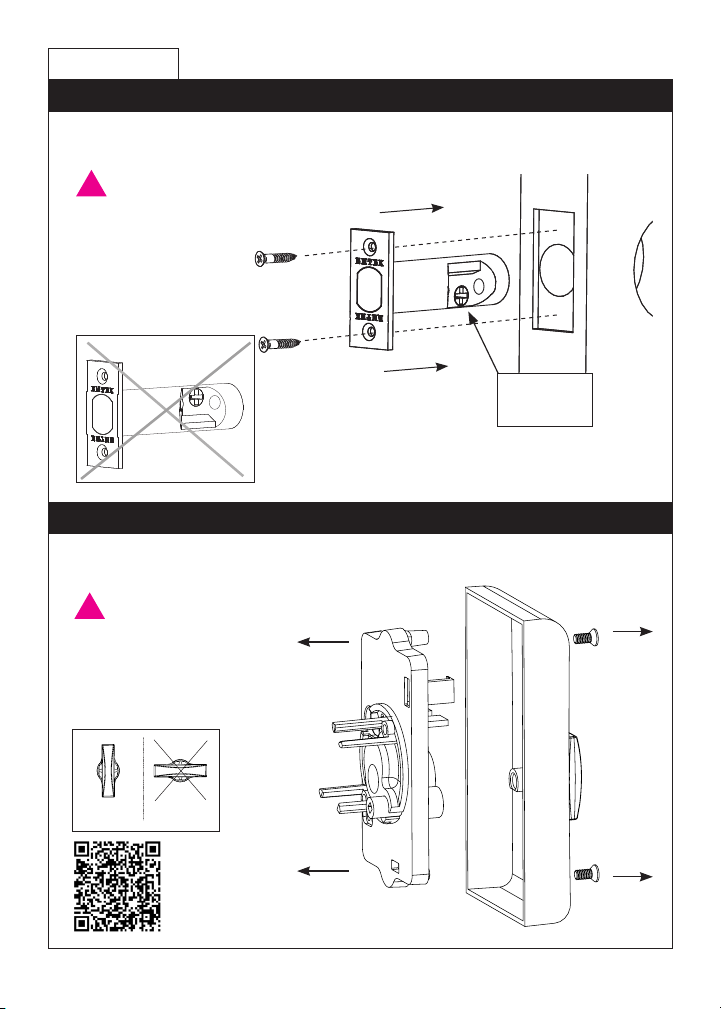

Fasten Latch using two #8 x ¾”Wood Screws (item #6).

2. Remove Screws from Inside Trim Plate

1. Install Latch

How to Install

REMOVE INSIDE CHASSIS

FROM TRIM PLATE BEFORE

INSTALLING THE OUTSIDE

TRIM. THUMBTURN MUST

BE IN UNLOCKED POSITION.

Unlocked Locked

THE LATCH ASSEMBLY

MUST BE ORIENTED

AS SHOWN AND THE

BOLT MUST BE IN THE

RETRACTED POSITION

FOR INSTALLATION.

Crosshairs

at bottom.

Use a Phillips head screwdriver to remove screws (item #4c) shown below and

detach Inside Trim Plate from the Inside Chassis.

screws

(item #4c)

3. Install Outside Trim Plate Assembly

4. Install Inside Chassis

Position the Outside Trim Plate Assembly through the bore hole.

Fit Flat Shaft

through latch.

Flat Shaft must be

in vertical position

for installation.

ONCE POSITIONED,

OUTSIDE TRIM PLATE

ASSEMBLY REQUIRES

SUPPORT.

Feed wire harness

through the bore hole.

HOLE FOR FLAT

SHAFT MUST BE IN

VERTICAL POSITION

FOR INSTALLATION.

Step 1: Conﬁrm the position of Flat Shaft.

√ Correct for Installation.

X Incorrect for Installation.

Scan

this QR

code for

details.

4. Install Inside Chassis

Step 2: Feed the Wire Harness through Inside Chassis.

Step 3: Fasten Inside Chassis using two #8-32 x 1½”Flat Head Machine Screws (item #5).

CHECK ALIGNMENT BEFORE

FULLY TIGHTENING SCREWS.

Step 4: Connect Wire Harness (A) and tuck Connectors as shown (B).

Step 5: Install Battery.

For optimal performance, always use a good quality battery.

9V Battery

Scan

this QR

code for

details.

*Unlocked position is required for installation and removal of the Inside

Trim Plate Assembly.

*Unlocked

Correct for installation

Locked

Screws (item #4c)

Incorrect for installation

THUMBTURN MUST BE IN

UNLOCKED POSITION FOR

INSTALLATION.

USER CODES

ARE LOCATED

ON THE INSIDE

TRIM PLATE &

ON PAGE 11.

Inside

5. Install Inside Trim Plate

Fasten Inside Trim Plate using two #8-32 x 3/8” Flat Head Machine Screws

(item #4c).

Your Emtek lock is shipped with two 4-digit user codes and a 6-digit

programming code. These codes are randomly generated at the factory.

(Turn to next page for Programming Instructions.)

To Unlock:

To Lock:

Option 1

1. Press EMTEK key.

2. Rotate Thumbturn.

Option 2

1. Touch 3 ngers across screen.

2. Enter 4-digit user codes.

(See sticker located on the inside

trim plate or on page 11).

3. Rotate Thumbturn.

Your Lock is Ready to Use

How to Use

1. Press EMTEK key or touch

3 ngers across screen.

2. Enter 4-digit user codes.

(See sticker located on the inside

trim plate or on page 11).

3. Rotate Thumbturn.

How to Program

Programming Your Lock

In order to perform each of the following six functions, the lock must rst be

placed in Programming Mode:

*If no input within 20 seconds, Yellow LED goes out, Red LED ashes and lock exits Programming Mode.

1. Press and hold EMTEK button for 3 seconds

2. Yellow LED ashes, then remains solid*, number keys also illuminate

3. Enter Programming Code

4. Yellow LED ashes, then 1 beep

5. Yellow LED remains solid (awaiting button press; see following Table)

Ifyou wIsh to Press

Button

ActIons IndIcAtors

Change

Programming

Code

(6 digits)

1Enter New

Programming

Code

(6 digits)

Re-Enter

New

Programming

Code

(6 digits)

• 1 Green LED ash

• 1 beep

• 1 Green LED ash

• 1 beep

• 2 Green LED ashes

• 2 beeps

Add User Code

(4 digits)

(Store up to 20

User Codes)

2Enter New

User Code

(4 digits)

Re-Enter

New User

Code

(4 digits)

• 1 Green LED ash

• 1 beep

• 1 Green LED ash

• 1 beep

• 2 Green LED ashes

• 2 beeps

Delete User Code 3Enter User

Code to be

Deleted

Re-Enter

User Code to

be Deleted

• 1 Green LED ash

• 1 beep

• 1 Green LED ash

• 1 beep

• 2 Green LED ashes

• 2 beeps

**Enable/Disable

All User Codes

4Entering ‘4’ disables all Users

(enables all if disabled)

• 2 Green LED ashes

• 2 beeps

Delete All User

Codes

5Re-Enter Programming Code • 1 Green LED ash

• 1 beep

• 2 Green LED ashes

• 2 beeps

Turn Beeper On/

Off

6Entering ‘6’ turns OFF (or ON) • 1 Green LED ash

• 1 beep

• 2 Green LED ashes

• 2 beeps

**Also referred to as “vacation mode”. This command temporarily disables all user codes (metal key

override will still work).
