ASROCK K7VT4-4X Manuel utilisateur

K7VT4-4X

K7VT4-8X

User Manual

Version 3.1

Published July 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout (K7VT4-4X) .................................. 7

1.4 Motherboard Layout (K7VT4-8X) .................................. 8

1.5 ASRock I/OTM (K7VT4-4X / K7VT4-8X).......................... 9

2 Installation ...................................................... 10

2.1 Screw Holes ................................................................... 10

2.2 Pre-installation Precautions ............................................ 10

2.3 CPU Installation ............................................................... 11

2.4 Installation of Heatsink and CPU fan .............................. 11

2.5 Installation of Memory Modules (DIMM) .......................... 12

2.6 Expansion Slots .............................................................. 12

2.7 Jumpers Setup ................................................................ 13

2.8 Connectors ..................................................................... 16

3 BIOS Setup ...................................................... 18

3.1 BIOS Setup Utility ............................................................ 18

3.1.1 BIOS Menu Bar ..................................................... 18

3.1.2 Legend Bar ........................................................... 18

3.2 Main Menu ....................................................................... 19

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 21

4 Software Support ........................................... 22

4.1 Installing Operating System ............................................ 22

4.2 Support CD Information ................................................... 22

4.2.1 Running Support CD ............................................. 22

4.2.2 Drivers Menu ........................................................ 22

4.2.3 Utilities Menu ......................................................... 22

4.2.4 ASRock “PC-DIY Live Demo” Program ................. 22

4.2.5 Contact Information............................................... 22

Appendix ........................................................... 23

1. Advanced Menu ............................................................. 23

2. Security Menu ................................................................. 27

3. Power Menu ................................................................... 28

4. Boot Menu ....................................................................... 29

5. Exit Menu ......................................................................... 30

Chapter 1 Introduction

Thank you for purchasing ASRock K7VT4-4X / K7VT4-8X motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s com-

mitment to quality and endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and support CD information. For advanced users’ reference, the Appen-

dix appearing on page 23 offers more advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock K7VT4-4X or K7VT4-8X motherboard

(ATX form factor: 12.0" x 7.0", 30.5 x 17.8 cm)

ASRock K7VT4-4X / K7VT4-8X Quick Installation Guide

ASRock AMD-VIA Series Support CD

1 cable for IDE devices (1 x ATA 66 / 100 / 133)

1 cable for floppy drive (1 x Ribbon cable)

1 ASRock I/O shield

1.2 Specifications

Platform: ATX form factor (12.0" x 7.0", 30.5 x 17.8 cm)

CPU: Supports Socket A (462 pins) for

AMD AthlonTM / AthlonTM XP / DuronTM processor

Chipsets: North Bridge (K7VT4-4X):

VIA KT400/4X (VT8367), FSB@333 MHz, AGP 4X;

North Bridge (K7VT4-8X):

VIA KT400/8X (VT8377), FSB@333 MHz, AGP 8X/4X

South Bridge: VIA VT8235CD, supports USB 2.0, ATA 133

Clock Generator:100 MHz - 200MHz

Memory: 2 DDR DIMM Slots: DDR1 and DDR2

supports PC1600 / PC2100 / PC2700, Max. 2GB

IDE: IDE1: ATA 133 / Ultra DMA Mode 6;

IDE2: ATA 133 / Ultra DMA Mode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor:CPU temperature sensing (ASRock U-COP);

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: K7VT4-4X: 1 AGP slot, supports 1.5V, 4X AGP card;

K7VT4-8X: 1 AGP slot, supports 1.5V, 8X/4X AGP card

(see CAUTION 2)

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two

additional USB 2.0 ports upgrade (see CAUTION 3)

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port; 4 rear default USB 2.0 ports;

1 serial port: COM 1; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out / Line In / Microphone + Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically shut-

down. Please check if the CPU fan on the motherboard functions

properly before you resume the system. To improve heat dissipation,

remember to spray thermal grease between the CPU and the heatsink

when you install the PC system.

2. Do NOT insert a 3.3V AGP card into the AGP slot of K7VT4-4X

or K7VT4-8X motherboard! It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®

Windows®XP. It may not work properly under Microsoft®Windows®

98/ME/2000. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although K7VT4-4X / K7VT4-8X offers stepless control, it is not

recommended to perform over clocking. When the CPU frequency of

K7VT4-4X / K7VT4-8X is set to perform over clocking, other clocks,

such as PCI clock, AGP clock, and Memory clock will also be

overclocked proportionally. Frequencies other than the recommended

CPU bus frequencies may cause the instability of the system or

damage the CPU.

17.8cm (7.0 in)

DDR 1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

AGP1

USB45

SPEAKER1

HDLED RST

PLED PWRBTN

PANEL 1

IR1

2MB

BIOS

FLOPPY1

Super

I/O

AUDIO1

JR1

JL1

CLRCMOS1 CLRCMOS2

VIA

VT8235

CPU_FAN1

CHA_FAN1

CMOS

Battery

PS2_USB_PWR1

IDE1 IDE2

USB2.0

5.1CH

ATA133

FSB333

K7VT4-4X

VIA

KT400/4X

Chipset

ATXPWR1

AUX1

CD1

Mic

GAME AUDIO1

Mic in

Line out

GAME AUDIO1

Line

Line in

USB23

USB01

LAN

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

COM1

30.5cm (12.0 in)

FSB_SEL0

LAN

PHY

AUDIO CODEC

REV.3.00

1236

1417

FID3

FID2

FID1

FID0

FID4 1

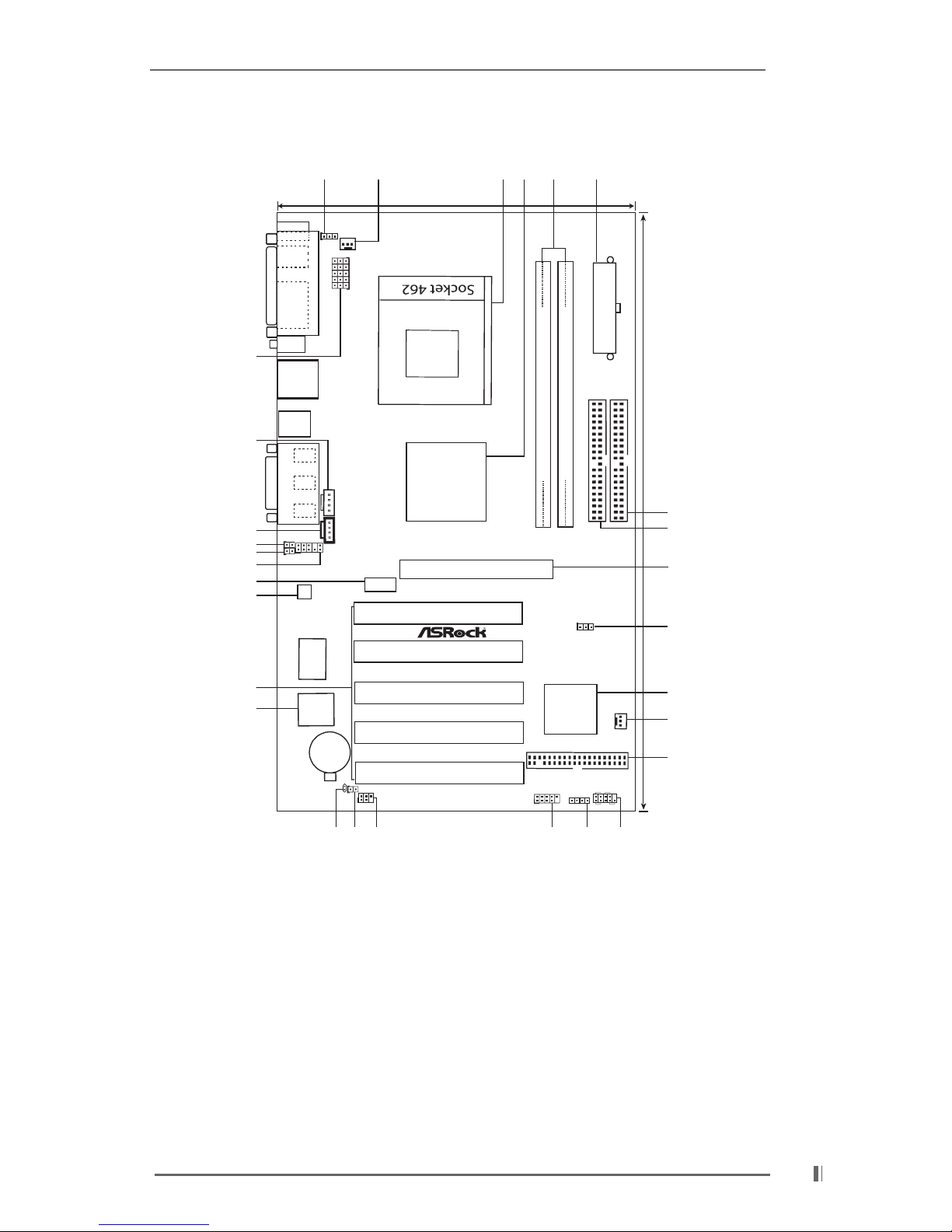

1.3 Motherboard Layout (K7VT4-4X)

1 PS2_USB_PWR1 jumper 2 CPU fan connector (CPU_FAN1)

3 CPU socket 4 North Bridge controller

5 184-pin DDR DIMM slots (DDR 1- 2) 6 ATX power connector (ATXPWR1)

7 Secondary IDE connector (IDE2, Black) 8 Primary IDE connector (IDE1, Blue)

9 AGP slot (AGP1) 10 FSB select jumper (FSB_SEL0)

11 South Bridge controller 12 Chassis fan connector (CHA_FAN1)

13 Floppy connector (FLOPPY1) 14 System panel connector (PANEL1)

15 External speaker connector (SPEAKER 1) 16 USB 2.0 header (USB45, Blue)

17 Infrared module connector (IR1) 18 Clear CMOS (CLRCMOS2, 2-pin jumper)

19 Clear CMOS (CLRCMOS1, solder points) 20 Flash Memory

21 PCI slots (PCI 1- 5) 22 AUDIO CODEC

23 LAN PHY 24 Front panel audio connector (AUDIO1)

25 JL1 jumper 26 JR1 jumper

27 Internal audio connector: CD1 (Black) 28 Internal audio connector: AUX1 (White)

29 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

17.8cm (7.0 in)

DDR 1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

AGP1

USB45

SPEAKER1

HDLED RST

PLED PWRBTN

PANEL 1

IR1

2MB

BIOS

FLOPPY1

Super

I/O

AUDIO1

JR1

JL1

CLRCMOS1 CLRCMOS2

VIA

VT8235

CPU_FAN1

CHA_FAN1

CMOS

Battery

PS2_USB_PWR1

IDE1 IDE2

USB2.0

5.1CH

ATA133

FSB333

K7VT4-8X

VIA

KT400/8X

Chipset

ATXPWR1

AUX1

CD1

Mic

GAME AUDIO1

Mic in

Line out

GAME AUDIO1

Line

Line in

USB23

USB01

LAN

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

COM1

30.5cm (12.0 in)

FSB_SEL0

LAN

PHY

AUDIO CODEC

REV.3.00

1236

1417

FID3

FID2

FID1

FID0

FID4 1

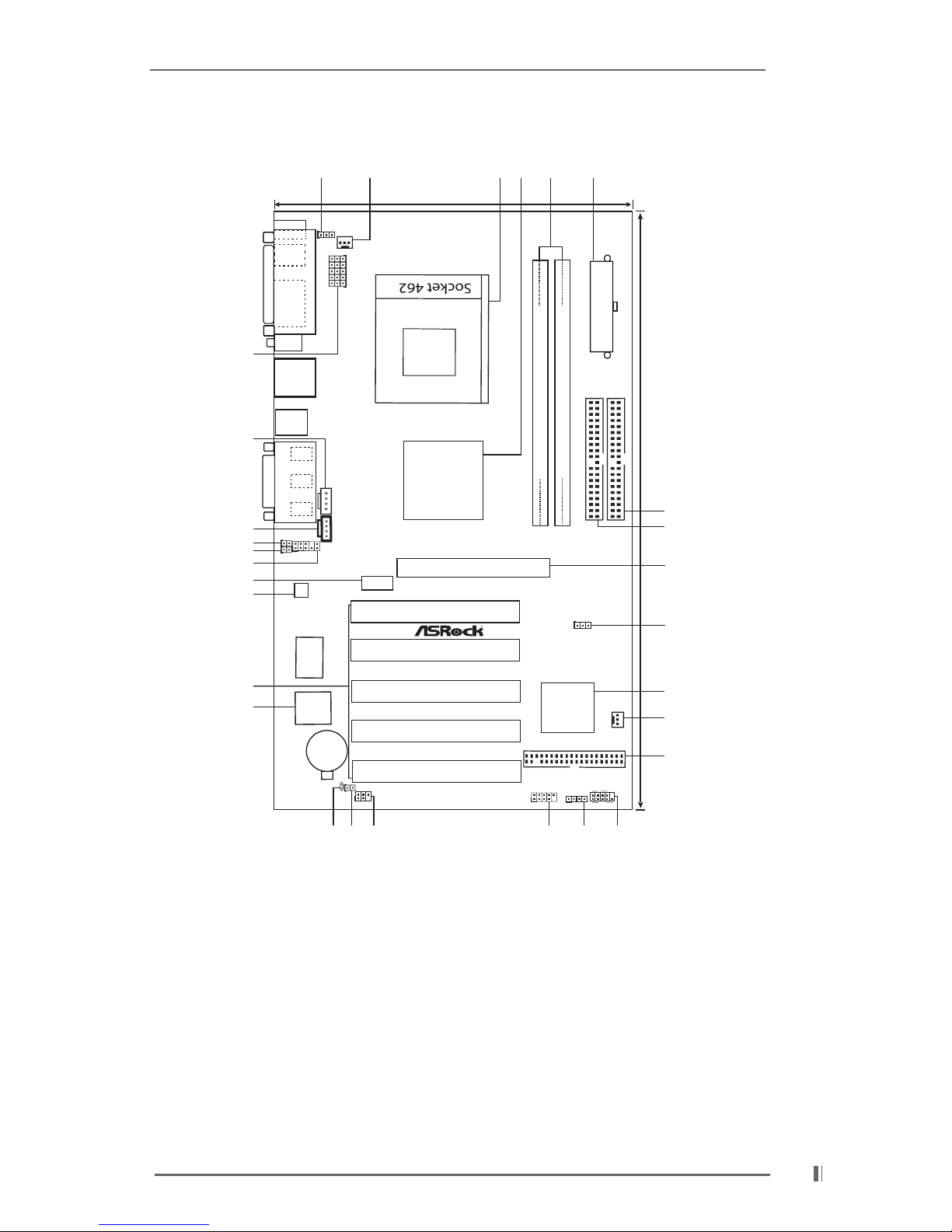

1.4 Motherboard Layout (K7VT4-8X)

1 PS2_USB_PWR1 jumper 2 CPU fan connector (CPU_FAN1)

3 CPU socket 4 North Bridge controller

5 184-pin DDR DIMM slots (DDR 1- 2) 6 ATX power connector (ATXPWR1)

7 Secondary IDE connector (IDE2, Black) 8 Primary IDE connector (IDE1, Blue)

9 AGP slot (AGP1) 10 FSB select jumper (FSB_SEL0)

11 South Bridge controller 12 Chassis fan connector (CHA_FAN1)

13 Floppy connector (FLOPPY1) 14 System panel connector (PANEL1)

15 External speaker connector (SPEAKER 1) 16 USB 2.0 header (USB45, Blue)

17 Infrared module connector (IR1) 18 Clear CMOS (CLRCMOS2, 2-pin jumper)

19 Clear CMOS (CLRCMOS1, solder points) 20 Flash Memory

21 PCI slots (PCI 1- 5) 22 AUDIO CODEC

23 LAN PHY 24 Front panel audio connector (AUDIO1)

25 JL1 jumper 26 JR1 jumper

27 Internal audio connector: CD1 (Black) 28 Internal audio connector: AUX1 (White)

29 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

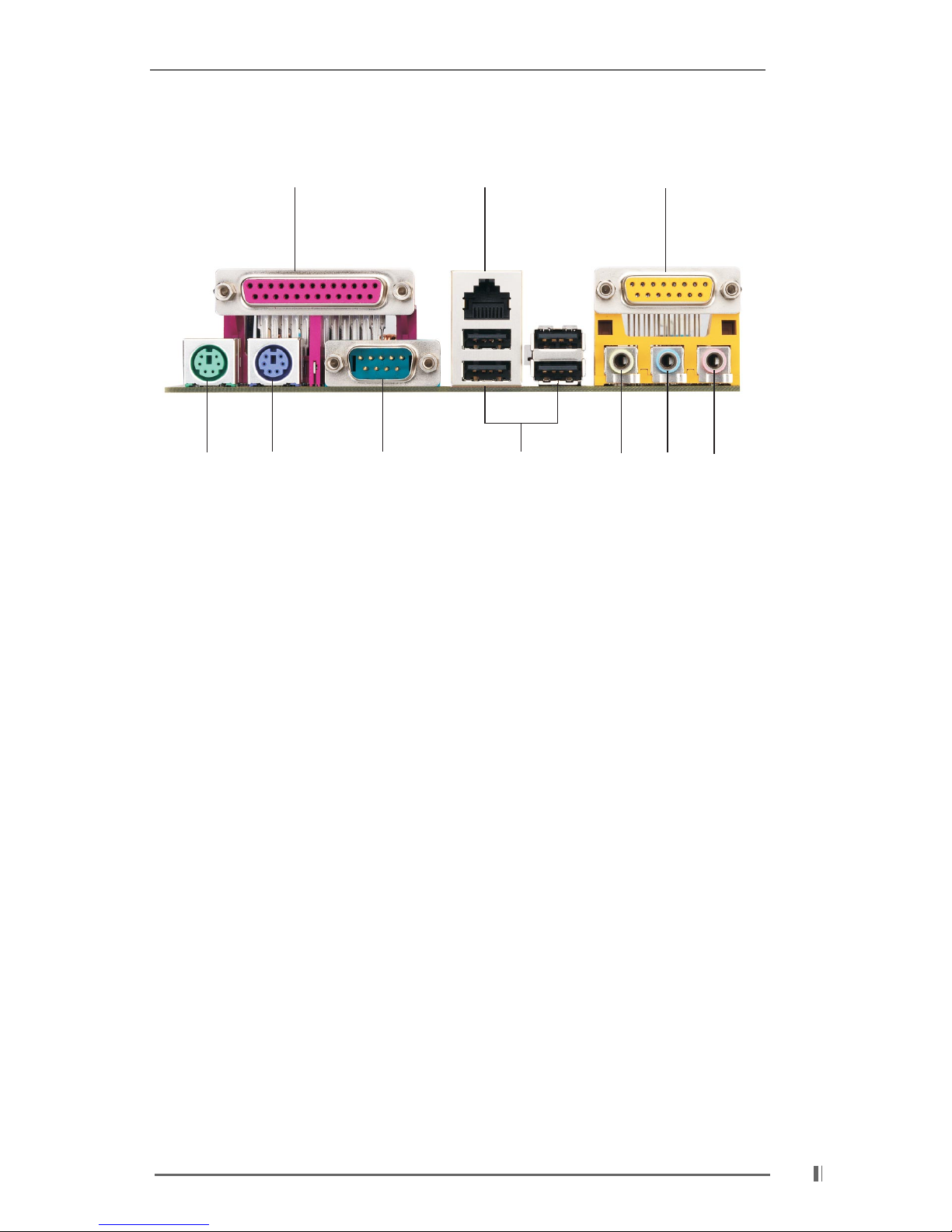

1.5 ASRock I/OTM (K7VT4-4X / K7VT4-8X)

1 Parallel port 2 RJ-45 port

3 Game port 4 Microphone (Pink)

5 Line In (Light Blue) 6 Line Out (Lime)

7 USB 2.0 ports 8 Serial port (COM1)

9 PS/2 keyboard port (Purple) 10 PS/2 mouse port (Green)

4567

910

Chapter 2 Installation

K7VT4-4X / K7VT4-8X is an ATX form factor (12.0" x 7.0", 30.5 x 17.8 cm)

motherboard. Before you install the motherboard, please study the configuration of

your chassis to ensure that themotherboard fits into it.

Make sure to unplug the power cord before installing or re-

moving the motherboard. Failure to do so may cause physical

injuries to you and damages to motherboard components.

2.1 Screw Holes

Please place screws into the holes indicated by circles to secure the motherboard to

the chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, please place it on a grounded antistatic

pad or in the bag that comes with the component.

Before you install or remove any component, pleasse ensure that the

power is switched off or the power cord is detached from the power

supply. Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK UTX-111 Manuel utilisateur

ASROCK

ASROCK Fatal1ty X79 Champion Manuel utilisateur

ASROCK

ASROCK 890FX Deluxe4 Manuel utilisateur

ASROCK

ASROCK Fatal1ty B150 Gaming K4 Manuel utilisateur

ASROCK

ASROCK X470 Master SLI Manuel utilisateur

ASROCK

ASROCK G43TWINS-FULLHD Manuel utilisateur

ASROCK

ASROCK H410M-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK Fatal1ty X79 Champion Manuel utilisateur

ASROCK

ASROCK FM2A75M-ITX Manuel utilisateur

ASROCK

ASROCK P41C-DE Manuel utilisateur

ASROCK

ASROCK B460M-HDV Manuel utilisateur

ASROCK

ASROCK Z590 PHANTOM GAMING 4 Manuel utilisateur

ASROCK

ASROCK A770DE Manuel utilisateur

ASROCK

ASROCK A320TM-ITX Manuel utilisateur

ASROCK

ASROCK H470 Steel Legend Manuel utilisateur

ASROCK

ASROCK H61M-DG4 Manuel utilisateur

ASROCK

ASROCK 939S56-M Manuel utilisateur

ASROCK

ASROCK D1541D4U Series Manuel utilisateur

ASROCK

ASROCK 4CORE1333-FULLHD - V1.1 Manuel utilisateur

ASROCK

ASROCK H67M-GE Manuel utilisateur

ASROCK

ASROCK EPYC3451D4I2-2T Manuel utilisateur

ASROCK

ASROCK A520M-HDVP 2.0 Manuel utilisateur

ASROCK

ASROCK 939SLI32-ESATA2 Manuel de l'opérateur

ASROCK

ASROCK E3V5 Performance Gaming Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
