ASRock A770DE Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

PublishedNovember2008

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock A770DE Motherboard

EnglishEnglish

English

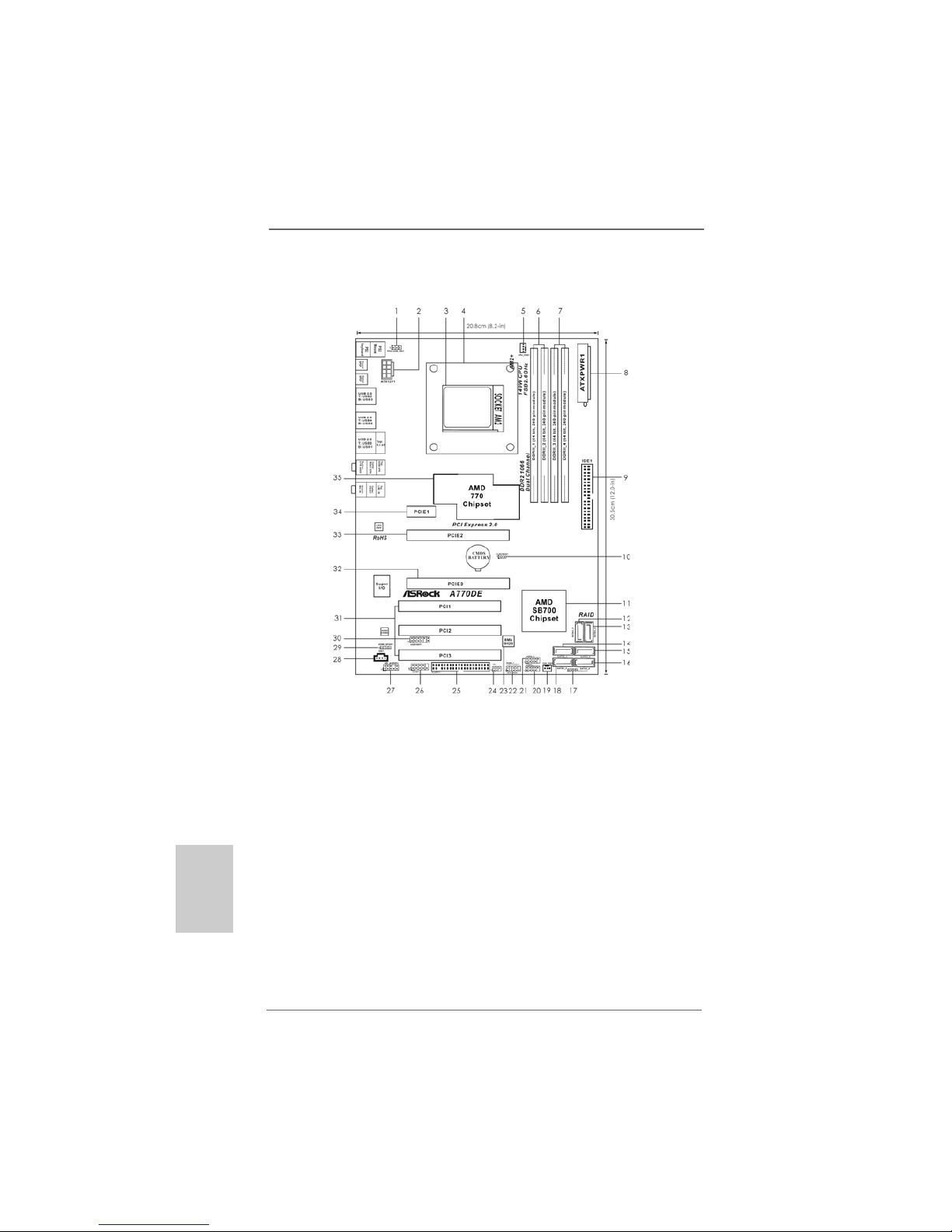

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 19 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Power Connector (ATX12V1) 20 USB 2.0 Header (USB6_7, Blue)

3 AM2 940-Pin CPU Socket 21 USB 2.0 Header (USB8_9, Blue)

4 CPU Heatsink Retention Module 22 System Panel Header (PANEL1, Orange)

5 CPU Fan Connector (CPU_FAN1) 23 SPI Flash Memory (8Mb)

6 2 x 240-pin DDR2 DIMM Slots 24 Infrared Module Header (IR1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 25 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDR2 DIMM Slots 26 Serial Port Connector (COM1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 Front Panel Audio Header

8 ATX Power Connector (ATXPWR1) (HD_AUDIO1, Lime)

9 Primary IDE Connector (IDE1, Blue) 28 Internal Audio Connector: CD1 (Black)

10 Clear CMOS Jumper (CLRCMOS1) 29 HDMI_SPDIF Header

11 Southbridge Controller (HDMI_SPDIF1, Yellow)

12 Fifth SATAII Connector (SATAII_5, Red) 30 USB/WiFi Header (USB/WIFI, Yellow)

13 Sixth SATAII Connector (SATAII_6, Red) 31 PCI Slots (PCI1- 3)

14 Primary SATAII Connector (SATAII_1, Red) 32 PCI Express 2.0 x16 Slot

15 Third SATAII Connector (SATAII_3, Red) (PCIE3; Orange)

16 Fourth SATAII Connector (SATAII_4, Red) 33 PCI Express 2.0 x16 Slot (PCIE2; Green)

17 Chassis Speaker Header 34 PCI Express x1 Slot (PCIE1; Green)

(SPEAKER 1, Purple) 35 Northbridge Controller

18 Secondary SATAII Connector (SATAII_2, Red)

ASRock A770DE Motherboard

EnglishEnglish

English

I/O PI/O P

I/O Panelanel

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE forAudio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEEDLED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

1 PS/2 Mouse Port (Green) 8 Microphone (Pink)

* 2 LAN RJ-45 Port (LAN1) 9 USB 2.0 Ports (USB45)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 USB 2.0 Ports (USB01)

5 Central / Bass (Orange) 12 Optical SPDIF Out Port

6 Line In (Light Blue) 13 Coaxial SPDIF Out Port

** 7 Front Speaker (Lime) 14 PS/2 Keyboard Port (Purple)

4ASRock A770DE Motherboard

EnglishEnglish

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HDAudio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel”, “4 Channel”, “6 Channel” or “8 Channel”. Click “Power” to save your

change.

For Windows®VistaTM / VistaTM 64-bit OS:

Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

ASRock A770DE Motherboard

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock A770DE motherboard, a reliable motherboard pro-

duced underASRock’s consistently stringent quality control. It delivers excellent perfor-

mance withrobust designconformingtoASRock’scommitment toquality andendurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 PP

Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

1 xASRock A770DE Motherboard

(ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm)

1 xASRock A770DE Quick InstallationGuide

2 xASRock A770DE Support CD

1 x UltraATA 66/100/133 IDE Ribbon Cable (80-conductor)

2 x SerialATA(SATA)Data Cables (Optional)

1 x SerialATA(SATA) HDDPower Cable (Optional)

1 x I/O Panel Shield

EnglishEnglish

English

6ASRock A770DE Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - 12.0-in x 8.2-in, 30.5 cm x 20.8 cm

CPU - Support for SocketAM2+ / AM2 processors:AMDPhenomTM

FX / Phenom / Athlon 64 FX /Athlon 64 X2Dual-Core / Athlon

X2 Dual-Core /Athlon 64 / Sempronprocessor

- Supports CPU up to 140W

-AMDLIVE!TM Ready

- SupportsAMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport 3.0 (HT3.0) Technology

Chipset -Northbridge:AMD770

- Southbridge:AMDSB700

Memory -Dual Channel DDR2 Memory Technology (see CAUTION 2)

- 4 xDDR2 DIMM slots

-SupportDDR21066/800/667/533non-ECC,un-bufferedmemory

(see CAUTION 3)

- Max. capacity of system memory: 16GB (see CAUTION 4)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, orange @ x4 mode)

- 1 x PCI Express 2.0 x1 slot

- 3 x PCI slots

- SupportsATITM CrossFireXTM

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(VIA®VT1708S Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

-Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 5)

Connector - 6 x SerialATAII 3.0Gb/s connectors, support RAID(RAID0,

RAID1, RAID 10 and JBOD), NCQ,AHCI and “Hot Plug”

functions (see CAUTION 6)

ASRock A770DE Motherboard

EnglishEnglish

English

- 1 xATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 7)

- 1 x USB/WiFi header (see CAUTION 8)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU,DRAM,NBVoltage Multi-adjustment

- Supports Smart BIOS

Support CD -Drivers, Utilities,AntiVirus Software (TrialVersion)

Unique Feature -ASRock OC Tuner (see CAUTION 9)

- Intelligent Energy Saver (see CAUTION 10)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

-ASRock U-COP (see CAUTION 12)

- Boot FailureGuard (B.F.G.)

-ASRockAM2 Boost:ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 13)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis FanTachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit /

VistaTM / VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft®WHQL Certificated

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock A770DE Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 26 for details.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 12 for proper

installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+

CPU you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM

64-bit with 64-bit CPU, there is no such limitation.

5. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

6. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 29 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect

SATA hard disk to SATAII connector directly.

7. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

8. USB/WiFi header can be used to support 2 USB 2.0 ports. It can also be

used to support WiFi+AP function with ASRock WiFi-802.11g or WiFi-

802.11n module, an easy-to-use wireless local area network (WLAN)

adapter. It allows you to create a wireless environment and enjoy the

convenience of wireless network connectivity. Please visit our website

for the availability of ASRock WiFi-802.11g or WiFi-802.11n

module. ASRock website http://www.asrock.com

9. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows®

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website: http://www.asrock.com

ASRock A770DE Motherboard

EnglishEnglish

English

10. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance.

To use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet

option in the BIOS setup in advance. Please visit our website for the

operation procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

11. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

13. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you

adopt. Enabling this function will overclock the chipset/CPU reference clock.

However, we can not guarantee the system stability for all CPU/DRAM

configurations. If your system is unstable after AM2 Boost function is enabled,

it may not be applicative to your system. You may choose to disable this

function for keeping the stability of your system.

1010

10 ASRock A770DE Motherboard

EnglishEnglish

English

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

This is an ATX form factor (12.0-in x 8.2-in, 30.5 cm x 20.8 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

Autres manuels pour A770DE

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK P5B-DE Manuel utilisateur

ASROCK

ASROCK B550AM Gaming Manuel utilisateur

ASROCK

ASROCK Fatal1ty X99M Killer Series Manuel utilisateur

ASROCK

ASROCK ALIVENF6P-VSTA Manuel utilisateur

ASROCK

ASROCK IMB-140D Manuel utilisateur

ASROCK

ASROCK A320M-HDVP Manuel utilisateur

ASROCK

ASROCK N4200-NUC IPC Manuel utilisateur

ASROCK

ASROCK Z77 OC Formula Manuel utilisateur

ASROCK

ASROCK PRO Series Manuel utilisateur

ASROCK

ASROCK CML-HDV/M.2 TPM Manuel utilisateur

ASROCK

ASROCK Rack E3C224D4M-16RE Manuel utilisateur

ASROCK

ASROCK X300-ITX Manuel utilisateur

ASROCK

ASROCK FM2A55M-HD Manuel utilisateur

ASROCK

ASROCK NUC-6100U Manuel utilisateur

ASROCK

ASROCK FM2A85X Extreme4-M Manuel utilisateur

ASROCK

ASROCK H61M-DG3/USB3 Manuel utilisateur

ASROCK

ASROCK P55 EXTREME Manuel utilisateur

ASROCK

ASROCK IMB-185 Manuel utilisateur

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Manuel utilisateur

ASROCK

ASROCK P55 PRO/USB3 - Manuel utilisateur

ASROCK

ASROCK 990FX EXTREME3 Manuel utilisateur

ASROCK

ASROCK B760M-HDV/M.2 D4 Manuel utilisateur

ASROCK

ASROCK K10N78M PRO Manuel utilisateur

ASROCK

ASROCK A780GM-LE - V1.1 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
