2ASRock 939S56-M Motherboard

EnglishEnglish

English

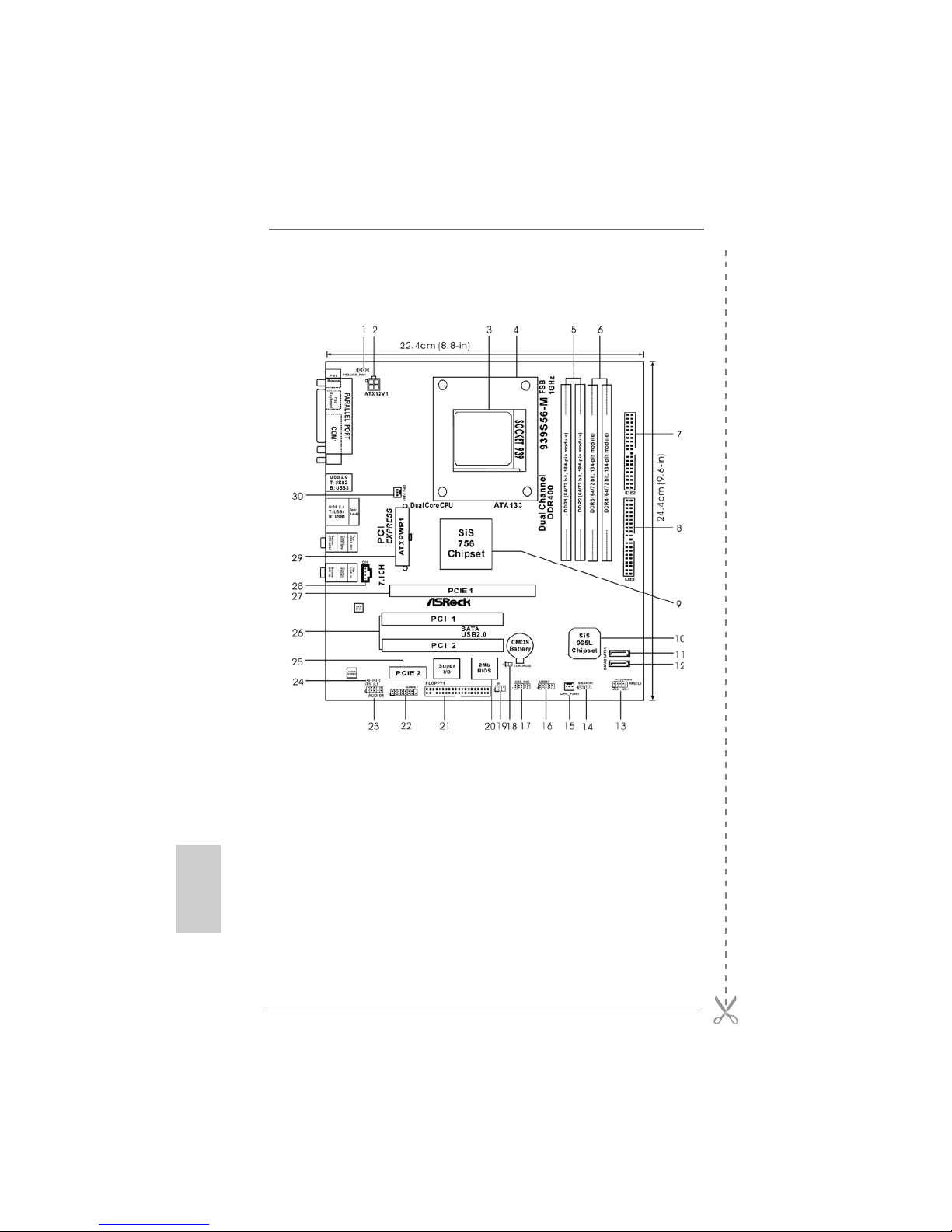

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PW1 Jumper 15 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 16 USB 2.0 Header (USB67, Blue)

3 939-Pin CPU Socket 17 USB 2.0 Header (USB_H45, Blue)

4 CPU Heatsink Retention Module 18 Clear CMOS Jumper (CLRCMOS2)

5 2 x 184-pin DDR DIMM Slots 19 Infrared Module Header (IR1)

(Dual Channel A: DDR1, DDR2; Blue) 20 Flash Memory

6 2 x 184-pin DDR DIMM Slots 21 Floppy Connector (FLOPPY1)

(Dual Channel B: DDR3, DDR4; Black) 22 Game Port Header (GAME1)

7 Secondary IDE Connector (IDE2, Black) 23 Front Panel Audio Header (AUDIO1)

8 Primary IDE Connector (IDE1, Blue) 24 JR1JL1 Jumper

9 North Bridge Controller 25 PCI EXPRESS Slot (PCIE2)

10 South Bridge Controller 26 PCI Slots (PCI1 - 2)

11 Primary Serial ATA Connector (SATA1) 27 PCI EXPRESS Slot (PCIE1)

12 Secondary Serial ATA Connector (SATA2) 28 Internal Audio Connector: CD1 (Black)

13 System Panel Header (PANEL1) 29 ATX Power Connector (ATXPWR1)

14 Chassis Speaker Header (SPEAKER 1) 30 CPU Fan Connector (CPU_FAN1)

ASRock 939S56-M Motherboard

EnglishEnglish

English

ASRock 8CH I/OASRock 8CH I/O

ASRock 8CH I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central/ Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

4ASRock 939S56-M Motherboard

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock 939S56-M motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available onASRock website without further notice. You

may find the latest memory and CPU support lists on ASRock website

as well.

ASRock website http://www.asrock.com

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

1 x ASRock 939S56-M Motherboard

(Micro ATX Form Factor: 9.6-in x 8.8-in, 24.4 cm x 22.4 cm)

1 x ASRock 939S56-M Quick Installation Guide

1 x ASRock 939S56-M Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x 3.5-in Floppy Drive Ribbon Cable

1 x SerialATA (SATA) Data Cable (Optional)

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 xASRock 8CH I/O Shield

EnglishEnglish

English

ASRock 939S56-M Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform: MicroATX Form Factor: 9.6-in x 8.8-in, 24.4 cm x 22.4 cm

CPU: 939-Pin Socket Supporting AMDAthlonTM 64 / 64FX / 64 X2

Processors

SupportsAMD’s Cool ‘n’ QuietTM Technology (see CAUTION 1)

Chipsets: North Bridge: SiS 756 Chipset

FSB @ 1 GHz (2.0 GT/s) / 800MHz

Supports Untied Overclocking Technology

(see CAUTION 2)

South Bridge: SiS 965L Chipset

Supports USB 2.0, ATA 133, SATA 1.5Gb/s

Memory: 4xDDRDIMMSlots:DDR1,DDR2,DDR3, andDDR4

Support PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 4GB

IDE: IDE1:ATA133 / UltraDMAMode 6

IDE2:ATA133 / UltraDMAMode 6

Supports up to 4 IDE Devices

Serial ATA: 2 x SATA Connectors

Supports up to 2 SATADevices at 1.5Gb/sData Transfer Rate

Floppy Port: Supports up to 2 Floppy Disk Drives

Audio: 7.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), Supports Wake-On-LAN

Hardware Monitor: CPU Temperature Sensing

Motherboard Temperature Sensing

CPU Overheat Shutdown to Protect CPU Life

(ASRock U-COP)(see CAUTION 3)

CPU Fan Tachometer

Chassis Fan Tachometer

Voltage Monitoring: +12V, +5V, +3.3V, Vcore

PCI Slots: 2 x PCI Slots, PCI Specification 2.2

PCI EXPRESS Slots: 1 slot with PCIE x 1, 1 slot with PCIE x 16;

PCIE Specification 1.0a

USB 2.0: 8 USB 2.0 Ports:

4 Ready-to-Use USB 2.0 Ports on the I/O Panel

Plus 2 On-Board Headers Supporting 4 Extra USB 2.0 Ports

(see CAUTION 4)

ASRock 8CH I/O: 1 PS/2 Mouse Port, 1 PS/2 Keyboard Port

1 Serial Port: COM1

1 Parallel Port (ECP/EPP Support)

4 Ready-to-Use USB 2.0 Ports

1 RJ-45 Port

6ASRock 939S56-M Motherboard

EnglishEnglish

English

Audio Jack: Side Speaker / Rear Speaker / Central/Bass /

Line In / Front Speaker / Microphone

(see CAUTION 5)

BIOS: AMI Legal BIOS

Supports “Plug and Play”

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

CPU Frequency Stepless Control

(only for advanced users’ reference, see CAUTION 6)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. For power-saving sake, it is strongly recommended to enable AMD’s Cool ‘n’

QuietTM technology under Windows system. See APPENDIX on page 37 of

“User Manual” in the support CD to enable AMD’s Cool ‘n’ QuietTM technology.

2. This motherboard supports Untied Overclocking Technology. FSB enjoys

better margin due to fixed PCI/PCIE buses. In other words, CPU FSB is untied

during overclocking, but PCIE and PCI buses are in the fixed mode so that

FSB can operate under a more stable overclocking environment.

3. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the motherboard

functions properly and unplug the power cord, then plug it back again. To

improve heat dissipation, remember to spray thermal grease between the

CPU and the heatsink when you install the PC system.

4. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/ ME.

5. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

6. Although this motherboard offers stepless control, it is not recommended to

perform over-clocking. Frequencies other than the recommended CPU bus

frequencies may cause the instability of the system or damage the CPU.

ASRock 939S56-M Motherboard

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a

grounded antstatic pad or in the bag that comes with the

component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Step 5. Install CPU fan and heatsink. For proper installation, please kindly refer to

the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

8ASRock 939S56-M Motherboard

EnglishEnglish

English

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

939S56-M motherboard provides four 184-pin DDR (Double Data Rate) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration, you

always need to install identical (the same brand, speed, size and chip-type) DDR

DIMM pair in the slots of the same color. In other words, you have to install identical

DDR DIMM pair in Dual Channel A (DDR1 and DDR2; Blue slots; see p.2 No. 5) or

identical DDRDIMM pair in Dual Channel B (DDR3 and DDR4; Black slots; see p.2

No. 6), so that Dual Channel Memory Technology can be activated. This motherboard

also allows you to install four DDR DIMMs for dual channel configuration, and please

install identical DDR DIMMs in all four slots. You may refer to the Dual Channel

Memory Configuration Table below.

Dual Channel Memory Configurations

DDR1 DDR2 DDR3 DDR4

(Blue Slot) (Blue Slot) (Black Slot) (Black Slot)

(1) Populated Populated - -

(2) - - Populated Populated

(3)* Populated Populated Populated Populated

* For the configuration (3), please install identical DDRDIMMs in all four slots.

* It is recommended to installDDR1 andDDR2 (blue slots) first. Then to install

inDDR3 andDDR4 (black slots). (That is, to populateDDR DIMM from the

near side of CPU towards to the far side of CPU.)

1. If you want to install two different memory modules, for optimal

compatibility and reliability, it is recommended to install them in the

slots of different color. In other words, install them either in DDR1

and DDR3.

2. If only one memory module or three memory modules are installed

in the DDR DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in DDR1

and DDR3, it is unable to activate the Dual Channel Memory Tech-

nology .

ASRock 939S56-M Motherboard

Installing a DIMMInstalling a DIMM

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

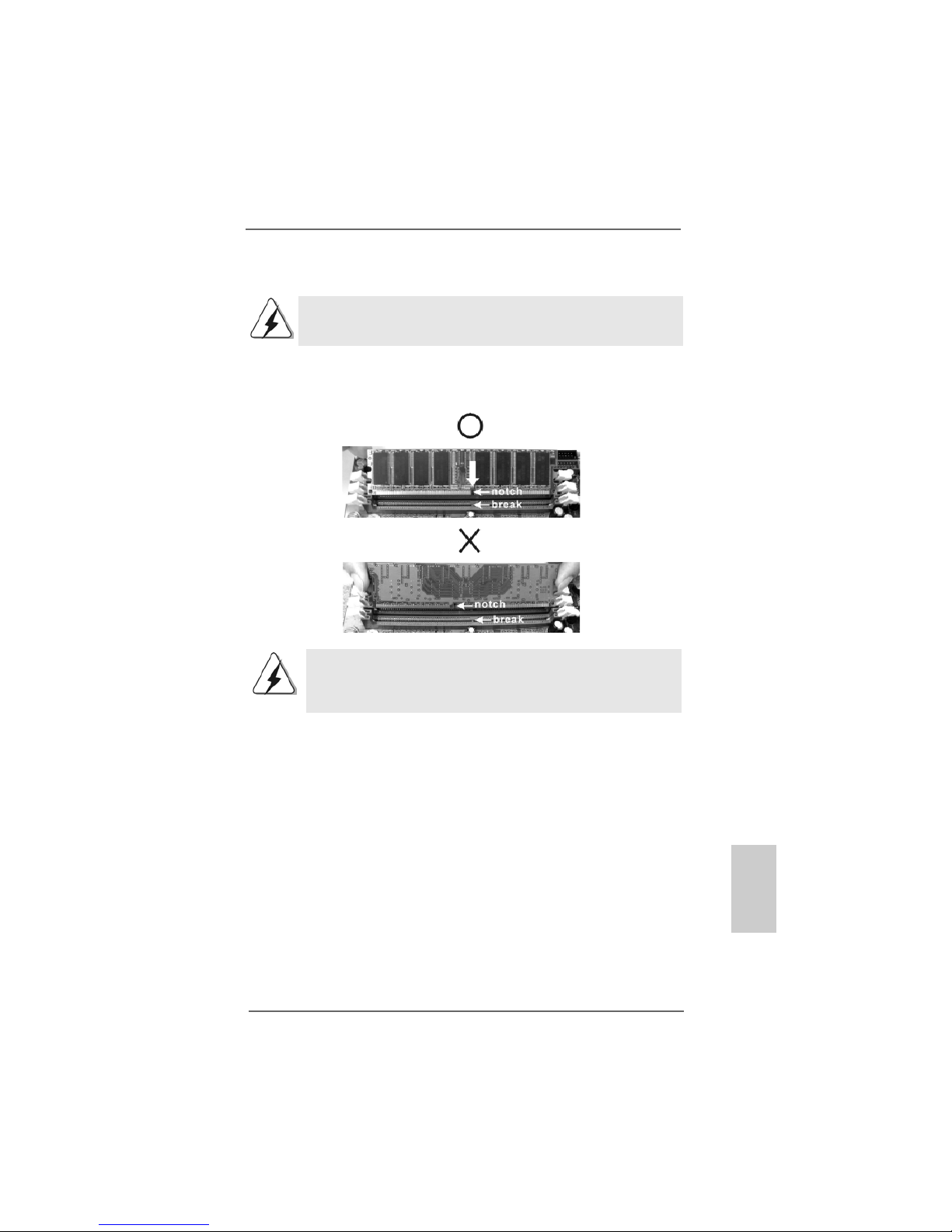

STEP1: Unlock a DIMM slot by pressing the retaining clips outward.

STEP2: Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

STEP3: Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

EnglishEnglish

English

1010

10 ASRock 939S56-M Motherboard

EnglishEnglish

English

2.3 Expansion Slots (PCI and AGP Slots)2.3 Expansion Slots (PCI and AGP Slots)

2.3 Expansion Slots (PCI and AGP Slots)

There are 2 PCI slots and 2 PCI Express slots on 939S56-M motherboard.

PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE Slots: PCIE1 (PCIE x16 slot) is used for PCI Express cards with x16 lane

width graphics cards.

PCIE2 (PCIE x1 slot) is used for PCI Express cards, such as

Gigabit LANcard, SATA II card, etc.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screw

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

Autres manuels pour 939S56-M

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK IMB-391 Manuel utilisateur

ASROCK

ASROCK P55 EXTREME4 - Manuel utilisateur

ASROCK

ASROCK PRO BTC Series Manuel utilisateur

ASROCK

ASROCK H310M-HG4 Manuel utilisateur

ASROCK

ASROCK P55 DELUXE - V1.1 Manuel utilisateur

ASROCK

ASROCK 939N68PV-GLAN Manuel utilisateur

ASROCK

ASROCK H81M-DGS R2.0 Manuel utilisateur

ASROCK

ASROCK Z270M Manuel utilisateur

ASROCK

ASROCK N68-GS UCC - Manuel utilisateur

ASROCK

ASROCK A790GX 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK IMB-184-PY Manuel utilisateur

ASROCK

ASROCK 939Dual-VSTA Manuel utilisateur

ASROCK

ASROCK K8N68PV-GLAN Manuel utilisateur

ASROCK

ASROCK N61P-GS - Manuel utilisateur

ASROCK

ASROCK X99 Taich Manuel utilisateur

ASROCK

ASROCK H81 Pro BTC Manuel utilisateur

ASROCK

ASROCK H55 PRO - V1.0 Manuel utilisateur

ASROCK

ASROCK B365 Pro4 Manuel utilisateur

ASROCK

ASROCK IMB-186-E Manuel de service

ASROCK

ASROCK H310M-G/M.2 Manuel utilisateur

ASROCK

ASROCK E3C204 Manuel utilisateur

ASROCK

ASROCK ALIVENF7G-HDREADY Manuel utilisateur

ASROCK

ASROCK Z390M Pro4 Manuel utilisateur

ASROCK

ASROCK H55M LE - V 1.0 - 01-2010 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
