IMB-X1314

User Manual

Version 1.0

Published June 17, 2022

Version 1.0

Published June 16, 2022

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRockInd Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility

for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRockInd does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRockInd, its directors, ocers, employees, or agents be liable

for any indirect, special, incidental, or consequential damages (including damages

for loss of prots, loss of business, loss of data, interruption of business and the

like), even if ASRockInd has been advised of the possibility of such damages arising

from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRockInd Website: http://www.asrockind.com

e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

CAUTION:

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 9

1.4 I/O Panel........................................................................ 11

2 Installation ......................................................... 12

2.1 Screw Holes................................................................... 12

2.2 Pre-installation Precautions ........................................... 12

2.3 Installation of Memory Modules (DIMM) ........................ 13

2.4 Expansion Slots ............................................................ 15

2.5 Jumpers Setup............................................................... 17

2.6 Onboard Headers and Connectors................................ 20

2.7 Installation of ROM Socket ............................................ 26

3 UEFI SETUP UTILITY......................................... 27

3.1 Introduction .................................................................... 27

3.1.1 UEFI Menu Bar .................................................... 27

3.1.2 Navigation Keys ................................................... 28

3.2 Main Screen................................................................... 28

3.3 Advanced Screen........................................................... 29

3.3.1 CPU Conguration ............................................... 30

3.3.2 Chipset Conguration........................................... 32

3.3.3 Storage Conguration .......................................... 34

3.3.4 Super IO Conguration ........................................ 35

3.3.5 AMT Conguration ............................................... 36

3.3.6 ACPI Conguration............................................... 38

3.3.7 USB Conguration ............................................... 39

3.3.8 Trusted Computing............................................... 40

3.3.9 Thunderbolt(TM) Conguration............................ 41

3.4 Hardware Health Event Monitoring Screen ................... 42

3.5 Security Screen ............................................................. 43

3.6 Boot Screen ................................................................... 44

3.7 Exit Screen .................................................................... 45

Chapter 1: Introduction

Thank you for purchasing ASRockInd IMB-X1314 motherboard, a reliable mother-

board produced under ASRockInd’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRockInd’s commitment

to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 contains the conguration guide

to BIOS setup.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRockInd website without further notice. You may

nd the latest VGA cards and CPU support lists on ASRockInd website

as well. ASRockInd website http://www.asrockind.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrockind.com/support/index.asp

1.1 Package Contents

ASRockInd IMB-X1314 Motherboard (Micro ATX (9.6-in x 9.6-in))

1.2 Specications

Form

Factor Dimensions Micro ATX (9.6-in x 9.6-in)

Processor

System

CPU Intel®12th Gen (Alder Lake-S) Core™

Processors, up to 125W

Chipset Intel®W680

Socket LGA 1700

BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel ECC/non-ECC DDR4 3200 MHz

Capacity 128GB (32GB per DIMM)

Socket 4 x 288-pin Long-DIMM

Graphics

Controller Intel®Iris® Xe Graphics

HDMI HDMI 2.0b

Max resolution up to 4096 x 2160@60Hz

DisplayPort DisplayPort 1.4a, DP++

Max resolution up to 4096x2160@60Hz

VGA Max resolution up to 1920 x 1200@60Hz

LVDS Dual channel 24 bit up to 1920 x 1200@60Hz

MultiDisplay Quad Display

Expansion

Slot

PCIe

2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at

x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))

(PCIE1: Support riser card x8/x8)

2 x PCIex4 (Gen4)*

*If using PCIEx8/x16 card on PCIE2/PCIE4 slot,

M.2 Key M2(M2_M2) and M.2 Key E(M2_E1)

are limited to install

M.2

1 x M.2 (Key B, 3042/3052) with PCIex1, USB

3.2 Gen1, USB 2.0 and SIM for 4G/5G

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0

and CNVi for Wireless

SIM Socket 1 x SIM socket connected to M.2 key B

Audio Interface Realtek ALC897 HD, High Denition Audio

Ethernet

Controller/

Speed

LAN1: Intel®I225LM with 10/100/1000/2500

Mbps, supports AMT/vPro

LAN2: Intel®I225LM with 10/100/1000/2500

Mbps

LAN3: Intel®I225LM with 10/100/1000/2500

Mbps

Connector 3 x RJ-45

Rear I/O

HDMI 1 x HDMI2.0b

DisplayPort 1 x DP 1.4a

VGA 1

Ethernet 3 x 2.5 Gigabit LAN

USB 5 x USB 3.2 Gen2

1 x USB 3.2 Gen2x2 (20G) Type C

Audio 3 (Line-In/Line-Out/Mic-In)

Serial Port COM1, COM2 (RS-232/422/485)

Internal

Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)

4 x USB 2.0 (2 x 2.54 pitch header)

COM COM3, COM4, COM5, COM6 (RS-232)

Parallel 1 (shared with GPIO)

GPIO 8 x GPI, 8 x GPO (shared with LPT header)

TPM TPM 2.0 on board IC

LVDS 1

Speaker

Header 1

PS/2 1 x PS/2 header

Thunderbolt

header 2 (only support by PCIE4)

Storage

M.2

1 x M.2 (Key M, up to 25110) with PCIex4

Gen4 for SSD

1 x M.2 (Key M, 2242/2260/2280) with

PCIex4 Gen3 for SSD

SATA 8 x SATA3 (6Gb/s)

RAID

Intel®VMD RAID 0/1/5/10

**Supported by identical interface (PCIe or

SATA)

PCIe interface: M.2 Key B + M.2 Key M1/2

or 2*M.2 Key M

SATA interface: SATA port

Watchdog

Timer

Output From Super I/O to drag RESETCON#

Interval 256 Segments, 0, 1, 2, ...255sec

Power

Requirements

Input PWR ATX PWR (24+8-pin)

Power On

AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power

input ready

Environment

Operating

Temp 0ºC ~ 60ºC

Storage

Temp -40°C ~ 85°C

Operating

Humidity 5% ~ 90%

Storage

Humidity 5% ~ 90%

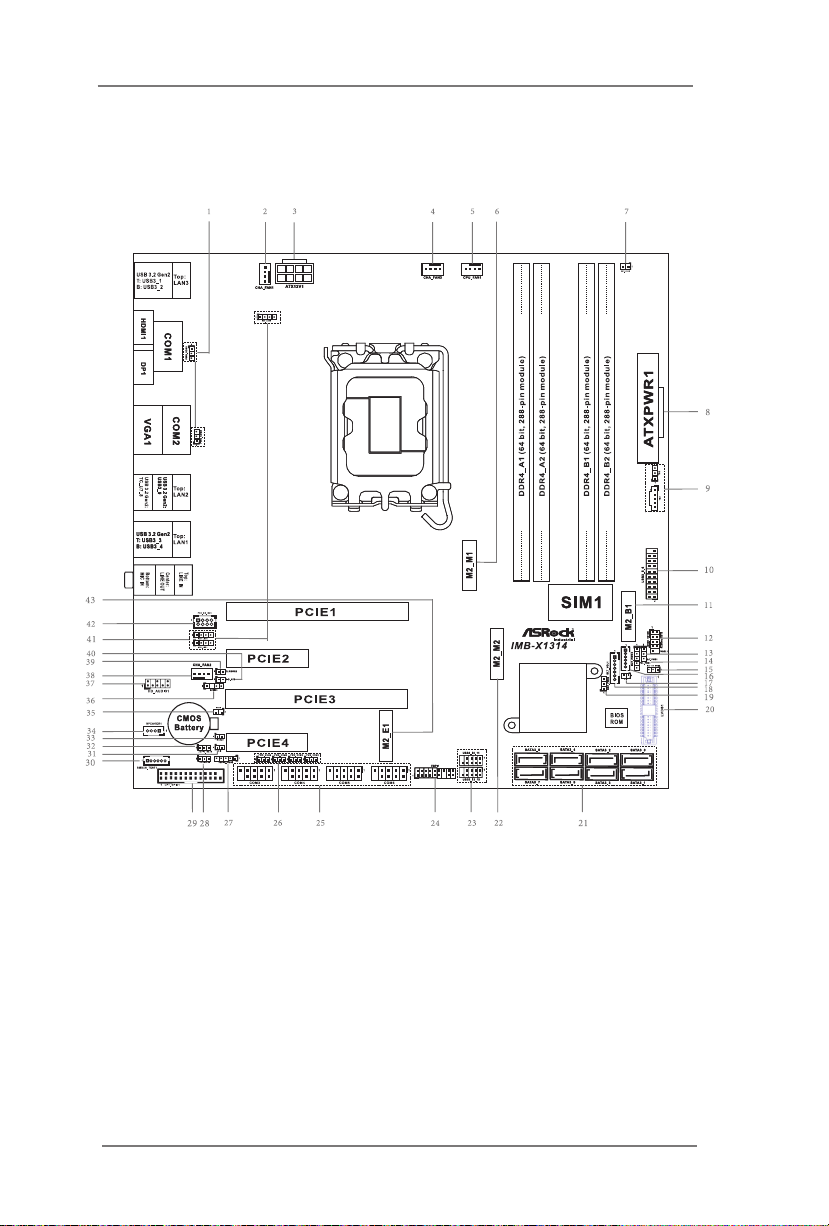

1.3 Motherboard Layout

1 : COM Port Pin9 PWR Setting Jumpers

PWR_COM1 (For COM Port1)

PWR_COM2 (For COM Port2)

2 :

4-Pin Chassis FAN Connector (+12V) (CHA_FAN1)

3 :

ATX 12V Power Connector

4 :

4-Pin Chassis FAN Connector (+12V) (CHA_FAN3)

5 :

4-Pin CPU FAN Connector (+12V) (CPU_FAN1)

6 : M.2 Key-M Socket (M2_M1)

7 : Power Loss Header (PWR_LOSS1)

8 :

24-pin ATX Power Input Connector

9 : Thunderbolt AIC Connectors (TB1, TB2)

: USB 3.2 Gen1 Header (

USB3_5_6

)

11 : M.2 Key-B Socket (M2_B1)

12 :

System Panel Header

13 : Brightness Control Mode (BLT_PWM1)

14 : Panel Power Select (PNL_PWR1)

15 :

CON_LBKLT_EN and CON_LBKLT_CTL Voltage Level (BLT_EN_PWM1)

16 : Inverter Power Control Wafer (BLT_PWR1)

17 : Chassis Intrusion Header (CI1)

18 : Backlight & Amp Volume Control (BLT_VOL1)

19 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR2)

20 : LVDS Panel Connector

21 : SATA3 Connectors (SATA3_0~7)

22 : M.2 Key-M Socket (M2_M2)

: USB 2.0 Headers (

USB2_10_11, USB2_12_13

)

24 : ESPI Header

25 : COM Port Headers (COM3,4,5,6) (RS232)

26 : COM Port Pin9 PWR Setting Jumpers

PWR_COM3 (For COM Port3)

PWR_COM4 (For COM Port4)

PWR_COM5 (For COM Port5)

PWR_COM6 (For COM Port6)

: Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)

28 : Clear CMOS Header (CLRMOS1)

29 : Printer Port / GPIO Header (LPT_GPIO1)

30 : SMBUS_TEST1

31 : Chassis Intrusion Header (CI2)

32 :

Digital Input / Output Power Select (JGPIO_SET1)

33 : Buzzer (BUZZ2)

34 : 3W Audio Output Wafer

35 : DACC1

36 : SPDIF Header

Front Panel Audio Header

38 :

4-Pin Chassis FAN Connector (+12V) (CHA_FAN2)

39 : Clear CMOS Header (CLRMOS2)

40 :

ATX/AT Mode Jumper (SIO_AT1)

41 : LAN LED Headers

I225_LED3 (For LAN3 Port)

I225_LED2 (For LAN2 Port)

I225_LED1 (For LAN1 Port)

42 :

PS/2 Keyboard/Mouse Header

43 : M.2 Key-E Socket (M2_E1)

Autres manuels pour IMB-X1314

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK Z690 Extreme WiFi 6E Manuel utilisateur

ASROCK

ASROCK B365 PHANTOM GAMING 4 Manuel utilisateur

ASROCK

ASROCK P43ME Manuel utilisateur

ASROCK

ASROCK K7S41 Manuel utilisateur

ASROCK

ASROCK N68C-GS FX Manuel utilisateur

ASROCK

ASROCK IMB-146 Manuel utilisateur

ASROCK

ASROCK H61M-GS Manuel utilisateur

ASROCK

ASROCK H61M-VGS Manuel utilisateur

ASROCK

ASROCK H55 EXTREME3 Manuel utilisateur

ASROCK

ASROCK A55 Pro Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z87 Professional Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-GLAN Manuel utilisateur

ASROCK

ASROCK A75 Extreme6 Manuel utilisateur

ASROCK

ASROCK Fatal1ty FM2A88X+ Killer Series Manuel utilisateur

ASROCK

ASROCK A780LM - V1.1 Manuel utilisateur

ASROCK

ASROCK E350M1 - Manuel utilisateur

ASROCK

ASROCK IMB-184-PY Manuel utilisateur

ASROCK

ASROCK Z390 Phantom Gaming 9 Manuel utilisateur

ASROCK

ASROCK A75 Extreme6 Manuel utilisateur

ASROCK

ASROCK FM2A88M+ BTC Manuel utilisateur

ASROCK

ASROCK IMB-A182 Manuel utilisateur

ASROCK

ASROCK 890GX Pro3 Manuel utilisateur

ASROCK

ASROCK H61MV-ITX Manuel utilisateur

ASROCK

ASROCK Z170 OC FORMULA Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
