ASROCK A55 Pro Manuel utilisateur

ASRock A55 Pro Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published August 2012

2ASRock A55 Pro Motherboard

English

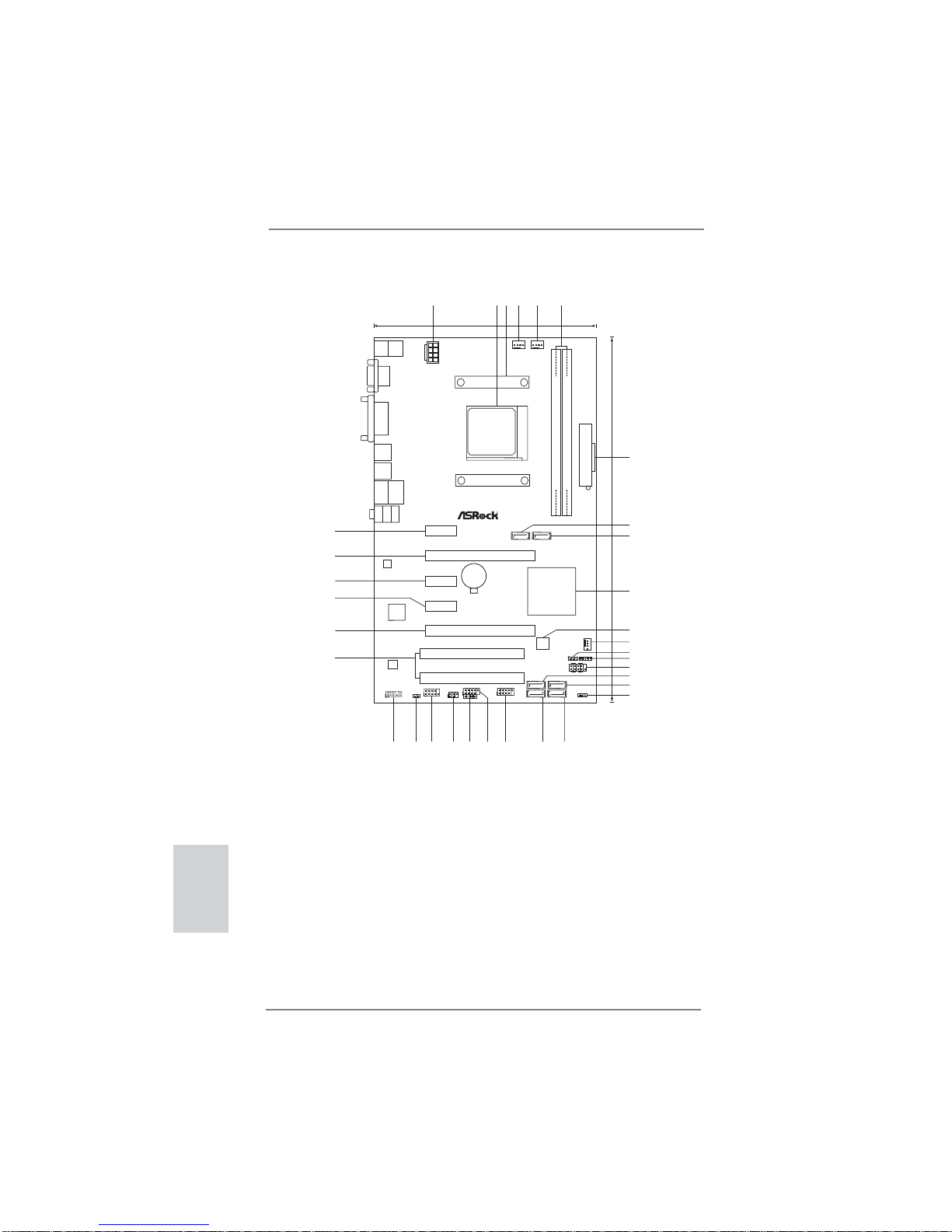

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 17 SATA2 Connector (SATA_4)

2 CPU Socket 18 Power LED Header (PLED1)

3 CPU Heatsink Retention Module 19 SATA2 Connector (SATA_6)

4 CPU Fan Connector (CPU_FAN1) 20 SATA2 Connector (SATA_5)

5 Chassis Fan Connector (CHA_FAN2) 21 USB 2.0 Header (USB8_9)

6 2 x 240-pin DDR3 DIMM Slots 22 USB 2.0 Header (USB6_7)

(Dual Channel: DDR3_A1, DDR3_B1) 23 Consumer Infrared Module Header (CIR1)

7 ATX Power Connector (ATXPWR1) 24 Infrared Module Header (IR1)

8 SATA2 Connector (SATA_1) 25 COM Port Header (COM1)

9 SATA2 Connector (SATA_2) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

10 Southbridge Controller 27 Front Panel Audio Header (HD_AUDIO1)

11 SPI Flash Memory (32Mb) 28 PCI Slots (PCI1-2)

12 Chassis Fan Connector (CHA_FAN1) 29 PCI Express 2.0 x16 Slot (PCIE5)

13 Clear CMOS Jumper (CLRCMOS1) 30 PCI Express 2.0 x1 Slot (PCIE4)

14 Chassis Speaker Header (SPEAKER 1) 31 PCI Express 2.0 x1 Slot (PCIE3)

15 System Panel Header (PANEL1) 32 PCI Express 2.0 x16 Slot (PCIE2)

16 SATA2 Connector (SATA_3) 33 PCI Express 2.0 x1 Slot (PCIE1)

CMOS

Battery

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

ATXPWR1

Super

I/O

PCIE2

PCI1

PCIE1

HD_AUDIO1

IR1

COM1

PLED1

CLRCMOS1

HDLED RESET

PLED PWRBTN

PANEL1

SPEAKER1

HDMI_SPDIF1

USB6_7

CIR1

USB8_9

CHA_FAN1

LAN

CPU_FAN1

SATA_1

32Mb

BIOS

AUDIO

CODEC

PS2

Keyboard

PS2

Mouse

USB 2.0

T: USB0

B: USB1

ATX12V1

USB 2.0

T: USB4

B: USB5

RJ-45 LAN

USB 2.0

T: USB 2

B: USB3

PCIE3

PCIE4

PCIE5

PCI2

SOCKET FM1

CHA_FAN2

SATA_2

SATA_4

SATA_6

SATA_3

SATA_5

A55 Pro

XFast RAM

XFast LAN XFast USB

ErP/EuP Ready

DDR3 2400+

Dual Graphics

RoHS

VGA1

DVI1

Top:

Line In

Center:

Front

Bottom:

Mic In

18.3cm (7.2 in)

3456

30.5cm (12.0 in)

26 24

AMD

A55 FCH

(Hudson-D2)

Chipset

DX11

ASRock A55 Pro Motherboard

English

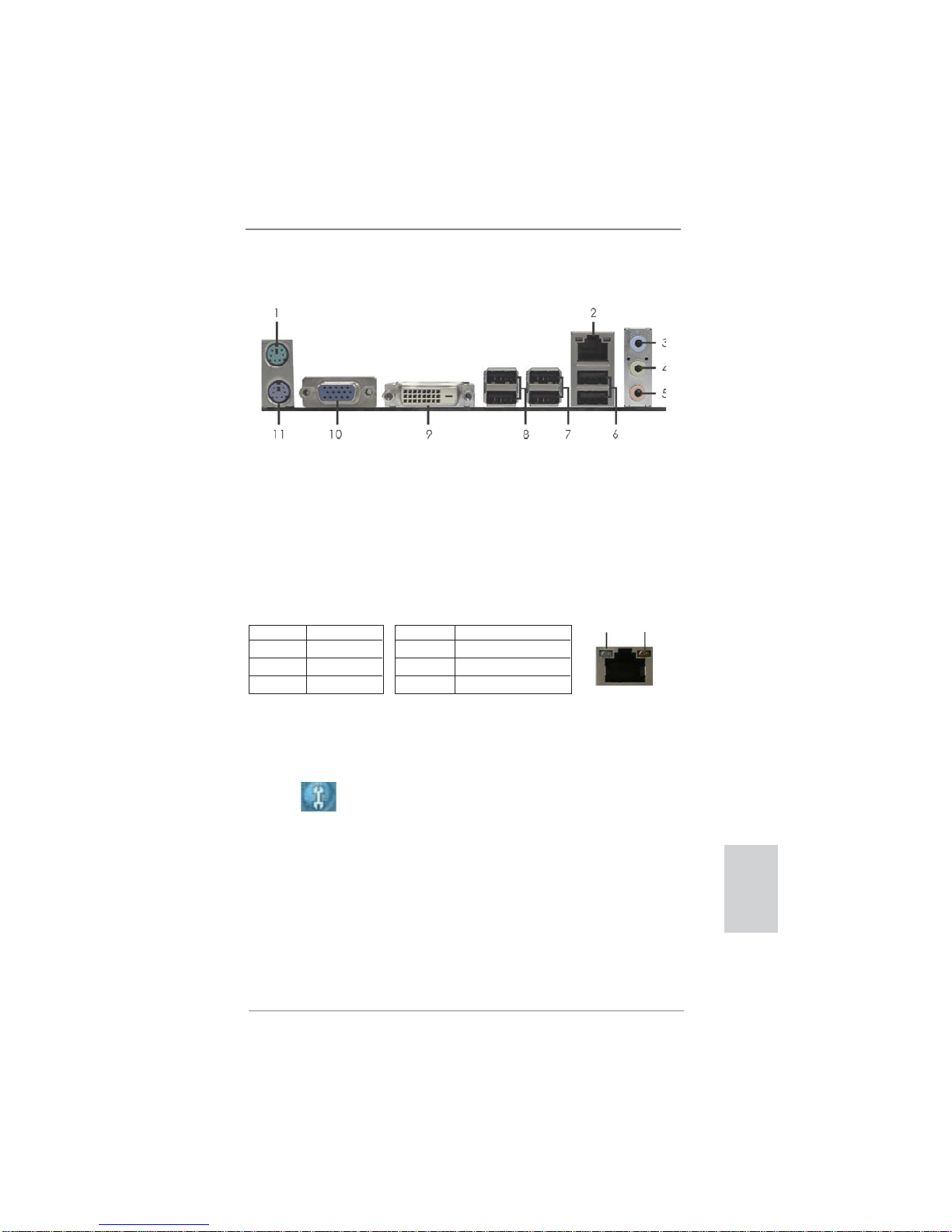

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection LAN Port

ACT/LINK

LED SPEED

LED

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB45)

* 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB01)

3 Line In (Light Blue) 9 DVI-D Port

** 4 Front Speaker (Lime) 10 D-Sub Port

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB23)

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will ﬁnd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDAAudio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock A55 Pro Motherboard

English

1. Introduction

Thank you for purchasing ASRock A55 Pro motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A55 Pro Motherboard

(ATX Form Factor: 12.0-in x 7.2-in, 30.5 cm x 18.3 cm)

ASRock A55 Pro Quick Installation Guide

ASRock A55 Pro Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

ASRock A55 Pro Motherboard

English

1.2 Speciﬁcations

Platform - ATX Form Factor: 12.0-in x 7.2-in, 30.5 cm x 18.3 cm

- All Solid Capacitor design

CPU - Support for Socket FM1 100W processors

- 4 + 1 Power Phase Design

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A55 FCH (Hudson-D2)

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/1066/

800 non-ECC, un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 16GB (see CAUTION 2)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(PCIE2 @ x16 mode; PCIE5 @ x4 mode)

- 3 x PCI Express 2.0 x1 slots

- 2 x PCI slots

- Supports AMD Quad CrossFireXTM, CrossFireXTM and Dual

Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB

- Dual VGA Output: support D-Sub and DVI-D ports by

independent display controllers

- Supports DVI with max. resolution up to 1920x1200 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

- Supports HDCP function with DVI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI port

Audio - 5.1 CH HD Audio (RealtekALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

6ASRock A55 Pro Motherboard

English

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- 1 x CPU Fan connector (4-pin)

- 2 x Chassis Fan connectors (2 x 4-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, DRAM, VDDP, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

Live! Explorer, AMD Fusion, CyberLink MediaEspresso 6.5

Trial, ASRock MAGIX Multimedia Suite - OEM

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP

SP3 / XP 64-bit compliant (see CAUTION 3)

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock A55 Pro Motherboard

English

CAUTION!

1. Whether 2400/1866/1600MHz memory speed is supported

depends on the CPU you adopt. If you want to adopt DDR3

2400/1866/1600 memory module on this motherboard, please

refer to the memory support list on our website for the compat-

ible memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage un-

der Windows®7 / VistaTM / XP. For Windows®64-bit OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

3. ASRock XFast RAM is not supported by Microsoft® Windows®

XP / XP 64-bit.

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

8ASRock A55 Pro Motherboard

English

1.3 Unique Features

ASRock Extreme Tuning Utility (AXTU)

ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to

ne-tune different system functions in a user-friendly interface,

which includes Hardware Monitor, Fan Control, Overclocking,

OC DNA, IES and XFast RAM. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the

fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as

a proﬁle and share it with your friends. Your friends then can

load the OC proﬁle to their own system to get the same OC set-

tings. In IES (Intelligent Energy Saver), the voltage regulator

can reduce the number of output phases to improve efﬁciency

when the CPU cores are idle without sacriﬁcing computing per-

formance. In XFast RAM, it fully utilizes the memory space that

cannot be used under Windows®OS 32-bit CPU.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efﬁcient way to save energy,

time, money, and improves system running speed for your sys-

tem. It leverages the S3 and S4 ACPI features which normally

enable the Sleep/Standby and Hibernation modes in Windows®

to shorten boot up time. By calling S3 and S4 at speciﬁc timing

during the shutdown and startup process, Instant Boot allows

you to enter your Windows®desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems ﬁrst like MS-

DOS or Windows®. With this utility, you can press the <F6> key

during the POST or the <F2> key to enter into the BIOS setup

menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional ﬂoppy diskette or other compli-

cated ﬂash utility. Please be noted that the USB ﬂash drive or

hard drive must use FAT32/16/12 ﬁle system.

ASRock A55 Pro Motherboard

English

ASRock APP Charger

If you desire a faster, less restricted way of charging your

Apple devices, such as iPhone/iPad/iPod Touch, ASRock has

prepared a wonderful solution for you - ASRock APP Charger.

Simply install the APP Charger driver, it makes your iPhone

charge much quickly from your computer and up to 40% faster

than before. ASRock APP Charger allows you to quickly charge

many Apple devices simultaneously and even supports continu-

ous charging when your PC enters into Standby mode (S1),

Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

With APP Charger driver installed, you can easily enjoy the mar-

velous charging experience.

ASRock XFast USB

ASRock XFast USB can boost USB storage device perfor-

mance. The performance may depend on the properties of the

device.

ASRock XFast LAN

ASRock XFast LAN provides a faster internet access, which

includes the benefits listed below. LAN Application Prioritiza-

tion: You can conﬁgure your application’s priority ideally and/or

add new programs. Lower Latency in Game: After setting online

game’s priority higher, it can lower the latency in games. Trafﬁc

Shaping: You can watch Youtube HD videos and download si-

multaneously. Real-Time Analysis of Your Data: With the status

window, you can easily recognize which data streams you are

transferring currently.

ASRock XFast RAM

ASRock XFast RAM is a new function that is included into AS-

Rock Extreme Tuning Utility (AXTU). It fully utilizes the memory

space that cannot be used under Windows®OS 32-bit CPU.

ASRock XFast RAM shortens the loading time of previously

visited websites, making web surfing faster than ever. And it

also boosts the speed of Adobe Photoshop 5 times faster. An-

other advantage of ASRock XFast RAM is that it reduces the

frequency of accessing your SSDs or HDDs in order to extend

their lifespan.

10 ASRock A55 Pro Motherboard

English

2. Installation

This is an ATX form factor (12.0-in x 7.2-in, 30.5 cm x 18.3 cm) motherboard.

Before you install the motherboard, study the conﬁguration of your chassis to ensure

that the motherboard ﬁts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

Autres manuels pour A55 Pro

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK A75 Pro4 MVP Manuel utilisateur

ASROCK

ASROCK QC5000M-ITX/PH Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK 775i915P-SATA2 Manuel utilisateur

ASROCK

ASROCK N4200-NUC IPC Manuel utilisateur

ASROCK

ASROCK H610M-ITX/eDP Manuel utilisateur

ASROCK

ASROCK B365M Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK IMB-152 Manuel utilisateur

ASROCK

ASROCK H81 Pro BTC Manuel utilisateur

ASROCK

ASROCK A770DE Manuel utilisateur

ASROCK

ASROCK Z87M OC Formula Manuel utilisateur

ASROCK

ASROCK Z790 Pro RS Manuel utilisateur

ASROCK

ASROCK P5B-DE Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-D667 Manuel utilisateur

ASROCK

ASROCK EP2C602D16FM Manuel utilisateur

ASROCK

ASROCK ALIVENF7G-HD720P - V3.1 Manuel utilisateur

ASROCK

ASROCK Velocita Z490 PG Manuel utilisateur

ASROCK

ASROCK H55M-GE Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-GLAN/M2 Manuel utilisateur

ASROCK

ASROCK EP2C612 WS Manuel utilisateur

ASROCK

ASROCK A785GMH 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK FM2A58M-HD+ Manuel utilisateur

ASROCK

ASROCK X570 PRO4 Manuel utilisateur

ASROCK

ASROCK IMB-171-D Manuel de service

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
