IMB-146
User Manual
Version 1.0
Published November 2012
Copyright©2012 ASRock INC. All rights reserved.
2
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
Disclaimer:
-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
any indirect, special, incidental, or consequential damages (including damages for
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
passed by the California Legislature. When you discard the Lithium battery in Cali-
fornia, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
3
Contents
1. Introduction ................................................................ 5
1.1 Package Contents.......................................................... 5
................................................................. 6
1.3 Unique Features............................................................. 8
1.4 Motherboard Layout ..................................................... 9
1.5 I/O Panel ...................................................................... 11
2. Installation .................................................................. 12
............................... 13
............................. 14
2.3 Installing SATA Hard Disks............................................. 15
2.4 Power Connectors.......................................................... 16
2.5 Installing the System Panel............................................ 17
2.6 Onboard Headers and Connectors ................................ 18
2.7 Jumpers Setup ............................................................... 23
2.8 Operating System Setup ................................................ 25
2.8.1 Installing Windows®7 Without RAID ..................... 25
2.9 Installing Drivers............................................................. 26
2.10 Dual Monitor................................................................... 27
2.11 Hot Plug for Hard Disk Drives ........................................ 28
4
3. UEFI SETUP UTILITY.................................................. 32
3.1 Introduction .................................................................... 32
3.1.1 UEFI Menu Bar ..................................................... 32
3.1.2 Navigation Keys .................................................... 33
3.2 Main Screen ................................................................... 34
3.3 Advanced Screen........................................................... 35
............................................... 36
........................................ 37
........................................... 38
.......................................... 39
............................................... 40
............................................... 42
3.4 Hardware Health Event Monitoring Screen.................... 43
3.5 Boot Screen ................................................................... 44
3.6 Security Screen.............................................................. 45
3.7 Exit Screen..................................................................... 46
5
1. Introduction
Thank you for purchasing ASRock IMB-146 motherboard, a reliable moth-
commitment to quality and endurance.
In this manual, chapter 1 contains the introduction of the motherboard.
Chapter 2 provides step by step installation instructions. Chapter 3 in-
cludes information about the UEFI.
might be updated, the content of this manual will be subject to
-
http://www.asrock.com
If you require technical support related to this motherboard,
you are using. www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-146 Motherboard
ASRock IMB-146
ASRock IMB-146 Support CD
1 x I/O Panel Shield
6
Platform
Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
ASRock DuraCaps (100% Japan-made high-quality Conduc-
CPU
Intel®Dual-Core AtomTM CedarView Processor D2550/
N2600/N2800
Supports Hyper-Threading Technology
Chipset Intel®NM10 Express Chipset
Memory
Single Channel DDR3 memory technology
2 x 204-pin DDR3 SO-DIMM slots (see CAUTION 1
Supports DDR3 1066/800 MHz SDRAM
CAUTION 2
Expansion
Slots 1 x mini-PCI Express slot
Graphics
Intel®
Max. shared memory 256MB
Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
Supports 2-CH/24bits LVDS with max. resolution up to
1920x1200 @ 60Hz
Supports DVI with max. resolution up to 1920x1200 @ 60Hz
Audio
LAN
Realtek RTL8111E-VL
Supports Wake On LAN
Supports PXE
Rear Panel
I/O
1 x DC Jack
1 x PS/2 Keyboard/Mouse port
1 x D-Sub port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
Internal I/O
Hot Plug
1 x COM port header
2 x LVDS connectors
1 x DVI connector
7
* For detailed product information, please visit our website:
http://www.asrock.com
1 x Printer port
1 x LPC Debug header
4 pin 12V power connector
SATA power connector
BIOS
Supports “Plug and Play”
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
Support CD Drivers
Hardware
Monitor
CPU/Chassis Temperature Sensing
CPU/Chassis Fan Tachometer
CPU Quiet Fan
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS Microsoft®Windows®7 compliant
FCC, CE, WHQL
CAUTION!
-
ry.
of the reservation for system usage under Windows®32-bit op-
8
1.3 Unique Features
ASRock Instant Flash
in Flash ROM. This convenient BIOS update tool allows
you to update system BIOS without entering operating
®. With this util-
ity, you can press the <F6> key during the POST or the
<F2> key to enter into the BIOS setup menu to access
ASRock Instant Flash. Just launch this tool and save
hard drive, then you can update your BIOS only in a few
system.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their
BIOS without fear of failing. If power loss occurs during
the BIOS update process, ASRock Crashless BIOS will
automatically finish the BIOS update procedure after
regaining power. Please note that BIOS files need to
be placed in the root directory of your USB disk. Only
USB2.0 ports support this feature.
9

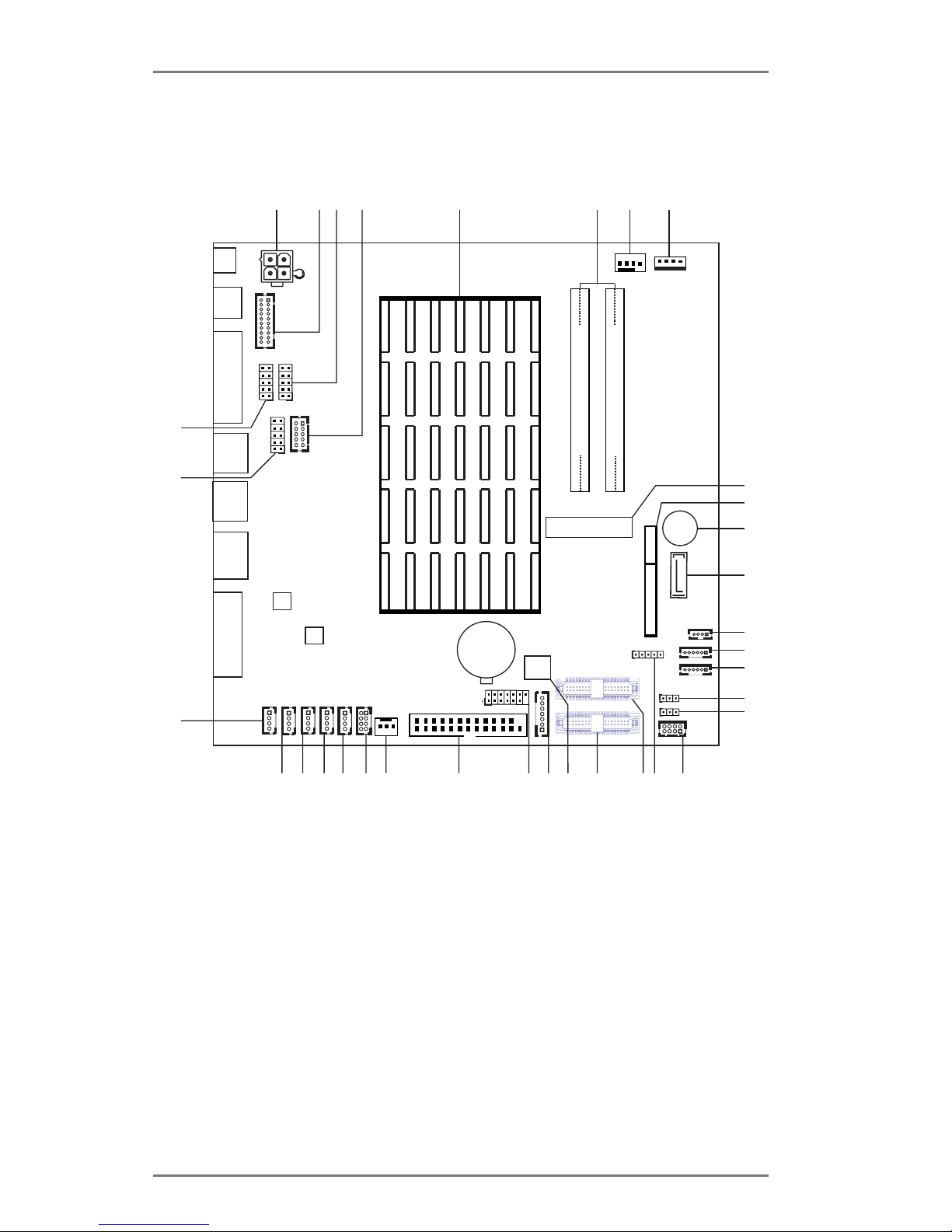

1.4 Motherboard Layout
1
ATX1 2V1
DDR3_A1
DDR3_B1
BUZZ1
CMOS
Battery
USB 2.0
T: USB0
B: USB1
RJ-45
IMB-146
COM1
AUDIO
CODEC
LAN
16Mb
BIOS
SATAI I_ 2
1
LVDS1
CLRCMOS1
1
CPU_FAN1
CHA_FAN1
PCIE1
PS2
Keyboard
/Mouse
22
24
26
27
28
2930
31
32
33
SATA_PWR1
1
LPT1
1
1
LVDS2
DC_JACK1
USB 2.0
T: USB2
B: USB3
VGA1
LPC1
PWR_JP1
1
PANE L1
USB4_5
LVDS_VOL1
1
11
20
21
25
34
35
SATAI I_ 1
SET_CM 2
DIO1
DVI1
1
1
SET_CM 1
COM2
1
MIC_IN1 LINE_OUT1 LINE_IN1
SPEAKER_OUT1
USB6
111111
BLT_ VO L1
1
1
LVDS2_BLT_CTL1
BLT_PWR3
BLT_PWR2
1
1
1
23489
5 6 7
10
12
11
13
14
15
16
17
18
19
23
1
1
10
1 4-pin ATX 12V Power Connector
2 DVI Connector (DVI1)
3 Digital I/O header (DIO1)
4 COM Port Header (COM2)
5 CPU
6 NM10 Express Chipset
7 2 x 204-pin DDR3 SO-DIMM Slots (DDR3_A1, DDR3_A2)
8 CPU Fan Connector (CPU_FAN1)
9 SATA Power Connector (SATA_PWR1)
10 mini PCI Express Slot (PCIE1)
11 SATA2 Connector (SATAII_2, Black)
12 Buzzer (BUZZ1)
13 SATA2 Connector (SATAII_1, Blue)
14 LVDS2 Backlight Control Connector (LVDS2_BLT_CTL1)
15 Backlight Power Connector (BLT_PWR3, for LVDS2)
16 Backlight Power Connector (BLT_PWR2, for LVDS1)
17 Clear CMOS Jumper (CLRCMOS1)
18 PWR-On Mode Jumper (PWR_JP1)
19 System Panel Header (PANEL1)
20 LVDS VDD PWR Setting Jumper (LVDS_VOL1)
21 LVDS Connector (LVDS2)
22 LVDS Connector (LVDS1)
23 SPI Flash Memory (16Mb)
24 Backlight & Amp Volume Control Header (BLT_VOL1)
25 LPC Debug Header (LPC1)
26 Printer Port (LPT1)
27 Chassis Fan Connector (CHA_FAN1)
28 USB 2.0 Header (USB4_5)
29 USB 2.0 Header (USB6)
30 Audio AMP Output Speaker Header (SPEAKER_OUT1)
31 Line-In Connector (LINE_IN1)
32 Line-Out Connector (LINE_OUT1)
33 MIC-In Connector (MIC_IN1)
34 COM Power Setting Jumper (SET_CM1)
35 COM Power Setting Jumper (SET_CM2)
