ASROCK FM2A88X-ITX Manuel utilisateur

ASRock FM2A88X-ITX+ Motherboard

English

Version 1.1

Published September 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock FM2A88X-ITX+ Motherboard

English

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

ASRock FM2A88X-ITX+ Motherboard

English

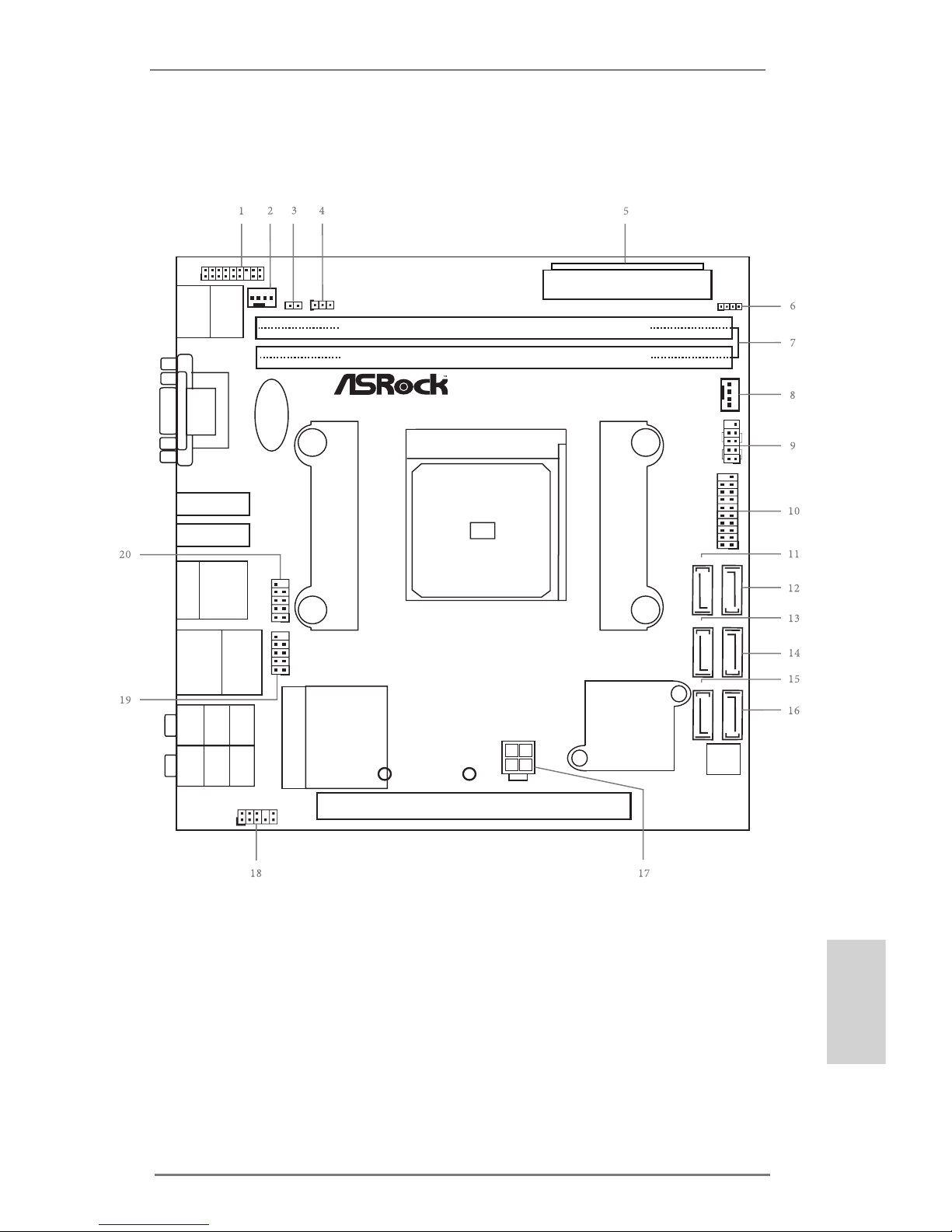

Motherboard Layout

ATXPWR1

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

PCIE1

AMD

A88X

(Bolton-D4)

Chipset

Front USB 3.0

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Top:

RJ-45

USB 3.0

T: USB2

B: USB3

USB 2.0

T: USB2

B: USB3

eSATA3_1

HD_AUDIO1

CLRCMOS1

64Mb

BIOS

RoHS

FM2A88X-ITX+

HDLED RESET

PLED PWRBTN

PANEL1

CHA_FAN1

USB_67

USB_45

CMOS

Battery

CI1

SATA3_2

SATA3_4

SATA3_1

SATA3_3

SATA3_6 SATA3_5

ATX12V1

SOCKET FM2b

USB 2.0

T: USB0

B: USB1

PS2

Keyboard

/Mouse

VGA1

DVI1

HDMI1

HDMI_IN1

TPMS1

CPU_FAN1

USB3_0_1

PCI Express 3.0

MINI_PCIE1(mSATA)

SPEAKER1

NUT2 NUT1

WiFi-802.11n+BT

Module

4ASRock FM2A88X-ITX+ Motherboard

English

No. Description

1 TPM Header (TPMS1)

2 CPU Fan Connector (CPU_FAN1)

3 Chassis Intrusion Header (CI1)

4 Clear CMOS Jumper (CLRCMOS1)

5 ATX Power Connector (ATXPWR1)

6 Chassis Speaker Header (SPEAKER1)

7 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

8 Chassis Fan Connector (CHA_FAN1)

9 System Panel Header (PANEL1)

10 USB 3.0 Header (USB3_0_1)

11 SATA3 Connector (SATA3_6)

12 SATA3 Connector (SATA3_5)

13 SATA3 Connector (SATA3_4)

14 SATA3 Connector (SATA3_3)

15 SATA3 Connector (SATA3_2)

16 SATA3 Connector (SATA3_1)

17 ATX 12V Power Connector (ATX12V1)

18 Front Panel Audio Header (HD_AUDIO1)

19 USB 2.0 Header (USB_45)

20 USB 2.0 Header (USB_67)

ASRock FM2A88X-ITX+ Motherboard

English

10111213141516

1 2 3

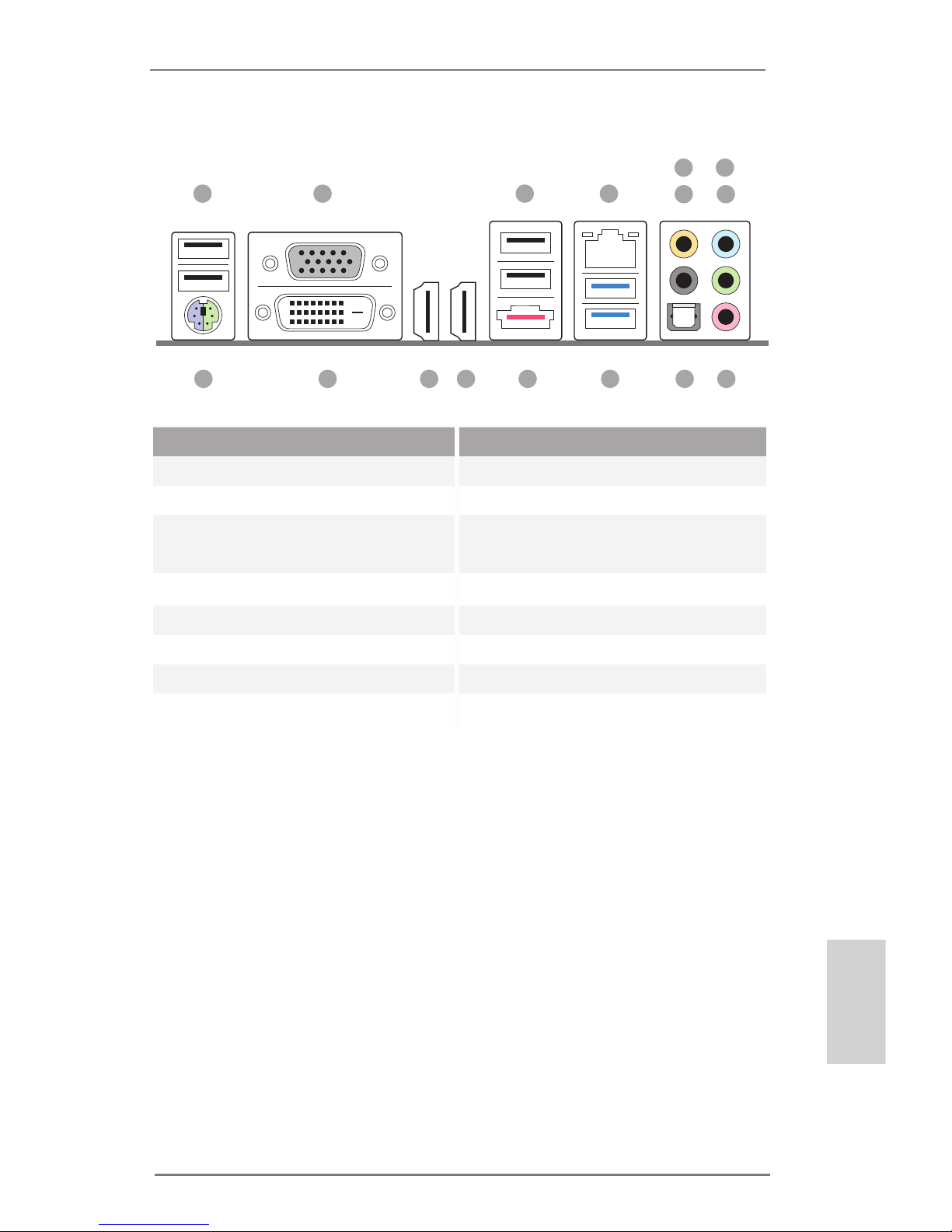

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01)* 9 Microphone (Pink)

2 D-Sub Port 10 Optical SPDIF Out Port

3 USB 2.0 Ports (USB23)* 11 USB 3.0 Ports (USB3_23)

(AMD A88X (Bolton-D4))

4 LAN RJ-45 Port** 12 eSATA Connector

5 Central / Bass (Orange) 13 HDMI-In Port

6 Rear Speaker (Black) 14 HDMI-Out Port

7 Line In (Light Blue) 15 DVI-D Port

8 Front Speaker (Lime)*** 16 PS/2 Mouse/Keyboard Port

6ASRock FM2A88X-ITX+ Motherboard

English

* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB01 or

USB23) instead of USB 3.0 ports.

** There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-

tions.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

*** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front

Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

Line In or

Side Speaker

(No. 7)

2V -- -- --

4V V -- --

6V V V --

8V V V V

ACT/LINK LED

SPEED LED

LAN Port

To enable Multi-Streaming, you need to connect a front panel audio cable to

the front panel audio header. After restarting your computer, you will nd the

“Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable

playback multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or

“8CH” and then you are allowed to select “Realtek HDA Primary output” to

use the Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use the front panel audio.

ASRock FM2A88X-ITX+ Motherboard

English

1. Introduction

Thank you for purchasing ASRock FM2A88X-ITX+ motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A88X-ITX+ Motherboard (Mini-ITX Form Factor)

ASRock FM2A88X-ITX+ Quick Installation Guide

ASRock FM2A88X-ITX+ Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x ASRock WiFi 2.4/5GHz Antenna

2 x SMA Wi-Fi Antenna Cables

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit, it is

recommended to set the BIOS option in Storage Conguration to AHCI

mode. For the BIOS setup, please refer to the “User Manual” in our sup-

port CD for details.

8ASRock FM2A88X-ITX+ Motherboard

English

1.2 Specications

Platform - Mini-ITX Form Factor

- Premium Gold Capacitor design (100% Japan-made high-

quality conductive polymer capacitors)

A-Style - Home Cloud

- HDMI-In

CPU - Supports Socket FM2+ 95W / FM2 100W processors

- 4 + 2 Power Phase design

Chipset - AMD A88X (Bolton-D4)

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM Slots

- Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066

non-ECC, un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 32GB (see CAUTION 2)

- Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

- Supports AMD Memory Prole (AMP)

Expansion Slot - 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)

* PCIE 3.0 is only supported with FM2+ CPU. With FM2

CPU, it only supports PCIE 2.0.

- 1 x Half/Full (mSATA) mini-PCI Express Slot

- Supports AMD Dual Graphics

Graphics - Integrated AMD Radeon HD 8000/7000 series graphics in

A-series APU

- DirectX 11.1, Pixel Shader 5.6 with FM2+ CPU. DirectX 11,

Pixel Shader 5.0 with FM2 CPU.

- Max. shared memory 2GB

- Three VGA output options: D-Sub, DVI-D and HDMI Ports

- Supports Triple Monitor

- Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports Dual-link DVI-D with max. resolution up to

2560x1600 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI

monitor is required) (see CAUTION 3)

- Supports Blu-ray Stereoscopic 3D with HDMI Port

- Supports AMD Steady VideoTM 2.0: New video post

processing capability for automatic jitter reduction on

ASRock FM2A88X-ITX+ Motherboard

English

home/online video

- Supports HDCP with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1150

Audio Codec)

- Premium Blu-ray Audio support

- TI® NE5532 Premium Headset Amplier (Supports up to 600

ohm headsets)

- Supports DTS Connect

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Qualcomm®Atheros®AR8171

- Supports Qualcomm®Atheros®Security Wake On Internet

Technology

- Supports Wake-On-LAN

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

Wireless LAN - Supports IEEE 802.11a/b/g/n

- Supports Dual-Band (2.4/5 GHz)

- Supports High speed wireless connection up to 300Mbps

- 2 antennas to support 2 (Transmit) x 2 (Receive) MIMO

Technology

- Supports Bluetooth 4.0 Class II

Rear Panel I/O - 2 x Antenna Ports

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI-Out Port

- 1 x HDMI-In Port

- 1 x Optical SPDIF Out Port

- 4 x USB 2.0 Ports

- 1 x eSATA Connector

- 2 x USB 3.0 Ports (AMD A88X (Bolton-D4))

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jacks: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone

Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug

- 1 x mSATA 6.0 Gb/s Connector (Solid-State Drive

connector), supports NCQ and AHCI

10 ASRock FM2A88X-ITX+ Motherboard

English

Connector - 1 x Chassis Intrusion Header

- 1 x TPM Header

- 1 x CPU Fan Connector (4-pin)

- 1 x Chassis Fan Connector (4-pin)

- 1 x 24 pin ATX Power Connector

- 1 x 4 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.0 Header by AMD A88X (Bolton-D4)

(Supports 2 USB 3.0 ports)

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3.1 support

- DRAM, VDDP, VDDR Voltage multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar, Start8 (30 days trial)

Hardware - CPU temperature sensing

Monitor - Chassis temperature sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan multi-speed control

- CASE OPEN detection

- Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows®8.1 32-bit / 8.1 64-bit / 8 32-bit /

8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit

Certications - FCC, CE, WHQL

- ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Autres manuels pour FM2A88X-ITX

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK H55DE3 Manuel utilisateur

ASROCK

ASROCK N3150B-ITX Manuel utilisateur

ASROCK

ASROCK B365M Pro4 Manuel utilisateur

ASROCK

ASROCK Z170 Pro4 Manuel utilisateur

ASROCK

ASROCK P43DE2 Manuel utilisateur

ASROCK

ASROCK B85M Pro4 Manuel utilisateur

ASROCK

ASROCK B85M Pro4 Manuel utilisateur

ASROCK

ASROCK 890GX EXTREME4 Manuel utilisateur

ASROCK

ASROCK B85 Anniversary Manuel utilisateur

ASROCK

ASROCK X299 GAMING i9 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-ESATA2 -2943 - Manuel utilisateur

ASROCK

ASROCK UTX-111 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z97X Killer Series Manuel utilisateur

ASROCK

ASROCK Z690 Phantom Gaming 4/D5 Manuel utilisateur

ASROCK

ASROCK X570 PHANTOM GAMING 4 Manuel utilisateur

ASROCK

ASROCK B360M-HDV Manuel utilisateur

ASROCK

ASROCK M3A770DE Manuel utilisateur

ASROCK

ASROCK P45TS-R Manuel utilisateur

ASROCK

ASROCK Z97M Pro4 Manuel utilisateur

ASROCK

ASROCK H61M-U3S3 Manuel utilisateur

ASROCK

ASROCK FM2A58M+ BTC Manuel utilisateur

ASROCK

ASROCK FM2A85X Extreme6 Manuel utilisateur

ASROCK

ASROCK B660 PRO RS Manuel utilisateur

ASROCK

ASROCK P43DE2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
