ASROCK P4 COMBO Manuel utilisateur

P4 Combo

User Manual

Version 1.0

Published July 2004

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Contents

1 Introduction ................................................... 5

1.1 Package Contents ........................................................... 5

1.2 Specifications ................................................................. 6

1.3 Motherboard Layout ....................................................... 8

1.4 ASRock I/O PlusTM .......................................................... 9

2 Installation ..................................................... 10

Pre-installation Precautions.................................................... 10

2.1 CPU Sockets ................................................................... 11

2.2 CPUInstallation................................................................ 12

2.3 Installation of Heatsink and CPU Fan.............................. 15

2.4 Installation of Memory Modules (DIMM) .......................... 16

2.5 Expansion Slots (PCI and AGP Slots)............................. 17

2.6 Jumpers Setup ................................................................ 18

2.7 Onboard Headers and Connectors ................................ 19

2.8 Serial ATA (SATA) Hard Disks Installation....................... 22

3 BIOS SETUP UTILITY .......................................... 23

3.1 Introduction ..................................................................... 23

3.1.1 BIOS Menu Bar ..................................................... 23

3.1.2 Navigation Keys ................................................... 24

3.2 Main Screen .................................................................... 24

3.3 Advanced Screen .......................................................... 25

3.3.1 CPU Configuration ................................................ 25

3.3.2 Chipset Configuration ........................................... 26

3.3.3 ACPI Configuration ............................................... 28

3.3.4 IDE Configuration .................................................. 29

3.3.5 PCIPnPConfiguration ............................................ 31

3.3.6 Floppy Configuration ............................................ 32

3.3.7 Super IO Configuration ......................................... 32

3.3.8 USB Configuration ................................................ 34

3.4 Hardware Health Event Monitoring Screen.................... 34

3.5 Boot Screen .................................................................... 35

3.5.1 Boot Settings Configuration ................................. 35

3.5.2 BootDevice Priority .............................................. 36

3.6 Security Screen.............................................................. 36

3.7 Exit Screen...................................................................... 37

4 Software Support .......................................... 38

4.1 Install Operating System ................................................. 38

4.2 Support CD Information ................................................... 38

4.2.1 Running Support CD ............................................. 38

4.2.2 Drivers Menu ........................................................ 38•

4.2.3 Utilities Menu ......................................................... 38

4.2.4 ASRock “PC-DIY LiveDemo” Program ................. 38

4.2.5 “LGA775 CPU Installation LiveDemo” Program ... 38

4.2.6 Contact Information............................................... 38

1. Introduction

Thank you for purchasing ASRock P4 Combo motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 and 4 contain the configuration

guide to BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest memory and CPU support lists on ASRock website as

well. ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4 Combo Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock P4 Combo Quick Installation Guide

ASRock P4 Combo Support CD (including LGA 775 CPU Installation Live Demo)

One 80-conductor UltraATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One Serial ATA (SATA) Data Cable

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock I/O PlusTM Shield

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

CPU: 1. 775-Pin Socket Supporting Intel®Pentium® 4 / Celeron®

processor (in 775-land LGA package)

2. 478-Pin Socket Supporting Intel®Pentium® 4/ Celeron®

(Prescott, Northwood, Willimate) processor

Chipsets: North Bridge:

Intel®848P chipset, FSB @ 800 / 533 / 400MHz,

supports Hyper-Threading Technology (see CAUTION 1)

South Bridge:

Intel®ICH5, supports SATA 1.5Gb/s

Memory: 2DDRDIMM slots:DDR1andDDR2

supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 2GB (see CAUTION 2)

IDE: IDE1:ATA100 / UltraDMAMode 5

IDE2:ATA100 / UltraDMAMode 5

Supports up to 4 IDE devices

Serial ATA: Supports up to 2 SATA devices at 1.5Gb/s data transfer rate

No Support for “RAID” and “Hot Plug” functions

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing,

Motherboard temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 3),

CPU fan tachometer,

Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 4 PCI slots with PCI Specification 2.3

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 4)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 5)

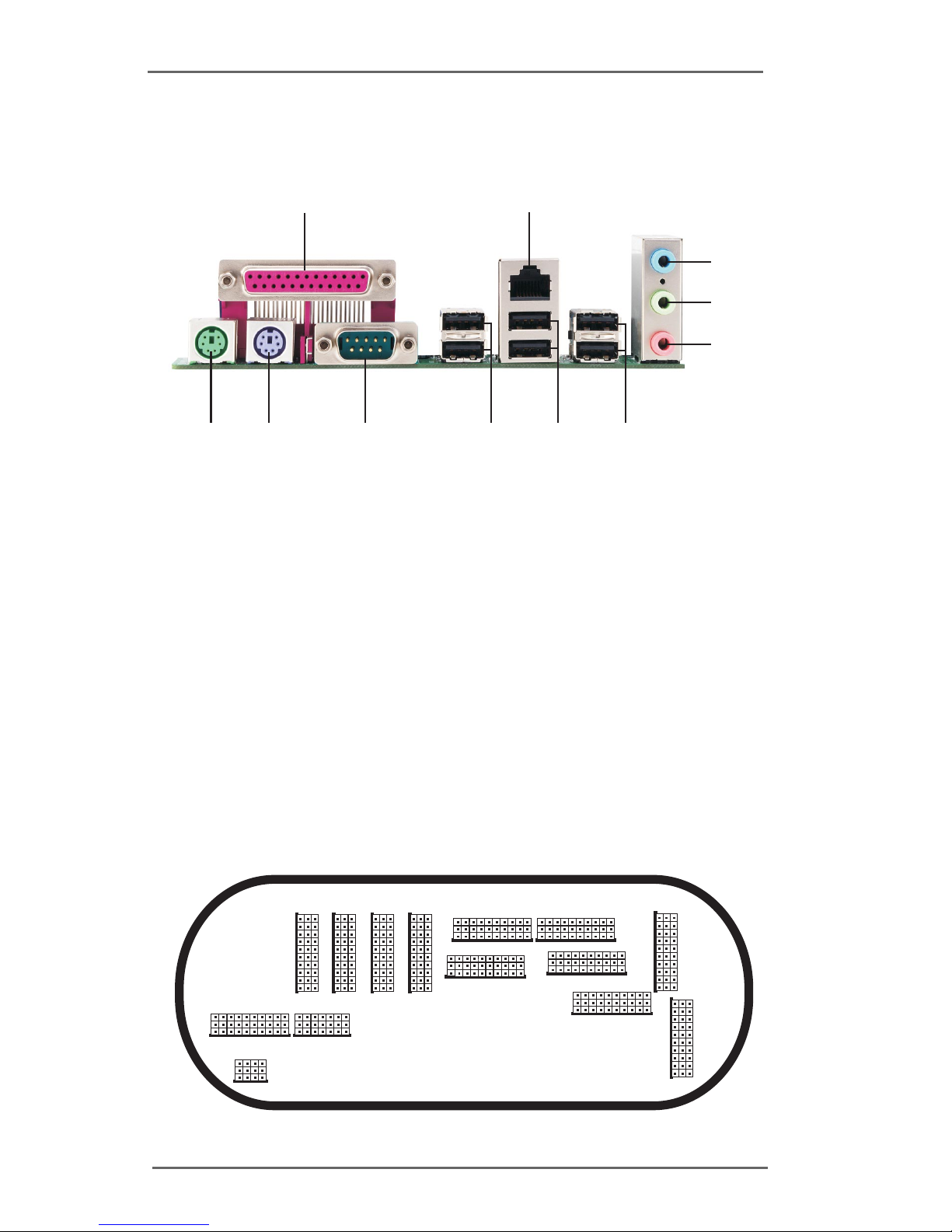

ASRock I/O PlusTM:1 PS/2 mouse port,

1 PS/2 keyboard port,

1 serial port: COM1,

1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ-45 port,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMI legal BIOS,

Supports “Plug and Play”,

ACPI 1.1 compliance wake up events,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 6)

OS: Microsoft®Windows®98 SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of “HyperThreading Technology”, please check page 26.

2. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR320*, DDR400

533 DDR266, DDR333

400 DDR266

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

3. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

4. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

5. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

6. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

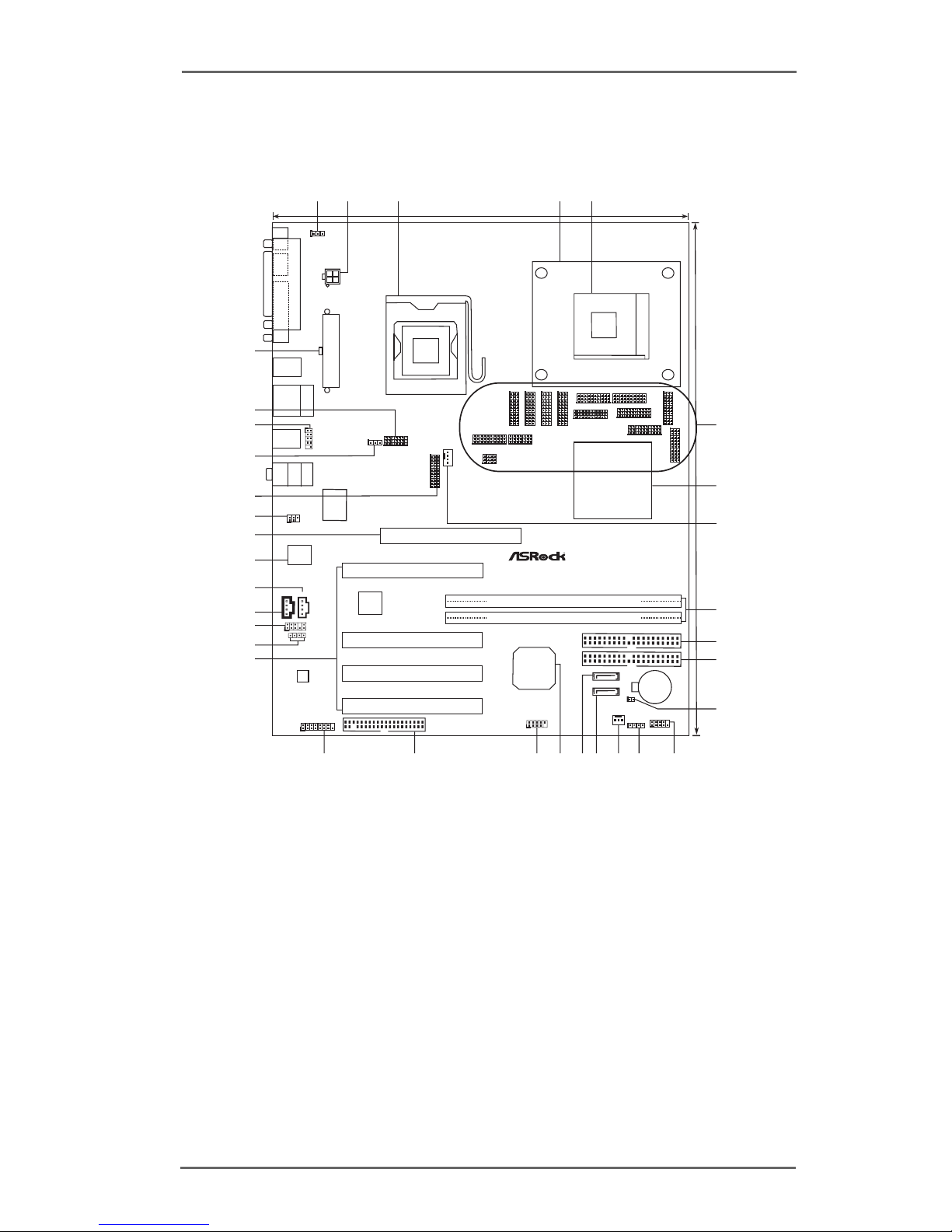

1.3 Motherboard Layout

1 PS2_USB_PWR1 Jumper 17 Secondary Serial ATA Connector (SATA2)

2 ATX 12V Connector (ATX12V1) 18 South Bridge Controller

3 775-Pin CPU Socket 19 USB 2.0 Header (USB67, Blue)

4 CPU Heatsink Retention Module 20 Floppy Connector (FLOPPY1)

(for 478-Pin CPU) 21 Game Port Connector (GAME1)

5 478-Pin CPU Socket 22 PCI Slots (PCI1- 4)

6 J1- J6 Jumpers, J8- J13 Jumpers, 23 JR1 Jumper / JL1 Jumper

J18/J21Jumpers 24 Front Panel Audio Header (AUDIO1)

7 North Bridge Controller 25 Internal Audio Connector: CD1 (Black)

8 CPU Fan Connector (CPU_FAN1) 26 Internal Audio Connector: AUX1 (White)

9 184-pin DDR DIMM Slots (DDR1- 2) 27 BIOS FWH Chip

10 Secondary IDE Connector (IDE2, Black) 28 AGP Slot (1.5V_AGP1)

11 Primary IDE Connector (IDE1, Blue) 29 Infrared Module Header (IR1)

12 Clear CMOS Jumper (CLRCMOS0) 30 J14 Jumper

13 System Panel Header (PANEL1) 31 FSB Select Jumper (FSB1)

14 Chassis Speaker Header (SPEAKER 1) 32 Shared USB 2.0 Header (USB4_5, Blue)

15 Chassis Fan Connector (CHA_FAN1) 33 J17 Jumper

16 Primary Serial ATA Connector (SATA1) 34 ATX Power Connector (ATXPWR1)

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

PS2_USB_PWR1

PGA478

ATX12V1

CPU_FAN1

CHA_FAN1

IDE2

ATXPWR1

Intel

848P

Chipset

Intel

ICH5

Chipset

CMOS

Battery

CLRCMOS0

SATA1

SATA2

FLOPPY1

GAME1

PAN EL 1

HDLED RESET

PLED PWRBTN

SPEAKER1

USB67

USB4_5

IR1

1.5V_AGP1

PCI2

PCI1

2MB

BIOS

Super

I/O

AUDIO

CODEC

LAN

Chip

AUDIO1

JR1 JL1

P4 Combo

SATA

FSB800

Top:

LINE IN

Center:

LINE OUT

Bottom:

MIC IN

USB 2.0

T: US B 0

B: USB1

Top:

RJ-45

USB 2.0

T: US B 2

B: USB3

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

11 11

11 11111111

11 11111

24.4cm (9.6 in)

30.5cm (12.0 in)

IDE1

PCI3

PCI4

USB 2.0

T: US B 4

B: USB5

FSB1

AUX1

CD1

DDR400

AGP8X

USB2.0

5.1CH

Prescott 800

P4-478

P4-775

11 11111111

11 11111111 11 11111111

11 1111111111 11111111

11 11111111

11 11111

J17

J14

J8 J18

J5 J9 J6 J10

J21

J13 J12

J11

1254

14151617

192021

29 8

1.4 ASRock I/O PlusTM

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

8910

11 11

11 11111111

11 11111111 11 11111111

11 1111111111 11111111

11 11111111

11 11111

J8 J18

J9 J6 J10

J21

J13 J12

J11

Magnification of No. 6 on page 8

(J1-J6 Jumpers, J8-J13 Jumpers, J18 / J21 Jumpers)

2. Installation

P4 Combo is an ATX form factor (12.0-in x 9.6-in, 30.5 cm x 24.4 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 1U2-X570/2T Manuel utilisateur

ASROCK

ASROCK FM2A88X-ITX Manuel utilisateur

ASROCK

ASROCK A55 Pro Manuel utilisateur

ASROCK

ASROCK Z97E-ITX/ac Manuel utilisateur

ASROCK

ASROCK Fatal1ty H87 Performance Series Manuel utilisateur

ASROCK

ASROCK Z590 Phantom Gaming-ITX/TB4 Manuel utilisateur

ASROCK

ASROCK X470 Taichi Manuel utilisateur

ASROCK

ASROCK B460 Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK X79 Extreme9 Manuel utilisateur

ASROCK

ASROCK 4Core1333-eSATA2 Manuel utilisateur

ASROCK

ASROCK B450 Pro4 Manuel utilisateur

ASROCK

ASROCK FM2A88X Pro Manuel utilisateur

ASROCK

ASROCK QC5000-ITX/WiFi Manuel utilisateur

ASROCK

ASROCK B365M Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK ALIVEDUAL-ESATA2 Manuel utilisateur

ASROCK

ASROCK H61M-S Manuel utilisateur

ASROCK

ASROCK 880GXHU3/128M Manuel utilisateur

ASROCK

ASROCK H81M-VG4 R4.0 Manuel utilisateur

ASROCK

ASROCK P4VM900-SATA2 - V1.0 Manuel utilisateur

ASROCK

ASROCK 945GCM-S Manuel utilisateur

ASROCK

ASROCK IMB-1000D Manuel utilisateur

ASROCK

ASROCK H370 Pro4 Manuel utilisateur

ASROCK

ASROCK P4DUAL-915GL Manuel utilisateur

ASROCK

ASROCK IMB-1312 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
