ASRock G41M-LE Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published October 2008

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock G41M-LE Motherboard

EnglishEnglish

English

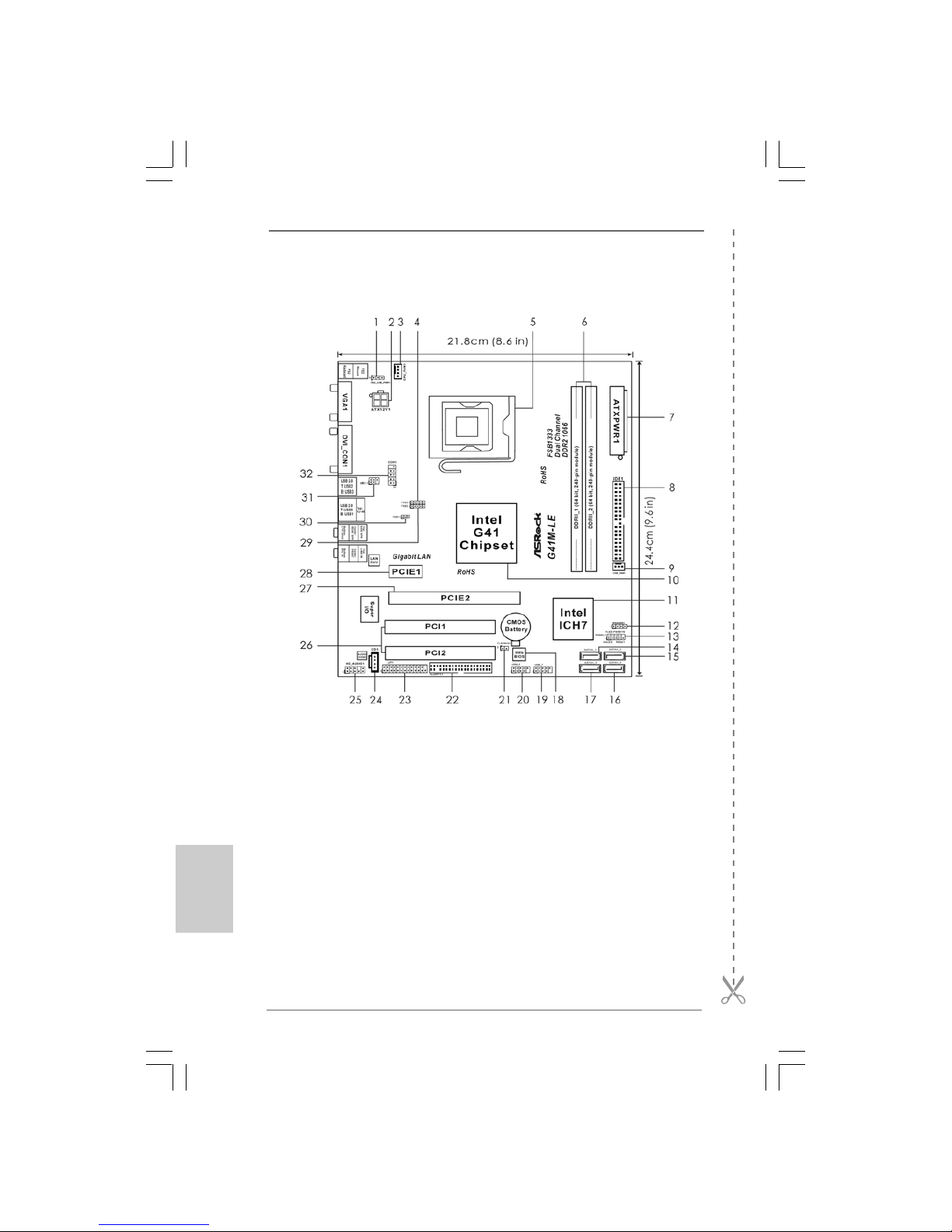

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 17 Secondary SATAII Connector

2 ATX 12V Connector (ATX12V1) (SATAII_2; Red)

3 CPU Fan Connector (CPU_FAN1) 18 BIOS SPI Chip

4 FSB3 Jumper 19 USB 2.0 Header (USB6_7, Blue)

5 775-Pin CPU Socket 20 USB 2.0 Header (USB4_5, Blue)

6 2 x 240-pin DDR2 DIMM Slots 21 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 22 Floppy Connector (FLOPPY1)

7 ATX Power Connector (ATXPWR1) 23 Print Port Header (LPT1, Purple)

8 IDE1 Connector (IDE1, Blue) 24 Internal Audio Connector: CD1 (Black)

9 Chassis Fan Connector (CHA_FAN1) 25 Front Panel Audio Header

10 North Bridge Controller (HD_AUDIO1, Lime)

11 South Bridge Controller 26 PCI Slots (PCI1- 2)

12 Chassis Speaker Header 27 PCI Express x16 Slot (PCIE2)

(SPEAKER 1, Purple) 28 PCI Express x1 Slot (PCIE1)

13 System Panel Header (PANEL1, Orange) 29 FSB2 Jumper

14 Primary SATAII Connector (SATAII_1; Red) 30 FSB1 Jumper

15 Third SATAII Connector (SATAII_3; Orange) 31 Infrared Module Header (IR1)

16 Fourth SATAII Connector (SATAII_4; Orange) 32 Serial Port Connector (COM1)

ASRock G41M-LE Motherboard

EnglishEnglish

English

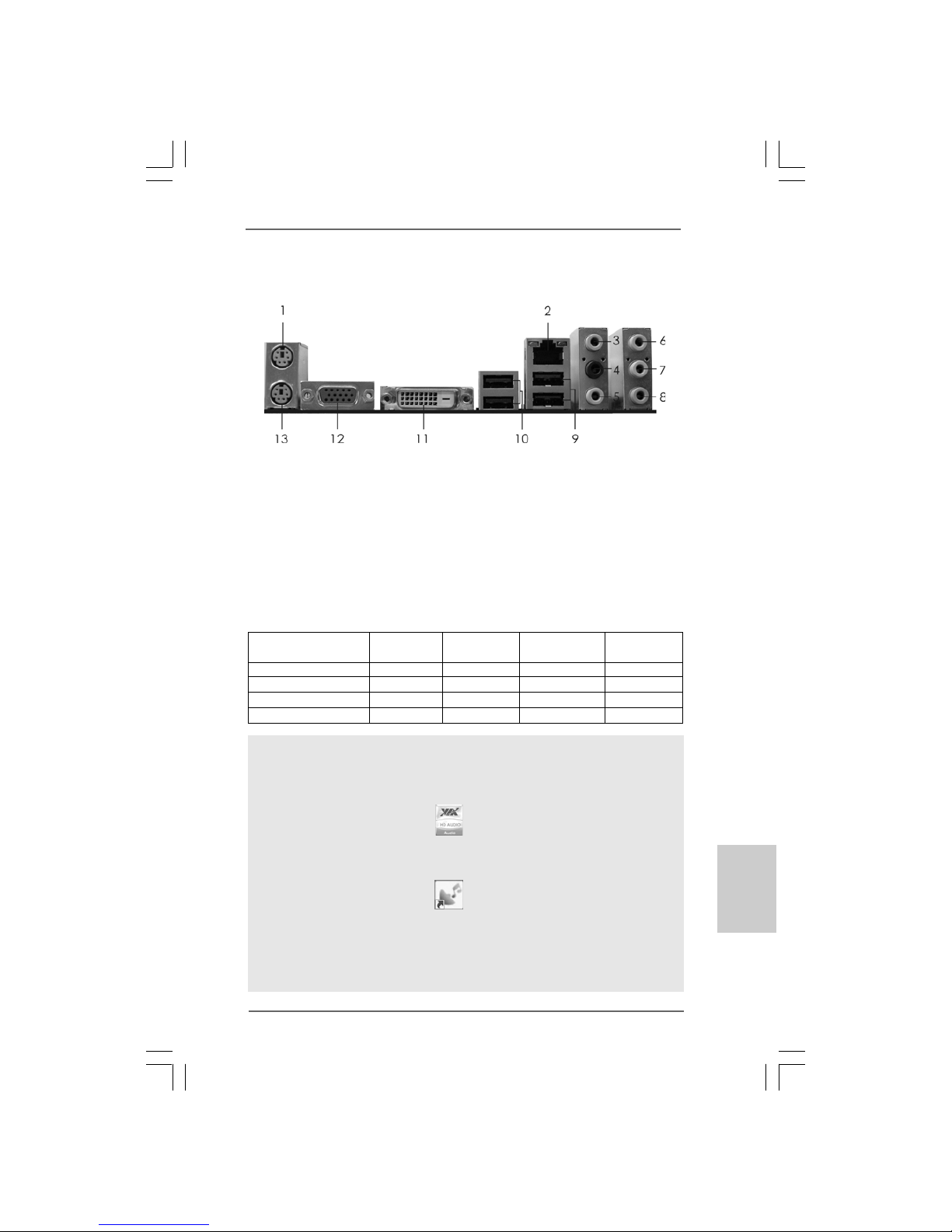

I/O PI/O P

I/O Panelanel

anelanel

anel

1 PS/2 Mouse Port (Green) 8 Microphone (Pink)

2 LAN RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 VGA/DVI-D Port

5 Central / Bass (Orange) 12 VGA/D-Sub Port

6 Line In (Light Blue) 13 PS/2 Keyboard Port (Purple)

* 7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE forAudio Output Connection

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HDAudio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®2000 / XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel”, “4 Channel”, “6 Channel” or “8 Channel”. Click “Power” to save your

change.

For Windows®XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

4ASRock G41M-LE Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasingASRock G41M-LE motherboard, a reliable motherboard pro-

duced underASRock’s consistently stringent quality control. It delivers excellent perfor-

mance with robust design conformingtoASRock’scommitment to qualityand endurance.

This Quick InstallationGuide contains introduction of the motherboard and step-by-step

installation guide. More detailed information of the motherboard can be found in the user

manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock G41M-LE Motherboard

(MicroATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm)

ASRock G41M-LE Quick InstallationGuide

ASRock G41M-LE Support CD

One 80-conductor UltraATA 66/100 IDE Ribbon Cable

One SerialATA(SATA)Data Cable (Optional)

One SerialATA(SATA) HDDPower Cable (Optional)

One I/O Panel Shield

ASRock G41M-LE Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - MicroATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®,

supporting Penryn Quad Core Yorkfield andDual Core

Wolfdale processors

- Supports FSB1333/1066/800/533 MHz (see CAUTION 1)

- Supports Hyper-ThreadingTechnology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®G41

- Southbridge: Intel®ICH7

Memory -Dual Channel DDR2 Memory Technology (see CAUTION 4)

- 2 xDDR2 DIMM slots

-SupportDDR21066/800/667/533non-ECC,un-bufferedmemory

(see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

Graphics - Intel®Graphics MediaAccelerator X4500

- Pixel Shader 4.0,DirectX 10

- Max. shared memory 352MB (see CAUTION 7)

-Dual VGAOutput: supportDVI-DandD-Sub ports by

independent display controllers

- Supports HDCP function withDVI-Dport

- Supports Full HD1080p Blu-ray (BD) / HD-DVDplayback with

DVI-Dport (see CAUTION 8)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(VIA®VT1708S Audio Codec)

LAN - PCIE x1 Gigabit LAN10/100/1000 Mb/s

-Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

6ASRock G41M-LE Motherboard

EnglishEnglish

English

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 9)

Connector - 4 x SATAII 3.0Gb/s connectors (No Support for RAIDand

“Hot Plug” functions) (see CAUTION 10)

- 1 xATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x Print port header

- 1 x IR header

- 1 x COM port header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 11)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

-AMBIOS 2.3.1 Support

- CPU,DRAM,NB, SB, VTT Voltage Multi-adjustment

- Supports Smart BIOS

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Unique Feature -ASRock OC Tuner (see CAUTION 12)

- Intelligent Energy Saver (see CAUTION 13)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 14)

-ASRock U-COP (see CAUTION 15)

- Boot FailureGuard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

ASRock G41M-LE Motherboard

EnglishEnglish

English

CAUTION!

1. This motherboard supports native FSB1333/1066/800 MHz. For

normal operation, you do not need to adjust the jumper settings. For

special overclocking mode, please refer to page 16 for proper jumper

settings.

2. About the setting of “Hyper Threading Technology”, please check page

31 of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 21 for details.

4. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 13 for proper

installation.

5. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDR2 667, DDR2 800, DDR2 1066

1066 DDR2 667, DDR2 800, DDR2 1066

800 DDR2 667, DDR2 800

533 DDR2 533

* DDR2 1066 memory modules will operate in overclocking mode.

* If you adopt a DDR2 1066 memory module on this motherboard,

you need to adjust the jumpers. Please refer to page 16 for proper

jumper settings.

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM

64-bit with 64-bit CPU, there is no such limitation.

7. The maximum shared memory size is defined by the chipset vendor

and is subject to change. Please check Intel®website for the latest

information.

8. Full HD 1080p Blu-ray (BD) / HD-DVD playback support requires the proper

hardware configuration. Please refer to page 9 for the minimum hardware

requirement and the passed Full HD 1080p Blu-ray (BD) / HD-DVD films in

our lab test.

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

8ASRock G41M-LE Motherboard

EnglishEnglish

English

9. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-

channel, 6-channel, and 8-channel modes. Please check the table on

page 3 for proper connection.

10. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 25 of “User Manual” in the

support CD to adjust your SATAII hard disk drive to SATAII mode. You can

also connect SATAhard disk to SATAII connector directly.

11. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

12. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows®

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website: http://www.asrock.com

13. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. In other words, it is able to provide excep-

tional power saving and improve power efficiency without sacrificing

computing performance. Please visit our website for the operation pro-

cedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

14. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

15. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

ASRock G41M-LE Motherboard

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement for Fequirement for F

equirement for Fequirement for F

equirement for Full HD 1080pull HD 1080p

ull HD 1080pull HD 1080p

ull HD 1080p

Blu-ray (BD) / HDBlu-ray (BD) / HD

Blu-ray (BD) / HD-D-D

-D-D

-DVD Playback SupporVD Playback Suppor

VD Playback SupporVD Playback Suppor

VD Playback Supportt

Full HD1080p Blu-ray (BD) / HD-DVDplayback support on this motherboard

requires the proper hardware configuration. Please refer to below table

for the minimum hardware requirement.

CPU Intel®E5200 (BIOS option PAVP Lite mode disabled)

Intel®E1200 (BIOS option PAVP Lite mode enabled)

VGA G41 onboard DX10 VGA

Memory DDR2 800 1GB x 2

Suggested OS Windows®VistaTM or Windows®VistaTM 64

Playback Software CyberLink PowerDVD8 with patch 1830U

* Currently, 1080p Blu-ray (BD) / HD-DVD playback is supported under Windows®

VistaTM / VistaTM 64-bit OS only.

1.41.4

1.4 PP

Passed Fassed F

assed Fassed F

assed Full HD 1080p Blu-ray (BD) / HDull HD 1080p Blu-ray (BD) / HD

ull HD 1080p Blu-ray (BD) / HDull HD 1080p Blu-ray (BD) / HD

ull HD 1080p Blu-ray (BD) / HD-D-D

-D-D

-DVD FVD F

VD FVD F

VD Filmsilms

ilmsilms

ilms

in Our Lin Our L

in Our Lab Tab T

ab Tab T

ab Testest

estest

est

DVD Film Name Format Producer

Type

Blu-ray SWORDFISH VC-1 WB

DVD UNDERWORLD EVOLUTION MPEG-2 SONY

CASINO ROYALE MPEG-4 SONY

THE LEAGUE OF MPEG-4 FOX

EXTRAORDINARY GENTLEMEN

X-MENIII MPEG-4 FOX

HD- KING KONG VC-1 UNIVERSAL

DVD NEW ORLEANS CONCERT MPEG-2 WEA

EnglishEnglish

English

1010

10 ASRock G41M-LE Motherboard

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity,NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

Autres manuels pour G41M-LE

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK A780FULLHD - V1.0 Manuel utilisateur

ASROCK

ASROCK W480 Creator Manuel utilisateur

ASROCK

ASROCK ALIVESATA2-GLAN Manuel utilisateur

ASROCK

ASROCK CONROE1333-GLAN - V1.0 Manuel utilisateur

ASROCK

ASROCK ALIVEXFIRE-ESATA2 R3.0_987 - Manuel utilisateur

ASROCK

ASROCK Z87 Extreme4 TB4 Manuel utilisateur

ASROCK

ASROCK X58 EXTREME6 - V1 Manuel utilisateur

ASROCK

ASROCK Z690 Extreme Manuel utilisateur

ASROCK

ASROCK Z77M Manuel utilisateur

ASROCK

ASROCK P67 PRO3 - Manuel utilisateur

ASROCK

ASROCK Z87M Extreme4 Manuel utilisateur

ASROCK

ASROCK H67DE3 Manuel utilisateur

ASROCK

ASROCK K7S8X - VERSION 3.1 Manuel utilisateur

ASROCK

ASROCK Z590M Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK IMB-171-D Manuel de service

ASROCK

ASROCK P75 Pro3 Manuel utilisateur

ASROCK

ASROCK B660-ITX Manuel utilisateur

ASROCK

ASROCK Z790 PG-ITX/TB4 Manuel utilisateur

ASROCK

ASROCK AD425PV Manuel utilisateur

ASROCK

ASROCK 775i48 Manuel utilisateur

ASROCK

ASROCK B85 Pro4 Manuel utilisateur

ASROCK

ASROCK 960GM-S3 FX Manuel utilisateur

ASROCK

ASROCK NF6-GLAN Manuel utilisateur

ASROCK

ASROCK Z68 PRO3-M - ANNEXE 671 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
