ASROCK M3A770DE Manuel utilisateur

ASRock M3A770DE Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published June 2009

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock M3A770DE Motherboard

EnglishEnglish

English

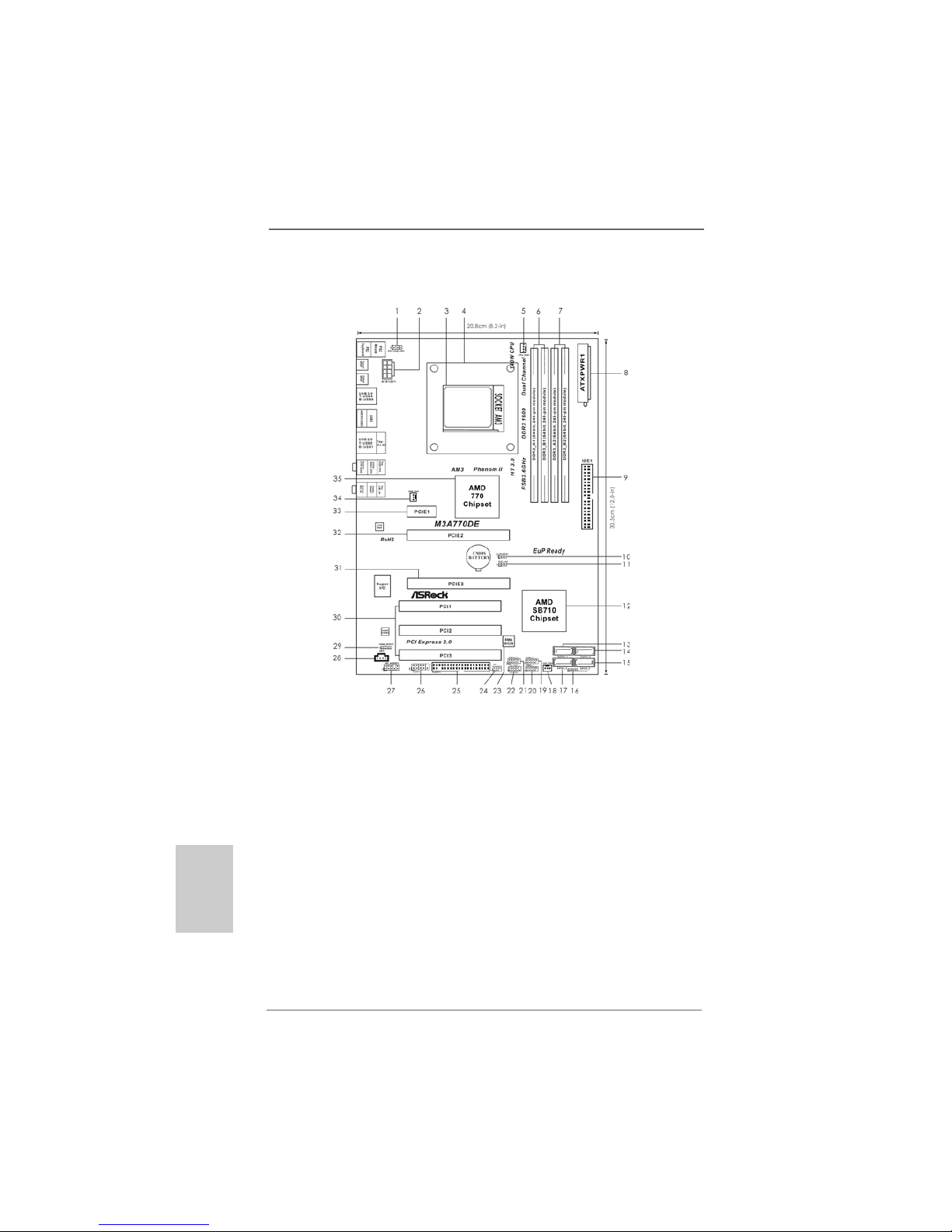

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 19 USB 2.0 Header (USB8_9, Blue)

2 ATX 12V Power Connector (ATX12V1) 20 USB 2.0 Header (USB6_7, Blue)

3 AM3 CPU Socket 21 USB 2.0 Header (USB10_11, Blue)

4 CPU Heatsink Retention Module 22 System Panel Header (PANEL1, Orange)

5 CPU Fan Connector (CPU_FAN1) 23 SPI Flash Memory (8Mb)

6 2 x 240-pin DDR3 DIMM Slots 24 Infrared Module Header (IR1)

(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 25 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDR3 DIMM Slots 26 Serial Port Connector (COM1)

(Dual Channel B: DDR3_A2, DDR3_B2; White) 27 Front Panel Audio Header

8 ATX Power Connector (ATXPWR1) (HD_AUDIO1, Lime)

9 Primary IDE Connector (IDE1, Blue) 28 Internal Audio Connector: CD1 (Black)

10 Clear CMOS Jumper (CLRCMOS1) 29 HDMI_SPDIF Header

11 EUP LAN Jumper (EUP_LAN) (HDMI_SPDIF1,Yellow)

12 Southbridge Controller 30 PCI Slots (PCI1- 3)

13 Primary SATAII Connector (SATAII_1, Red) 31 PCI Express 2.0 x16 Slot

14 Third SATAII Connector (SATAII_3, Red) (PCIE3; Orange)

15 Fourth SATAII Connector (SATAII_4,Red) 32 PCI Express 2.0 x16 Slot (PCIE2; Green)

16 Chassis Speaker Header 33 PCI Express x1 Slot (PCIE1; Green)

(SPEAKER 1, Purple) 34 Power Fan Connector (PWR_FAN1)

17 Secondary SATAII Connector (SATAII_2, Red) 35 Northbridge Controller

18 Chassis Fan Connector (CHA_FAN1)

ASRock M3A770DE Motherboard

EnglishEnglish

English

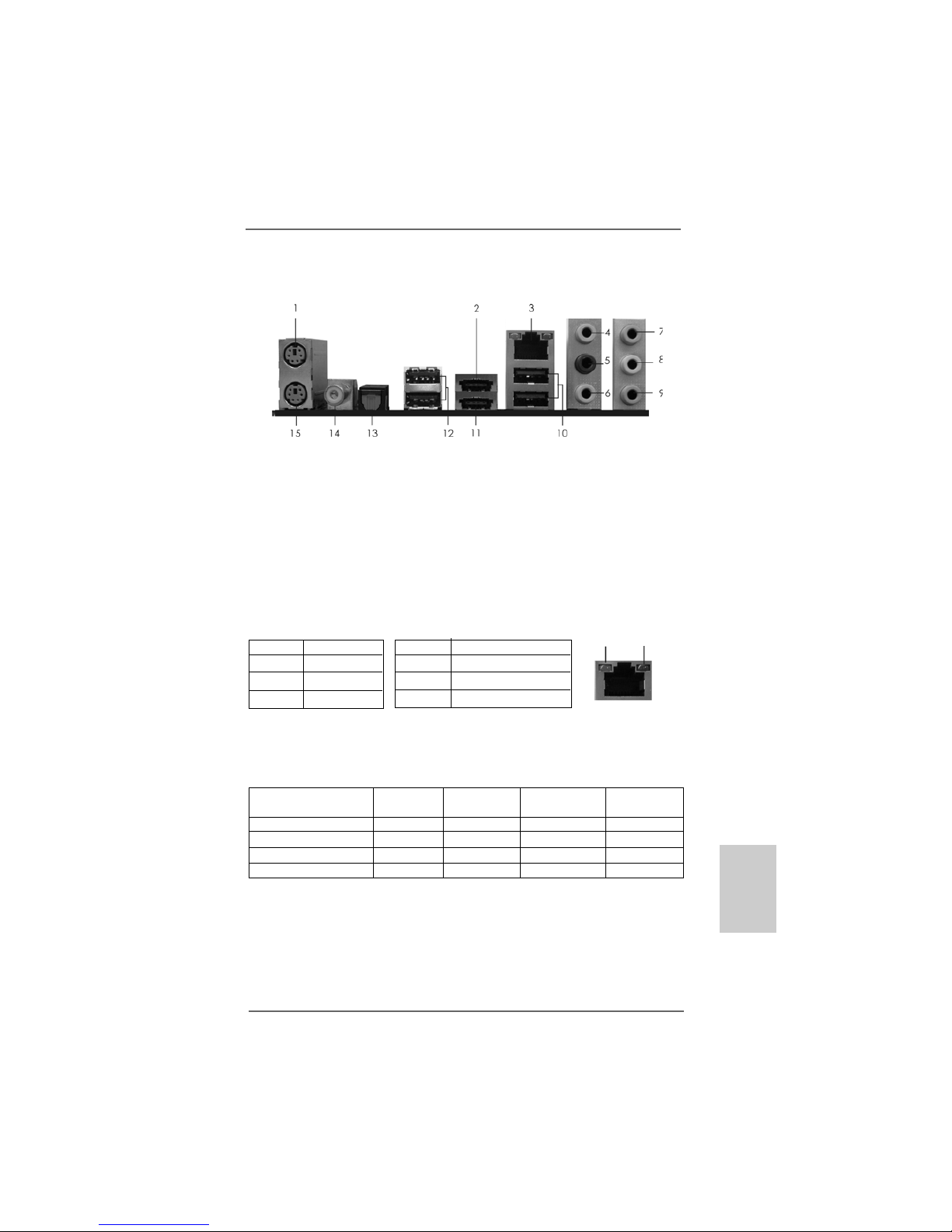

I/O PI/O P

I/O Panelanel

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 8) (No. 5) (No. 6) (No. 4)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse Port (Green) 9 Microphone (Pink)

2 USB 2.0 Port (USB2) 10 USB 2.0 Ports (USB01)

* 3 LAN RJ-45 Port (LAN) 11 Powered eSATAII/USB Connector

4 Side Speaker (Gray) 12 USB 2.0 Ports (USB45)

5 Rear Speaker (Black) 13 Optical SPDIF Out Port

6 Central / Bass (Orange) 14 Coaxial SPDIF Out Port

7 Line In (Light Blue) 15 PS/2 Keyboard Port (Purple)

** 8 Front Speaker (Lime)

4ASRock M3A770DE Motherboard

EnglishEnglish

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HDAudio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel”, “4 Channel”, “6 Channel” or “8 Channel”. Click “Power” to save your

change.

For Windows®VistaTM / VistaTM 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

ASRock M3A770DE Motherboard

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock M3A770DE motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

1 x ASRock M3A770DE Motherboard

(ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm)

1 x ASRock M3A770DE Quick Installation Guide

2 x ASRock M3A770DE Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

2 x SerialATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

EnglishEnglish

English

6ASRock M3A770DE Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm

CPU - Support for Socket AM3 processors:AMD PhenomTM II X4 /

X3 / X2 (except 920 / 940) and Athlon II X4 / X3 / X2

processors

- Supports CPU up to 140W

- Supports AMD OverDriveTM with ACC feature (Advanced

Clock Calibration)

-AMD LIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset - Northbridge:AMD 770

- Southbridge: AMD SB710

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 4 xDDR3DIMM slots

- Support DDR3 1600/1333/1066/800 non-ECC, un-buffered

memory (see CAUTION 3)

- Max. capacity of system memory: 16GB (see CAUTION 4)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, orange @ x4 mode)

- 1 x PCI Express 2.0 x1 slot

- 3 x PCI slots

- Supports ATITM CrossFireXTM

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(VIA®VT1708S Audio Codec)

LAN - PCIE x1Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 2 x Powered eSATAII/USB Connectors

-1 xRJ-45 LANPort withLED (ACT/LINKLED andSPEED LED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 5)

ASRock M3A770DE Motherboard

EnglishEnglish

English

Connector - 4 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID10 and JBOD),NCQ,AHCI and “Hot Plug”

functions (see CAUTION 6)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

(see CAUTION 7)

BIOS Feature - 8Mb AMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, VCCMVoltage Multi-adjustment

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

OverDriveTM Utility

Unique Feature - ASRock OC Tuner (see CAUTION 8)

- Intelligent Energy Saver (see CAUTION 9)

- Instant Boot

- ASRock Instant Flash (see CAUTION 10)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

- ASRock U-COP (see CAUTION 12)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit /

VistaTM / VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft®WHQL Certificated

8ASRock M3A770DE Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 26 for details.

2. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

3. Whether 1600MHz memory speed is supported depends on the AM3 CPU

you adopt. If you want to adopt DDR3 1600 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

5. For microphone input, this motherboard supports both stereo and mono modes.

For audio output, this motherboard supports 2-channel, 4-channel, 6-channel,

and 8-channel modes. Please check the table on page 3 for proper connection.

6. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 29 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

7. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

8. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

- EuP Ready (EuP ready power supply is required)

(see CAUTION 13)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock M3A770DE Motherboard

EnglishEnglish

English

9. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

10. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

11. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

13. EuP, stands for Energy Using Product, was a provision regulated by

European Union to define the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard of

5v standby power efficiency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

1010

10 ASRock M3A770DE Motherboard

EnglishEnglish

English

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

This is an ATX form factor (12.0-in x 8.2-in, 30.5 cm x 20.8 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

Autres manuels pour M3A770DE

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 4Core1333-Viiv Manuel utilisateur

ASROCK

ASROCK FATAL1TY P67 PROFESSIONAL Manuel utilisateur

ASROCK

ASROCK H61M-HVGS Manuel utilisateur

ASROCK

ASROCK P55M PRO - Manuel utilisateur

ASROCK

ASROCK H81M-VG4 R3.0 Manuel utilisateur

ASROCK

ASROCK H61M-U3S3 Manuel utilisateur

ASROCK

ASROCK N68-GS Manuel utilisateur

ASROCK

ASROCK H81M-ITX Manuel utilisateur

ASROCK

ASROCK P43DE3L Manuel utilisateur

ASROCK

ASROCK M3A785GXH/128M Manuel utilisateur

ASROCK

ASROCK B85M-DGS Manuel utilisateur

ASROCK

ASROCK Z690 Taichi Manuel utilisateur

ASROCK

ASROCK Fatal1ty B450 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z87 Professional Manuel utilisateur

ASROCK

ASROCK 4CORE1600-GLAN/M Manuel utilisateur

ASROCK

ASROCK Fatal1ty B250 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK K10N78D Manuel utilisateur

ASROCK

ASROCK N3150B-ITX Manuel utilisateur

ASROCK

ASROCK A780FULLDISPLAYPORT Manuel utilisateur

ASROCK

ASROCK IMB-1003 Manuel utilisateur

ASROCK

ASROCK 970 Pro3 R2.0 Manuel utilisateur

ASROCK

ASROCK 775XFIRE-VSTA - V1.2 Manuel utilisateur

ASROCK

ASROCK RIPTIDE Z790 PG Manuel utilisateur

ASROCK

ASROCK Z77 Pro4 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
