ASROCK CONROE1333-ESATA2 Manuel utilisateur

ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published April 2007

2ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

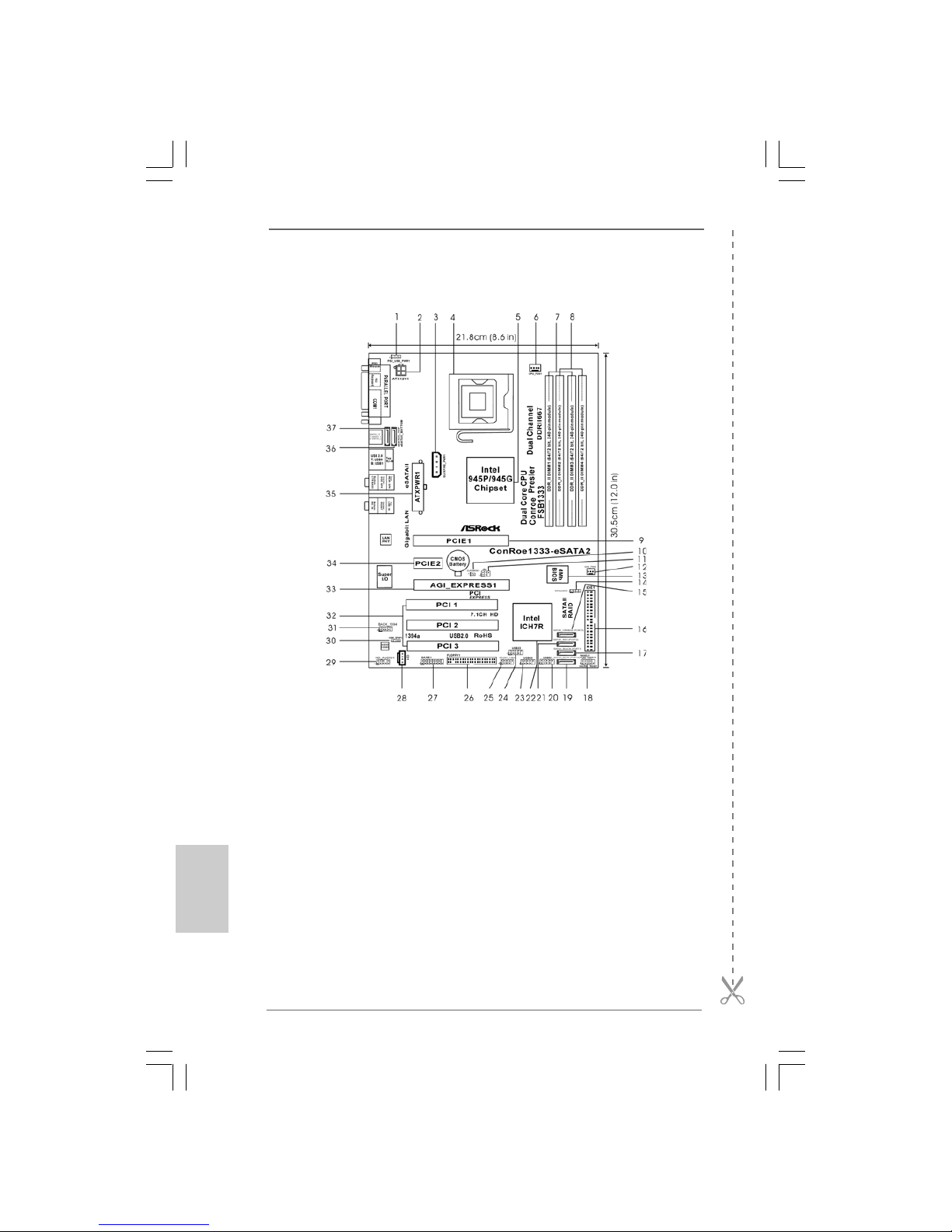

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 19 SATAII Connector (SATAII_BLUE (PORT0))

2 ATX 12V Connector (ATX12V1) 20 USB 2.0 Header (USB67, Blue)

3 SLI / XFIRE Power Connector 21 SATAII Connector (SATAII_RED (PORT2))

4 775-Pin CPU Socket 22 South Bridge Controller

5 North Bridge Controller 23 USB 2.0 Header (USB45, Blue)

6 CPU Fan Connector (CPU_FAN1) 24 USB 2.0 Header (USB23, Blue)

7 2 x 240-pin DDRII DIMM Slots 25 Front Panel IEEE 1394 Header (FRONT_1394)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 26 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDRII DIMM Slots 27 Game Port Header (GAME1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 28 Internal Audio Connector: CD1 (Black)

9 PCI Express x16 Slot (PCIE1) 29 Front Panel Audio Header (HD_AUDIO1)

10 Clear CMOS Jumper (CLRCMOS1) 30 HDMI_SPDIF Header (HDMI_SPDIF1)

11 Infrared Module Connector (IR1) 31 Back Panel IEEE 1394 Header (BACK_1394)

12 Chassis Fan Connector (CHA_FAN1) 32 PCI Slots (PCI1- 3)

13 BIOS FWH Chip 33 AGI Express Slot (PCI Express x4)

14 Chassis Speaker Header (SPEAKER1) 34 PCI Express x1 Slot (PCIE2)

15 SATAII Connector (SATAII_ORANGE(PORT3)) 35 ATX Power Connector (ATXPWR1)

16 IDE1 Connector (IDE1, Blue) 36 eSATAII Connector (eSATAII_BOTTOM)

17 SATAII Connector (SATAII_BLACK (PORT1)) 37 eSATAII Connector (eSATAII_TOP)

18 System Panel Header (PANEL1)

ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

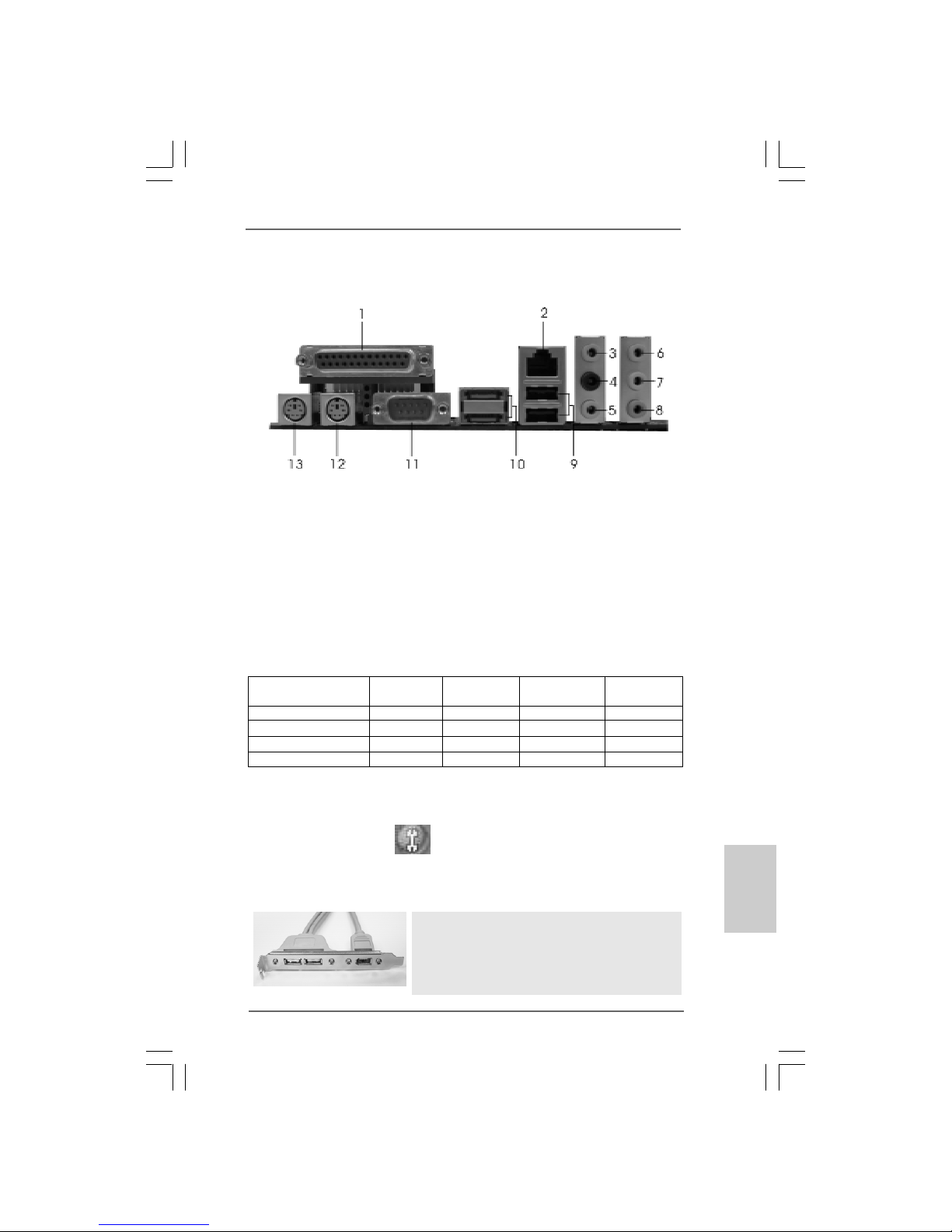

ASRASR

ASRock 8CH_eSock 8CH_eS

ock 8CH_eSock 8CH_eS

ock 8CH_eSAA

ATT

TAII I/OAII I/O

AII I/OAII I/O

AII I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 eSATAIIPorts

4 Rear Speaker (Black) 11 COM Port

5 Central/ Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker RearSpeaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

Free Bundle

ASRock provides you with one USB+1394 bracket,

which can support 2 additional USB 2.0 ports and

1 IEEE 1394 port.

4ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock ConRoe1333-eSATA2 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock ConRoe1333-eSATA2 Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock ConRoe1333-eSATA2 Quick Installation Guide

ASRock ConRoe1333-eSATA2 Support CD

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

Four Serial ATA (SATA) Data Cables (Optional)

Two Serial ATA (SATA) HDD Power Cables (Optional)

OneHDMI_SPDIFCable (Optional)

OneASRock 8CH_eSATAII I/O Panel Shield

One USB+1394 Bracket

ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

CPU - LGA775 for Intel®Dual Core CoreTM 2 Extreme / CoreTM 2Duo

/ Pentium®D/ Pentium®Dual Core / Pentium®4 / Celeron®/

Celeron®D

- Compatible with all FSB1333/1066/800/533MHz CPUs

except Quad Core (see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®945P/945G

- Southbridge: Intel®ICH7R

Memory - Dual Channel DDRII Memory Technology (see CAUTION 4)

- 4 xDDRIIDIMM slots

- SupportDDRII667/533 (see CAUTION 5)

- Max. capacity: 4GB (see CAUTION 6)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 7)

- ASRock U-COP (see CAUTION 8)

- Boot Failure Guard (B.F.G.)

Expansion Slot - Supports ATITM CrossFireTM

- 3 x PCI slots

- 1 x PCI Express x16 slot

- 1 x AGI Express slot (PCI Express x4)

- 1 x PCI Express x1 slot

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B

- Supports Wake-On-LAN

Rear Panel I/O ASRock 8CH_eSATAII I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 2 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 1 x RJ-45 Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 9)

6ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

Free Bundle: USB+1394 bracket, providing 2 additional

USB 2.0 ports and 1 IEEE 1394 port

Connector - 4 x SATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID1, RAID 10, RAID 5 and Intel Matrix Storage),NCQ,

AHCI and “Hot Plug” functions (see CAUTION 10)

- 2 x eSATAII 3.0Gb/s connectors (shared with 2 SATAII

connectors), support “Hot Plug” function (see CAUTION 11)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x HDMI_SPDIF header

- 2 x IEEE 1394 headers

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- SLI/XFIRE power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

(see CAUTION 12)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM/

VistaTM 64-bit compliant (see CAUTION 13)

Certifications - FCC, CE, WHQL

ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

CAUTION!

1. FSB1333-CPU will operate in overclocking mode. Under this situation,

PCIE frequency will also be overclocked to 115MHz.

2. About the setting of “Hyper Threading Technology”, please check page 48

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 37 for details.

4. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

5. Please check the table below for the CPU FSB frequency and its corre-

sponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDRII533*, DDRII667

1066 DDRII533, DDRII667

800 DDRII400, DDRII533, DDRII667

533 DDRII400, DDRII533

* When you use a FSB1333-CPU on this motherboard, it will run at

DDRII500 if you adopt a DDRII533 memory module.

6. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows®2000, Win-

dows®XP, Windows®XP 64-bit, Windows®VistaTM and Windows®VistaTM

64-bit.

7. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

8. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

9. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

8ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

10. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk SetupGuide” on page 29 to adjust your SATAII hard disk

drive to SATAII mode. You can also connect SATA hard disk to SATAII

connector directly.

11. This motherboard supports eSATAII interface, the external SATAII

specification. Please read “eSATAII Interface Introduction” on page 26 for

details about eSATAII and eSATAII installation procedures.

12. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

13. Microsoft®Windows®VistaTM / VistaTM 64-bit driver keeps on updating now. As

long as we have the latest driver, we will update it to our website in the future.

Please visit our website for Microsoft®Windows®VistaTM / VistaTM 64-bit driver

and related information.

ASRock website http://www.asrock.com

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron D 326

Memory 1GB system memory (Premium)

512MB Single Channel (Basic)

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2007 logo.

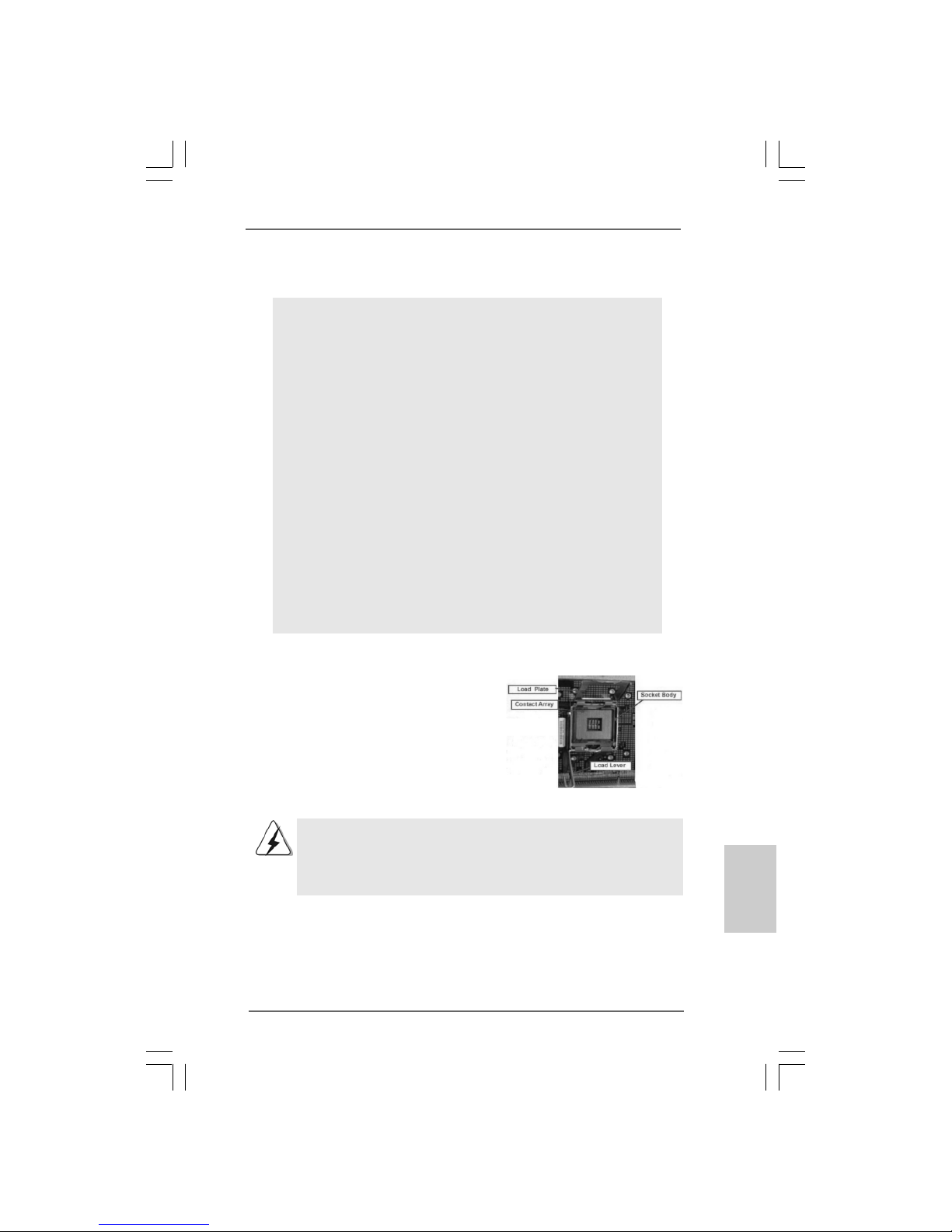

ASRock ConRoe1333-eSATA2 Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock ConRoe1333-eSATA2 Motherboard

EnglishEnglish

English

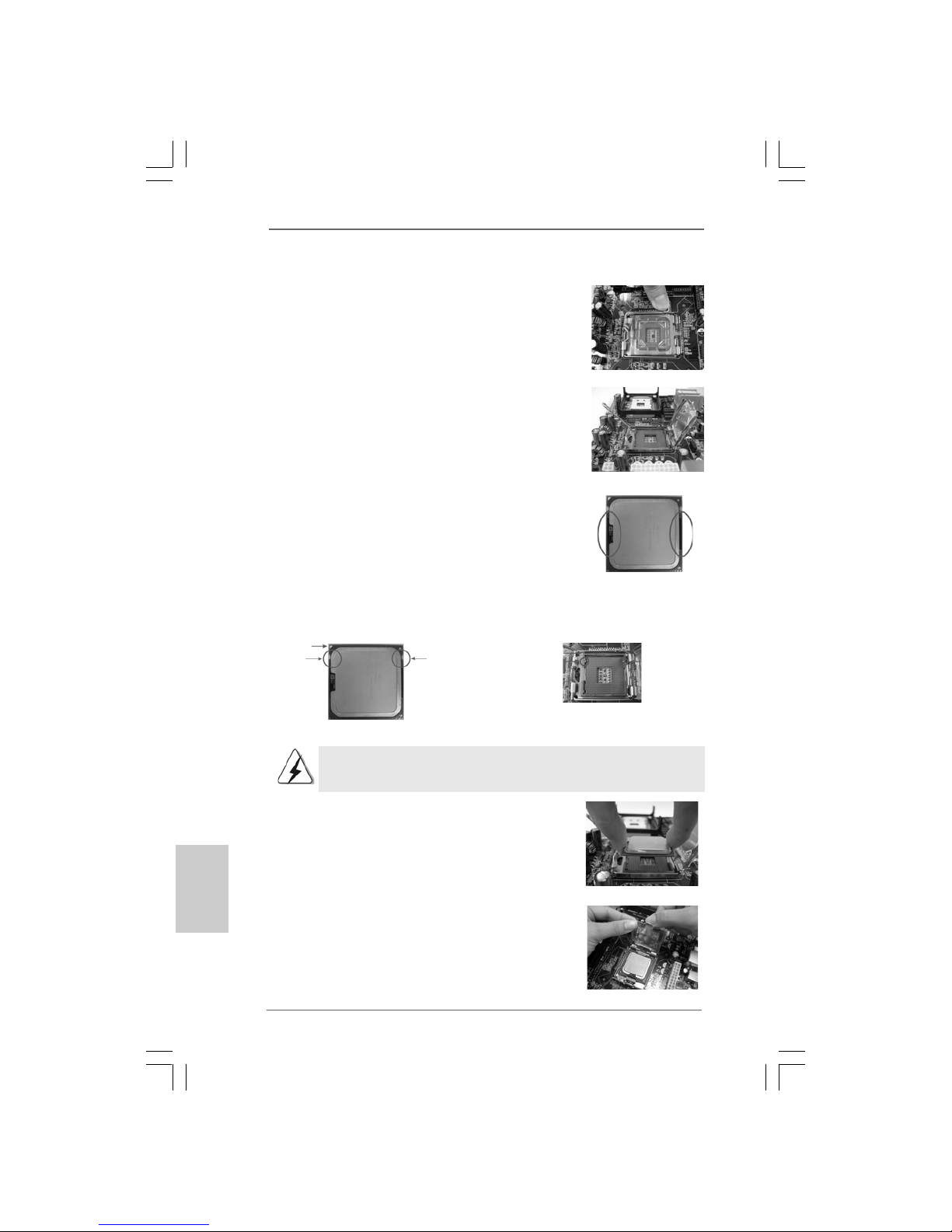

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK Z77 Extreme6 Manuel utilisateur

ASROCK

ASROCK X58 EXTREME6 - Manuel utilisateur

ASROCK

ASROCK P45R2000 Manuel utilisateur

ASROCK

ASROCK IMB-1220 Manuel utilisateur

ASROCK

ASROCK Z170 Extreme4 Manuel utilisateur

ASROCK

ASROCK H310M-HDV Manuel utilisateur

ASROCK

ASROCK DN2800MT Manuel utilisateur

ASROCK

ASROCK P4S55FX Manuel utilisateur

ASROCK

ASROCK B560M Pro4/ac+ Manuel utilisateur

ASROCK

ASROCK AD2550RA/U3S3 Manuel utilisateur

ASROCK

ASROCK X79 Extreme11 Manuel utilisateur

ASROCK

ASROCK G41MH-GE Manuel utilisateur

ASROCK

ASROCK K10N78HSLI-GLAN Manuel utilisateur

ASROCK

ASROCK X99 Extreme11 Manuel utilisateur

ASROCK

ASROCK A785GM-LE128M Manuel utilisateur

ASROCK

ASROCK 939S56-M Manuel utilisateur

ASROCK

ASROCK H61M-HG4 Manuel utilisateur

ASROCK

ASROCK P4VM900-SATA2 Manuel utilisateur

ASROCK

ASROCK Z370M Pro4 Manuel utilisateur

ASROCK

ASROCK Z77E-ITX Manuel utilisateur

ASROCK

ASROCK H310CM-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK IMB-1216 Manuel utilisateur

ASROCK

ASROCK Z97M Pro4 Manuel utilisateur

ASROCK

ASROCK B760M Steel Legend WiFi Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
