Chapter 1 Introduction

Thank you for purchasing ASRock P4S55FX+ / P4S55FX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 and 4 contain the configuration

guide to BIOS setup and information of the Support CD. More information of ad-

vanced BIOS setup is offered on page 26 for advanced users’ reference.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest memory and CPU support lists on ASRock website as

well. ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4S55FX+ or P4S55FX Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock P4S55FX+ / P4S55FX Quick Installation Guide

ASRock P4S55FX+ / P4S55FX Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One Serial ATA (SATA) Cable (For P4S55FX+ Only)

One Serial ATA (SATA) HDD Power Cable (For P4S55FX+ Only)(Optional)

One ASRock I/O PlusTM Shield

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

CPU: Socket 478, supports Intel®Pentium® 4(Prescott, Northwood,

Willimate) / Celeron®processor

Chipsets: North Bridge:

SiS 655FX, FSB @ 800/533/400 MHz,

with Intel®Hyper-Threading Technology ready

South Bridge:

P4S55FX+:

SiS 964, supports USB 2.0, ATA 133, SATA 1.5Gb/s

P4S55FX:

SiS 964L, supports USB 2.0, ATA 133

Memory: 4 DDR DIMM Slots:DDR1, DDR2, DDR3, and DDR4

Supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266) , Max. 3.5GB

Dual Channel Memory Technology support (see CAUTION 1)

IDE: IDE1: ATA 133 / Ultra DMA Mode 6

IDE2: ATA 133 / Ultra DMA Mode 6

Supports up to 4 IDE devices

Serial ATA: 2 SATA connectors

Supports up to 1.5Gb/s data transfer rate

(SATA is only available on P4S55FX+ Motherboard)

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing

Chassis temperature sensing

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 2)

CPU fan tachometer

Chassis fan tachometer

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 3)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 4)

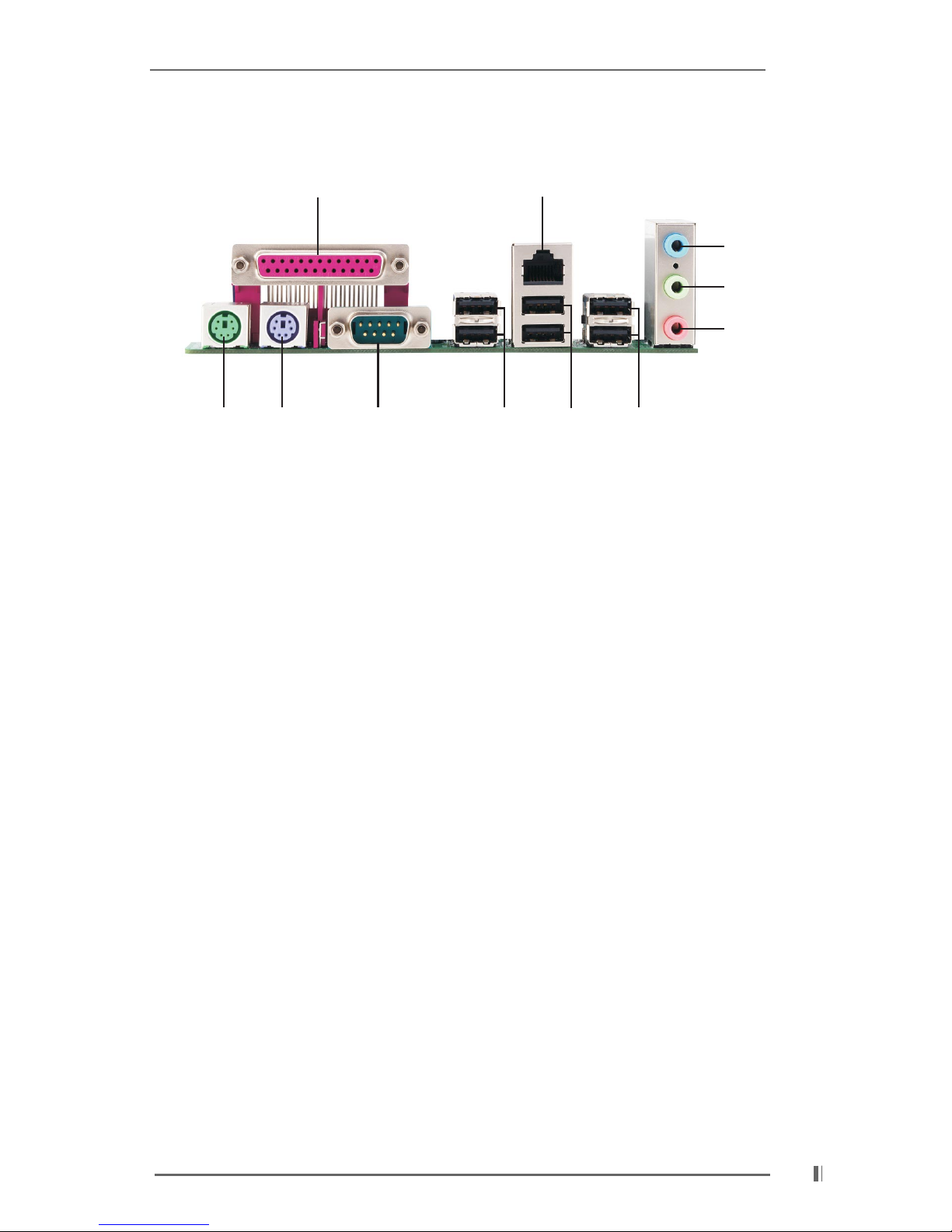

ASRock I/O PlusTM:1 PS/2 mouse port, 1 PS/2 keyboard port,

1 serial port: COM1,

1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ 45 port,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMI BIOS

Supports “Plug and Play”

ACPI 1.1 compliance wake up events

Supports jumperfree

SMBIOS 2.3.1 support

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 5)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

2. If the CPU is overheated, please check if the CPU fan on the motherboard

functions properly before you resume the system. To improve heat

dissipation, remember to spray thermal grease between the CPU and the

heatsink when you install the PC system.

3. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

4. Power Management for USB 2.0 works fine under Microsoft®Windows® XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows® 98 /

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

5. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

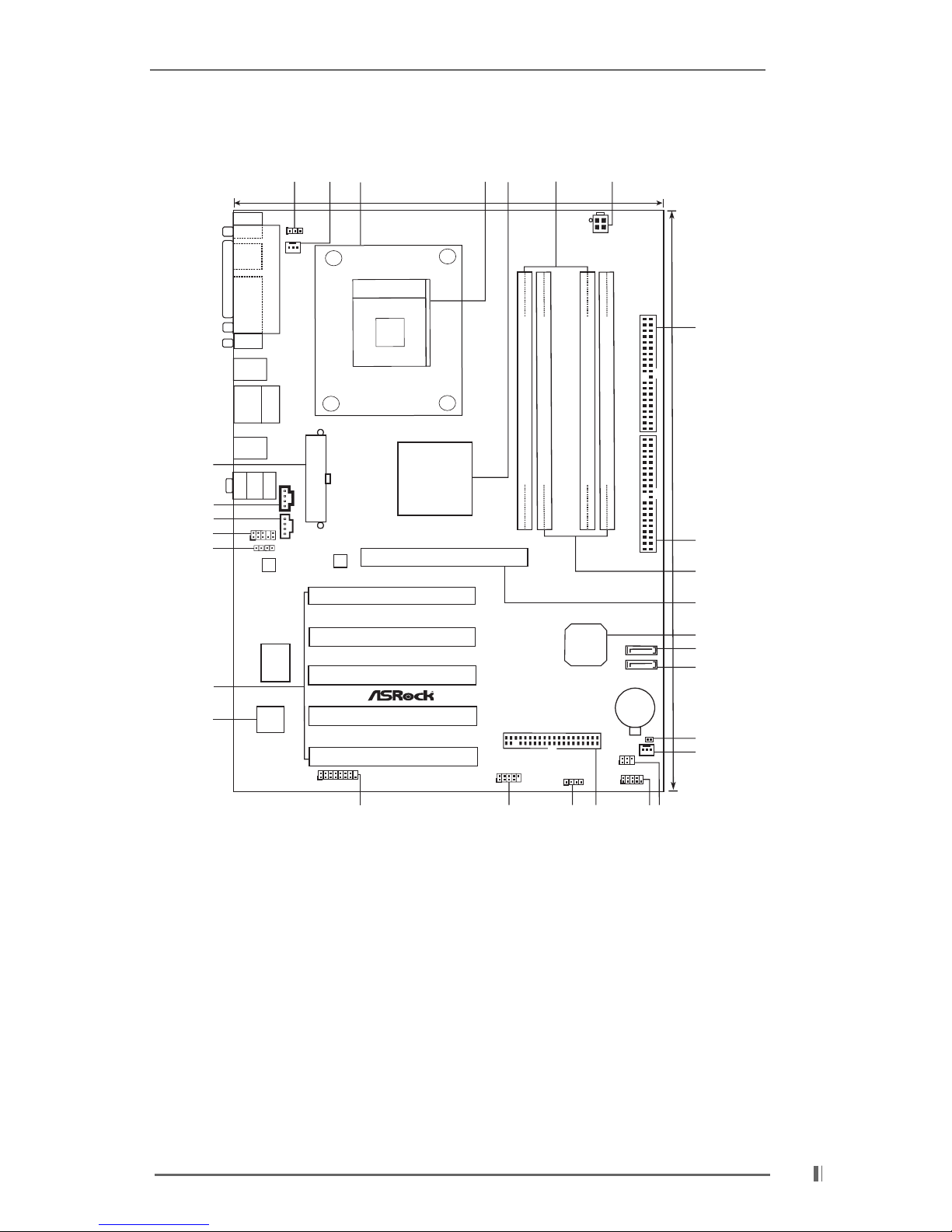

1.3 Motherboard Layout (P4S55FX+)

1 PS2_USB_PWR1 Jumper 15 Clear CMOS Solder Points (CLRCMOS1)

2 CPU Fan Connector (CPU_FAN1) 16 Chassis Fan Connector (CHA_FAN1)

3 CPU Heatsink Retention Module 17 Infrared Module Header (IR1)

4 CPU Socket 18 System Panel Header (PANEL1)

5 North Bridge Controller 19 Floppy Connector (FLOPPY1)

6 184-pin DDR DIMM Slots 20 Chassis Speaker Header (SPEAKER 1)

(Dual Channel A: DDR1, DDR3; Blue) 21 USB 2.0 Header (USB67, Blue)

7 ATX 12V Connector (ATX12V1) 22 Game Connector (GAME1)

8 Secondary IDE Connector (IDE2, Black) 23 Flash Memory

9 Primary IDE Connector (IDE1, Blue) 24 PCI Slots (PCI1- 5)

10 184-pin DDR DIMM Slots 25 JR1 Jumper / JL1 Jumper

(Dual Channel B: DDR2, DDR4; Black) 26 Front Panel Audio Header (AUDIO1)

11 AGP Slot (1.5V_AGP1) 27 Internal Audio Connector: AUX1 (White)

12 South Bridge Controller 28 Internal Audio Connector: CD1 (Black)

13 Secondary Serial ATA Connector (SATA2) 29 ATX Power Connector (ATXPWR1)

14 Primary Serial ATA Connector (SATA1)

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

1.5V_AGP1

ATX12V1

SATA2

SATA1

CLRCMOS1

AUX1

CD1

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

USB 2.0

T: US B 2

B: USB3

USB 2.0

T: US B 0

B: USB1

Top:

RJ-45

Top:

Line In

Center:

Line Out

Bottom:

Mic In

USB 2.0

T: US B 4

B: USB5

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

Super

I/O

USB67

IR1

PAN E L 1

HDLED RESET

PLED PWRBTN

PS2_USB_PWR1

P4S55FX+

SiS

964

SPEAKER1

FLOPPY1

CHA_FAN1

CMOS

Battery

AGP 8X

ATA133

DDR400

5.1 CH

SATA

SiS

655FX

PGA478

IDE1

IDE2

AUDIO1

Audio

CODEC

CPU_FAN1

ATXPWR1

GAME1

JR1 JL1

LAN

PHY

DDR3 (64/72 bit, 184-pin module)

DDR4 (64/72 bit, 184-pin module)

USB2.0

FSB800

21.8cm (8.6 in)

30.5cm (12.0 in)

126

21 20 19 18 17

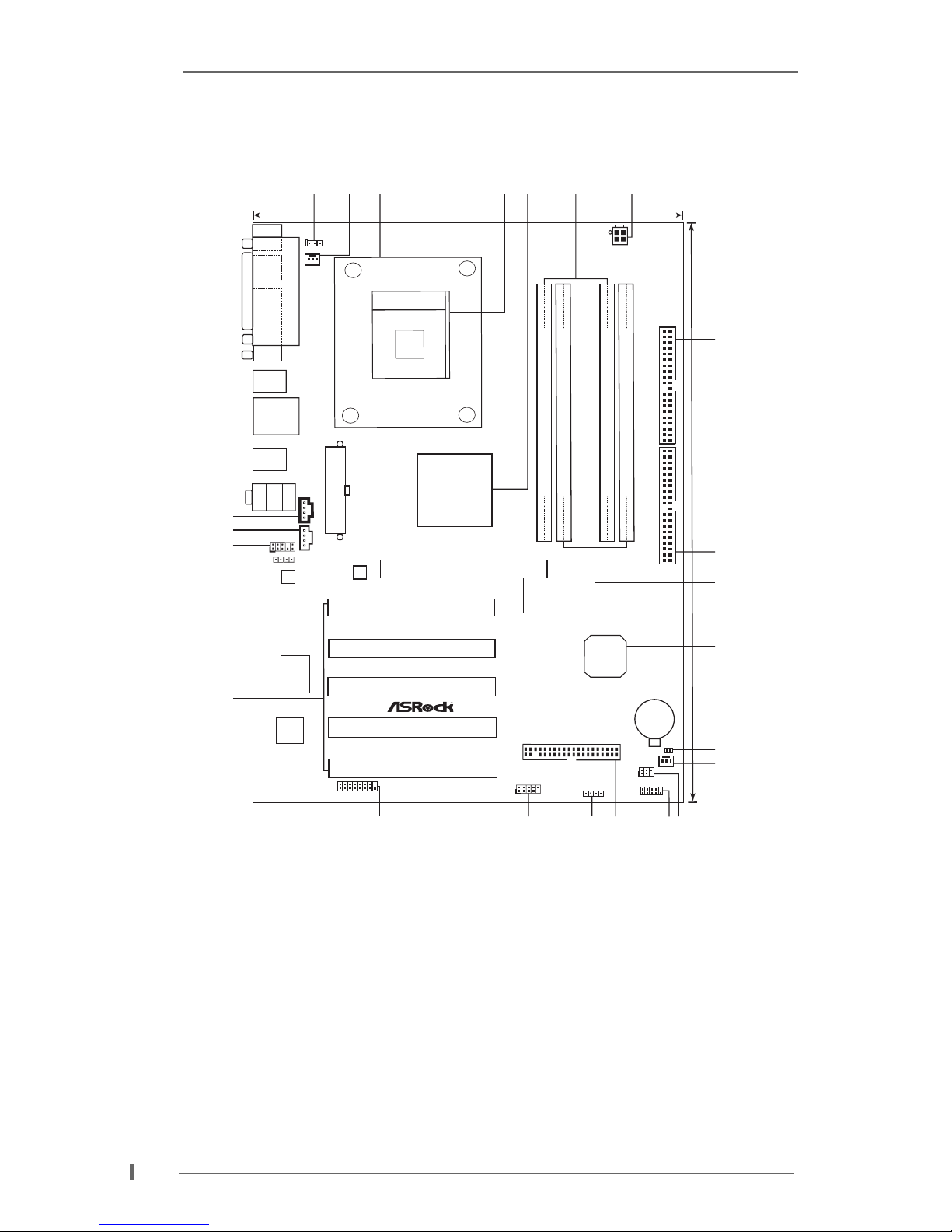

1.4 Motherboard Layout (P4S55FX)

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

1.5V_AGP1

ATX12V1

CLRCMOS1

AUX1

CD1

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

USB 2.0

T: US B 2

B: USB3

USB 2.0

T: US B 0

B: USB1

Top:

RJ-45

Top:

Line In

Center:

Line Out

Bottom:

Mic In

USB 2.0

T: US B 4

B: USB5

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

Super

I/O

USB67

IR1

PAN E L 1

HDLED RESET

PLED PWRBTN

PS2_USB_PWR1

P4S55FX

SiS

964L

SPEAKER1

FLOPPY1

CHA_FAN1

CMOS

Battery

AGP 8X

ATA133

DDR400

5.1 CH

SiS

655FX

PGA478

IDE1

IDE2

AUDIO1

Audio

CODEC

CPU_FAN1

ATXPWR1

GAME1

JR1 JL1

LAN

PHY

DDR3 (64/72 bit, 184-pin module)

DDR4 (64/72 bit, 184-pin module)

USB2.0

FSB800

21.8cm (8.6 in)

30.5cm (12.0 in)

126

19 18 17 16 15

1 PS2_USB_PWR1 Jumper 14 Chassis Fan Connector (CHA_FAN1)

2 CPU Fan Connector (CPU_FAN1) 15 Infrared Module Header (IR1)

3 CPU Heatsink Retention Module 16 System Panel Header (PANEL1)

4 CPU Socket 17 Floppy Connector (FLOPPY1)

5 North Bridge Controller 18 Chassis Speaker Header (SPEAKER 1)

6 184-pin DDR DIMM Slots 19 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDR1, DDR3; Blue) 20 Game Connector (GAME1)

7 ATX 12V Connector (ATX12V1) 21 Flash Memory

8 Secondary IDE Connector (IDE2, Black) 22 PCI Slots (PCI1- 5)

9 Primary IDE Connector (IDE1, Blue) 23 JR1 Jumper / JL1 Jumper

10 184-pin DDR DIMM Slots 24 Front Panel Audio Header (AUDIO1)

(Dual Channel B: DDR2, DDR4; Black) 25 Internal Audio Connector: AUX1 (White)

11 AGP Slot (1.5V_AGP1) 26 Internal Audio Connector: CD1 (Black)

12 South Bridge Controller 27 ATX Power Connector (ATXPWR1)

13 Clear CMOS Solder Points (CLRCMOS1)

1.5 ASRock I/O PlusTM (P4S55FX+ / P4S55FX)

1 Parallel Port 7 USB 2.0 Ports (USB0, USB1)

2 RJ-45 Port 8 USB 2.0 Ports (USB2, USB3)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 USB 2.0 Ports (USB4, USB5)

8910

Chapter 2 Installation

P4S55FX+ / P4S55FX is an ATX form factor (12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

motherboard. Before you install the motherboard, study the configuration of your

chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure

that the power is switched off or the power cord is

detached from the power supply. Failure to do so may

cause severe damage to the motherboard, peripherals,

and/or components.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 939SLI32-ESATA2 Manuel utilisateur

ASROCK

ASROCK B450D4U-V1L Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-D667 Manuel utilisateur

ASROCK

ASROCK H61M-VG3 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-VSTA R2.0 Manuel utilisateur

ASROCK

ASROCK A780GM-LE 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK N68-GS Manuel utilisateur

ASROCK

ASROCK H67M-GE/THW Manuel utilisateur

ASROCK

ASROCK 1U2-X570/2T Manuel utilisateur

ASROCK

ASROCK B760M PG RIPTIDE Manuel utilisateur

ASROCK

ASROCK H110M-I Manuel utilisateur

ASROCK

ASROCK H110M-DGS Manuel utilisateur

ASROCK

ASROCK IMB-A182 Instructions d'utilisation

ASROCK

ASROCK 890GX EXTREME4 Manuel utilisateur

ASROCK

ASROCK ION 330 - V1.1 Manuel utilisateur

ASROCK

ASROCK X300M-STX Manuel utilisateur

ASROCK

ASROCK H110M-DVS/D3 Manuel utilisateur

ASROCK

ASROCK P4TWINS-HDTV Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK Velocita Z490 PG Manuel utilisateur

ASROCK

ASROCK Q2900M Manuel utilisateur

ASROCK

ASROCK SBC-210 Manuel de service

ASROCK

ASROCK X570 CREATOR Manuel utilisateur

ASROCK

ASROCK P4VM900-SATA2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
