ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published September 2008

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

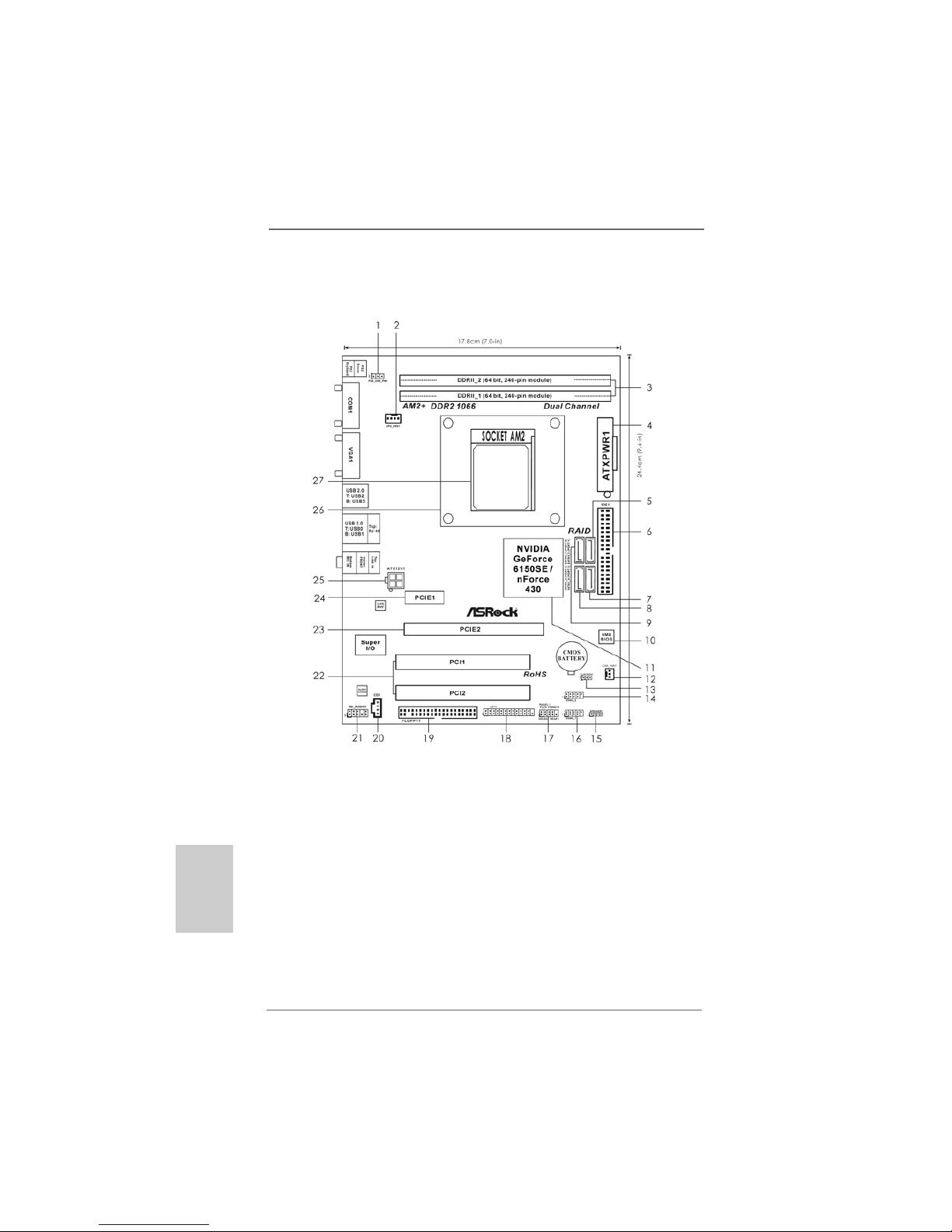

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 15 Chassis Speaker Header

2 CPU Fan Connector (CPU_FAN1) (SPEAKER 1, Purple)

3 2 x 240-pin DDR2 DIMM Slots 16 USB 2.0 Header (USB6_7, Blue)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 17 System Panel Header (PANEL1, Orange)

4 ATX Power Connector (ATXPWR1) 18 Print Port Header (LPT1, Purple)

5 Secondary SATAII Connector (SATAII_2 (PORT1))19 Floppy Connector (FLOPPY1)

6 Primary IDE Connector (IDE1, Blue) 20 Internal Audio Connector: CD1 (Black)

7 Fourth SATAII Connector (SATAII_4 (PORT3)) 21 Front Panel Audio Header

8 Third SATAII Connector (SATAII_3 (PORT2)) (HD_AUDIO1, Lime)

9 Primary SATAII Connector (SATAII_1 (PORT0)) 22 PCI Slots (PCI1- 2)

10 SPI Flash Memory (4Mb) 23 PCI Express x16 Slot (PCIE2)

11 NVIDIA GeForce 6150SE / nForce 430 24 PCI Express x1 Slot (PCIE1)

12 Chassis Fan Connector (CHA_FAN1) 25 ATX 12V Power Connector (ATX12V1)

13 Clear CMOS Jumper (CLRCMOS1) 26 CPU Heatsink Retention Module

14 USB 2.0 Header (USB4_5, Blue) 27 AM2 940-Pin CPU Socket

ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

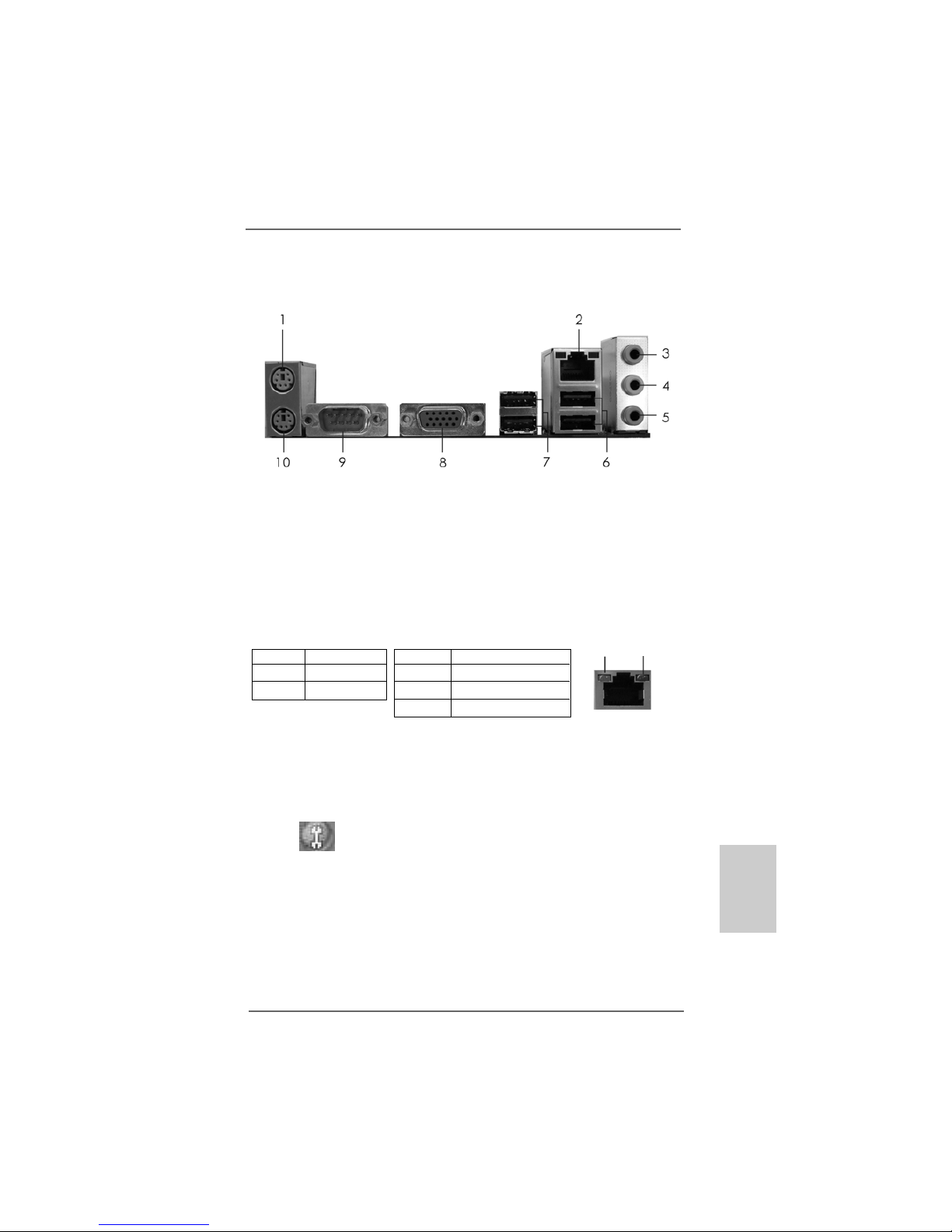

I/O PI/O P

I/O Panelanel

anelanel

anel

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 VGA Port

4 Front Speaker (Lime) 9 COM Port

** 5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the

front panel audio header. Please refer to below steps for the software setting of Multi-

Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different

audio streams simultaneously”, and click “ok”. Then reboot your system.

* On N61P-GS motherboard, there are two LED next to the LAN port. Please refer to the table

below for the LAN port LED indications. N61P-S motherboard does not have LAN port LED.

LAN Port LED Indications

Activity/Link LED SPEEDLED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection LAN Port

ACT/LINK

LED SPEED

LED

4ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

ThankyouforpurchasingASRockN61P-GS/N61P-Smotherboard,areliablemotherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 PP

Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

OneASRock N61P-GS / N61P-S Motherboard

(MicroATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm)

OneASRock N61P-GS / N61P-S Quick InstallationGuide

TwoASRock N61P-GS /N61P-S Support CD

One 80-conductor UltraATA66/100/133 IDE Ribbon Cable (Optional)

One SerialATA(SATA)Data Cable (Optional)

One SerialATA(SATA) HDDPower Cable (Optional)

One I/O Panel Shield

ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - MicroATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm

CPU - Support for Socket AM2+ / AM2 processors: AMD PhenomTM

FX / Phenom /Athlon 64 FX /Athlon 64 X2 Dual-Core /Athlon

X2Dual-Core /Athlon 64 / Sempronprocessor

(see CAUTION 1)

- SupportsAMD’s Cool ‘n’ QuietTM Technology

- FSB 1000 MHz (2.0GT/s)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports Hyper-Transport Technology

Chipset -NVIDIA®GeForce 6150SE / nForce 430

Memory -Dual ChannelDDR2 Memory Technology (see CAUTION 3)

- 2 xDDR2 DIMM slots

-SupportDDR21066/800/667/533non-ECC,un-bufferedmemory

(see CAUTION 4)

- Max. capacity of system memory: 4GB (see CAUTION 5)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

Graphics - IntegratedNVIDIA®GeForce6-class graphics

-DX9.0 VGA, Pixel Shader 3.0

- Max. shared memory 256MB (see CAUTION 6)

Audio - 5.1 CH Windows® VistaTM Premium Level HDAudio

(ALC662 Audio Codec)

LAN -N61P-GS

RealtekGiga PHY RTL8211CL-GR, speed 10/100/1000 Mb/s

-N61P-S

Realtek PHY RTL8201EL-GR/RTL8201CL, speed 10/100 Mb/s

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

(N61P-GS)

- 1 x RJ-45 LAN Port (N61P-S)

- HDAudio Jack: Line in / Front Speaker / Microphone

6ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

Connector - 4 x SerialATAII 3.0Gb/s connectors, support RAID (RAID0,

RAID1, RAID 0+1, RAID5, JBOD),NCQ and “Hot Plug”

functions (see CAUTION 7)

- 1 xATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x Print port header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio header

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 8)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- Supports Smart BIOS

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 9)

- Intelligent Energy Saver (see CAUTION 10)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

-ASRock U-COP (see CAUTION 12)

- Boot FailureGuard (B.F.G.)

-ASRockAM2 Boost:ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 13)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications - FCC, CE

* For detailed product information, please visit our website: http://www.asrock.com

ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. This motherboard supports CPU up to 95W. Please refer to our website for

CPU support list. ASRock website http://www.asrock.com

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 18 for details.

3. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 11 for proper

installation.

4. Whether 1066MHz memory speed is supported depends on the AM2+

CPU you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

5. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM

64-bit with 64-bit CPU, there is no such limitation.

6. The maximum shared memory size is defined by the chipset vendor

and is subject to change. Please check NVIDIA®website for the latest

information.

7. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 22 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect

SATA hard disk to SATAII connector directly.

8. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

9. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows®

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website: http://www.asrock.com

8ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

10. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance.

To use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet

option in the BIOS setup in advance. Please visit our website for the

operation procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

11. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

13. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you

adopt. Enabling this function will overclock the chipset/CPU reference clock.

However, we can not guarantee the system stability for all CPU/DRAM

configurations. If your system is unstable after AM2 Boost function is enabled,

it may not be applicative to your system. You may choose to disable this

function for keeping the stability of your system.

ASRock N61P-GS / N61P-S Motherboard

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

This is a MicroATX form factor (9.6-in x 7.0-in, 24.4 cm x 17.8 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws!Doing so may

damage the motherboard.

EnglishEnglish

English

1010

10 ASRock N61P-GS / N61P-S Motherboard

EnglishEnglish

English

2.12.1

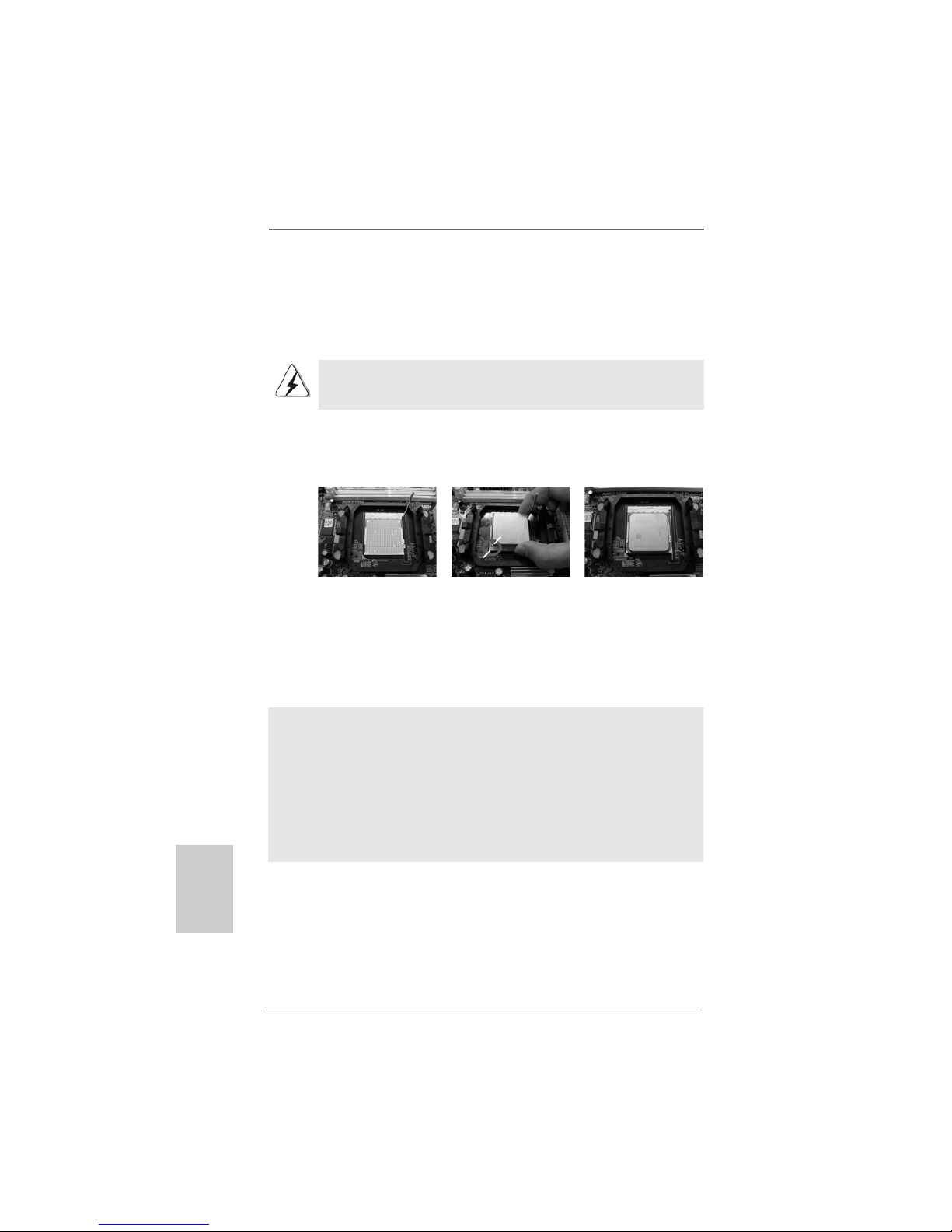

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.22.2

2.2 Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat

dissipation. Make sure that the CPU and the heatsink are securely fas-

tened and in good contact with each other. Then connect the CPU fan to

the CPU FAN connector (CPU_FAN1, see Page 2, No. 2). For proper

installation, please kindly refer to the instruction manuals of the CPU fan

and the heatsink.

STEP 1:

Lift Up The Socket Lever

STEP 2 / STEP 3:

Match The CPU Golden Triangle

To The Socket Corner Small

Triangle

STEP 4:

Push Down And Lock

The Socket Lever

Lever 90°Up

CPUGoldenTriangle

SockerCornerSmallTriangle

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK B650 PRO RS Manuel utilisateur

ASROCK

ASROCK N3700-ITX Manuel utilisateur

ASROCK

ASROCK G41M-GS Manuel utilisateur

ASROCK

ASROCK H61M-DP3 Manuel utilisateur

ASROCK

ASROCK X570 Taichi Manuel utilisateur

ASROCK

ASROCK IMB-391 Manuel utilisateur

ASROCK

ASROCK X299 TAICHI CLX Manuel utilisateur

ASROCK

ASROCK P43ME Manuel utilisateur

ASROCK

ASROCK 4Core1600-DVI Manuel utilisateur

ASROCK

ASROCK 939NF4G-VSTA Manuel utilisateur

ASROCK

ASROCK FM2A55 Pro+ Manuel utilisateur

ASROCK

ASROCK FM2A78M Pro3+ Manuel utilisateur

ASROCK

ASROCK X570M Pro4 Manuel utilisateur

ASROCK

ASROCK P5B PRO - QUICK Manuel utilisateur

ASROCK

ASROCK H110M-STX Manuel utilisateur

ASROCK

ASROCK H81M-HG4 Manuel utilisateur

ASROCK

ASROCK K7VT6 Manuel utilisateur

ASROCK

ASROCK EP2C612 WS Manuel utilisateur

ASROCK

ASROCK Z75 Pro3 Manuel de l'opérateur

ASROCK

ASROCK Fatal1ty B150 Gaming K4 Manuel utilisateur

ASROCK

ASROCK M3N78D - V1.0 Manuel utilisateur

ASROCK

ASROCK FM2A55 Pro Manuel utilisateur

ASROCK

ASROCK 775i915PL-M Manuel utilisateur

ASROCK

ASROCK X570S PG Riptide Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
