ASROCK IBOX-155 Manuel utilisateur

Inside View

Front View

Rear View

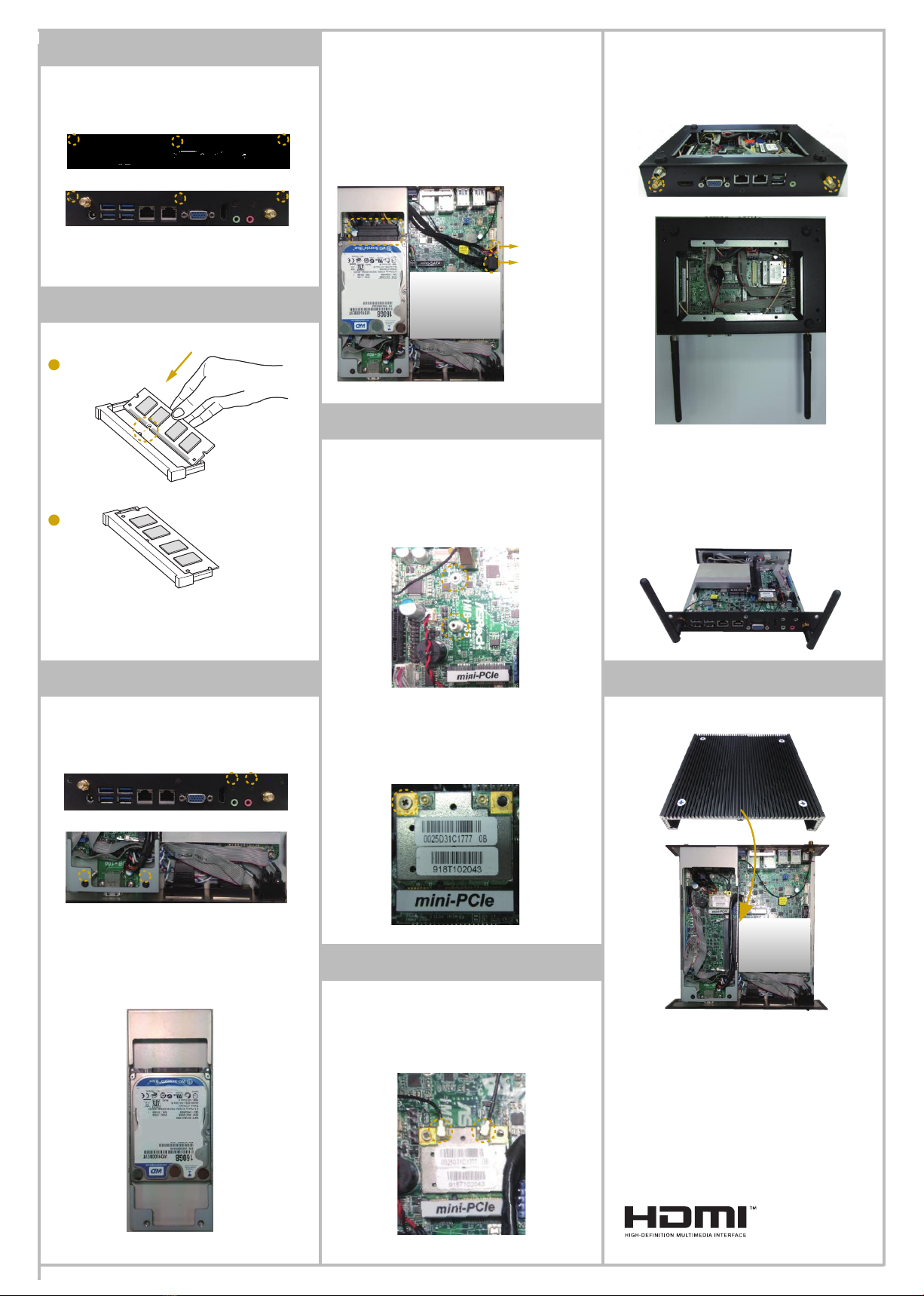

iBOX-155

Quick Installation

Guide

P/N: 15G06M032000AK V1.0

Kenshington Lock

2 x USB 2.0 Ports 2 x COM Ports

HDD LED Power LED

On-/oﬀ Switch

Antenna Port

DC IN

4 x USB 3.0 Ports

2 x LAN RJ-45 Ports Line out

HDMI

Microphone

VGA

Rear Panel

Front Panel

SO-DIMM sockets

M/B

mini-SATA slot

mini-PCIe slot

*15G06M032000AK*

1. Removing the Top Cover

6. Replacing the Bottom Cover

3. Installing the Hard Drive

4. Installing the WiFi module

Note

1. Remove the six screws on the front and rear

panels.

2. Li up and remove the top cover.

3. Place the bracket into the chassis. Carefully align

the mounting holes on the bracket and the chassis.

Secure the bracket into the place using the four

screws.

4. Aach the SATA data cable and power cable

to the motherboard.

1. Release the four screws to remove the hard drive

bracket.

2. Place a HDD into the bracket with the printed

circuit board side facing down. Secure the hard

drive into the place using the four screws.

2. Installing the SO-DIMM

* Please install the SO-DIMM module into the

DDR3_A2 for the rst priority.

2. Connect the two WiFi 2.4/5 GHz Antennas to

the antenna connectors. Turn the antenna

clockwise until it is securely connected.

3. Set the WiFi 2.4/5 GHz Antenna at 90-degree

angle.

*You may need to adjust the direction of the

antenna for a stronger signal.

1. Replace the top cover.

2. Secure the six screws on the front and rear panels.

For more details on the hardware installation,

please refer to the User Manual in the support CD.

*is step is optional.

5. Installing the WiFi antennas

*is step is optional.

1. Based on the length of the WiFi Module Card,

release and move the stando by hand to the nut

to be used .

2. Insert the WiFi Module Card into the mini

PCI Express slot (MINI_PCIE1). Tighten the

screw that holds the card in place.

1 Aach the SMA Wi-Fi Antenna Cables to the

WiFi Module.

SATAII_1

SATA Power

Output Connector

e terms HDMI™ and HDMI High-Denition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.
