Ask Proxima Impression 960 Manuel utilisateur

USER

GUIDE

IMPRESSION 960

801.230

USG/960/AE-C

18.09.96

Not the actual front page

USER

GUIDE

IMPRESSION 960

USER GUIDE LCD PROJECTOR

TABLE OF CONTENTS

1 SYMBOL DESCRIPTIONS....................................................................5

2 SAFETY INSTRUCTIONS.....................................................................5

3 INTRODUCTION...................................................................................9

4 MAIN FEATURES............................................................................... 10

5 SUPPLIED MATERIAL........................................................................ 11

6 OPTIONAL MATERIAL ....................................................................... 11

7 SETTING UP THE LCD PROJECTOR ................................................ 12

7.1 COMPUTER....................................................................... 13

7.2 MOUSE.............................................................................. 15

8 USING THE LCD PROJECTOR.......................................................... 17

8.1 OPTICS.............................................................................. 17

8.2 ILLUMINATION SYSTEM ................................................... 17

8.3 REMOTE CONTROL.......................................................... 18

8.4 CONTROL PANEL.............................................................. 20

8.5 CONNECTORS.................................................................. 21

9 FEATURES......................................................................................... 22

10 TROUBLE-SHOOTING..................................................................... 26

11 MAINTENANCE................................................................................ 28

11.1 FUSE REPLACEMENT..................................................... 28

12 SERVICE.......................................................................................... 29

12.1 LAMP REPLACEMENT..................................................... 29

12.2 LAMP REPLACEMENT MESSAGES................................. 29

13 TECHNICAL DATA............................................................................ 32

14 CONNECTORS................................................................................. 35

15 FCC STATEMENT ............................................................................ 36

16 ENVIRONMENTAL STATEMENT...................................................... 37

17 SERVICE INFORMATION................................................................. 38

18 CONNECTION LAYOUT................................................................... 39

(Foldout Page)

This publication is printed on recycled paper

The information contained in this User Guide is preliminary, and the

products described herein are subjected to change without prior notice.

USER GUIDE LCD PROJECTOR

1SYMBOL DESCRIPTIONS

DANGEROUS VOLTAGE

This symbol is intended to alert the user to the presence of

uninsulated “dangerous voltages” within the product

housing that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

WARNING

This symbol is used on the product to alert the user of

important operating and maintenance (servicing)

instructions, and also used in the product literature to

indicate important safety-related information.

HOT

This symbol is used on the product to make the user aware

of hot surfaces, i.e. fan ventilation grill.

NOTE

This symbol is used in this publication to highlight

information for the user.

2SAFETY INSTRUCTIONS

Read instructions - All the safety and operating

instructions should be read before the projector is

operated.

Retain instructions - The safety and operating

instructions should be retained for future reference

Heed warnings - All warnings on the projector and in

the User Guide should be adhered to. If ignored, use

of this projector may cause death, injury or material

damage.

USER GUIDE LCD PROJECTOR

The normal operating life for the lamp is 750 hours.

High-pressure lamp may explode if improperly used.

Refer all servicing to authorized personnel only.

1. Water and Moisture - The projector is designed for indoor use only

and should not be used near water and moisture.

2. Carts and Stands - Place the projector on a stable, hard surface in a

manner that does not obstruct ventilation ports and openings in the

cabinet. Unstable carts, stands, tables, etc. may cause the projector to

fall, which may cause serious injury to people and/or the projector.

3. Ventilation - Slots and openings in the cabinet are provided for

ventilation. To ensure reliable operation of the projector and protection

from overheating, do not block or cover slots and openings in any way.

Do not place the projector on any soft surface or close to a heating

source, radiator, etc. Never install the projector in an enclosed unit.

4. Heat - The projector should be situated away from heat sources such

as direct sunlight, radiators, stoves or other strong heat sources.

5. Power Sources - The projector must only be connected to proper

electrical voltage as marked on the projector body. The projector

should be connected to electrical outlet using a power cord compatible

with the local electrical voltage. If you are not sure about the type of

electrical service at your location, consult your projector dealer or local

power company.

6. Power Cord Protection - Power cords should be routed so that they

are not likely to be walked on, pinched or unduly bent by items placed

upon or against them. Pay particular attention to cords and cables at

the point where they exit from the projector.

USER GUIDE LCD PROJECTOR

7. Cleaning - The projector should be cleaned only as recommended,

see the Maintenance section. Disconnect the power cord from the

power outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners.

8. Non-use Periods - The power cord of the projector should be

unplugged from the outlet when left unused for a long period of time.

9. Damage Requiring Service - The projector should be serviced only

by authorized service personnel when;

•the power supply cord or the plug has been damaged,

•objects have fallen, or liquid spilled, into the projector,

•the projector has been exposed to water or condense,

•the projector does not appear to operate normally (fan not

working, noise, smell, smoke, heat etc.)

•the projector has been dropped or damaged.

10. Object or Liquid Entry - Care should be taken so that objects do not

fall into the projector casing. Be careful not to spill liquids into the

inside of the projector. Do not insert metal or flammable objects into

the projector.

11. Servicing - The user should not attempt to perform unusual or

technical service to the projector. Do not open the unit. Refer all

servicing to authorized service personnel.

12. Grounding or Polarization - Precautions should be taken so that

grounding or polarization of a projector is maintained. Do not use a

three prong to a two prong adapter.

To prevent electric shock, do not use the polarized ac plug

with an extension cord, receptacle or other outlet unless

the blades can be fully inserted to prevent blade exposure.

14.Lamp Replacement - Do not attempt to replace lamp. Contact an

authorized service centre for lamp replacement.

15.Abnormality - If you detect an abnormal smell or smoke, immediately

turn off the power switch. Disconnect the power plug from the power

switch to prevent fire or electric shock.

USER GUIDE LCD PROJECTOR

16.Lifting/moving - When the projector is to be moved, let the unit cool

down completely, cover the lens, disconnect the power plug from the

power outlet and disconnect all external cords and cables to prevent

damage that may cause a fire, electric shock, etc. Be careful when

lifting and carrying the unit as it is heavy.

17.Lamp Beam - Do not look directly into the projector or lens when

operating the projector. The lamp emits rays which may cause eye

injury and/or sunburns.

18.Electrical Shock - To reduce risk of electrical shock do not open the

unit. Refer all servicing to authorized personnel only.

USER GUIDE LCD PROJECTOR

3INTRODUCTION

Congratulations on purchasing this state-of-the-art, high-resolution LCD

projector. This projector can be connected to both computer and video

sources for the best projection results and maximum compatibility.

The ability to display a multitude of colors simultaneously as well as high

resolution, makes it the ideal choice for presenting computer generated

text and graphics. Direct support for RGB-Video makes it compatible with

professional video and multimedia equipment.

Applications include presentations, software training, educational use,

advertising, information boards and other situations where a small or large

audience shares information.

Please spend some time reading this manual to get familiar with the

product, so that you can get the most out of your new LCD projector.

Table des matières

Autres manuels Ask Proxima Projecteur

Ask Proxima

Ask Proxima A3100 - Manuel utilisateur

Ask Proxima

Ask Proxima C200 (DP6500x) Mode d’emploi

Ask Proxima

Ask Proxima Impression A10 Manuel utilisateur

Ask Proxima

Ask Proxima Impression A4 Manuel utilisateur

Ask Proxima

Ask Proxima M5 Manuel utilisateur

Ask Proxima

Ask Proxima C105 (DP6155) Manuel utilisateur

Ask Proxima

Ask Proxima M9 Manuel utilisateur

Ask Proxima

Ask Proxima M1 Manuel utilisateur

Ask Proxima

Ask Proxima Impact 24 Manuel utilisateur

Ask Proxima

Ask Proxima Impact 21 Manuel utilisateur

Ask Proxima

Ask Proxima Campus 700 Manuel utilisateur

Ask Proxima

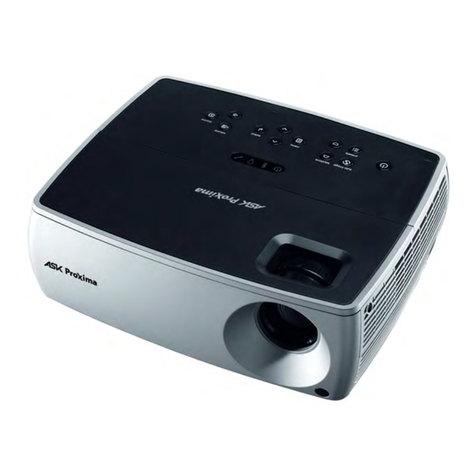

Ask Proxima A1100 Manuel utilisateur
