ARGON18 E-116 Manuel utilisateur

E-116 Assembly Guide

Overview of the assembly ...........................................................2

1. Cable housing installation ........................................................3

2. Front brake installation ...........................................................4

3. Rear brake installation ..........................................................5-6

4. Seatpost installation ..............................................................7

5. Saddle adjustment ...............................................................8

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18

dealer. High end components, particularly carbon parts, need extra care when assembled.

Those components must be installed using a torque wrench to make sure every bolts are at

the right torque setting to prevent damage.

Table of Contents

Overview of the assembly

4. Seatpost installation 5. Saddle adjustment

1. Cable housing installation

(IMPORTANT NOTICE: DON’T INSTALL

THE BB BEFORE THE CABLE HOUS

ING INSTALLATION)

2. Front brake installation 3. Rear brake installation

1. Cable housing installation

1. Install the rear derailleur cable

housing starting at the drive side’s

drop-out

2. Install the front derailleur cable

housing starting under the bottom

bracket shell

3. Install the rear brake cable housing

starting under the bottom bracket

shell

See the table below for the cable housing

length suggested

Suggested lengths of the cable housing

housing/size

Front brake

Rear brake

Front derailleur

Rear derailleur

58cm

136cm

140cm

198cm

60cm

138cm

142cm

200cm

62cm

140cm

144cm

202cm

64cm

142cm

146cm

204cm

XS S M L

2. Front brake installation

1. Install the brake as shown in the

diagram

- Install the spring in the middle

hole of the fork insert

- It is important not to mix the springs

of the front and rear brakes

- Respect the color code: the spring

must be installed on the pivot of the

same color



spacing with 1mm , 2mm or

no spacers behind the brake pads

depending of the rim width you are

using

GREASE

8Nm

13b

13a

13d

13c 13h

the short end of the spring

should be positioned in

the notch of the spring

tensioner

13e

13i

13c

13f13g

3. Rear brake installation

GREASE

8Nm

12c

12d

12a

12h

12e

12b

1. Remove the brake arm stopper

2. Install the brake as shown in the

diagram

- Install the spring in the middle

hole of the fork insert

3. Install the brake arm stopper and

adjust the set screw on the brake

arm to avoid any contact between

brake components and chain ring

- It is important not to mix the springs

of the front and rear brakes

- Respect the color code: the spring

must be installed on the pivot of the

same color



spacing with 1mm , 2mm or

no spacers behind the brake pads

depending of the rim width you are

using

- A hex key supplied with the frame

allows to adjust easily the brake when

the crankset is in place

hex key

12i

12 j

12c

12i

12a

12g 12f

3. Rear brake installation

1. Finalize the installation of the brake

by placing the cover of the bottom

bracket as shown in diagram

2Nm

4. Seatpost installation

 

sided tape located at the back of the

seat clamp thread

2. Place the seat clamp thread

inside the frame

3. Insert the seatpost on which

 

been applied

4. Position the seatpost at the desired

height and insert the seat clamp

wedge

5. Tighten the set screw

8-10 Nm

GREASE

CARBON FIBER ASSEMBLY GEL

5. Saddle adjustment

1. Install the saddle on the rocker

and lightly tighten the rail clamp

using a ball end hex key

2. Tighten the upper screw of the

rocker clamp by keeping a space of

2 to 3 mm between the aluminum

and carbon parts

3. Adjust the angle of the saddle and

tighten the lower screw of the rocker

clamp

 

the tightening of the rail clamp

5Nm 8Nm

8Nm

2-3 mm gap

# Also included with the frameset

shipped separately

12 TKB-77 Rear brake Quantity

including the following parts

12a Brake arms 1 left + 1 right

12b 125deg. cable pipe 1

12c Springs 1 black + 1 silver

12d Spring tensioner 2

12e Brake pad – P963.12 for alloy rim 2

12f 2mm conical spacers 2

12g 1mm conical spacers 2

12h Pivots bolts 2

12i Set screw 1

12j Flat washer 2

13 TKB-78* front brake Quantity

including the following parts

13a Brake arms 1 left + 1 right

13b 110deg. Adjustable cable pipe 1

13c Springs 1 black + 1 silver

13d Spring tensioner 2

13e Brake pad – P963.12 for alloy rim 2

13f 2mm conical spacers 2

13g 1mm conical spacers 2

13h Pivots bolts 2

13i Flat washer 2

*TKB-95 (UK, Australia)

# Frameset parts Supplier Description

1 E-116 frame AR-TT04-12K

2 E-116 fork AR-TT04-FK-12K

# Parts installed on the frame Quantity

3a Rear Derailleur Hanger and screws 1

3b Front Derailleur Hanger and screws 1

3c Rear drop out insert and screws 1

3d Rear axle adjustment screws and spring 2

3e Screws for water bottle cage 2

3f BB plastic cap and screws 1

3g Di2 battery mount screws 2

3h Front brake pivot 1 black + 1 silver

3i Rear brake pivot 1 black + 1 silver

3j Brake arm stopper 1

# Seat clamp kit Quantity

4a Seat clamp wedge 1

4b Seat Clamp Thread 1

4c Set Screw 1

# Di2 conguration Quantity

specic parts

5a Di2 plug 2

5b Di2 Hole Filler (no Di2) 2

5c Di2 Top tube grommet 1

5d Top tube grommet (no Di2) 1

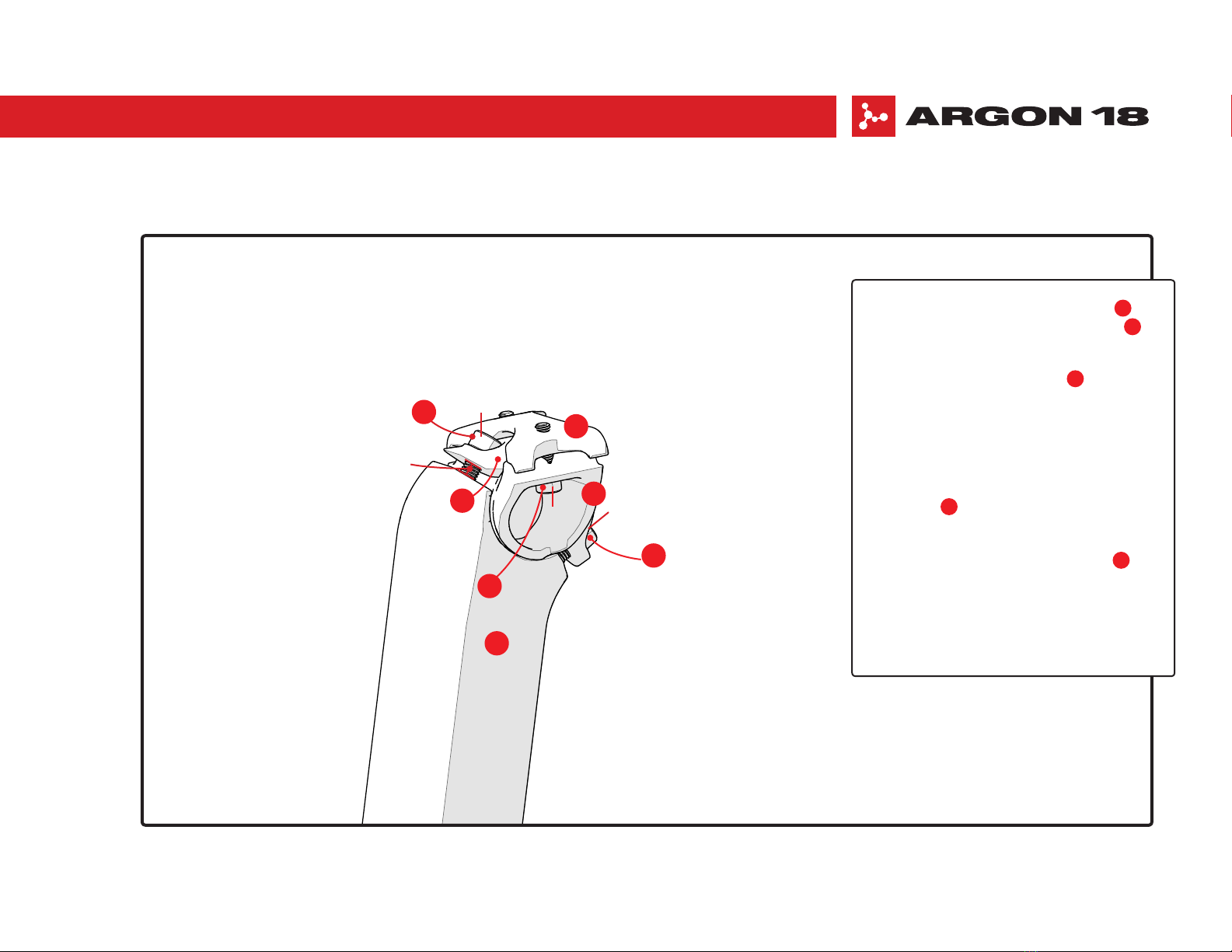

# Seat post with the Quantity

following parts assembled

6a ASP-7000 carbon seatpost 1

6b Upper rocker clamp M6 screw 1

6c Lower rocker clamp M6 screw 1

6d M5 screws 2

6e Rail top clamp 1

6f Rocker clamp 1

6g Rocker 1

# Additional tools Quantity

7 4mm allen key for brake adjustment 1

# Also included with the frameset Supplier Description

shipped separately

8 Brake levers x2

9 Headset IS-2 6.5mm + 3D

10 3D Headset tool

11 Compressor TH-881-1 Compressor,

with FSA alloy top cap
