Aplex APC-3580 Manuel utilisateur

APC-3580 User Manual 1

APC-3580/3581 Panel PC

User Manual

ReleaseDate Revision

June 2005 V1.0

Aplex Technology, Inc.

9F-5, No. 2, Jian Pa Road, Chung Ho City, Taipei County, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: [email protected] URL: www.aplex.com.tw

APC-3580 User Manual 2

Warning!___________________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordance with the instructions manual, it may cause interference to radio communications.

It has been tested and found to comply with the limits for a ClassAcomputing device pursuant to

FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Disclaimer

This information in this document is subject to change without notice. In no event shall Aplex Technology

Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or

misuse of information in this document or in any related materials.

Electric Shock Hazard – Do not operate the machine with its back cover removed. There are

dangerous high voltages inside.

APC-3580 User Manual 3

Table of Contents______________________

Warning!…………………………………………………………………………….……..….2

Disclaimer………………………………………………………………….…………………2

Chapter1 GettingStarted

1.1 Features…......…………….……………………………………..…..…...…5

1.2 Specifications………………………………………….………………...…..5

1.3 Brief Description of APC-3580/3581………...……………………………7

1.4 Chassis Dimensions..…………………………………………………..…..9

Chapter2 Installation

2.1 Unfastening of Back Cover……………………………………………..10

2.2 Removal of Back Cover..……………………….……………………....10

2.3 Opening of Back Cover..………………………………….…………….10

2.4 Unfastening of Inside Cover...……………………………………….....11

2.5 Removal of Inside Cover……………………………………….............11

2.6 Fastening of HDD………….…….…..……………………...………......11

2.7 Installation of HDD.….……………….…………………………..……...12

2.8 Connecting HDD Cable………………………………..…………….….12

Chapter 3 Mainboard

3.1 Specifications….…...…...……………………….………………...........13

3.2 Internal Periheral Connectors……………………………………….....17

3.3 External (Rear Panel) Connectors…………………….…….…….......32

3.4 Onboard Jumper …………………….…….…..……………..…….......36

Chapter4 AMIBIOSSetup

4.1 Introduction …………… ……………………………..……………………40

4.2 Main Menu……… ………..………………...…………………...…..41

4.3 Advanced Menu ……….……...……….………………………………….43

4.4 PCI PnP Menu………………………….………………………………….67

4.5 Boot Menu …………………………………………………………...........71

4.6 Security Menu. …………………………………………………………….74

4.7 Chipset Menu………………………………………………………………76

4.8 Power……………………………………………………………………….82

4.9 Exit……….………………………………………………………………….89

APC-3580 User Manual 4

Chapter5 Software

5.1 Available Software Drivers ...……………………………………………….91

5.2 Chipset Driver Installation ………………………………………………….91

5.3 RealTek Audio Driver Installation.………………………………………….94

5.4 Intel Graphics Media Accelerator Driver ………………………………….98

5.5 LAN Driver Installation……..………………………………………………101

5.6 SATA - ALi RAID Driver Installation.………………………………………103

Chapter6 TouchDriverInstallation

6.1 Windows 2000/XP Driver Installation for Controller Board.……….….113

6.2 Configuring PenMount Windows 2000/XP Driver……………………..117

6.3 Uninstall PenMount Windows 2000/XP Driver…………………………124

Appendix

A Watchdog Timer…………..….…………..….……………………...…...126

B Digital I/O…………………………….…………..………………............128

C Panel/VESA Mounting………………………………..…………………131

Figures

Figure 1.1: Front View ………………………………………………..…………7

Figure 1.2: Rear View……………………………………………………………8

Figure 1.3 System Layout……………………………………………………….8

Figure 1.4: Chassis Dimensions……………………………..…………………9

Figure 3.1: Board Layout….….………………..….…………….……………..15

Figure A: VESA Mounting…………………………………………………..131

APC-3580 User Manual 5

Chapter 1_____________________________

1.1 Features

zUltra slim stainless steel sealed enclosure

zFanless thermal solution

zIntel® Celeron® M ULV 800MHz CPU up to PentiumM 1.8GHz

z15” high-brightness (380nits) TFT LCD display

zNEMA 4/IP65 compliant front panel

zVESA 75 Mounting support

zSpace for one 2.5” HDD

zOptional resistive touch screen

zDC 11~28V wide range power input

1.2 Specifications

System

CPU:

Intel® Celeron® M ULV 800MHz CPU, Intel® Pentium M CPU Max. Up to 1.8GHz

Chipset:

Intel® 855GM+ICH4

System Memory:

1 x 200-pin DDR SODIMM

HDD Drive:

1 x 2.5” slim type

Watchdog:

1~255 secs watchdog timer w/reset and NMI

I/O Ports:

2 x COM, 2 x USB, 1 x 100 base-T LAN port, 1 x PS/2 keyboard and mouse port

VGA:

Built-in Intel 852GM

Compact Flash:

1 x compact flash connector

Touch Screen (optional) :

Resistive

Mechanical Specifications

APC-3580 User Manual 6

Construction:

APC-3580: Sealed stainless steel chassis, NEMA 4X/IP65 rated front panel

APC-3581: Sealed painting metal chassis, NEMA 4X/IP65 rated front panel

Mounting:

VESA 75 mounting holes

Operating Temperature:

0~50 degrees C

Storage Temperature:

-10~75 degrees C

Vibration:

5~17Hz, 0.1” double amplitude peak to peak

Shock:

10G acceleration peak to peak (11ms)

EMC:

FCC, CE Class A

Dimensions:

383(W) x 52(D) x 316mm(H)

Weight:

6.5kgs

APC-3580 User Manual 7

1.3 Brief Description of the APC-3580/3581

Out of the ordinary, the chassis of the APC-3580 is made of stainless steel with an ultra slim profile. It

is built around the Intel® Celeron® M processor with a clock rate of 600MHz yet it is fanless. The

model comes with a 15-inch high-brightness (380 nits) TFT LCD display, a NEMA 4/IP65 compliant

front panel, space for one 2.5-inch HDD, an optional resistive touch screen, a DC 11~28V wide range

power input. This industrial panel PC also features 2 COM ports (1 reserved for touch), 4 USB ports,

one 100 base-T LAN port, and 1 PS/2 keyboard and mouse ports. It is ideal for use as a PC-based

controller for Automotive, Logistic Process, Materials Handling, and Kiosk applications.

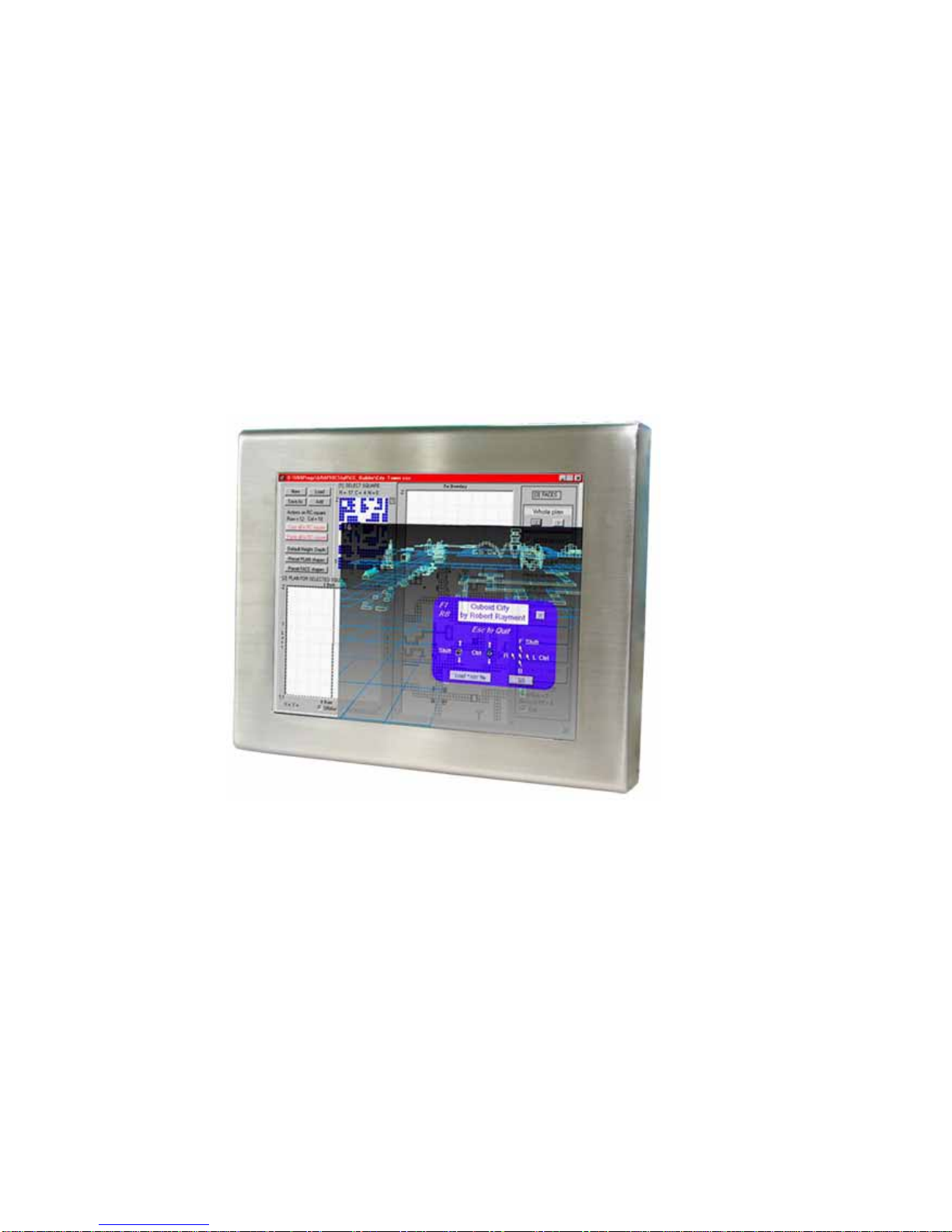

Figure 1.1: Front View of APC-3580/3581

APC-3580 User Manual 8

Figure 1.2: Rear View of APC-3580/3581

Figure 1.3: System Layout

APC-3580 User Manual 9

1.4 Chassis Dimensions

Figure 1.4: Dimensions of the APC-3580/3581

APC-3580 User Manual 10

Chapter 2_____________________________

2 Installation

2.1 Unfastening of Back Cover

First remove the back cover by loosening the

9 screws as circled in the picture.

2.2 Removal of Back Cover

To get the back cover opened up, slightly pull

it inward as shown in the picture with your

hands and lift it up slowly.

2.3 Opening of Back Cover

Please open, with care, the back cover at 45

degrees, making sure the cables inside the

enclosure are intact. If the back cover is

swiftly opened at 90 degrees, the cables

might be ripped apart. To totally remove the

back cover from the enclosure, disconnect

the three cables as circled.

Slightly pull

inward and lift

up to remove

Slightly pull

inward and lift

up to remove
