Aplex APC-3x84A Manuel utilisateur

APC-3x84A /APC-3x85AUser Manual

APC-3x84A/APC-3x85A

(SBC-7106)

User Manual

Release Date _ Revision

Oct. 2014V1.2

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw URL: www.aplex.com.tw

APC-3x84A /APC-3x85AUser Manual

Warning!___________________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordance with the instructions manual, it may cause interference to radio communications.

It has been tested and found to comply with the limits for a ClassA computing device pursuant to

FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Disclaimer

This information in this document is subject to change without notice. In no event shall Aplex

Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising

from either the use or misuse of information in this document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed. There are

dangerous high voltages inside.

APC-3x84A /APC-3x85AUser Manual

Packing List

Accessories (as ticked) included in this package are:

□AC power cable

□Driver & manual CD disc

□Other.___________________(please specify)

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆Avoid your system from static electricity on all occasions.

◆Prevent electric shock. Don‘t touch any components of this card when the card is

power-on. Always disconnect power when the system is not in use.

◆Disconnect power when you change any hardware devices. For instance, when you

connect a jumper or install any cards, a surge of power may damage the electronic

components or the whole system.

APC-3x84A /APC-3x85AUser Manual

Table of Contents______________________

Warning!…………………………………………………………………………….……..….2

Disclaimer………………………………………………………………….…………………2

Packing List…………………………………………………………………………………..3

Safety Precautions…………………………………………………………………………..3

Chapter 1 Getting Started

1.1 Features…………………………………………..….……………………..6

1.2 Specifications……………………………………………………………….6

1.3 Dimensions………………………………...………………………….......8

1.4 Brief Description of APC-3x84A/APC-3x85A…………………….………9

Chapter 2 Hardware

2.1 Mainboard………..………..…….……………………………………..…..11

2.2 Introduction..…….………………….……………………………………...14

2.3 Jumpers Setting and Connectors........................................................16

Chapter 3 BIOS Setup

3.1 Operations after POST Screen…........................................................22

3.2 BIOS Setup Utility…............................................................................23

3.3 Main Settings…..................................................................................24

3.4 Advanced Settings............................................................................. 25

3.5 Chipset Settings................................................................................. 31

3.6 Boot Settings...................................................................................... 35

3.7 Security Settings................................................................................ 38

3.8 Save and Exit Settings....................................................................... 39

Chapter 4 Installation of Drivers

4.1 Intel Chipset Driver.…………………………...…………………..………42

4.2 Intel Graphics Media Accelerator Driver...………………………..……..45

4.3 Intel (R) Network Adapter……..………………………………………….48

4.4 Realtek ALC662 HD Audio Driver Installation…….………….…………50

APC-3x84A /APC-3x85AUser Manual

Chapter 5 Touch Screen Installation

5.1 Windows 2000/XP USB Driver Installation for PenMount 6000Series.52

5.2 Software Functions..............................................................................56

Figures

Figure 1.1: Dimensions of APC-3284A/APC-3285A……...……………..…....8

Figure 1.2: Dimensions of 3584A/APC-3585A…………………………..…....8

Figure 1.3: Front View of APC-3X84A…………..……………………………...9

Figure 1.4: Rear View of APC-3X84A…………..……….……………………..9

Figure 1.5: Front View of APC-3X85A………………….……………………..10

Figure 1.6: Rear View of APC-3X85A…………………………………………10

Figure 2.1: Mainboard Dimensions…………………………………..…….....13

Figure 2.2: Jumpers and Connectors Location_ Board Top………………...14

Figure 2.3: Jumpers and Connectors Location_ Board Bottom…………....15

APC-3x84A /APC-3x85AUser Manual

Chapter 1 Getting Started

1.1 Features

Fanless Design

Intel® Atom D2550 1.8G Processor

Onboard 2GB DDR3 800 MHz

11~32V DC wide-ranging power input

5 sides IP 65

5-Wire Resistive Touch Screen

1.2 Specifications

APC-3284A/85A

APC-3584A/85A

System

CPU

Intel ® Atom Processor D2550 1.8G

Motherboard

SBC-7106

System Chipset

Intel NM10 Express

System Memory

Onboard DDR3 2GB (Default) , option 4G

IO Port

USB

4 x USB 2.0 type A

Serial/Parallel

1 x RS-232/422/485 selectable default RS-485 DB9

1 x RS-232 DB9

1 x RS-422/485 selectable default RS-485 DB9

Audio

1 x MIC, Line-out, Line-in phone jack

LAN

2 x GbE RJ-45

Power

1 x 3 pin terminal block connector

1 x Power switch

Storage Space

HDD

1 x 2.5” SATA 2

Movable device

1 x Internal SD slot

Expansion

On board

expansion bus

1 x Mini PCIe half size

Display

Display Type

12.1” TFT-LCD

15” TFT-LCD

APC-3x84A /APC-3x85AUser Manual

Max. Resolution

800x600

1024x768

Max. Color

262K

16M

Luminance

(cd/m²)

330

400

View

angle(H°/V°)

160/140

160/145

Contrast

800:1

Backlight

lifetime(hrs)

50000

Touch screen

Type

Resistive Touch

Interface

Default RS-232

Light

Transmission(%)

80%

Power

Power Input

11~32V DC

Mechanical

Construction

Stainless steel (APC-3x84A)

Steel/Black (APC-3x85A)

IP Rating

5 sides IP65

Mounting

VESA 75 x 75

Dimension

(mm)

330 x 260 x 51

398 x 316 x 51.8

Net Weight

(Kgs)

4.3(APC-3284A)

4(APC-3285A)

6.9(APC-3584A)

6.5(APC-3585A)

Environmental

Operating

temperature(°C)

0~50℃(with HDD)

-20~60℃(with Industrial SSD)

Storage

temperature(°C)

-30~70

Storage

humidity

10 to 90% @ 40°C, non- condensing

Certification

CE / FCC Class A

Operating

System

Support

Microsoft Windows 7 pro for embedded, Windows embedded standard 7

APC-3x84A /APC-3x85AUser Manual

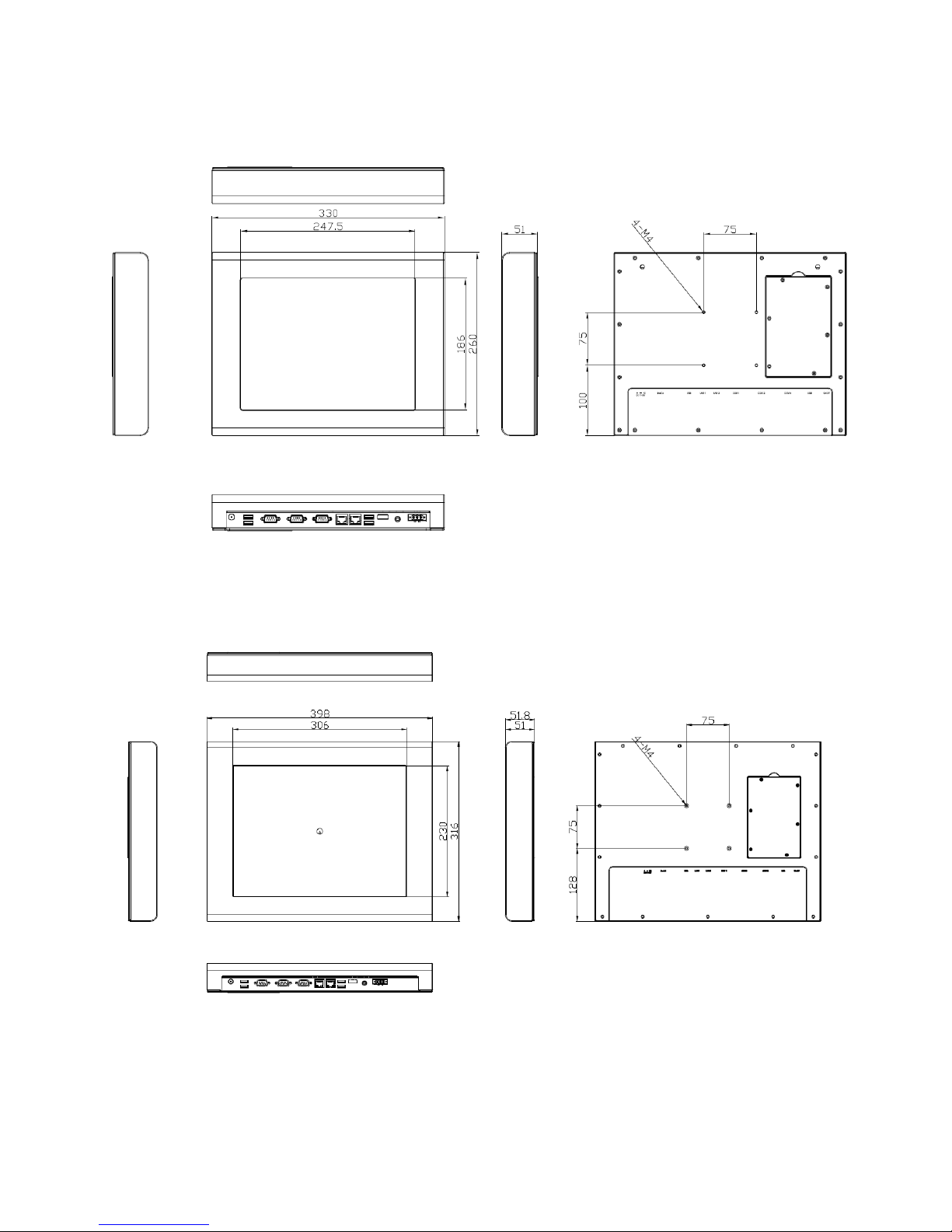

1.3 Dimensions

Figure 1.1: Dimensions of APC-3284A/APC-3285A

Figure 1.2: Dimensions of APC-3584A/APC-3585A

APC-3x84A /APC-3x85AUser Manual

1.4 Brief Description of APC-3x84A/APC-3x85A

The APC-3x84A/APC-3X85A is the fanless and low power consumption panel-mount industrial panel

pc with 12”/15” TFT LCD. It powered by Intel ® Atom Processor D2550 1.8G. The panel PC comes with a

rich variety of functions and peripherals. It comes with 1 x 2.5-inch hard disk drive and 1 x Internal SD

slot for data storage , support DDR3 2GB 800 MHz (for 12.1” and 15”), support rich I/O, wide range

11~32V DC input, it can ensure simplified connectivity to a variety of external peripheral devices. The

OS supports Microsoft Windows 7 pro for embedded, Windows embedded standard 7. The unit deal for a

wide range of applications for food/chemical industry, medical, restaurant/kitchen applications,

storage management and information segment and so on.

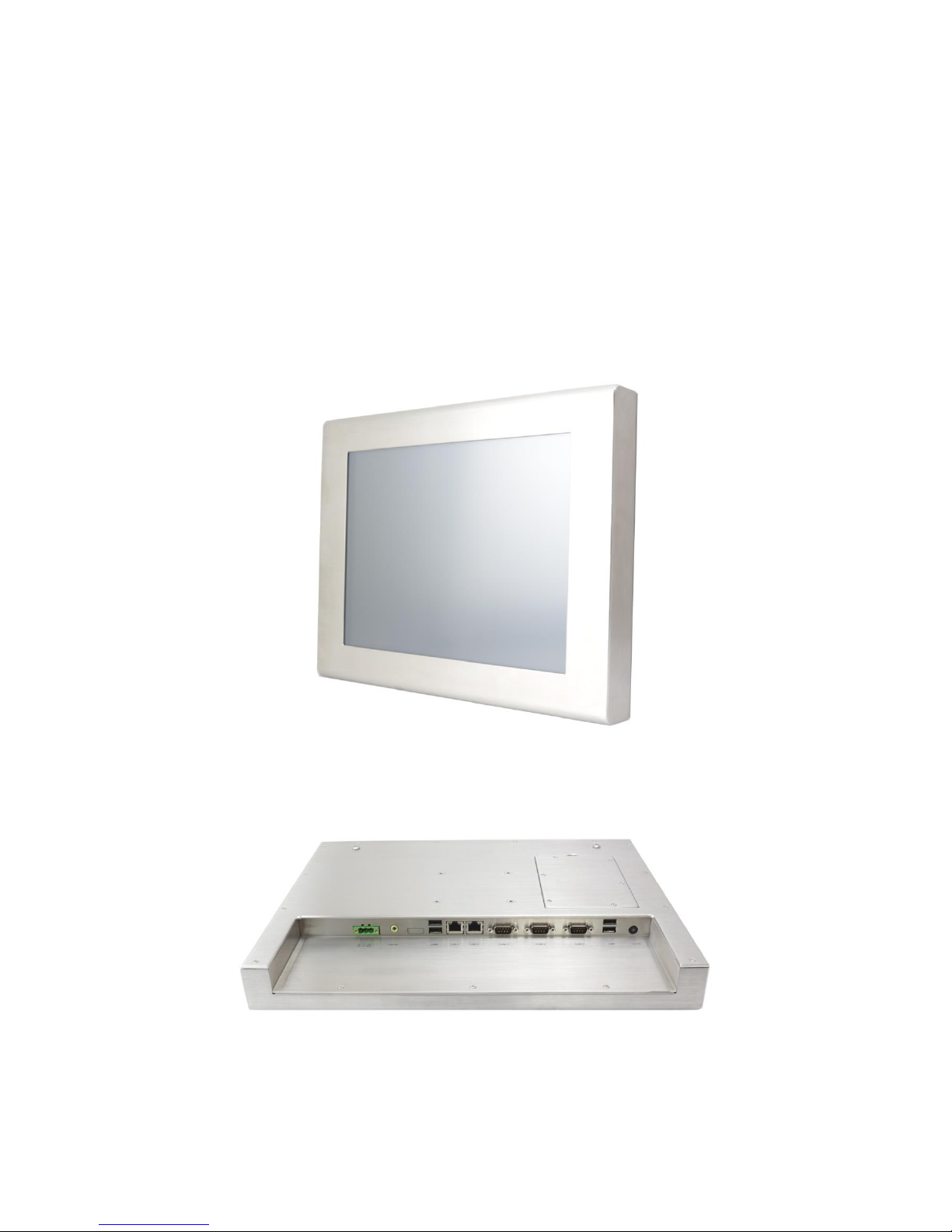

Figure 1.3: Front View of APC-3X84A

Figure 1.4: Rear View of APC-3X84A

APC-3x84A /APC-3x85AUser Manual

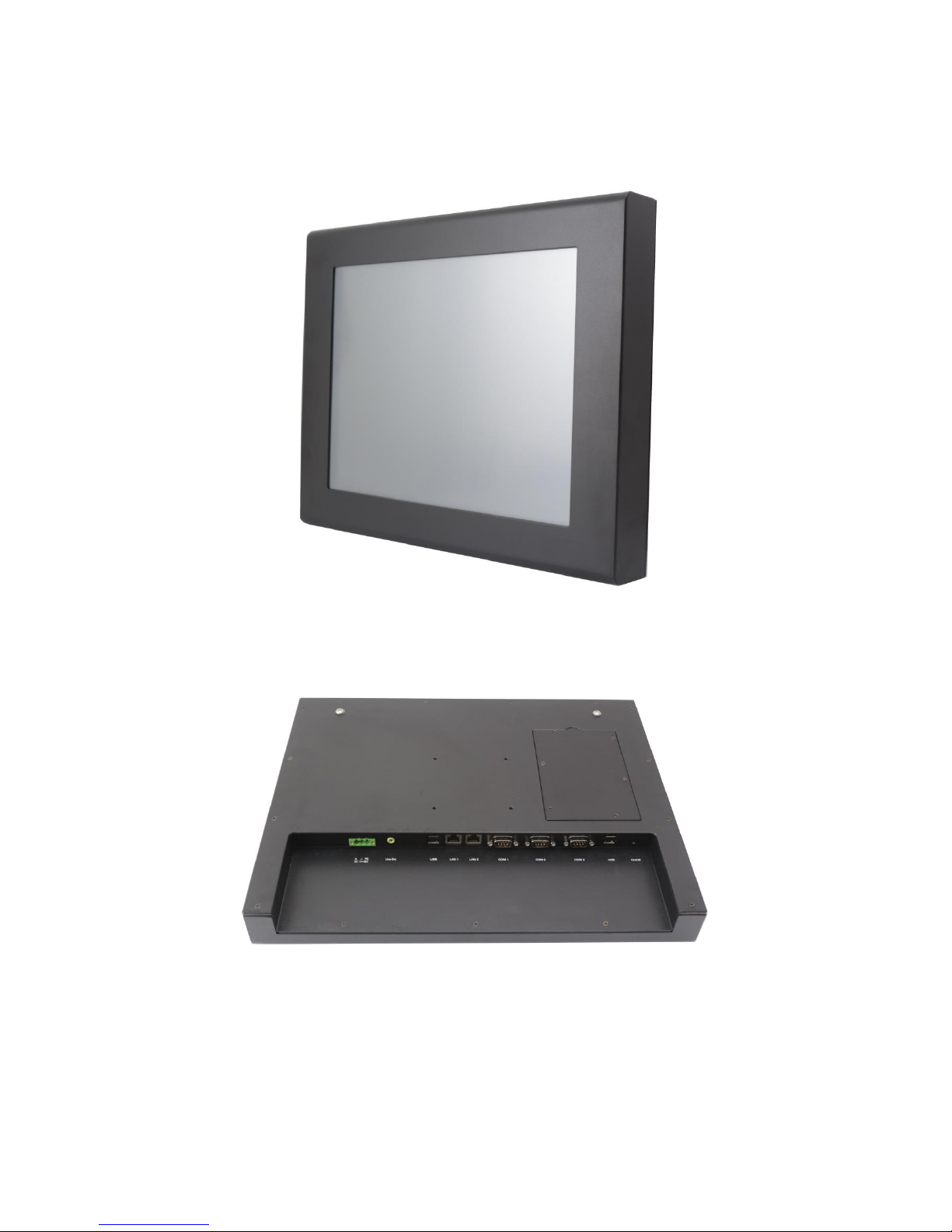

Figure 1.5: Front View of APC-3X85A

Figure 1.6: Rear View of APC-3X85A
