Aplex ADP-1224A Manuel utilisateur

ADP-1224A User Manual

ADP-1224A Display

User Manual

Revision

Date

Version

Remark

Aug. 2012

V1.0

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: [email protected] URL: www.aplex.com.tw

ADP-1224A User Manual

Warning!___________________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordance with the instructions manual, it may cause interference to radio communications.

It has been tested and found to comply with the limits for a ClassA computing device pursuant to

FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a residential area is likely

to cause interference in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Disclaimer

This information in this document is subject to change without notice. In no event shall Aplex Technology

Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or

misuse of information in this document or in any related materials.

Electric Shock Hazard –Do not operate the machine with its back cover removed. There are

dangerous high voltages inside.

ADP-1224A User Manual

Table of Contents______________________

Warning!…………………………………………………………………………….……..….2

Disclaimer………………………………………………………………….…………………2

Chapter 1 Getting Started

1.1 Specifications…………………………………………....……………...….5

1.2 Dimensions…………………………………...………………………….…6

1.3 Brief Description...................................................................................7

1.4 Display Mode……………………………………………………………….8

Chapter 2 OSD

2.1 Front Panel Controls………………………………………………...……9

2.2 OSD Controls…………………..…………………………………………..10

2.3 Main Menu…..………..……………………………………………………..11

2.4 AD Board (VA-3600) OSD Functions…….………………………………13

Chapter 3 Control Board

3.1 Introduction to PenMount Control Board………………………………..14

3.2 Features…………………………………………………………………….15

3.3 Electrical Specifications…………………………………………………...15

3.4 Installation of Control Board……………………………………………...16

Chapter 4 Installation

4.1 Windows 2000/XP Driver Installation…………………………………….17

4.2 Configuring PenMount Windows 2000/XP Driver………………………21

4.3 Uninstall PenMount Windows 2000/XP Driver………………………….31

Chapter 5 Software

5.1 Software Functions………………………………………………………..32

5.2 Software Function Descriptions……………………………………….…33

ADP-1224A User Manual

Appendix A: Board Description & Specifications………………….40

Appendix B: Controller IC Specifications………………………………41

Figures

Figure 1.1: Dimensions of ADP-1224A….……………………………………..6

Figure 1.2: Front View of ADP-1224A………………………………………….7

Figure 1.3: Rear View of ADP-1224A………………………………………….7

Figure 3.1: Bird Eye’s View of Control Board………………………………14

Figure 3.2: Mechanical Drawing of Control Board…………………………14

ADP-1224A User Manual

Chapter 1_____________________________

1.1 Specifications

Model No.

Specs

ADP-1224A

LCD

Display Type

21.5” TFT- LCD

Max. Resolution

1920x1080

Max. Color

16.7M

Luminance (cd/m2)

400

ViewAngle

H:170°/ V:160°

Backlight Lifetime

40,000 hrs

System

On Screen Display Control

On the front side

External I/O Port

Default:

VGA Input

AC 100-240V input

Optional:

DVI

Video

S-Video

Touch I/O

3 Pin terminal block DC11~32V input

Touch Screen

Type

Optional Resistive Type

Light Transmission

80%

Power Supply

Power Input

AC 100-240V input, Optional for DC 11~32V

Mechanical

Construction

Steel Housing

IP Rating

Front Panel IP65

Mounting

VESA 100x100 Mount

Dimensions (WxHxD)

557(W)x362(H)x68(D) mm

Environmental

Operating Temperature

0~50 °C

Storage Temperature

-20~60 °C

Storage Humidity

10~90% @40 ﾟC non-condensing

Certificate

Meet CE/FCC Class A

ADP-1224A User Manual

1.2 Dimensions

Figure 1.1: Dimensions of the ADP-1224A

ADP-1224A User Manual

1.3 Brief Description of the ADP-1224A

The ADP-1224A is a 21.5" TFT LCD Display that comes with viewing angle of 170 (H)

degrees and 160 (V) degrees, and more outstanding features, thus giving you the best

in monitoring and control applications.

The front panel of the display is sealed IP65 rating when it is VESA-mounted in a NEMA

rated cabinet or enclosure. It is optional to be equipped with a resistive touch screen.

Figure 1.2: Front View of the ADP-1224A

Figure 1.3: Rear View of the ADP-1224A

ADP-1224A User Manual

1.4 Display Mode

Display Mode

Hori. Sync (KHz)

Vert. Sync. (Hz)

VGA 640 x 480

SVGA 800 x 600

XGA 1024 x 768

SXGA

1152 x 864

1280 x 1024

Full HD 1920 x 1080

ADP-1224A User Manual

Chapter 2_____________________________

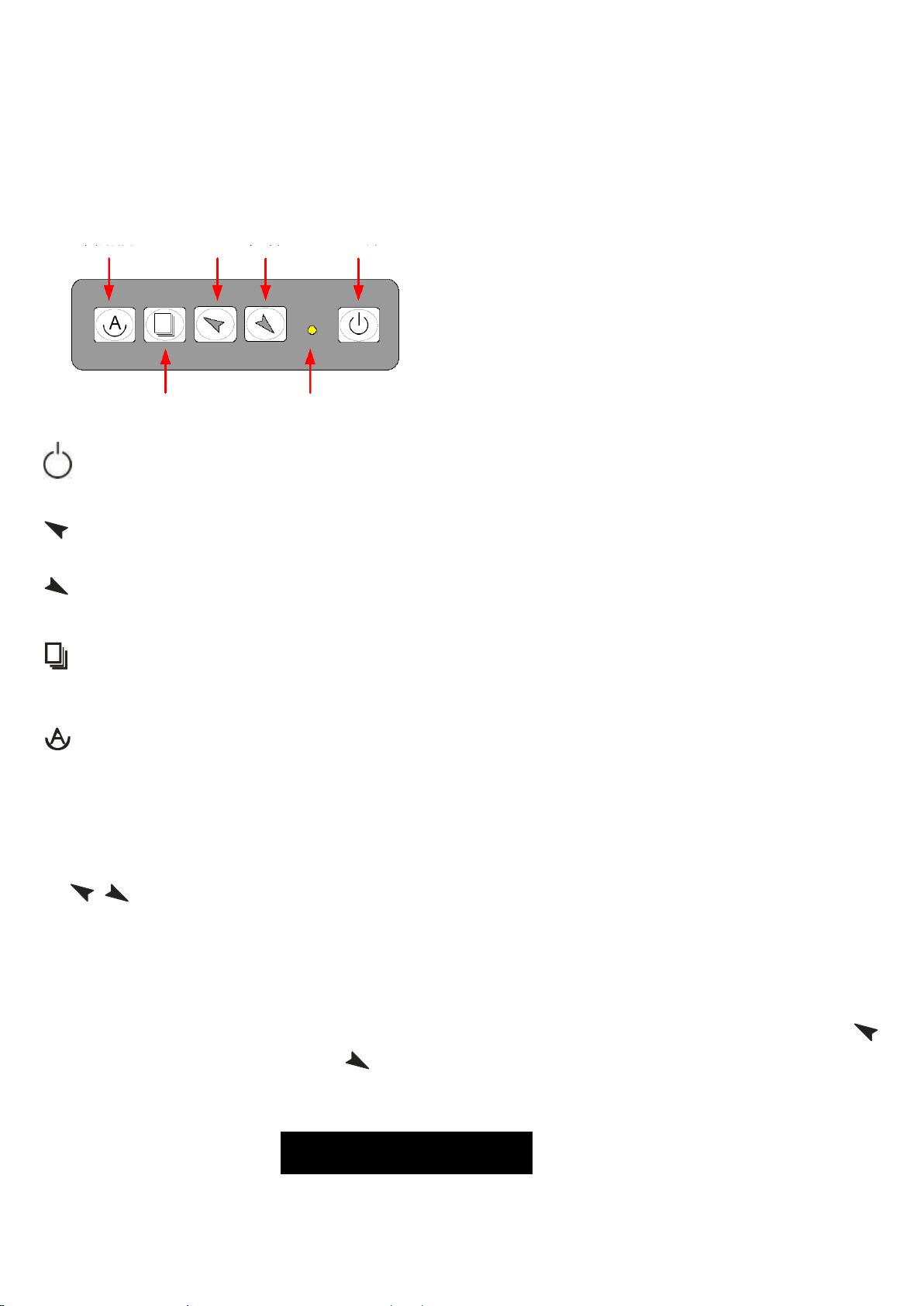

2.1 Front Panel OSD Functions

Auto Adjust Up/Left Down/Right Power

Menu/Entry Power Indicator

Power switch: To turn ON or OFF the power

Shift the icon to the right side or shift it up

Shift the icon to the left side or shift it down

Menu: To enter OSD menu for related icon and item.

Auto Button: One-touch auto adjustment

1.) Getting into Burn-in Mode

Before setting into a burn-in mode, first disconnect the AC power cord. Then press (don’t let them go)

the buttons until the AC power cord is connected and the “RGB” appears on the top left corner

of your screen. Now it can be put into the burn-in mode for changing colors.

2.) Getting Out of Burn-in Mode

Before getting out of the burn-in mode, please first disconnect the AC power cord. Then press the

button (If not workable, press the button and don’t let them go) until the AC power cord is

connected. Please don’t let your fingers go until the AC power cord is connected again and the

wording of “RGB”appears on the top left corner of your screen, and wait for 3 seconds. Under the

non-signal entry situation, if is seen, exit is thus successfully made.

Cable Not Connected

ADP-1224A User Manual

2.2 OSD Controls

To make any adjustment, select the following:

1. Press (Menu) to show the OSD menu or disable the OSD menu.

2. Select the icon that you wish to adjust with the ( / or +/-) key in the menu.

3. Press (Menu) and then choose the item with the ( / or +/-) key.

4. Press (Menu) and then adjust the quality with the ( / or +/-) key.

1.) If the “RGB”is still on the top left corner of the screen, press to enter “Miscellaneous”and

choose “Reset”, and then Yes, and press . When the screen goes black, disconnect power

and repeat the above steps.

2.) If the “RGB”is not found, disconnect the AC power cord first. Then press the buttons

(don’t let them go) until the AC power cord is connected, and wait for 2 to 3 seconds. When

“RGB”appears, repeat the above steps.

3.) Functions of OSD Keys
