AOpen MX4BS Fiche technique

MIC-In

Line-In

Speaker-Out

CPU Fan

PS/2 Keyboard

Connector USB Port

SPP/EPP/ECP

Parallel Port

COM 1 Connector COM2 Connector

MIDI/Game Port

PC99 Colored Back Panel

Low ESR Capacitors

RJ-45 LAN Connector

(Optional)

System Fan Connector

4-pin 12V ATX Power Connector

TX Power Connecto

Intel®845 Chipset

168-pin DIMM Socket x3 supports

maximum memory size up to 3GB

FDD Connecto

TA/33/66/100 IDE Connector x2

MODEM-CN Connecto

478-pin CPU Socket with

Frequency/Voltage Auto-detection that

supports Intel®Pentium®4

1.3GHz~2.4GHz+ CPU

CD-IN Connecto

IrDA Connecto

32-bit PCI Expansion Slot x3

AGP 4x Expansion Slot

Front Panel Audio Connecto

2nd USB Connecto

JP14 CMOS Clear Jumpe

Front Panel Connecto

2M/4Mbit Flash ROM BIOS

Chassis Fan Connecto

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look for a

(golden) cut edge on the CPU upper interface.

Match Pin 1 and cut edge. Then insert the

CPU into the socket.

3. Press down the CPU socket lever and finish

CPU installation.

Pin 1

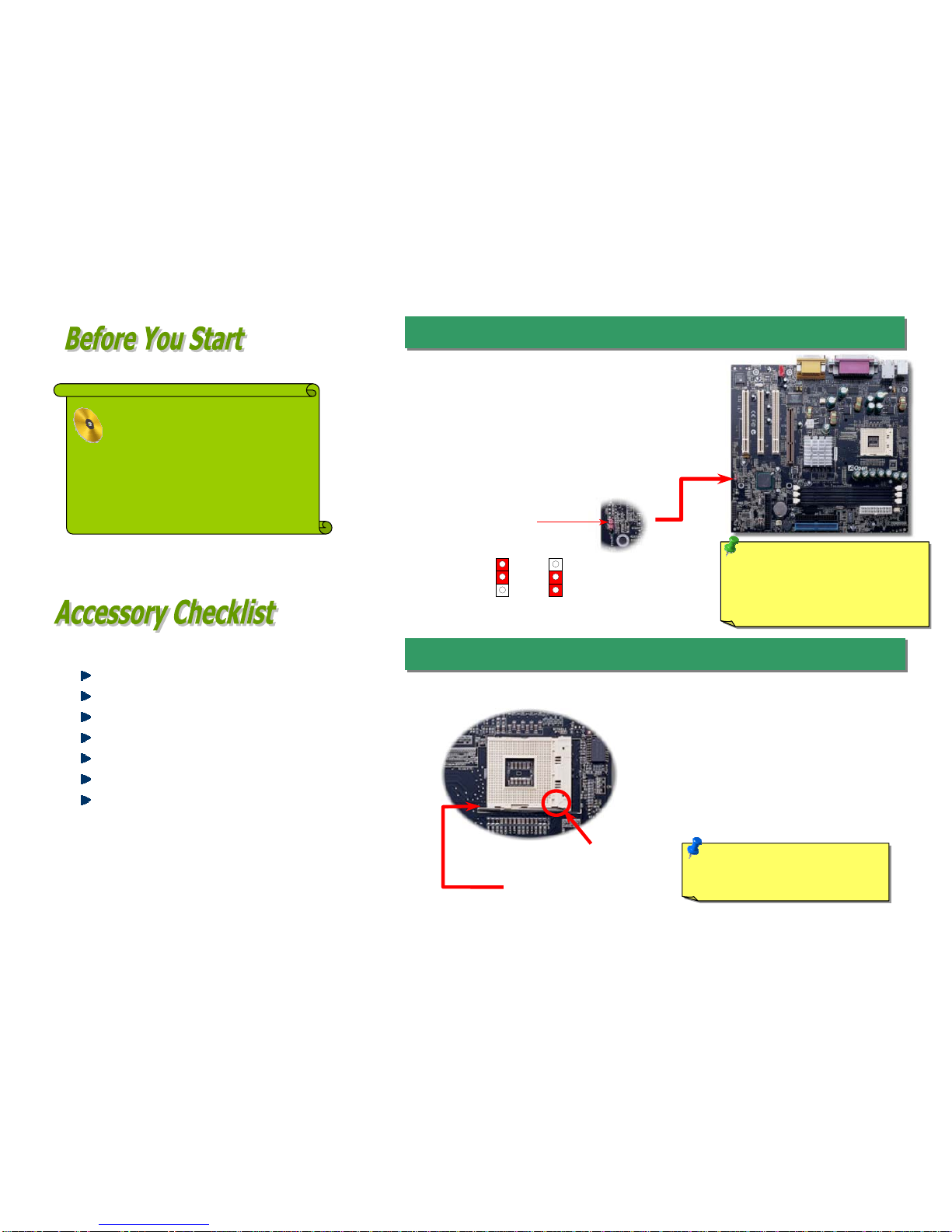

1. JP14 Clear CMOS

2. Installing CPU

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD Disc. Thanks for

the help of saving our earth.

PART NO: 49.37P02.031 DOC. NO: MX4BS-EG-E0108B

Motherboard x 1

40-Wire IDE Cable x 1

80-Wire IDE Cable x 1

Floppy Drive Cable x 1

Bonus Pack CD x 1

This Easy Installation Guide x 1

Retention Module

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin1 & pin2.

5. Connect ATX power cable back to connector PWR2.

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

CPU socket lever

CPU Pin 1 and cut edge Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well,

you may damage the CPU.

Normal

(

default

)

Clear CMOS

Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan,

you can also plug it on FAN2 or FAN3 connector (FAN3 doesn’t have H/W monitoring).

GND +12V NC

This motherboard comes with a retention module attached on the CPU socket when

shipped; we strongly recommend you to install AOpen special designed CPU Fan as

shown below on the retention module for better heat ventilation.

5. Setting CPU Voltage & Frequency

4. Installing CPU & Housing Fan

3. CPU Fan Installation

Note: Some CPU fans do not have

sensor pin, so that they cannot

ort fan monitorin

CPU Fan Connector

FAN2 Connector

Tip: If your system hangs or fails to boot because

of overclocking, simply use <Home> key to restore

the default settin

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automatically

detected and the range is from 1.10V to 1.85V. It is not necessary to set CPU Core

Voltage.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through the

BIOS setup, and no jumpers or switches are needed.

Core Frequency = CPU FSB Clock * CPU Ratio

CPU Ratio 8x, 9x, 10x, …….22x, 23x, 24x

CPU FSB 100~180MHz

CPU CPU Core Frequency FSB Clock Ratio

Pentium 4 1.3G 1.3GHz 100MHz 13x

Pentium 4 1.4G 1.4HGz 100MHz 14x

Pentium 4 1.5G 1.5GHz 100MHz 15x

Pentium 4 1.6G 1.6GHz 100MHz 16x

Pentium 4 1.7G 1.7GHz 100MHz 17x

Pentium 4 1.8G 1.8GHz 100MHz 18x

Pentium 4 1.9G 1.9GHz 100MHz 19x

Pentium 4 2.0G 2.0GHz 100MHz 20x

Pentium 4 2.2G 2.2GHz 100MHz 22x

Pentium 4 2.4G 2.4GHz 100MHz 24x

Warning: Intel® 845 chipset supports maximum

400MHz system bus (100MHz * 4) and 66MHz AGP

clock. Higher clock setting may cause serious

system damage.

FAN3 Connector

GNDSENSOR +12V

1. Gently put the CPU fan down on

the retention module with clips

aligning correctly to the four

corners.

2. Pressing down four clips one by

one to securely install the CPU fan.

Pin 1

Primary

Master

(

1st

)

Primary

Slave

(

2nd

)

7. Front Audio Connector

6. IrDA Connector 8. Connecting IDE and Floppy Cables

9. Connecting Front Panel Cable

The IrDA connector can be configured to support wireless infrared module. This

connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from

BIOS Setup, UART2 Mode, make sure to have the correct orientation when you plug in

the IrDA connector.

If the housing has been design with an audio port on the front panel, you’ll be able to

connect onboard audio to front panel through this connector. By the way, please remove

the jumper cap from the Front Panel Audio Connector before you connect the cable. Do

not remove this yellow jumper cap if housing without an audio port on the front panel.

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD and IDE

connector. The blue connector is IDE1 for clear identification. Be careful of the pin1

orientation. Wrong orientation may cause system damage.

ttach the power LED, speaker, and reset switch connectors

to the corresponding pins. If you enable “Suspend Mode”

item in BIOS Setup, the ACPI & Power LED will keep

flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is

2-pin female connector from the housing front panel. Plug

this connector to the soft-power switch connector marked

SPWR.

ATA 33/66/100 IDE

Connector

Pin 1

Secondary

(

)

Secondary

Master

(

3rd

)

Pin 1

+5V

IR_T

GND

IR_RX

Pin 1

UD_FPOUT_L

HP_ON

AUD_RET_

AUD_VCC

AUD_GND 2

AUD_MIC

AUD_MIC_BIAS

AUD_FPOUT_R

KEY

RET

SPEAKER

GND

+5V

IDE LED

+5V

GND

RESET

GND

ACPILED+

GND

ACPILED-

GND

SPW

SPEAKER

IDE LED

Power Switch

ACPI & Power LED

RESET

The ATX power supply uses 20-pin connector shown below. Make sure you plug in the

right direction. We strongly recommend you to connect the 4-pin 12V ATX connecto

before connectin

the 20-

in ATX

ower connector.

12. Connecting CD / MODEM Connector

13. Installing LAN Driver (Optional)

10. Connecting ATX Power Connector

11. Support 2nd USB Port

This motherboard supports four USB ports. Two of them are on back panel connector,

the other two are on the left side of this motherboard. With proper cable, you can

connect them to front panel.

The CD-IN connector is used to connect CD Audio

cable from CDROM or DVD drive to onboard sound.

The MODEM-CN connector is used to connect

Mono In/ Mic Out cable from internal modem card to

onboard sound circuit.

MODEM-CN (Red)

Connector Pin1 Pin2 Pin3 Pin4

CD-IN Left GND GND Right

MODEM-CN Mono In GND GND Mic Out

Pin 1

CD-IN

(Black)

GND

SBD3+

SBD3-

+5V

KEY

GND

SBD2+

SBD2-

+5V

2 1

10 9

+5V

+3.3V

COM

COM COM

COM

COM COM

-5V

COM

-12V

PS-ON

PW-OK

+12V

5VSB

12V GND

3 1

The South Bridge in Intel 845 (Brookdale) chipset integrates a total communication solution

including 10/100Mb Fast Ethernet for Office requirement. You can install LAN Driver under

Windows95/98, WindowsNT & Windows2000 by following steps.

Manually Adding an Adapter in Windows 95 / 98

=====================================

LOCATION OF DRIVER: \Driver\Lan\E100BNT5.SYS (NDIS 5.0)

LOCATION OF SETUP FILE: \Driver\Lan\NET82557.INF

1. From the Control Panel, double-click the “Add Hardware” icon.

2. Double-click Other Devices or Network Adapters in the list area.

3. Double-click a PCI Ethernet Controller.

4. Click the Driver tab, then click Update Driver.

5. Click Next at the Update Device Driver Wizard.

6. Select "Display a list of all the drivers..." and click Next.

7. Insert the AOpen Bonus CD and click Have Disk.

8. Enter the appropriate drive for your disk media

(for example: D:\) ,and click OK.

9. Click OK at the Select Device dialog box.

10. The Update Wizard displays the message that it has found

the driver. Click Next.

11. Click Finish and restart your computer when prompted.

fter you finish the setting of jumpers and connect correct cables. Power on

and enter the BIOS Setup, press <Del> during POST (Power On Self Test).

Choose "Load Setup Defaults" for recommended optimal performance.

http://210.63.73.14/tech/download/manual/mb/k7.htm

14. Power-on and Load BIOS Setup

15. AOpen Bonus Pack CD 17. BIOS Upgrade

Open Easy Flash is a user-friendly flash method. The BIOS binary file and flash routine

are combined together and you simply run a single file to complete the flash process.

1. Download new BIOS upgrade zipped file from AOpen's web site. For example,

MX4BS102.ZIP.

2. Run shareware PKUNZIP (http://www.pkware.com) which supports

miscellaneous operation systems to extract the binary BIOS file and the flash

utility. Or Winzip (http://www.winzip.com/) in Windows environment.

3. Save the unzipped file into a bootable floppy disk.

For example, MX4BS102.BIN & MX4BS102.EXE

4. Reboot the system to DOS mode without loading any memory handler (such as

EMM386) or device driver. It needs around 520K free memory.

5. Execute A:> MX4BS102 and the program will do the rest of it.

DO NOT turn off the power during FLASH PROCESS until you are asked to!!

6. Reboot system and press <Del> to enter BIOS Setup, Choose "Load Setup

Defaults", then “Save & Exit Setup” and finish the BIOS upgrade.

Warning: The upgrade of new BIOS will permanently replace your original BIOS

content after flashing. The original BIOS setting and Win95/Win98 PnP information

will be refreshed and you probably need to re-configure your system.

16. Installing Onboard Sound Driver

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select

model name.

Del

Warning: Please avoid of using "Load

Turbo Defaults", unless you are sure

your system components (CPU, DRAM,

HDD, etc.) are good enough for turbo

settin

This motherboard comes with RealTek ALC201 chip, you can find the audio driver from

the Bonus Pack CD disc auto-run menu.

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on ISA/CPU slot or on component side of PCB.

For example:

Model name and BIOS version

MX4BS R1.00 July. 01. 2001 AOpen Inc.

ward Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

MX4BS is the model name of motherboard; R1.00 is BIOS version

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com.tw/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com.tw/tech/download/default.htm

News Group: Your problem probably had been answered by our support

engineer or professional users on the news group.

http://www.aopen.com.tw/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem more efficien n important reference for

you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com.tw/tech/contact/techusa.htm

Japanese http://aojp.aopen.com.tw/tech/contact/techjp.htm

Chinese http://w3.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

French http://aofr.aopen.com.tw/tech/contact/techfr.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Pacific Rim

Open Inc.

Tel: 886-2-2696-1333

Fax: 886-2-8691-2233

merica

Open America Inc.

Tel: 1-510-498-8928

Fax: 1-408-922-2935, 1-408-432-0496

Europe

Open Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

Open Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

China

艾尔鹏国际上海(股)

有限公司

Tel: 49-2102-157700

Fax: 49-2102-157799

Autres manuels pour MX4BS

Table des matières

Autres manuels AOpen Carte mère

AOpen

AOpen AK79D-400VN Fiche technique

AOpen

AOpen AK77-8X Guide de configuration

AOpen

AOpen MK77M-V Manuel utilisateur

AOpen

AOpen AK79G MAX Manuel utilisateur

AOpen

AOpen MX46U2-GN Manuel utilisateur

AOpen

AOpen i915Ga-E Manuel utilisateur

AOpen

AOpen AX3S-1394 Guide de configuration

AOpen

AOpen MX36LE-UI Guide de configuration

AOpen

AOpen Fortress 7000 Manuel utilisateur

AOpen

AOpen AK89 MAX Manuel utilisateur

AOpen

AOpen DXPN-U Fiche technique

AOpen

AOpen MX46U2-VN Guide de configuration

AOpen

AOpen AX37 PRO Guide de configuration

AOpen

AOpen AX37D Pro Guide de configuration

AOpen

AOpen AX4B-533 Tube Guide de configuration

AOpen

AOpen Fortress 1100 Fiche technique

AOpen

AOpen AX4SPE Max II Guide de configuration

AOpen

AOpen MK77 Manuel utilisateur

AOpen

AOpen AX4L Guide de configuration

AOpen

AOpen AX45H-8X Max Guide de configuration

AOpen

AOpen AX47 Fiche technique

AOpen

AOpen AK77-600GN Fiche technique

AOpen

AOpen AX4SG-GN Fiche technique

AOpen

AOpen AX45H-8X Max Guide de configuration

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
